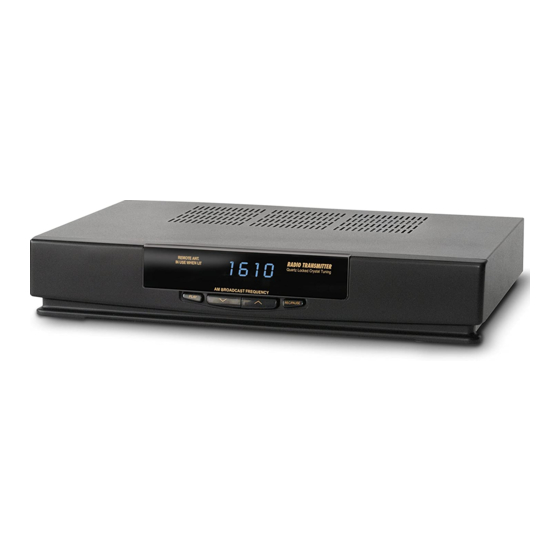

Talking House Transmitter Instruction Manual

Hide thumbs

Advertisement

Quick Links

INSTRUCTIONS
manual
Agent's Business Card

Advertisement

loading

Related Manuals for Talking House Transmitter

Summary of Contents for Talking House Transmitter

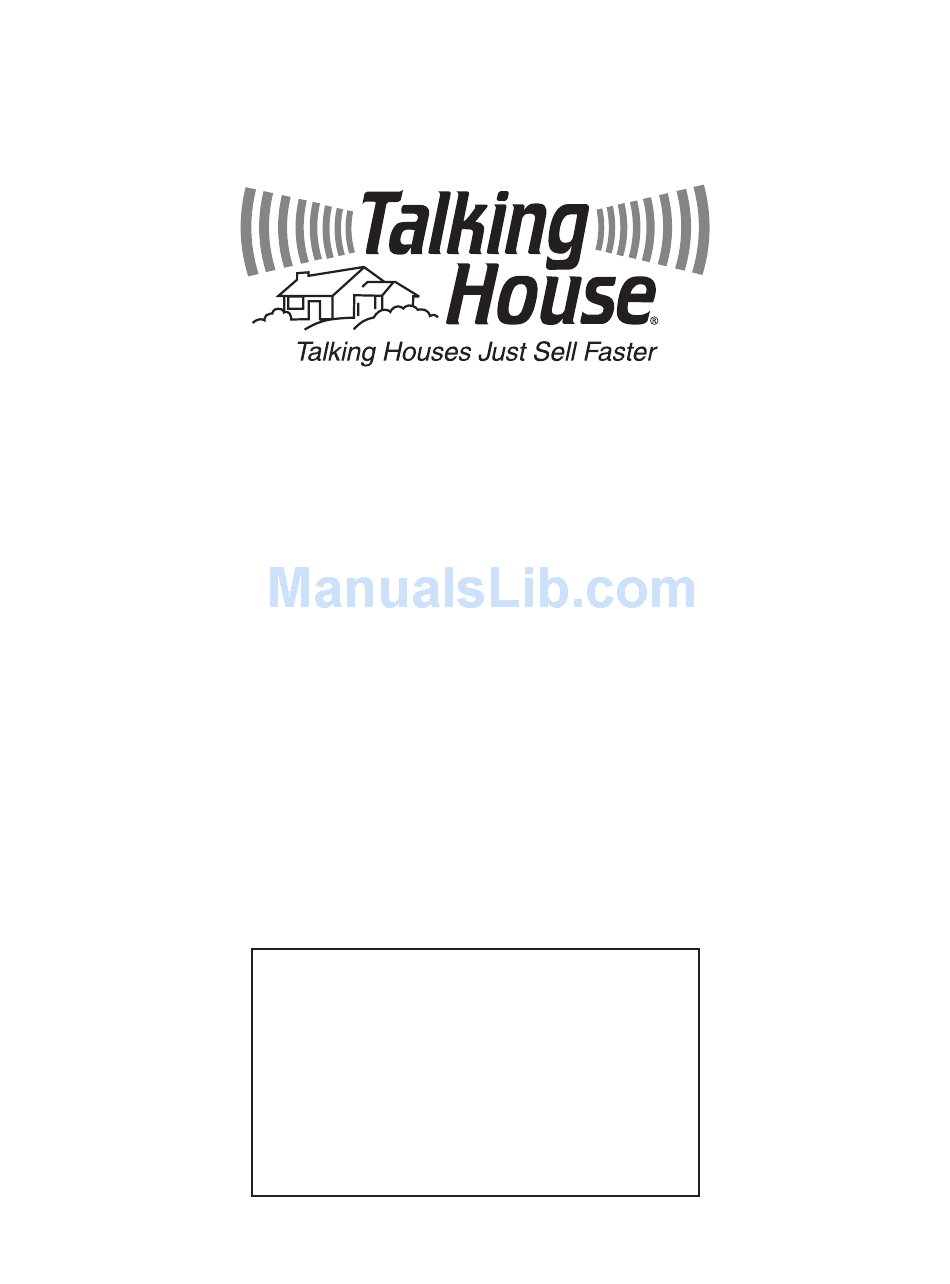

  • Page 1 INSTRUCTIONS manual Agent’s Business Card...

  • Page 2: Table Of Contents

    Table of contents Page(s) Quick Start............. . 3 Controls and Specifications .

  • Page 3: Quick Start

    Quick Start This Quick Start contains the basic steps necessary to set up and operate your Talking House Transmitter. Please read the detailed procedures in this Manual for complete instructions. Now, press and hold the Record/Pause button on the Front Panel until you see the countdown begin on the Front Display.

  • Page 4: Controls And Specifications

    Message Chip. Technical Specifications Controls and Connections The Talking House Transmitter conforms to the following technical specifications: a. Back-up Microphone — Under vents on top of Transmitter. • Frequency Choices: 520 to 1700 AM b. Frequency Display Panel — Indicates the frequency while broadcasting, •...

  • Page 5: Recording Your Message

    Plan out your message. Make sure the Control Lock Key is inserted in the Control Lock located on the back of the Transmitter. Make sure the Two-Part Message Switch located on the back panel is switched to the Part 1 Message position.

  • Page 6: Choosing The Best Frequency

    You must faithfully execute an Outdoor Frequency Test which is described in detail on the next page. The Transmitter can be set to any available AM frequency using the up & down buttons on the front panel. There are 117 choices. We have found that it is best to start at 1700 and go down because there are only a few commercial stations assigned to frequencies between 1600 and 1700.
  • Page 7 Be sure not to let the Transmitter fall out of the window. (Perhaps close the window on the Transmitter to hold it in place.) You are doing this to get the antenna wire completely outside the house in order to eliminate the interference from the construction materials of the house itself.

  • Page 8: Best Placement Inside A Location

    The garage is often a good alternative, too, if you put it high up on a shelf. Because of the problems with glass, never put a Transmitter directly in front of a window. You’ll want to choose a location where the basic antenna will remain undisturbed as it should not be moved or touched after it is positioned.
  • Page 9 Stucco Homes—AM radio signals also have a problem going through stucco. The best solution for stucco homes is, first, try to get the Transmitter and antenna as high as you can in the home. This way the signal can usually go out the roof.

  • Page 10: Setting Up The Yard Signs

    SEtting up the YARD signs The Talking House yard sign tells people to “tune in”. Without proper placement of the sign, listeners won’t know you have a message to be heard and all of your efforts will have been wasted.

  • Page 11: Troubleshooting

    5 If the problem still occurs, unplug the unit, grab hold of the tip of the antenna wire and roll it up around your hand. As you get closer to the transmitter and run out of room, place the antenna down in an area next to the transmitter.
  • Page 12 Therefore, if you cannot seem to get good reception when the frequency appears to be “open” and available to broadcast on, try a different vehicle. It is possible that the Transmitter and the selected frequency is working fine, but the test vehicle radio has a poor AM receiver.
