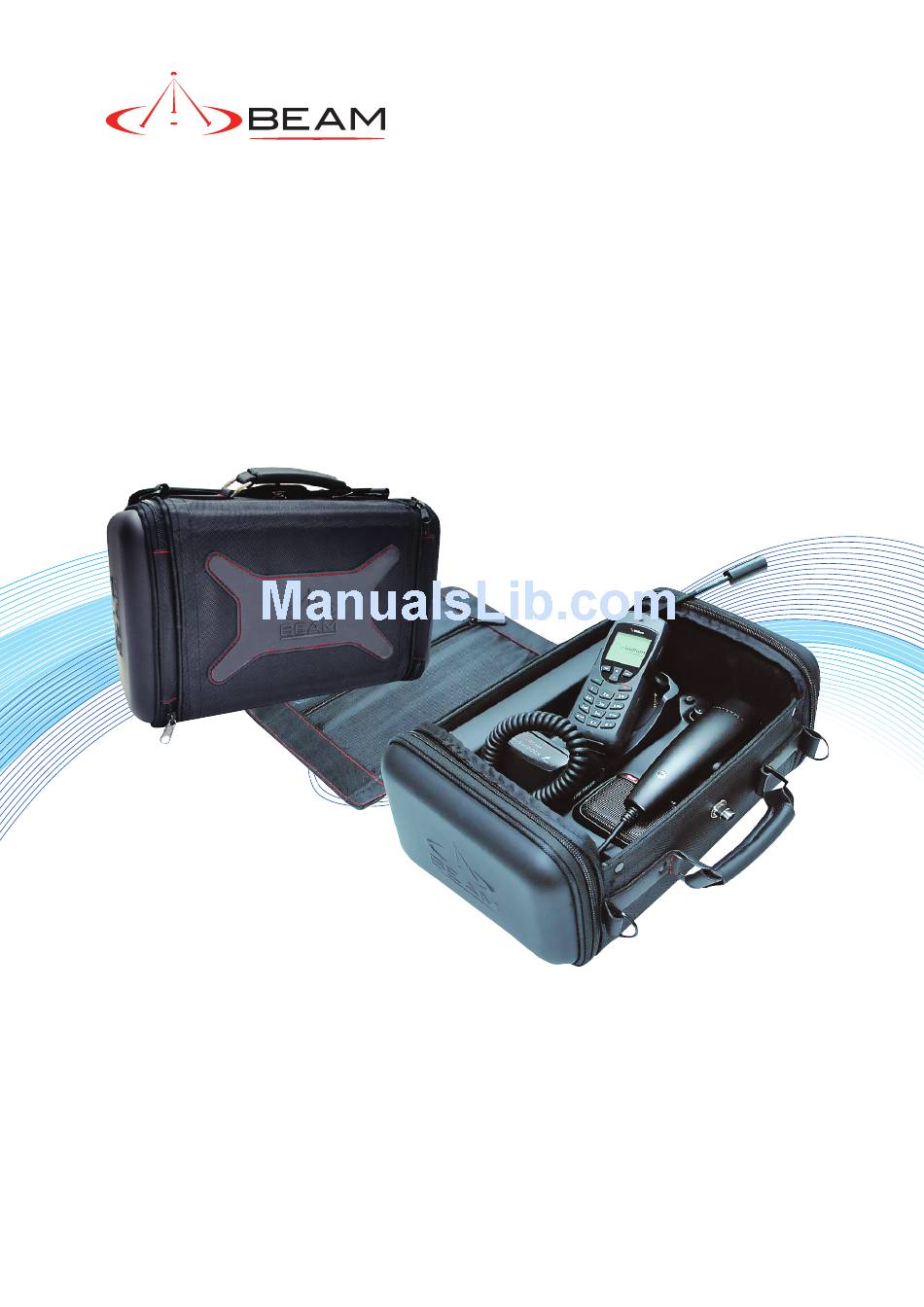

- Page 1 RapidSAT 9555 Installation & User Manual Suitable for the Iridium 9555 Portable Satellite Telephone Beam Communications Pty Ltd...
- Page 2 Information furnished by BEAM Communications Pty Ltd (BEAM) is believed to be accurate and reliable. However, no responsibility is assumed by BEAM for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of BEAM.
-
Page 3: Optional Accessories
• RST750 AC/12VDC Adaptor Other • USB mini-B to USB-A data cable See your Service Provider for pricing and availability of these quality BEAM accessories. User Information Please record your serial number here for future reference: Model: RapidSAT 9555 Serial no.: This number can be copied from the white label on the RapidSAT 9555 Eg. - Page 4 BLANK PAGE...
-
Page 5: Table Of Contents
RapidSAT 9555 Installation & User Manual CONTENTS Safety Information About Beam Communications About this Equipment RapidSAT 9555 FEATURES EQUIPMENT OVERVIEW RapidSAT Set Up CONNECTING POWER SUPPLY ANTENNA INSTALLATION UPS BATTERY PACK INSTALLATION (RST055) - OPTIONAL Operating RapidSAT DOCKING & UNDOCKING THE 9555 HANDSET... -
Page 6: Safety Information
Information Please read the following information carefully before installing and using the Beam RapidSAT 9555. Failing to follow instructions may compromise the safety of the product and may result in personal injury and/or equipment damage. Please consult The supplier if you have any further questions. - Page 7 RapidSAT 9555 Installation & User Manual Safety – Iridium Transceiver 9555 • The 9555 handset is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. • The Iridium 9555 handset has an in-built Iridium transceiver which is designed to be used with an external antenna.
- Page 8 IMPORTANT: Cellular & Satellite terminals or mobiles operate using radio signals and communication networks. Because of this, connection cannot be guaranteed at all times under all conditions. Therefore, you should never rely solely upon any wireless device for essential communications, for example emergency calls. Antenna Care Use only the supplied or an approved replacement antenna.
- Page 9 RapidSAT 9555 Installation & User Manual Vehicles RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding The vehicle. You should also consult the manufacturer of any equipment that has been added to The vehicle.
- Page 10 Conventions in this Manual Warnings, cautions and notes appear throughout this manual and are represented by following conventions. WARNING / CAUTION: This symbol and associated text indicate a warning note providing information to prevent damage to equipment or personal injury. NOTE / IMPORTANT / TIP: This symbol and associated text indicate a note providing general operating information.
-
Page 11: About Beam Communications
Iridium Satellite Network. Beam’s commitment to be at the forefront has continued to increase its share of the global satellite communications market. Its premium distribution network spans the world. -
Page 12: About This Equipment
About this This guide outlines the details for installing and operating the Beam RapidSAT 9555 in conjunction with an Iridium 9555 Portable Handset. Equipment This kit must not be used with any other device other than the Iridium 9555 Handset. - Page 13 A USB data port is provided on the base of the cradle. This USB port when used with the Iridium 9555 handset allows data calls, via a PC connection. Refer to the AT commands guide on the Beam website www.beamcommunications.com/support for Iridium AT modem commands.
-
Page 14: Equipment Overview
SIDE A Antenna Connection Antenna Note: The antenna should always be installed with clear line of site to the sky. Please refer to the Antenna Installation Guide on Beam’s website. RapidSAT Antenna SIDE B UPS Pack UPS Pack RST055 Power Input... -
Page 15: Rapidsat Set Up
RapidSAT 9555 Installation & User Manual RapidSAT Set Up The RapidSAT 9555 can be powered in one of five ways: 1. Connected directly to the Auto Accessories (cigarette lighter) cable, with no UPS Pack installed. This is also the lightest configuration. -
Page 16: Ups Battery Pack Installation (Rst055) - Optional
UPS BATTERY PACK The RapidSAT provides the option to install a battery source, to provide long operation life without DC or AC power (assumes battery INSTALLATION has charge). (RST055) - OPTIONAL To install the UPS Battery Pack: 1. Unpack the UPS Battery Pack, and disconnect any cables that may be plugged. - Page 17 RapidSAT 9555 Installation & User Manual 9. Carefully insert the UPS Pack with the front panel of the UPS Pack facing out. Push completely in. 10. Insert the locking thumb-screw tightly by hand, and ensure that the screw point engages over the front panel of the UPS Pack. 11.
-
Page 18: Operating Rapidsat
Operating WARNING: RapidSAT Ensure that the external antenna grommet at the rear of the 9555 handset is removed prior to inserting the handset into the PotsDOCK cradle. DOCKING & UNDOCKING THE 9555 HANDSET Docking the 9555 1. To dock the 9555 handset place the base of the 9555 handset into the seat of the cradle ensuring that the pins on the bottom of the 9555... -
Page 19: Operation Of The Rapidsat 9555
RapidSAT 9555 Installation & User Manual OPERATION OF THE 1. Ensure the 9555 handset is switched OFF, and the Power ON/ OFF switch is OFF. RapidSAT 9555 2. Ensure antenna on the 9555 handset is not extended. 3. Place the handset into the RapidSAT as per the previous instructions. -
Page 20: Making Calls
MAKING CALLS Making a Voice Call • Ensure that external antenna is placed in maximum view of the sky. • To make a voice call, check that the 9555 is “registered”, then dial the number on the 9555 keypad. • Progress tones will be heard from the speaker as the call connects. -
Page 21: Mute Functionality & Earpiece-Jack Mode
RapidSAT 9555 Installation & User Manual MUTE FUNCTIONALITY Mute functionality & EARPIECE-JACK The mute function of the RapidSAT, MODE allows the user to mute the uplink (microphone) audio during a voice call. Press the Mute button on the face of the cradle. -
Page 22: Data Communications Via Cradle Usb Port
DATA The RapidSAT provides the convenience of accessing Iridium data services while the phone is docked in the cradle. You should consult COMMUNICATIONS The service provider for full details on the availability of this service VIA CRADLE USB with the account. PORT Data communication with the Iridium 9555 provides the following: •... -
Page 23: Installing The Usb Cable
RapidSAT 9555 Installation & User Manual INSTALLING THE The RapidSAT 9555 utilises the Iridium 9555 portable satellite phone’s USB data port. This USB data port allows connection of USB CABLE a PC/Laptop to the 9555 handset. For more information on using the 9555 handset’s USB port please refer to the 9555 handset user manual. - Page 24 USB Driver Installation PC USER The RapidSAT 9555 USB data port requires an interface driver to be installed on the user’s computer prior to undertaking data communication. This driver supports the following operating systems: Windows 2000 Windows XP Windows Vista You can download Windows driver for the RapidSAT 9555 from http://www.beamcommunications.com/support DIRECT INTERNET 2...
- Page 25 RapidSAT 9555 Installation & User Manual AT Commands When utilizing the data communication port (USB) the RapidSAT must ensure that users do not enter in AT commands that could interrupt the RapidSAT’s synchronization with the 9555 handset. Therefore the RapidSAT will block or limit AT commands that could cause any adverse effects to the functional operation of the cradle.
-
Page 26: Iridium 9555 Display Definitions
IRIDIUM 9555 Display Status Indicators and Icons DISPLAY DEFINITIONS The following icons will appear in The display to provide you with various information about the phones activity. MAIN SCREEN COMPONENTS MENU COMPONENTS... -
Page 27: Power-On Messages
RapidSAT 9555 Installation & User Manual POWER-ON Once the phone is power on, you may see MESSAGES Message Description Searching... phone attempting establish communications with the satellite network. Registering... The phone is registering with the network. When the process is complete, you will see Registered. Check Signal The phone is unable to establish registration with the satellite network. -
Page 28: Assuring Quality Of Iridium Service
Assuring Iridium is committed to providing subscribers around the world consistent, reliable, quality voice and data access all day every day. Quality of The Iridium satellite system is monitored for call performance from numerous locations 24 hours a day, 7 days a week in order to achieve Iridium Service this. - Page 29 RapidSAT 9555 Installation & User Manual 3. RF Interference All wireless devices, including satellite telephones, are susceptible to RF (radio frequency) interference from other electronic devices. This problem is more evident when numerous antennas and broadcasting devices are located within close proximity to each other. Symptoms of RF Interference Symptoms of RF interference often resemble those that arise when an Iridium phone is being operated with an obstructed view of the...
-
Page 30: Specification Summary
Specification Power Specifications Power Input Voltage 10 - 32 V DC @ 4-1A Summary Power Consumption 12 V DC 24 V DC Stand by - incl handset 0.4A 0.23A ELECTRICAL & Transmit - incl handset 0.8A 0.42A ENVIRONMENTAL * Assumes 9555 battery is fully charged SPECIFICATIONS Physical Specifications Bag Dimensions (L x W x D) -
Page 31: Trouble Shooting
RapidSAT 9555 Installation & User Manual Trouble This section provides information to help you troubleshoot problems you may encounter while operating the RapidSAT. Shooting If during operation of the RapidSAT unit, the 9555 does not turn ON or OFF 1. Turn Power Switch OFF 2. - Page 32 Battery not charging on the cradle Ensure the ambient temperature is within the specifications for charging the battery. See “Charging the Iridium 9555 handset whilst in the RapidSAT” Unable to make a call / Register on the network Check that the antenna cable is connected correctly to the RapidSAT and check that the antenna is properly mounted.
- Page 33 Cannot cancel call forwarding or call barring Wait until you are in an area with good network coverage and try again. For additional product support: BEAM Communications Pty Ltd 8 Anzed Court, Mulgrave Victoria, 3170, AUSTRALIA Web: www.beamcommunications.com Info: info@beamcommunications.com...
-
Page 34: Beam Warranty Conditions
The Customer’s sole and exclusive remedy and the limit of BEAM liability for any loss whatsoever, shall not exceed the purchase price paid by the Customer for the product to which a claim is made. - Page 35 RapidSAT 9555 Installation & User Manual NOTES...
- Page 36 WEB: www.beamcommunications.com EMAIL: info@beamcommunications.com PHONE: +61 3 8588 4500 FAX: +61 3 8588 4599 AFRICA | ASIA | AUSTRALIA | EUROPE | MIDDLE EAST | NORTH AMERICA | SOUTH AMERICA...
