Repair Flow Chart - Philips 170C7FS/00 Service Manual

Lcd
Hide thumbs Also See for 170C7FS/00:
Table of Contents

Advertisement

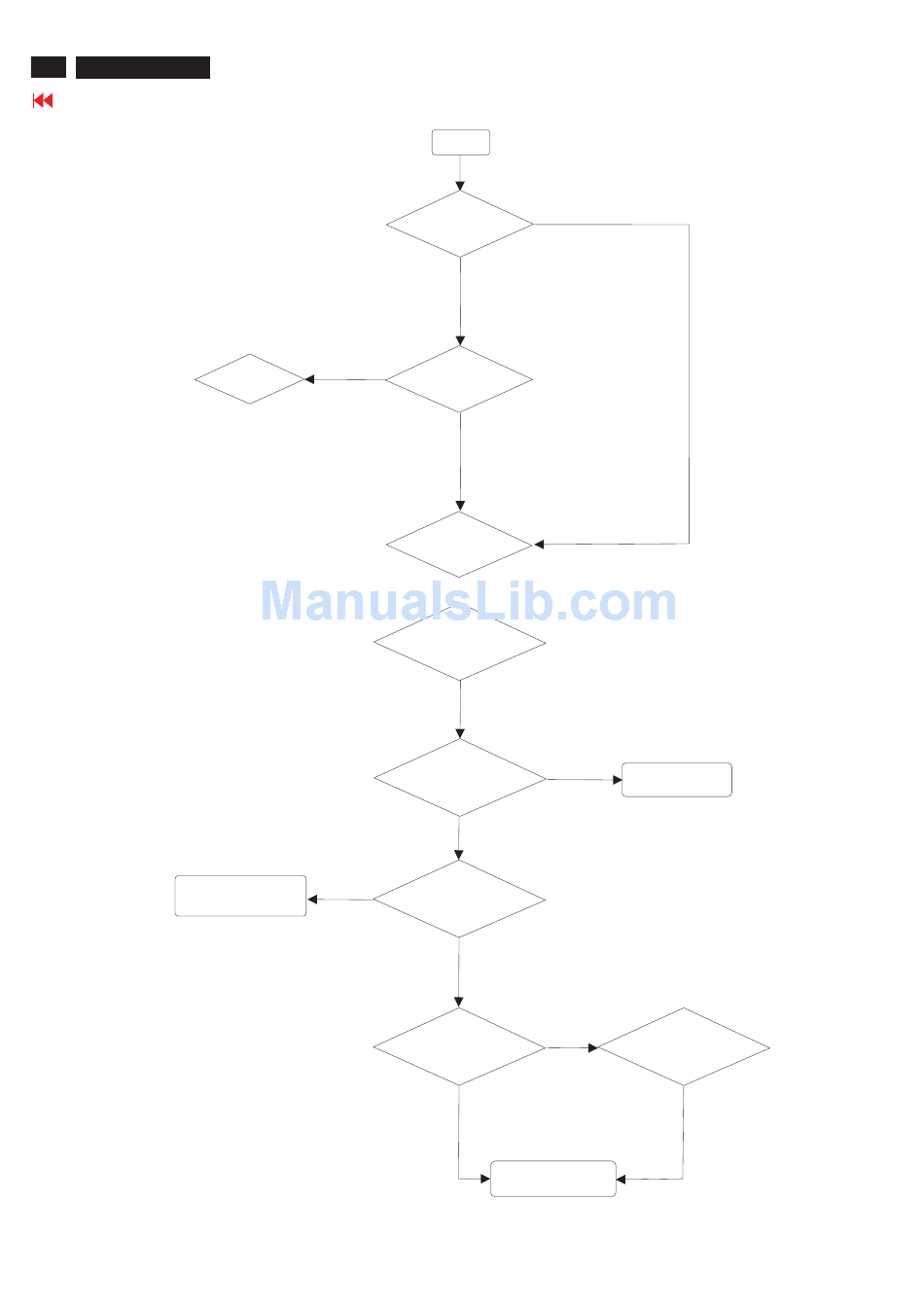

Repair Flow Chart

72
170C7 LCD
Go to cover page
AC IN
Power Board
Control Board
Scaler Board
LCD Panel
No power
(power indicator off)
NG
Check 12V/5V
Bad power board
OK
NG
Bad Scaler Board
Check Scaler Board
OK
OK
Check Control Board
Check Control Wires
Check LCD Panel
