6
170C7 LCD
Go to cover page

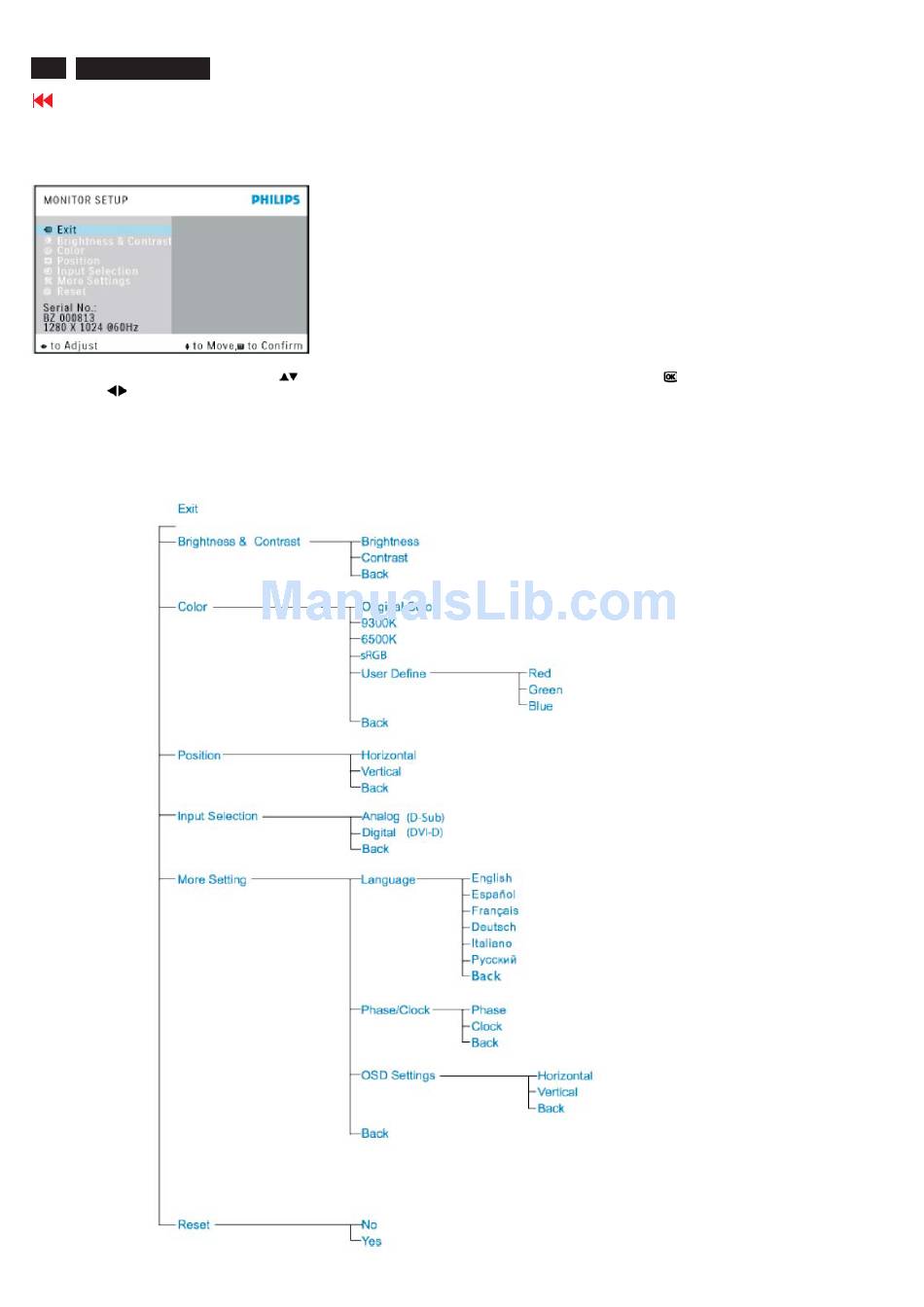

Description of the On Screen Display
On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions
of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below :
In the OSD shown above users can press
change, and to adjust/select the change.
The OSD Tree
Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the
different adjustments later on.
Only available for Europe Model
Main Menu
On Screen Display
Basic and simple instruction on the control keys.
buttons at the front bezel of the monitor to move the cursor,
Sub Menu
to confirm the choice or
