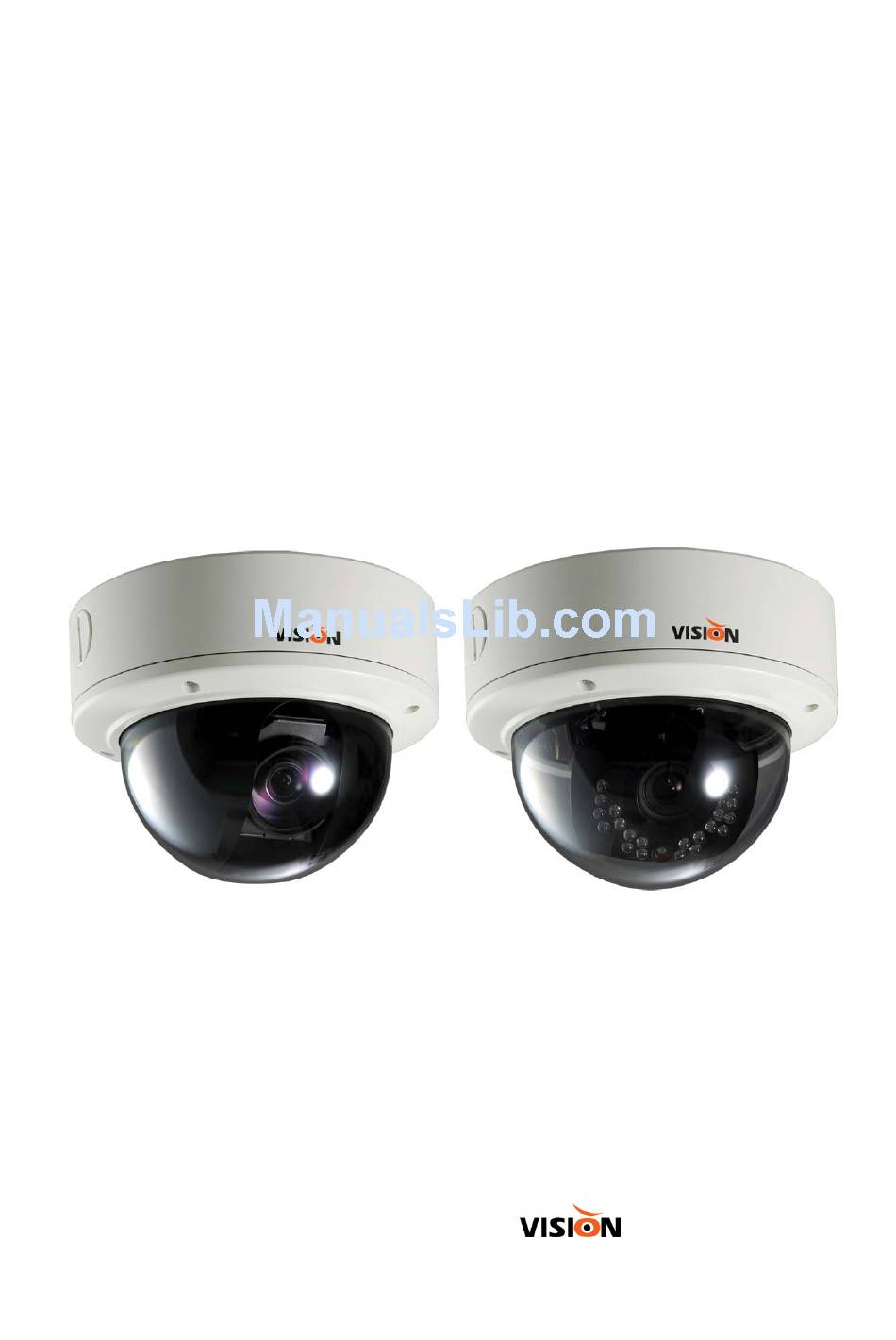

HARDWARE INSTALLATION GUIDE
VDA110SMi 1.3 Megapixel(720P) Vandal Dome IP Camera
VDA110SMi‐IR 1.3 Megapixel(720P) Night Vision Vandal Dome IP Camera
VDA110SM3i 3.0 Megapixel(1080P) Vandal Dome IP Camera
VDA110SM3i‐IR 3.0 Megapixel(1080P) Night Vision Vandal Dome IP Camera
VDA110EHi Standard D1 Vandal Dome IP Camera
VDA110EHi‐IR Standard D1 Night Vision Vandal Dome IP Camera
Version 1. 0. 2
st
Released on 1
of Sept., 2011
Vision Hitech Co., Ltd.
Page 1 / 16
Advertisement
Table of Contents
Related Manuals for Vision VDA110SMi
Summary of Contents for Vision VDA110SMi
- Page 1 HARDWARE INSTALLATION GUIDE VDA110SMi 1.3 Megapixel(720P) Vandal Dome IP Camera VDA110SMi‐IR 1.3 Megapixel(720P) Night Vision Vandal Dome IP Camera VDA110SM3i 3.0 Megapixel(1080P) Vandal Dome IP Camera VDA110SM3i‐IR 3.0 Megapixel(1080P) Night Vision Vandal Dome IP Camera VDA110EHi Standard D1 Vandal Dome IP Camera VDA110EHi‐IR Standard D1 Night Vision Vandal Dome IP Camera Version 1. 0. 2 Released on 1 of Sept., 2011 Vision Hitech Co., Ltd. Page 1 / 16...
- Page 2 PRECAUTIONS By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before installation and operation in order to take full advantage of all quality features regarding this product. The lighting flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of non‐insulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ...
-
Page 3: Table Of Contents
5. Cable Connection ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 6 6. Installation ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 8 7. Dimension (mm) ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 12 8. Specification ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 12 VDA110SMi / VDA110SMi‐IR ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 12 VDA110SM3i / VDA110SM3i‐IR ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 13 VDA110EHi / VDA110EHi‐IR ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 15 ... -
Page 4: Precautions
1. Precautions Please read the manual carefully before the installation in order to set up the camera correctly and to obtain the best picture quality. Please keep the manual in good condition for your future reference and service application. Installation and services should be only carried out by an authorized personnel according to local safety regulations. If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply and have it checked by your authorized dealer before reusing. Avoid installing the camera at extremely hot or cold places. If you are not a certified person, never try to dismantle the camera. To avoid electric shock, never remove the screws or covers. There are no parts inside that need maintenance by the user. All maintenance should be carried out by qualified personnel. Avoid installing the camera at a place of high humidity. Avoid installing the camera at the place exposed to gas or oil. Keep the top glass of the lens always clean in order to obtain the best picture quality all the time. Be careful not to be stained by fingerprint. Don't face the camera directly toward sunlight or sunlight reflecting area. CCD may go defective at this condition. Please give a special attention to keep the unit from dangerous drop or external shock during the process of transportation or handling. Never try to touch the camera in wet hand. It may cause an electric shock. Do not expose the camera to radioactivity. It causes a serious damage on the CCD. 2. Limitation of liability This publication is provided “AS IS” without warranty of any kind, either express or implied, including but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or non‐infringement of the ... -
Page 5: Package Contents
(2) Personal injury or any damage caused by inappropriate use or negligent operation of the user; (3) Unauthorized disassemble, repair or modification of the product by the user; (4) Inconvenience or any loss arising when images are not displayed, due to any reason or cause including any failure or problem of the product; (5) Any problem, consequential inconvenience, or loss or damage, arising out of the system combined by the devices of third party. (6) Any claim or action for damages, brought by any person or organization being photogenic subject, due to violation of privacy with the result of that surveillance‐camera's picture, including saved data, for some reason, becomes public or is used for the purpose other than surveillance. 4. Package Contents Fuse 1EA Hardware Installation Guide IP Camera ... -
Page 6: Cable Connection
‐ Hardware Installation Guide (PDF) ‐ IP Camera Manual (PDF) ‐ NVR Pro Manual ‐ NVR Lite (16Ch) Program ‐ IPScan Utility Program (IP Installer) Power Adaptor (Option) 5. Cable Connection Power Connector (DC12V) Network Connector Analog Video Out Sensor In Audio-in (Option) ... - Page 7 Series Network Camera models are IEEE 802.3af standard PoE compliant. They can be used with any IEEE 802.3af-compliant PoE injector, PoE switch, PoE mid-span and PoE end-span. Various types of PoE equipments Power over Ethernet (PoE) Injector PoE Mid-span PoE Office Switch ...
-
Page 8: Installation
6. Installation 6.1. Installation overview The ceiling tile should be applied for only when there is an additional support available for it to hold the camera with enough strength after the installation. Take it off after drilling the mounting hole on the guide. Pease make sure to attach the Moisture protection sponge securely on the back of the base. Warranty is void if it is not attached properly. Pre installation of the base is possible. Mounting holes are compatible to the industry standard 2‐gang electric junction box. ... - Page 9 6.2. How to reposition the cable from the back to the side of base. Pull off these two connectors <Figure 1> <Figure 2> ① Figure 1 shows factory default set up. The cable comes out to the side of base. ② Unscrew the two screws of (A) and (B) and disassemble the small PCB board (C) from the main board. (See Figure 2) ③ Unscrew the cable tie and the wire (Hanger) as in the figure above. ((D) in Figure 2) ④ Pull off the two connectors and let them out through the side hole. ⑤ Take off the Conduit cap on the bottom of the base with a coin and fix it on the side conduit hole. ⑥ Put the cable into the base through the bottom conduit hole and connect those two connectors to the same location from which they were taken off. ⑦ Fix the cable and the safety wire (Hanger) with cable tie and screw. ⑧ Assemble the small upper PCB board again as before. ...
- Page 10 6.3. How to adjust the Zoom/Focus. 6.3.1. Parts location Page 10 / 16...
- Page 11 6.3.2. Zoom/Focus adjustment Zoom and Focus locking levers are tightened and positioned at top side so that they can be accessed by hand at factory. 1. Please loosen the zoom/focus levers a little bit by turning them counter‐clockwise with finger. 2. Move the lever left or right to adjust the zoom and focus. 3. Please lock them tightly after the adjustment by turning them clockwise with finger. 6.4. How to adjust the camera angle. 6.4.1. Panning 180° ∙ Angle adjustment either to the left direction or right direction within 180° is possible. 1. Hold the Pan locking ring with hand and loosen it by turning it counterclockwise as in the picture left. 2. Adjust the panning angle and lock the Pan locking ring by turning it clockwise as in the picture. 6.4.2. Tilt 90° ∙ Angle adjustment of up to maximum 90° downward is possible. 1. Hold the Tilt locking levers on both sides with hand and loosen it by turning it counter‐clockwise as in the picture left. 2. Adjust the Tilt angle with hand and lock the Tilt locking lever by turning it clockwise as in the picture. 6.4.3. Rotation 360° ...
-
Page 12: Dimension (Mm)
7. Dimension (mm) 8. Specification 8.1. VDA110SMi / VDA110SMi‐IR Classification Specification VDA110SMi VDA110SMi-IR General 32-bit ARM9 RISC CPU up to 533MHz, 32KB I/D-Cache, MMU Video Buffer 16Mbyte Video Frame Buffer Flash 16 Mbyte Flash Memory SDRAM 256Mbyte Image Image sensor 1.3 Megapixel 1/3" SONY progressive scan CMOS image sensor... -
Page 13: Vda110Sm3I / Vda110Sm3I-Ir
Output BNC x1, 1.0Vp-p, 75 ohm Composite Video, NTSC/PAL Audio Audio streaming Two-way, full duplex Audio compression G.711 (Option) Sample Rate 8KHZ Data Rate 64Kbps Audio input Microphone input /1 x Line-In (Mono) Audio output Line output/ 1 x Line-Out (Mono) Network Security Password protection... - Page 14 Min. Illumination & 1 Lux with DSSX2 0Lux (IR On) IR Distance (F1.2, 30IRE, AGC On) 30M (21 Built-in IR LED’s) Day & Night Lens Control DC Iris Lens 3.5~16mm Vari-focal Megapixel Lens Video Video compression H.264 baseline profile, Motion JPEG Resolutions Up to 1920 x 1080 Frame rate...
-
Page 15: Vda110Ehi / Vda110Ehi-Ir
Net Weight 2000g Appr.(Camera Only) LED's Power, Network Connection Dimension 164(Ø) x121.5(H) Environment Operating Temperature -25 degree~50 degree Celsius(-13F~122F) Storage Temperature -25 degree~60 degree Celsius(-13F~140F) Software Included Software NVR Lite (16 Channel), IP Installer (Windows only) Package Package Contents Network Camera, Use Manual, External Power Adaptor, Software 8.3. VDA110EHi / VDA110EHi‐IR ... - Page 16 Audio input Microphone input /1 x Line-In (Mono) Audio output Line output/ 1 x Line-Out (Mono) Network Security Password protection User access log HTTPS encryption Supported protocol HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP RTSP, RTP, TCP, UDP, ICMP, DHCP System Intelligent video Motion detection up to 1280x720 with 32x24 blocks...
