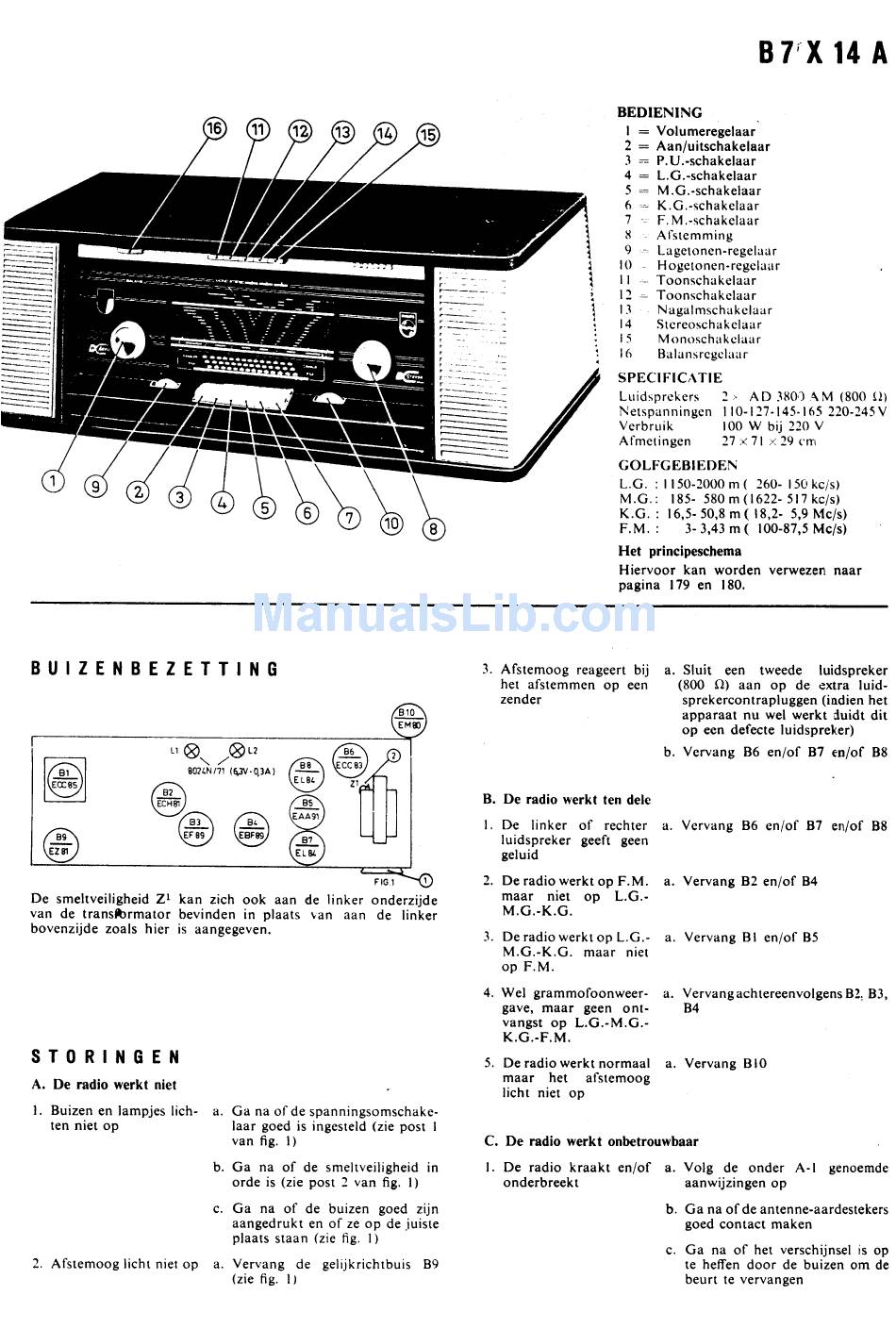

    English translation of Dutch service information for Philips B7X14A Controls 1 Volume adjust 9 Bass adjust 2 On/off switch 10 Treble adjust 3 PU switch (pickup or record player) 11 Tone switch 4 Long wave switch 12 Tone switch 5 Medium wave switch...
  • Page 6: Block Diagram

    C The radio works unreliably 1 The radio crackles and/or is intermittent a. Follow the directions mentioned in A-1 b. Check if the antenna-ground connectors making good contact c. Check if the symptom can be resolved by replacing tubes in sequence Block diagram B2 Mixer B3 IF amplifier B4 detector...
