Philips OR9011 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Register your product and get support at
OR9011
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR9011 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips OR9011

Summary of Contents for Philips OR9011

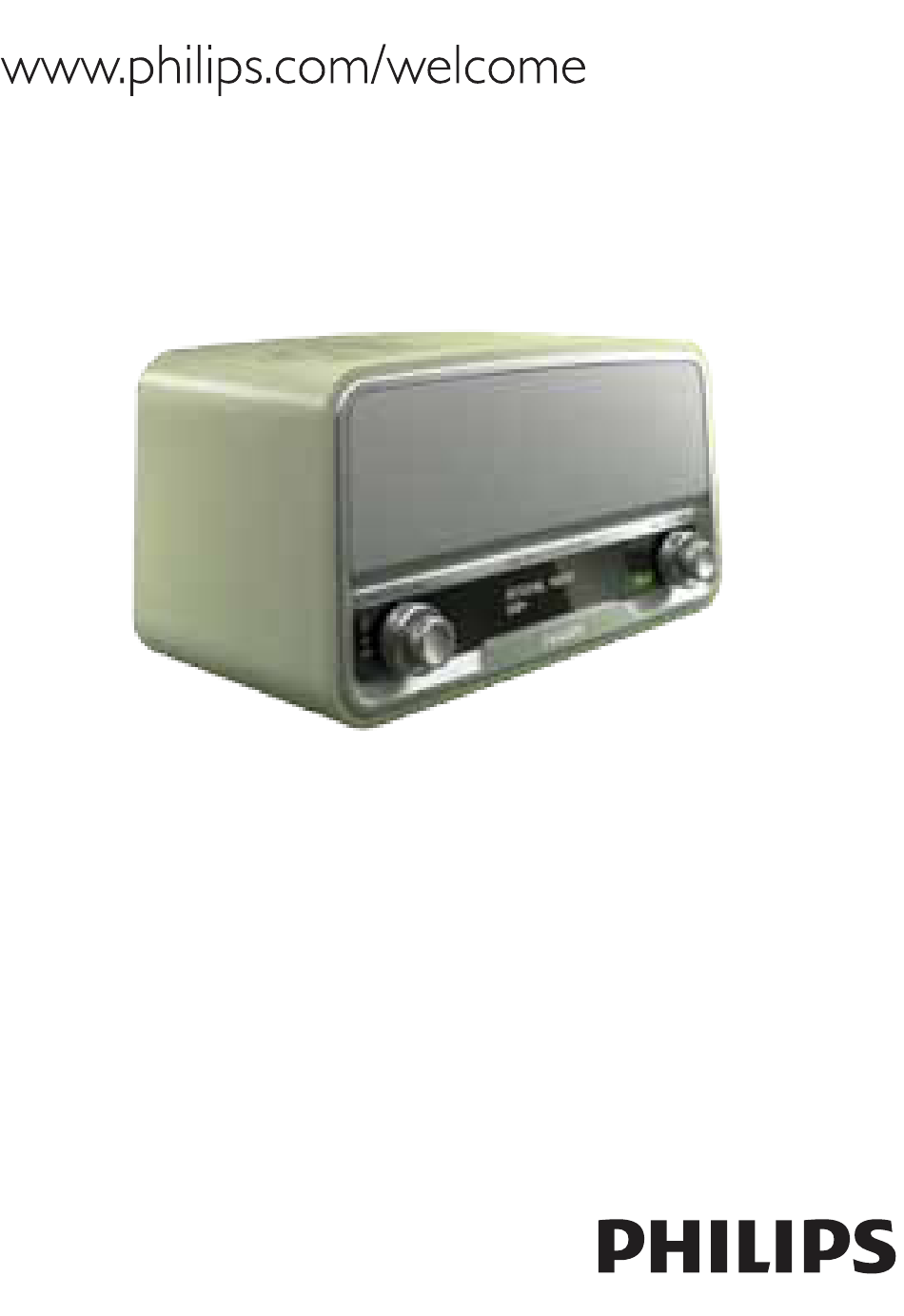

  • Page 1 Register your product and get support at OR9011 User manual...
  • Page 2 OR9011 User Manual...
  • Page 4 2 sec.
  • Page 5 2 sec.
  • Page 6 DAB+...
  • Page 8 Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Safety Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.
  • Page 9 • Never expose the product to rain, water, sunshine, or excessive heat. • Avoid force coming onto power plugs. Loose power plugs can cause arcing or fire. Risk of injury or damage to the product! • This product shall not be exposed to dripping or splashing! •...

  • Page 10: What's In The Box (Fig. 1)

    What’s in the box (Fig. 1) Connect power (Fig. 2-1) Turn on (Fig. 2-2) knob or turn the SOURCE knob. Press the The product switches to the last selected source. » • To switch the product to standby mode, press the knob again.

  • Page 11: Search For A Radio Station Automatically

    Search for radio stations automatically or manually. Note • For optimal reception, fully extend the antenna and adjust its position. • You can store a maximum of 30 FM radio stations. Search for a radio station automatically Press SCAN to activate the auto search. After a strong station is detected, the search stops and the »...

  • Page 12: Program Radio Stations Manually

    Store radio stations automatically (Fig. 4) Press and hold SCAN to activate the auto search. After the search is complete, the first stored radio station is » broadcast. • To tune to a stored radio station, turn the PRESET knob until its frequency is displayed.

  • Page 13: Display Rds Information

    Display RDS information Radio Data System (RDS) is a service that allows FM stations to transmit additional information. When you tune to an FM radio station that transmits RDS signals, the station name is displayed. Tune to an RDS station. Press INFO repeatedly to scroll through the following information (if available): •...

  • Page 14: Adjust Fm Settings

    DRAMA TRAVEL Radio plays and Travel literature CULTURE LEISURE Culture, religion and leisure society SCIENCE JAZZ Science Jazz Music VARIED COUNTRY Entertainment Country Music programs POP M NATION M National Music Pop music ROCK M OLDIES Rock music Oldies Music MOR M FOLK M Light music...
  • Page 15 Scan setting Press the knob to access sub-menus. Turn the knob to select an option. • <Strong stations>: Search for strong stations only. • <All stations>: Search for all stations no matter whether the signal strength of a station is strong or weak. Press the knob to confirm the option.

  • Page 16: Listen To Dab Radio Stations

    System menus Press the knob to access system menus. Turn the knob to select a sub-menu. • For details, refer to the section ‘Use system menus‘. Listen to DAB radio stations Note • For optimal reception, fully extend the antenna and adjust its position.

  • Page 17: Program Radio Stations

    After the search is complete, the first stored radio station is » broadcast automatically. Turn the knob to select a station, and then press the knob to start listening. • You can re-scan to update the list of stored stations (see "Use DAB menus"...

  • Page 18: Display Dab Information

    Repeat steps 1-4 to program more radio stations. • To tune to a preset radio station, turn the PRESET knob until its frequency is displayed. Note • If you store a radio station with the sequence number of another one, the earlier one is overwritten.
  • Page 19 Turn the knob to toggle through the menus. Tune to a stored station Press the knob to access the list of stored stations. • If no DAB station is stored, the product starts automatic search. Turn the knob to select a station. Press the knob to start listening.
  • Page 20 Tune to a station manually With this feature, you can tune to a specific channel/frequency manually. In addition to antenna orientation for better radio reception, the optimal reception can also be obtained with this feature. Press the knob to access the station list. Turn the knob to select a station from 5A to 13F.
  • Page 21 Turn the knob to select an option. • <DRC off>: No compensation applied. (The asterisk indicates the current setting.) • <DRC low>: Medium compensation applied. • <DRC high>: Maximum compensation applied. Press the knob to confirm the option. Remove invalid stations This option lists active stations and removes any stations that are in the list but have no service in your area.

  • Page 22: Use System Menus

    Turn the knob to select a sub-menu. • For details, refer to the section ‘Use system menus‘. Use system menus Use the system menus to • check the version of current software of this product, • upgrade the software, and •...

  • Page 23: Upgrade The Software

    Upgrade the software Go to www.philips.com/support. Search for support information about your product with “OR9011/50“ as the keyword. When an upgrade packet is available, the link of “Installation » instructions“ under “Software & drivers“ is accessible. The exact wording of this link name may vary in different languages.

  • Page 24: Adjust The Volume

    If you encounter problems when using this product, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.philips.com/support). When you contact Philips, make sure that the product is nearby and the model number and serial number are available. No power •...

  • Page 25: Product Information

    • Due to the interference from other electrics or building obstacles, the signals become weak. Move the product to a place free of interference. • Make sure that the antenna is fully extended. Adjust the position of the antenna. Clock setting is erased. •...

  • Page 26: General Information

    Tuner Tuning Range FM: 87.50 - 108.00 MHz; DAB: 174.928-239.200 MHz Tuning grid 50 kHz DAB sensitivity (EN50248) < -95 dbm Total Harmonic Distortion < 2% Signal to Noise Ratio > 50 dBA Number of preset radio stations 30 (FM), 30 (DAB) Speakers Speaker Impedance 4 ohm...

  • Page 27: Care Of The Environment

    Weight (Main Unit) 3.5 kg Notice Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Compliance This product complies with the radio interference requirements of the European Community.
  • Page 28 2013 © Koninklijke Philips Electronics N.V. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.
  • Page 30 All registered and unregistered trademarks are property of their respective owners. © 2013 Koninklijke Philips Electronics N.V. All rights reserved. OR9011_50_UM_V1.0...
