1. Introduction

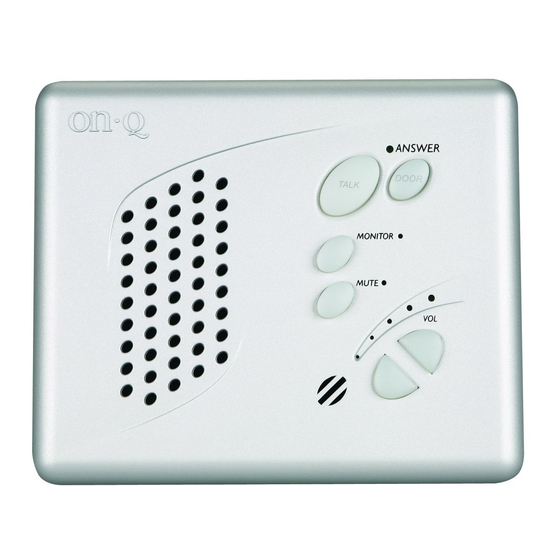

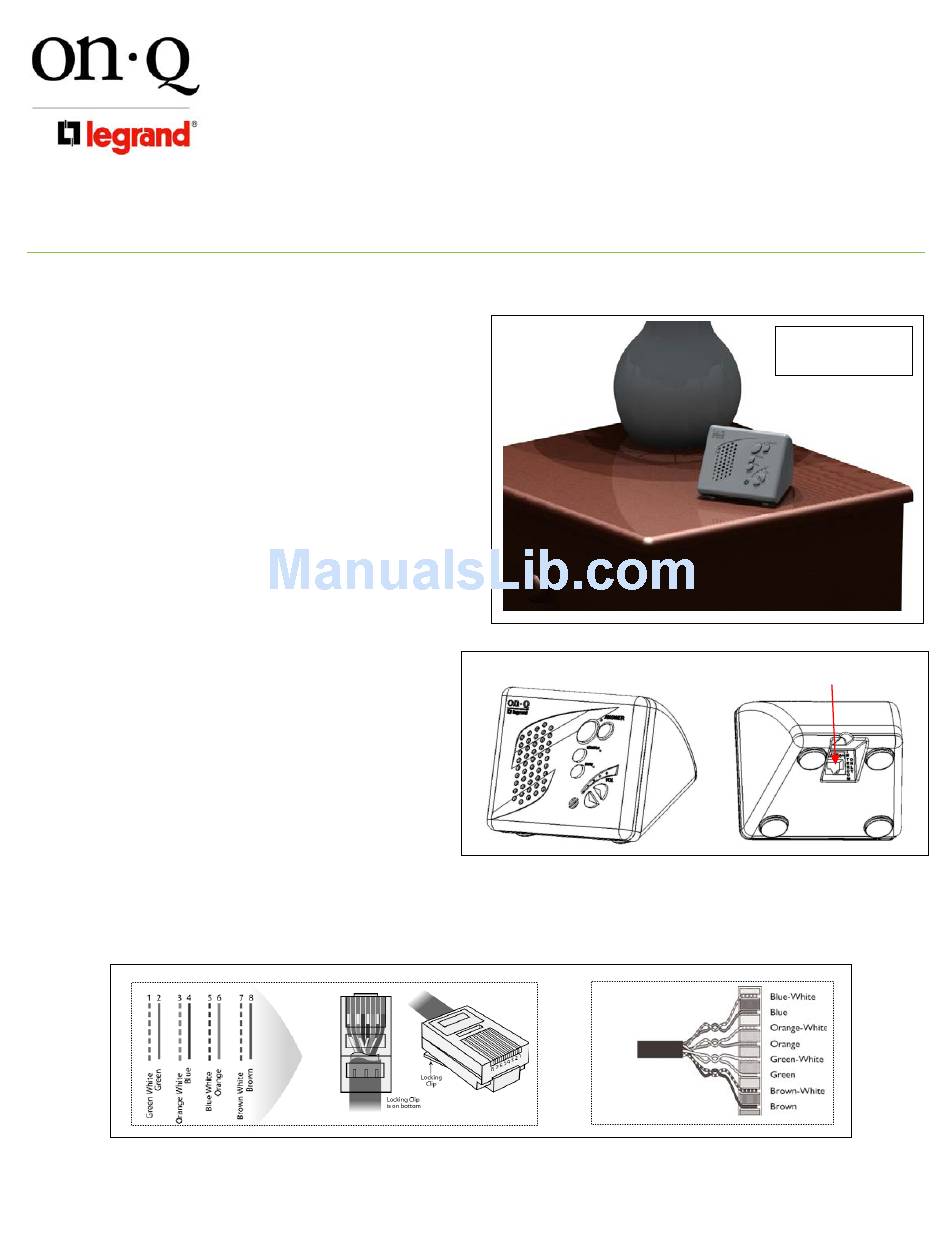

The On-Q/Legrand Intercom Desktop Unit, PN
F9018-xx (see Figure 1), provides a free
standing expansion to the On-Q/Legrand
Category 5 Intercom System. The unit is
connected to the system via a 12' Cat 5e jumper
cable (provided). Typical applications will be a
desktop in an office or on a nightstand.
2. Description
The Intercom Desktop Unit is functionally the
same as the Category 5 Intercom Indoor/Room
Unit (P/N F7637-xx).
3. Installation
Installation of the Desktop Unit may be
accomplished at any time by connecting the unit
(see Figure 2) with the supplied 12' jumper
cable to any Category 5 outlet which is wired
back to the Intercom Module in the Enclosure.
At the Intercom Module, the connection from the
Desktop Unit is treated just like any other Room
Unit, and as such, plugged into one of the 12
available Room Unit jacks.
NOTE: Cat 5e termination may have to be accomplished at the outlet or in the enclosure. All terminations
follow the T568A pin assignments. Refer to Figure 3 for correct T568A termination for both RJ45 plugs
and 110 punchdown blocks.
©Copyright 2005 by On-Q/Legrand All Rights
INSTRUCTION/INSTALLATION SHEET
INTERCOM DESKTOP UNIT
Figure 3
.
Reserved
Figure 1
Figure 2
IS-0328 REV. O
F9018-BK Black
F9018-SR Silver
Insert jumper here
