Page 1: Video Server
Etrovision EV3150 Video Server Installation Guide EV3150 Video Server Installation Guide – Version 6.2 www.cctvireland.ie 1890 866 900 e-sales@cctvireland.ie... -
Page 2: About This Guide
Information contained in this document may be superseded by updates. No representation or warranty is given and no liability is assumed by Etrovision Technology with respect to the accuracy or use of the information, or infringement of patents or other intellectual property rights. -
Page 3: Table Of Contents
About This Guide PRODUCT OVERVIEW......................1 Product Speci cations.......................1 Dual Streaming Capabilities...................2 Package Checklist.......................2 Product CD..........................2 Language Support......................3 Product View.........................3 Side View..........................4 Power Output Speci cations..................5 In-Box Power Output........................5 PoE (Power over Ethernet)......................5 USING THE EV3150A FOR THE FIRST TIME..............6 Initial Requirements......................6 Software Requirements........................6 Install EtroScan™..........................6 Physical Video Server Connections................7... -
Page 4: Product Overview
PRODUCT OVERVIEW 1.1 Product Speci cations Model EV3150A Video Compression Motion JPEG, MPEG-4, H.264 Baseline NTSC: 30fps @ 720x480 (D1 Resolution)/PAL: 25fps @ 720x576 (D1 MJPEG Resolution) NTSC: 30fps @ 720x480 (D1 Resolution) / PAL: 25fps @ 720x576 (D1 MPEG4 Resolution) NTSC: 30fps @ 720x480 (D1 Resolution) / PAL: 25fps @ 720x576 (D1 H.264... -
Page 5: Dual Streaming Capabilities
PRODUCT OVERVIEW Operation Conditions 0 ºC ~ 50 ºC (32 ºF ~ 104 ºF) Humidity: 20% ~ 80% RH Power over Ethernet 802.3af standard A/B compliant Wireless Support Included Accessories CD-ROM (User Manual, Free Bundle NVR) FCC Part15 SubpartB CN EN55022 ClassB, EN55024 Approvals C-Tick RoHS... -
Page 6: Language Support
PRODUCT OVERVIEW • 16CH Live View/Recording/4CH Playback • User’s Manual 1.5 Language Support • English 1.6 Product View www.cctvireland.ie 1890 866 900 e-sales@cctvireland.ie... -
Page 7: Side View

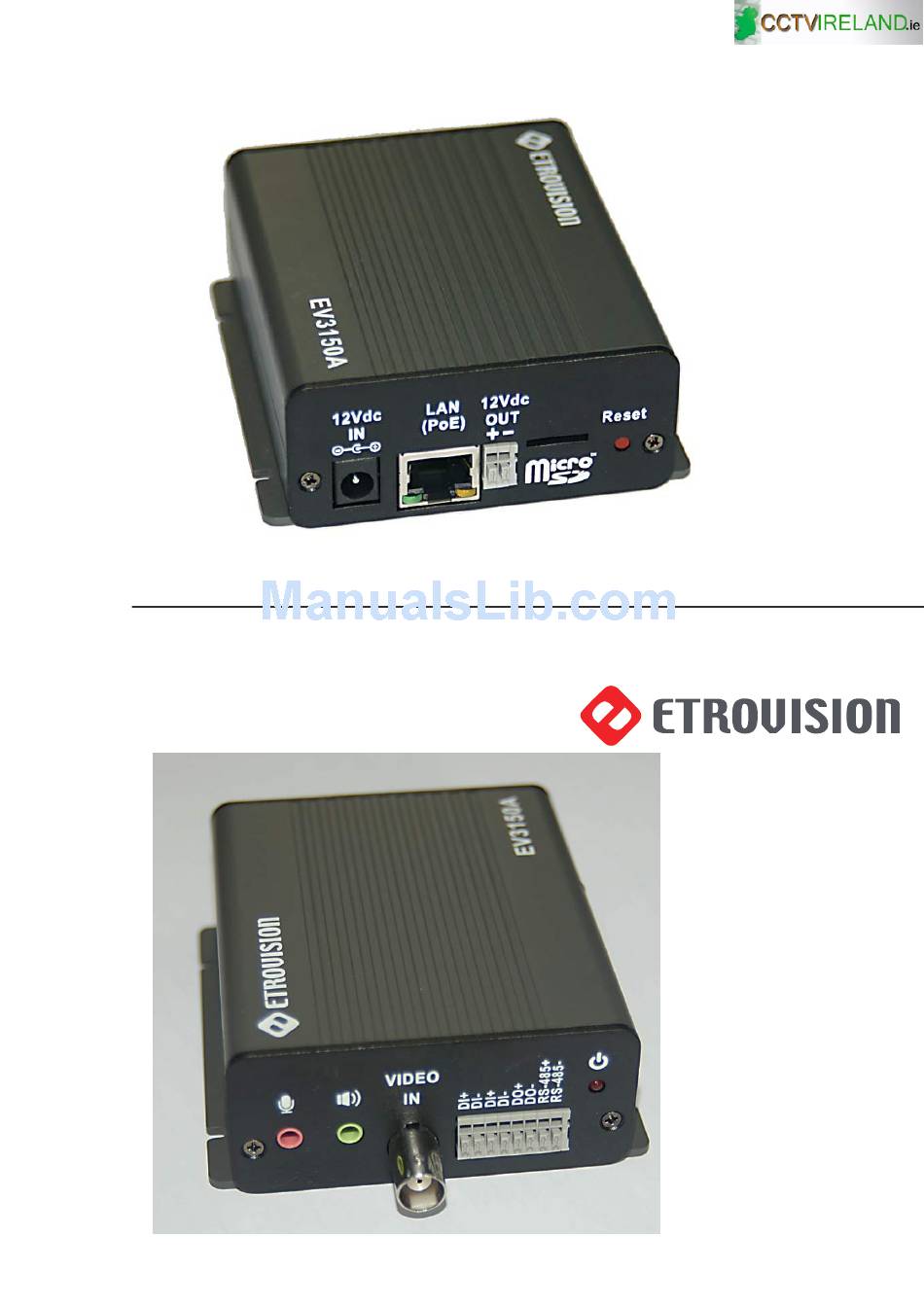

PRODUCT OVERVIEW 1.7 Side View 1. 12V DC Power Input 2. RJ-45 Network Port 3. 12V DC Power Output 4. Micro SD Card Slot 5. Factory Default Reset Button www.cctvireland.ie 1890 866 900 e-sales@cctvireland.ie... -
Page 8: Power Output Speci Cations
PRODUCT OVERVIEW 1. Audio In 2. Audio Out 3. BNC Video In 4. Digital Input 5. Digital Input 6. Digital Output 7. RS-485 8. Power LED 1.8 Power Output Speci cations The EV3150A can output 12V DC power to other devices. This can be done via PoE using the RJ-45 port or an in-box power output port. -
Page 9: Using The Ev3150A For The First Time
EtroStation™ 3.0 includes the EtroScan™ utility. EtroStation™ is on the product CD that accompanies the EV3150A. Please refer to the EtroStation™ documentation for installation instructions. Download from Etrovision’s Website EtroScan™ can also be downloaded from Etrovision’s website. It is available in the Software Tools section of the Download area, http://www.etrovision.com/ Download_list.aspx?no=5. -
Page 10: Physical Video Server Connections
USING THE EV3150A FOR THE FIRST TIME 2.2 Physical Video Server Connections Connect to the Network Connect the EV3150A to network hub/switch via a standard CAT5 Ethernet cable with an RJ-45 connector. Please note that the PC must be on the same network domain as the video server. -
Page 11: Connect Audio I/O
USING THE EV3150A FOR THE FIRST TIME Properly align the wiring and terminals when connecting; an improper connection can damage the camera. Connect Audio I/O For audio I/O functionality, connect the audio input and output cables. Video icker may occur when enabling/disenabling audio in and audio out. This situation normally only lasts for a second. -
Page 12: Power On Ip Camera
USING THE EV3150A FOR THE FIRST TIME Power on IP Camera Connect the power adapter to the power connector. The adapter should be connected to 110v~22OV AC socket. There is no power button on the camera, so connecting/disconnecting the power adapter will start/shutdown the video server. -
Page 13: Initial Network Con Guration
USING THE EV3150A FOR THE FIRST TIME Properly align the wiring and terminals when connecting; an improper connection can damage the camera. Please review the Power Output Speci cations in section 1.8 before using. To remove the cable from the digital I/O socket, press down on the wire release and pull the cable. -
Page 14: Using Etroscan
USING THE EV3150A FOR THE FIRST TIME Using EtroScan™ EtroScan™ allows users to easily nd a video server and con gure the settings. After installing EtroStation™, EtroScan™ can be accessed via the MS Start button. Select EtroScan™ from the start menu to start. www.cctvireland.ie 1890 866 900 e-sales@cctvireland.ie... - Page 15 USING THE EV3150A FOR THE FIRST TIME Press the Scan button to list the IP and MAC address list for video servers on the network. To refresh the list, press the Clear Table button and press Scan again. A new video server will display the factory IP address, 192.168.1.2. However, if multiple new devices are present on the network, then multiple instances of 192.168.1.2 will be listed.
-
Page 16: Change Network Setting Via Etroscan
USING THE EV3150A FOR THE FIRST TIME To identify a speci c video server, use the MAC address which is located on the bottom of the camera. Below is an example of the label displaying the MAC address. Please note that a completed RMA (Return Merchandise Authorization) form must contain the serial number of the product. -
Page 17: Access The Video Server Web Interface
USING THE EV3150A FOR THE FIRST TIME After altering the video server network settings, click Apply to apply the changes. A prompt for the administrator authentication will be displayed: The default password for the administrator account (root) is pass. Enter the default password and click OK to con rm the changes. - Page 18 USING THE EV3150A FOR THE FIRST TIME 3. Enter the administrator username and password: User name: root Default password: pass Press OK button to access to the Live View web page. Usernames and passwords are case sensitive. The administrator password should be changed after installation is complete.
- Page 19 USING THE EV3150A FOR THE FIRST TIME Clicking on the add-on message will bring up options; choose Run Add-on to add. A con rmation message box will be displayed; choose Run. Wait for the add-on to complete and the page to attempt reloading. Most likely other ActiveX controls will be required.
-
Page 20: Reset Default Factory Settings
RESET DEFAULT FACTORY SETTINGS To reapply the factory settings without using the web interface, use the reset button. Plug the power in and make sure the camera has fully booted. Press the reset button for 6 seconds. If the camera has problems booting successfully (e.g. power light doesn’t stabilize), then after connecting the power, hold the reset button for 6 seconds. -
Page 21: Camera Led Indicators
CAMERA LED INDICATORS The video server back (or combo cable if an outdoor or dome camera) has 3 LED indicators which display the camera state or activities. • Red: the power LED • Green: network connection LED • Orange: network transmission LED The table below highlights various camera states and corresponding Power LED indicators. -
Page 22: Additional Information
For more information on the EV3150A Video Server, please see the User’s Manual ( rmware version 1.9.5 as of this writing). This manual is available on the product CD, or it can be downloaded from the Etrovision website, www.etrovision.com. In addition, the latest rmware releases and other product documentation are available in the Download area.
