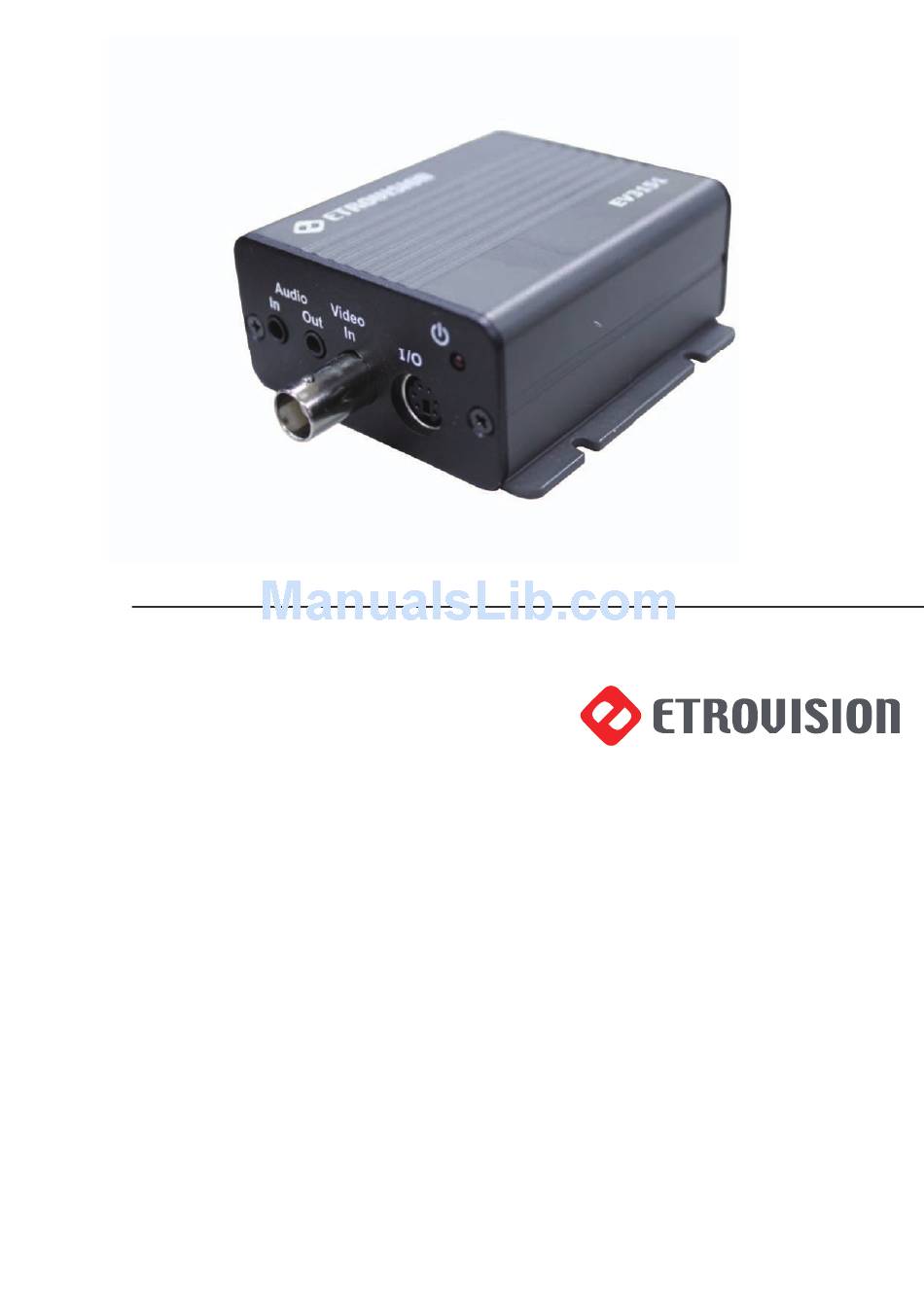

- Page 1 EV3151 & EV3151A Box IP Camera Installation Guide – Version 6.2 etrosales@etrovision.com TEL:+886-2-26551518 2F, Block C, Nan Kang Software Park, 19-5 San-chung Rd., Nan Kang District, Taipei 115, Taiwan...
-
Page 2: About This Guide
Information contained in this document may be superseded by updates. No representation or warranty is given and no liability is assumed by Etrovision Technology with respect to the accuracy or use of the information, or infringement of patents or other intellectual property rights. -
Page 3: Table Of Contents
Package Checklist.......................4 Product CD..........................4 Language Support......................4 Video Server Outer View....................5 1.10 Physical Connections......................5 EV3151..............................5 EV3151A.............................6 USING THE EV3151 FOR THE FIRST TIME..............7 Initial Requirements......................7 Software Requirements........................7 Install EtroScan™..........................7 Physical IP Camera Connections...................8 Connect to the Network.......................8 Connect CCTV to Video Server....................8 Connect PTZ (EV3151 Only)......................8... - Page 4 About This Guide OS Requirements......................15 Setup Using the EtroLink™ Con g Port..............15 Connecting the IP camera to the PC..................15 Quick Con g Login........................16 Quick Wizard - Network......................17 Manually Starting the Quick Con g Wizard..............19 Factory Default........................20 Missing root Password....................21 CAMERA LED INDICATORS......................23 ADDITIONAL INFORMATION.......................24...
-
Page 5: Product Overview
PRODUCT OVERVIEW 1.1 Introduction This manual covers the EV3151 and EV3151A models. For simplicity, “EV3151” will be used to refer to both models unless there is a need to di erentiate between the two models. 1.2 Product Speci cations ● EV3151... -
Page 6: Ev3151A
PRODUCT OVERVIEW Web Browser Microsoft Internet Explorer 6.0, or Above Password Protection Security Temperature 0 ºC ~ 40 ºC (32 ºF ~ 104 ºF) Operating Environment Humidity 20% ~ 80% RH Power Adapter, USB Cable, Mini-Din Cable, CD-ROM Supplied Accessories (User Manual, Free Bundle NVR) ●... -
Page 7: Ev3151 & Ev3151A Di Erences
0 ºC ~ 40 ºC (32 ºF ~ 104 ºF) Temperature Operating Environment Humidity 20% ~ 80% RH Power Adapter, USB Cable,Mini-Din Cable Supplied Accessories CD-ROM (User Manual, Free Bundle NVR) 1.3 EV3151 & EV3151A Di erences Features EV3151 EV3151A Video In Audio I/O Digital I/O Wireless USB Port 1.4 Dual Streaming Capabilities... -
Page 8: Resolution
176x120 720x576 352x288 176x144 1.6 Package Checklist The EV3151 packaging will include the following materials. • EV3151/EV3151A Video Server x 1 • Power Adapter x 1 • USB Cable x 1 • Mini DIN Cable x 1 • Product CD x 1 1.7 Product CD... -
Page 9: Video Server Outer View
PRODUCT OVERVIEW 1.9 Video Server Outer View 1.10 Physical Connections 1.10 Physical Connections 1.10 Physical Connections ● EV3151 EV3151 EV3151 1. 12V DC Power Input 2. RJ-45 Network Cable Port 3. EtroLink™ USB Con g Port 4. BNC Video In 5. -
Page 10: Ev3151A
PRODUCT OVERVIEW ● EV3151A 1. Audio I/O 2. BNC Video In 3. mini DIN port 4. Power LED 5. EtroLink™ USB Con g Port 6. WiFi USB Port 7. RJ-45 Network Cable Port 8. 12V DC Input... -
Page 11: Using The Ev3151 For The First Time
CD that accompanies the EV3151. Please refer to the EtroStation™ documentation for installation instructions. Download from Etrovision’s Website EtroScan™ can also be downloaded from Etrovision’s website. It is available in the Software Tools section of the Download area, http://www.etrovision.com/ Download_list.aspx?no=5. -
Page 12: Physical Ip Camera Connections
IP camera. ● Connect CCTV to Video Server Use the BNC Video In port to connect the camera with the EV3151. ● Connect PTZ (EV3151 Only) For PTZ functionality, connect the PTZ device to the EV3151 RS-485 PTZ port. -
Page 13: Using Etroscan
USING THE EV3151 FOR THE FIRST TIME IP Address 192.168.1.2 Subnet Mask 255.255.255.0 Gateway 192.168.1.1 Using EtroScan™ EtroScan™ allows users to easily nd an IP camera and con gure the settings. Select EtroScan™ from the start menu to start. - Page 14 USING THE EV3151 FOR THE FIRST TIME Press the Scan button to list the IP and MAC address list for IP cameras on the network. A new IP camera will display the factory IP address, 192.168.1.2. However, if multiple new devices are present on the network, then multiple instances of...
-
Page 15: Change Network Setting Via Etroscan
USING THE EV3151 FOR THE FIRST TIME To identify a speci c IP camera, use the MAC address which is located on the bottom of the camera. Below is an example of the label displaying the MAC address. Change Network Setting via EtroScan™... -
Page 16: Access The Ip Camera Web Interface
USING THE EV3151 FOR THE FIRST TIME After altering the IP camera network settings, click Apply. A prompt for the administrator authentication will be displayed: The default password for the administrator account (root) is pass. Enter the default password and click OK to con rm the changes. - Page 17 USING THE EV3151 FOR THE FIRST TIME Press OK button to access to the Live View web page. Usernames and passwords are case sensitive. The administrator password should be changed after installation is complete. Please refer to the User Manual for more information Upon login, the error “ActiveX control failed to load (OCX)”...
- Page 18 USING THE EV3151 FOR THE FIRST TIME Clicking on the add-on message will bring up options; choose Run Add-on to add. A con rmation message box will be displayed; choose Run. Wait for the add-on to complete and the page to attempt reloading.
-
Page 19: Etrolink™ Configuration Port
ETROLINK™ CONFIGURATION PORT The EtroLink™ USB Con guration Port provides an alternate method of con guration. The EtroLink™ USB Con guration allows con guration using a Quick Con g Wizard which requires no software installation. 3.1 OS Requirements The PC which will access the IP camera using the EtroLink™ USB port requires the following to run the EtroLink™... -
Page 20: Quick Con G Login
ETROLINK™ CONFIGURATION PORT The Quick Con g login screen will be displayed. Quick Con g Login Unless the password has already been modi ed, use the default administrator login is: root Password: pass NOTE: restoring factory settings will restore default login password. Click the Login button;... -
Page 21: Quick Wizard - Network
ETROLINK™ CONFIGURATION PORT Quick Wizard - Network The Quick Wizard button is used to con gure network and DDNS settings. Clicking Quick Wizard will display Step 1. Clicking Quick Wizard will display Step 1. Clicking Quick Wizard will display Step 1. Step 1 The network con guration options include “Static IP”, “DHCP”, and “PPPoE”. - Page 22 ETROLINK™ CONFIGURATION PORT Selecting “DHCP” and Next: Selecting “PPPoE” and Next: Enter all the relevant network settings, and click Next. Step 3 Regardless of network connection type, step 3 and 4 are the same. Regardless of network connection type, step 3 and 4 are the same. Regardless of network connection type, step 3 and 4 are the same.
-
Page 23: Manually Starting The Quick Con G Wizard
Connect the IP camera and PC using the mini USB cable. Wait a moment for the PC to recognize the IP camera as a new drive. Using Windows Explorer, nd the IP camera represented as a new drive. The Etrovision logo should help identify the speci c drive. -
Page 24: Factory Default
ETROLINK™ CONFIGURATION PORT 4. Highlight the drive (i.e. E:) to view he contents. 5. Find the “ClickMeFirst” HTML le, and double click. The Quick Con g utility will be initiated using Internet Explorer. 3.3 Factory Default The factory default settings can be restored using the Quick Con g Wizard. Restoring factory settings will result in the loss of the current IP camera’s Restoring factory settings will result in the loss of the current IP camera’s Restoring factory settings will result in the loss of the current IP camera’s... -
Page 25: Missing Root Password
ETROLINK™ CONFIGURATION PORT 3.4 Missing root Password If the root password has been forgotten, then factory settings will need to be restored using the EtroLink™ USB port. At the Quick Con g login screen, use CTRL+ALT+F to restore factory settings Type CTRL+ALT+F: Click OK Click OK... - Page 26 ETROLINK™ CONFIGURATION PORT Click OK The video server/camera will now be con gured with the default 192.168.1.2 IP address, and the default username/password of root/pass. Use EtroScan or the Web UI to manually recon gure the device, or a backup con guration can be restored if available.
-
Page 27: Camera Led Indicators
CAMERA LED INDICATORS The IP camera back (or combo cable if an outdoor or dome camera) has 3 LED indicators which display the camera state or activities. • Red: the power LED • Green: network connection LED • Orange: network transmission LED The table below highlights various camera states and corresponding Power LED indicators. -
Page 28: Additional Information
ADDITIONAL INFORMATION For more information on the EV3151 and EV3151AVideo Server, please see the rmware User’s Manual. These manuals are available on the product CD, or they can be downloaded from the Etrovision website, www.etrovision.com. In addition, the latest rmware releases and other product documentation are...
