Summary of Contents for NexxTech LAB-1100

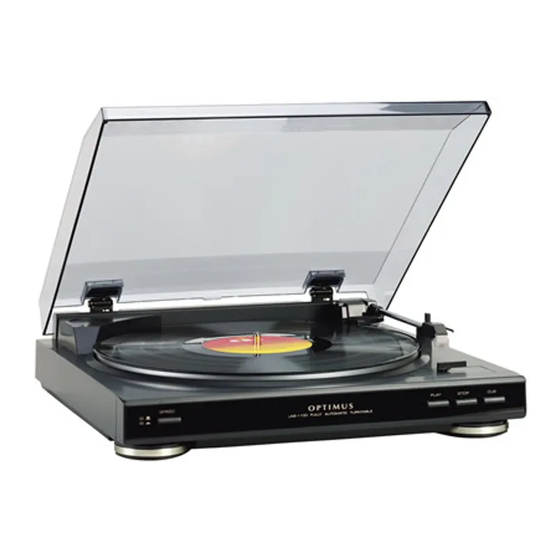

- Page 1 4202023 OWNER'S MANUAL Please read before using this equipment. LAB-1100 Fully Automatic Belt-Drive Turntable...
- Page 2 FEATURES INTERFERENCE Your Nexxtech LAB-1100 Fully Auto- matic Belt-Drive Turntable is a high quality stereo turntable with sensitive Your turntable might cause TV or radio pickup and a built-in preamp that deliver interference even when it is operating great sound from your records.
-
Page 3: Table Of Contents
CONTENTS Preparation ......................5 Unpacking the Turntable ..................5 Assembling the Turntable ................... 5 Connecting the Turntable to Your Receiver/Amplifier ......... 6 Connecting Power ....................7 Operation ......................... 8 Using the Cue Button ..................9 Troubleshooting ....................10 Care and Maintenance ..................12 Record Care ..................... -
Page 4: Preparation
PREPARATION UNPACKING THE 3. Remove the adhesive tape and two ribbons from the rubber drive belt. TURNTABLE Be sure that the drive belt is not twisted, then stretch the belt over When you remove the turntable assem- the drive motor’s spindle. bly with its attached dust cover from the box, be sure to also remove the supplied 4. -
Page 5: Connecting The Turntable To Your Receiver/Amplifier
RECEIVER/AMPLIFIER amplifier’s left and right PHONO jacks. Then set LINE OUT ON/ You can connect your LAB-1100 to a re- PHONO OUT OFF PHONO OUT ceiver/amplifier (or stereo audio mixer) that has low-level phono inputs (such as... -
Page 6: Connecting Power
3. Place the rubber mat, ridged side down, on top of the platter. CONNECTING POWER Once you have connected the turntable to your receiver/amplifier, plug the turn- table’s power cord into a switched or un- switched AC outlet on your receiver/ amplifier or into a standard AC outlet. -
Page 7: Operation
ON/PHONO OUT OFF sound system you have before operat- ing the turntable. OPTI 1. Open the dust cover. SPEED LAB-1100 FULL AU 2. Remove the stylus cover. 6. Press . The turntable starts to PLAY rotate and the tone arm moves to the beginning of the record, lowers to the record, then starts to play. -
Page 8: Using The Cue Button
USING THE CUE BUTTON The cue button raises the tone arm so you can safely move it to a specific sec- tion of the record without worrying about accidentally scratching it with the stylus. 1. Press to raise the tone arm. PLAY TOMATIC TURNTABLE 2. -
Page 9: Troubleshooting
TROUBLESHOOTING If your turntable is not working as it should, these suggestions might help you solve the problem. If the turntable still does not operate properly, take it to your local electronic store for assistance. Symptom Possible Cause Suggestion Turntable does not work Connected receiver/ Turn on receiver/ when plugged into an AC... - Page 10 Symptom Possible Cause Suggestion Sound from turntable not Record is dirty. Clean the record. clear or scratchy during Stylus is dirty. Clean the stylus with a play soft brush (See “Cleaning/ Replacing the Stylus” on Page 13). Stylus is improperly Check the stylus and rein- installed.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Your Nexxtech LAB-1100 Fully Automatic Belt-Drive Turntable is an example of su- perior design and craftsmanship. The following suggestions will help you care for your turntable so you can enjoy it for years. Keep the turntable dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. -
Page 12: Record Care
RECORD CARE If the stylus is worn, follow these steps to replace it. You can order a replace- ment stylus assembly AT3600LAX (RSU • Always hold your records by the No. 12039012) through your local Ra- edges. Touching the grooved sur- dioShack store. -
Page 13: Specifications
SPECIFICATIONS Turntable Platter Type ........................Plastic Outer Diameter ..............300 mm (11 Inches) Drive System ....................Belt Drive Motor Type ....................DC Motor Turntable Type ................Automatic Return Rotation Speeds ............2-Speed (33 and 45 RPM) Tone Arm Type ....................Dynamic Balance Effective Length ................ - Page 14 General Signal-to-Noise Ratio (DIN-B) ................ > 50 dB Wow and Flutter (JIS WARMS) at 3 kHz ............< 0.25% Power Source ................AC 120 Volts 60 Hz Power Consumption ..................3 Watts Dimensions (HWD) ......98 × 360 × 349 mm (3 ×...
- Page 15 NOTES...
- Page 16 ORBYX Electronics warrants that this product will be free • Orbyx Electronics, LLC (“Orbyx), as the distributor of this Nexxtech product (your “Product”). from defects in materials and workmanship for a period of ninety (90) days from the date of purchase. Within this...
