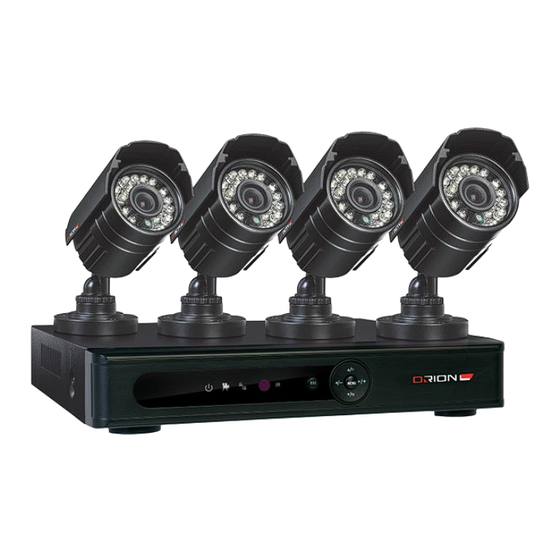

ProfessIonAL
surveILLAnce sYsteM
4 cHAnneL dIgItAL vIdeo recorder
four day/nIght cameras
LiVe reMote
Monitoring tHrougH
sMArtPHones
tABLets & Pcs
Important! please read these InstructIons carefully.
d
1
resoLutIon
reaL tiMe HigH
resoLution
recording
InstructIons for use
500gB
four
HArd drIve
cHAnneLs
store up to 30 days
Monitor and record
of continuous
witH four HigH
recording*
definition caMeras
* 10 days recording on default settings
30 days recording on low settings
sc144
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Orion SCI44
Summary of Contents for Orion SCI44
-
Page 1: Instructions For Use
ProfessIonAL surveILLAnce sYsteM 4 cHAnneL dIgItAL vIdeo recorder sc144 four day/nIght cameras LiVe reMote 500gB four resoLutIon HArd drIve Monitoring tHrougH cHAnneLs sMArtPHones reaL tiMe HigH store up to 30 days Monitor and record resoLution of continuous witH four HigH tABLets &... -
Page 2: Table Of Contents
PROFESSIONAL SuRvEILLANcE SYSTEM IMPORTANT Before returning tHis product to tHe retaiLer pLease contact if you HaVe any concerns or proBLeMs witH tHis product customer service phone: (03) 9982 5111 (Monday to friday 8.30am – 5.30pm est) email: customerservice@orionlive.com.au for further information visit www.orionlive.com.au index Page Page... -
Page 3: Introduction
PROFESSIONAL SuRvEILLANcE SYSTEM 1 introduction LiVe reMote Monitoring tHrougH sMArtPHones tABLets & Pcs resoLutIon reaL tiMe HigH resoLution recording four cHAnneLs Monitor and record witH four HigH definition caMeras 500gB HArd drIve store up to 30 days of continuous recording* 600tvL sMArtPHone tABLet &... -
Page 4: Connection Diagram
PROFESSIONAL SuRvEILLANcE SYSTEM 3 connection diagram Connect camera to Connect the other end of video/power Connect the other end of video/ Connect DVR Connect camera video/power cable. cable (bnC connector only) to bnC video power cable (DC connector only) power supply to power supply to input on DVR rear panel. -
Page 5: Hardware Layout
PROFESSIONAL SuRvEILLANcE SYSTEM 4 Hardware layout › REAR PAnEL ViDEO nEtWORK PORt OutPut AuDiO OutPut bnC ViDEO OutPut ViDEO inPut AuDiO inPut usb 2.0 PORts PtZ PORt POWER inPut › REMOTE COnTROL PLAybACK EntER PLAybACK mEnu ViEW mODE sWitCh bEtWEEn thE singLE-ViEW AnD muLti-ViEW mODEs numbER KEyPAD... -
Page 6: Basic Dvr Operation
PROFESSIONAL SuRvEILLANcE SYSTEM 5 Basic dVr oPeration › InTERACTIVE LIVE MOnITORInG Click and drag a box in a particular section of the video › › Turning on The DVr: Make sure the power supply channel for digital zoom. is connected securely on the rear panel of the DVR. If the cameras are set up correctly, the live video feed from the Double click any channel to view it in full screen. -
Page 7: Menu Layout
PROFESSIONAL SuRvEILLANcE SYSTEM 8 menu layout recorD Record Conf Playback Backup Motion Detect Video Blind alarM Video Loss Abnormality General Encode Network NetService sysTeM GUI Display PTZ Config RS232 Tour Main Menu HDD Manage Account Online User Output Adjust aDVanceD Auto Maintain Restore Upgrade... -
Page 8: Record > Record Conf
PROFESSIONAL SuRvEILLANcE SYSTEM 10 record > PlayBack 9 record > record conF Playback allows browsing of recorded video footages in local Record Conf menu allows the configuration of the way DVR hard drive or external storage devices. It is recommended to records video footages. -
Page 9: Record > Backup
PROFESSIONAL SuRvEILLANcE SYSTEM 11 record > BackuP 12 alarm > motion detect Motion detection is a very powerful function in this DVR that Backup enables stored video recordings in DVR hard drive to be generates notifications to the user about an event occurring backed up to external flash drive of hard drive. -
Page 10: Alarm > Video Blind
PROFESSIONAL SuRvEILLANcE SYSTEM › perioD: > copy: Copy current channel settings. Motion detection schedule. This schedule can be customised for each day of the week. Choose if it is required pasTe: > Paste copied channel settings. to keep the schedule the same for everyday. The green bar >... -
Page 11: Alarm > Video Loss
PROFESSIONAL SuRvEILLANcE SYSTEM › pTz acTiVaTion: › perioD: This function requires a PTZ camera to be Video loss detection schedule. This schedule can installed with the DVR. PTZ camera can be configured to be customised for each day of the week. Choose if it perform specified actions when video blind alarm is triggered. -
Page 12: Alarm > Abnormality
PROFESSIONAL SuRvEILLANcE SYSTEM 15 alarm > aBnormality › sysTeM TiMe: This is the date and time that is used to time stamp all the video footages, logs and notifications. Abnormality refers to any deviation from the DVR’s normal › DaTe ForMaT: Select preferred date format. -
Page 13: System > Network
Port that the DVR utilise to send video stream of video recording directly correlates to the bit rate. The higher and other information through to Orion CMS. Default Media the bit rate, the higher quality the video recording. When CBR port is 34567. -
Page 14: System > Net Service
PROFESSIONAL SuRvEILLANcE SYSTEM > QualiTy: Always transfer the best image quality > serVer ip: IP address of the NTP server. It is regardless of network speed. Video fluency may be recommended to use the default NTP server, adversely affected during low network speed. time.nist.gov. - Page 15 IP address such as 192.227.220.189. The following shows the SMTP settings for these providers. It is recommended to use Orion Live as the DNS Service. It is a free DNS service hosted by Orion for all Orion eMail customers. Visit www.orionlive.com.au/DDNS...
-
Page 16: System > Gui Display
PROFESSIONAL SuRvEILLANcE SYSTEM store and backup files on the network. The DVR can send recordings to the FTP when an alarm is triggered. To use this functionality, the user must have access to a FTP server. › arsp: Not applicable for this model. ›... -
Page 17: System > Ptz Config
PROFESSIONAL SuRvEILLANcE SYSTEM 21 system > PtZ conFig applying ViDeo regional coVer Select channel to apply regional cover. PTZ Config menu allows the configuration of communication Check the tickbox and select a number to allocate to the parameters between Pan/Tilt/Zoom devices and DVR. This DVR masking region. -
Page 18: Ptz Control
PROFESSIONAL SuRvEILLANcE SYSTEM 22 PtZ control › auTopan: Commence PTZ camera horizontal panning movement. conTrolling pan/TilT/zooM DeVice › Flip: Rotate the PTZ camera horizontally by 180°. PTZ controls for PTZ devices can be brought up by selecting the › reseT: Clear all PTZ settings. -
Page 19: Ptz Control - Patrol
PROFESSIONAL SuRvEILLANcE SYSTEM 24 PtZ control - Patrol 25 PtZ control - Pattern Patrol function enables DVR to move the PTZ camera according Pattern function enables DVR to move the PTZ camera to a list of multiple presets sequentially and continuously. according to user defined pattern. -
Page 20: System > Tour
PROFESSIONAL SuRvEILLANcE SYSTEM 27 system > tour 29 adVanced > Hdd manage Tour menu allows the configuration of tour function. HDD manage allows the management of internal DVR hard Tour function switches the view mode on live monitoring screen drive storage space. automatically. -
Page 21: Advanced > Account
PROFESSIONAL SuRvEILLANcE SYSTEM 30 adVanced > account › MoDiFy pWD: Modify the password for existing user account. Account menu allows the management of user accounts and level of authority. › aDD user: Add a new user account. Check Reuseable allow multiple login using this user account at the same time. Enter a suitable username and password. -
Page 22: Advanced > Online User
PROFESSIONAL SuRvEILLANcE SYSTEM 32 adVanced > outPut adjust › DeleTe user: Select the user accounts on the list and press Delete User to delete users. Output adjust menu allows the calibration of the display output › DeleTe group: Select group name from the list. Select on the monitor. -
Page 23: Advanced > Restore
DVr FirMWare Firmware update is only necessary when instructed. The latest firmware is available on Orion website for download. Copy it to your flash drive and plug it onto the DVR. Make sure there are no other files to make sure DVR detects the upgrade files. -
Page 24: Advanced > Import/Export
PROFESSIONAL SuRvEILLANcE SYSTEM 37 adVanced > imPort/exPort 38 inFo > Hdd inFo Import/Export menu allows the exportation of current DVR HDD info displays information of the internal hard drives. settings into external storage device or importation of DVR settings from external storage device into DVR. Local DVR log can also be exported to external storage device. -
Page 25: Info > Bps
PROFESSIONAL SuRvEILLANcE SYSTEM 39 inFo > BPs 41 inFo > Version BPS displays the data transmission rate of video encoding streams. Version displays the system version, build date and serial number. This information serves as a reference when tracking any known issues with a particular version of DVR as well as making sure the firmware version is up-to-date. -
Page 26: Cms Introduction
Device. Select in Device Manager menu. Username and password is required to login into Orion CMS. The default username is “admin” and no password. Select Save to remember the username and password. It is highly recommended that a strong password is created as soon as possible to protect your privacy. - Page 27 PROFESSIONAL SuRvEILLANcE SYSTEM Enter the DVR information in the form. Double click any of the camera channels to start live monitoring. auTosearch DVr DVR and PC must be connected to the same router/modem when using Autosearch function. Select under Device List tab and select Device.
-
Page 28: Cms Live Monitoring
Edit the DVR details such as Device Name, Device Fac, Type, User Name and Password. Right click DVR name to drop down extended menu. › reMoTe conFig: Configure DVR settings from Orion CMS. The interface is identical to that of the DVR. › sTarT Talk: Commence sending audio communication from PC to DVR. -
Page 29: Cms Channel Control
PROFESSIONAL SuRvEILLANcE SYSTEM 48 cms cHannel control 49 cms PtZ control PTZ control allows the control of PTZ devices connected to Channel control allows the control of channel video and audio the DVR. monitoring as well as adjustment of channel colour settings. ›... -
Page 30: Cms Display
PROFESSIONAL SuRvEILLANcE SYSTEM 50 cms disPlay Select to create new monitoring task. Display menu allows the configuration of different live monitoring view modes. conFiguring screen Display MoDe Select Display on the top toolbar. Select the preferred view mode. DRAG Select Full screen to enlarge main monitoring display to full screen. -
Page 31: Cms System > User Manager
52 cms system > user manager creaTing MoniToring projecT User Manager allows the management of group and user Create monitoring task. accounts for Orion CMS. Access User Manager by clicking on Select Monitor on the top toolbar and select Monitor... - Page 32 PROFESSIONAL SuRvEILLANcE SYSTEM aDDing neW group Select Modify and select User Accounts to add or remove user accounts from the group. Right click Group on the left tab and select Group. Select Apply to confirm or select Cancel to dismiss modifications.
-
Page 33: Cms System > Local Setting
PROFESSIONAL SuRvEILLANcE SYSTEM 53 cms system > local setting Select Modify and select authority to allow or disallow group members access to those functionalities. Local Setting allows the configuration of settings on local PC. Select Apply to confirm or select Cancel to dismiss Access Local Setting by clicking on... -
Page 34: Cms System > Alarm Setting
PROFESSIONAL SuRvEILLANcE SYSTEM 54 cms system > alarm setting Alarm Setting allows the configuration of alarm triggered recording and notification. Access Alarm Setting by clicking on System and selecting Alarm Setting. › ignoreD TiMe: Multiple consecutive alarm trigger within this duration will be disregarded. ›... -
Page 35: Cms Playback
PROFESSIONAL SuRvEILLANcE SYSTEM 56 cms PlayBack Playback allows the review of recorded videos in local PC or DVR as well as downloading files from the DVR. Select Playback to access playback menu. Select to confirm adding picture. Select Picture on the bottom toolbar of Map control menu. Drag and drop the added picture name from picture list to the top left box. -
Page 36: Cms Backup Config
PROFESSIONAL SuRvEILLANcE SYSTEM 57 cms BackuP conFig Backup Config allows the scheduling of video recording backup on local PC. Access Backup Config by clicking on Backup and selecting Backup Config. 58 cms log Log allows monitoring of all events that occur on the DVR and CMS. searching eVenT log Select Event Display... -
Page 37: Mobile Application
PROFESSIONAL SuRvEILLANcE SYSTEM 59 moBile aPPlication Select Device List on the bottom toolbar. Mobile application allows users to access the DVR remotely on their mobile devices such as smartphone and tablets. Mobile applicaTions vMEyeV2 is available for Apple devices from App Store. vMEye+ is available for Android devices from Google Play Main inTerFace... - Page 38 PROFESSIONAL SuRvEILLANcE SYSTEM > naMe: Enter suitable DVR name. Select DVR and channel to start live monitoring. > aDDress: Enter DVR IP address or domain name. For local access, refer to DVR Main Menu > System > Network to acquire local IP address. For remote access, refer to DVR Main Menu >...
-
Page 39: Troubleshooting Guide
PROFESSIONAL SuRvEILLANcE SYSTEM 60 trouBlesHooting guide probleM possible cause suggesTeD reMeDy DVr/camera has Check all cable and power supply connections. Power supply is loose or unplugged. no power or not No power at socket outlet/power point. Check power at socket outlet/power point. powering up Format hard drive. - Page 40 PROFESSIONAL SuRvEILLANcE SYSTEM 61 digital Video recorder 62 camera › VIDEO › VIDEO Video Format PAL or NTSC sensor 6mm Colour CMOS Sensor Video input 4 Composite BNC Inputs horizontal resolution 600TVL (1.0Vp-p, 75Ω) image resolution PAL: 648 x 488 NTSC: 648 x 488 2 Composite BNC Outputs lens F: 3.6mm Video output...
-
Page 41: Warranty
ProfessIonAL surveILLAnce sYsteM 63 warranty Arlec guarantees this product in accordance with the Australian Consumer Law. Arlec also warrants to the original first purchaser of this product (“you”) from a retailer that this product will be free of defects in materials and workmanship for a period of 12 months from the date of purchase;...
