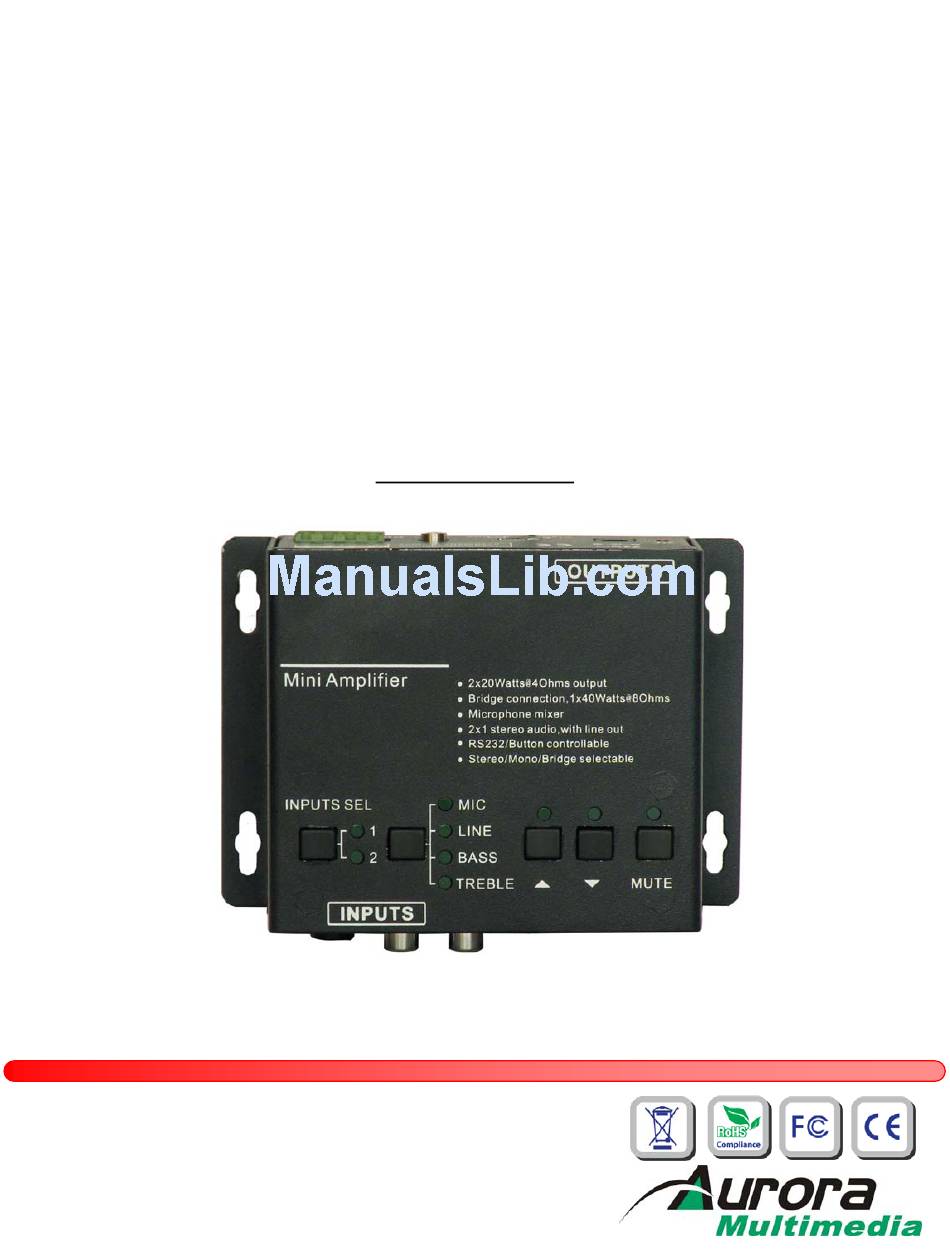

- Page 1 ™ AS-AMP1 40 Watt Digital Amplifier User Manual Manual Number: 100818 ...
- Page 2 However, like all electronic equipments, the AS-AMP1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 Introduction ™ The AS-AMP1 is a small digital amplifier (Class D), with EQ control and MIC mixer function. It is in a small enclosure but with powerful functions including bridge connection, dual-mono, EQ control, microphone mixer, and more. Applications include classrooms, small meeting rooms, lecture halls, bars, etc.
- Page 4 Features • 2x20 watt @ 4Ohm as the default amplifier output. • Bridge connection function. The user can switch the AS-AMP1 to be 1x40Watt@8Ohm by bridge connection. • Dual-mono function. The user can sum up the stereo audio to two times mono audio.
- Page 5 Wall Mount Key holes Power supply 24V 3A DC Power consumption Operation temperature 0~40°C [32~104°F] Storage temperature -20~70°C [-4~140°F] Relative humidity 10~90% RH [no condensation] Package 1x AS-AMP1 1x 24V 3A PSU 1x User Manual Contents ~ 4 ~...
- Page 6 Panel Descriptions Top Panel Front Panel Rear Panel ~ 5 ~...
- Page 7 Dual-mono output: The AS-AMP1 also has the function of double-mono output. It can sum up the left and right channel, to be the mono audio output. In this way, the both of the outputs are showing the same mono audio.
- Page 8 Front Panel Control The buttons provide the control of volume/EQ and switching. Audio switching: There are two switchable stereo audio inputs, one 2xRCA input, and one 3.5mm jack input. It can be switched through the buttons as below: Source Selection Volume/EQ controlling: The line volume and Microphone volume can be controlled by the buttons.
- Page 9 Communciation Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none DE-9 [9-pin D-sub female] 2= TX, 3=RX, 5=GND Command Function Desctription Feedback Code 1A1. Switching the audio to input 1 A: 1 -> 1 2A1. Switching the audio to input 2 A: 2 ->...
- Page 10 Turning up the volume of line audio. Send the RS232 command: [603%] Example 3 Preset the MIC volume to be “21” degree. Send the RS232 command: [521%] Example 4 Checking the working status of AS-AMP1. Send the RS232 command: [600%] ~ 9 ~...
- Page 11 Limited 3 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
