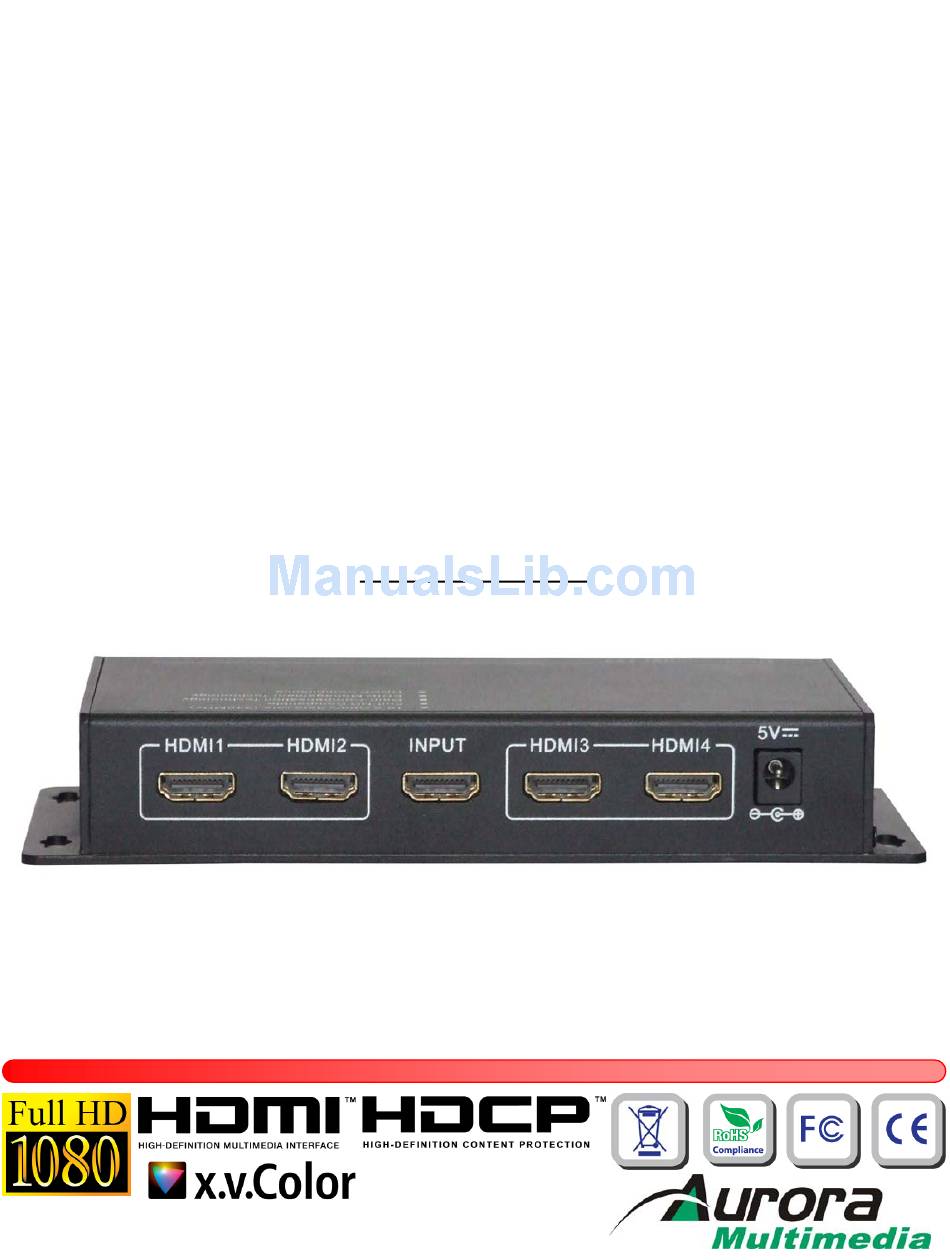

- Page 1 ASP-14H 1x4 HDMI 1.3 Distribution Amplifier User Manual Manual Number: 100816 ...
- Page 2 However, like all electronic equipments, the ASP-14H should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 HDMI splitters. It is compatible with PC resolutions up to 1920*1200@60Hz, 1080P, 2k and also supports HDTV. With 12-bit deep color video and high definition audio support, ASP-14H is suitable for high quality A/V broadcasting, digital signage and education applications.
- Page 4 Wall-mounting case Power supply 5V DC Power consumption 10 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 10~90% RH [no condensation] 1x ASP-14H Package Contents 1x 5V power supply unit 1x User Manual ~ 3 ~...
- Page 5 Panel Descriptions Rear Panel 1. HDMI IN: HDMI input source 2. HDMI OUT: distributed HDMI outputs 3. Power: LED light means power is on 5. +5V DC power jack: connect to 5V power supply unit When the connected HDMI monitor is verified as HDMI and HDCP compliant, the corresponding LED will blink. ...
- Page 6 Hardware Installation Broadcasts HDMI signal to 4 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the receivers. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply unit. 5. Power on the HDMI monitors. 6.
- Page 7 Notice 1. While connecting a new monitor to the splitter, experiencing a short period of time no display may be expected. Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the HDMI input is necessary to update.
- Page 8 Limited 3 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
