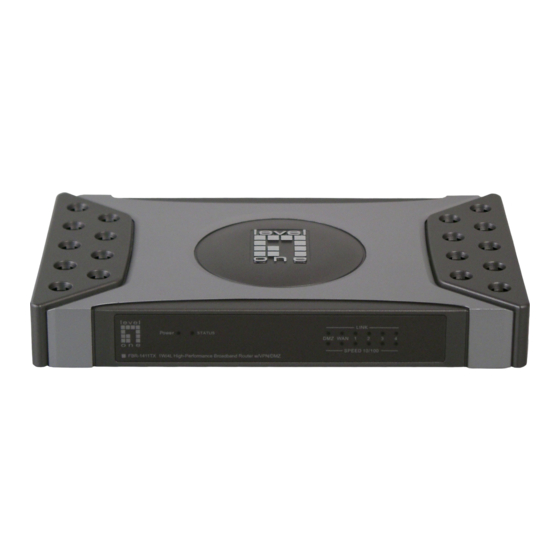

LevelOne
FBR-1411TX
1W,4L High Performance
Broadband Router w/VPN/DMZ port
User`s Manual
1

Advertisement

Table of Contents
loading

Summary of Contents for LevelOne FBR-1411TX

  • Page 1 LevelOne FBR-1411TX 1W,4L High Performance Broadband Router w/VPN/DMZ port User`s Manual...
  • Page 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.
  • Page 3: Fcc Interference Statement

    FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications.
  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Introduction ....................6 1.1 Functions and Features ................... 6 1.2 Packing List ....................7 Chapter 2 Hardware Installation ................. 8 2.1 Panel Layout ....................8 2.2 Installation Requirements ................8 2.3 Procedure for Hardware Installation............... 9 Chapter 3 Network Settings ..................
  • Page 5 4.8.2 Firmware Upgrade ..................49 4.8.3 Backup Setting ................... 50 4.8.4 Reset to default ..................50 4.8.5 Reboot ......................50 4.8.6 Miscellaneous Items................... 51 A.1 Install TCP/IP Protocol into Your PC............52 A.2 Set TCP/IP Protocol for Working with NAT Router ........52...
  • Page 6: Chapter 1 Introduction

    Congratulations on your purchase of this outstanding LevelOne FBR-1411TX Broadband Router. LevelOne FBR-1411TX is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing and office resources sharing, and it is easy to configure and operate for even non-technical users.
  • Page 7: Packing List

    correctly. Domain Filter Supported Domain Filter prevents users under this device from accessing specific domains. Routing Table Supported Routing Tables allow you to determine which physical interface address to use for outgoing IP data grams. If you have more than one routers and subnets, you will need to enable routing table to allow packets to find proper routing path and allow different subnets to communicate with each other.
  • Page 8: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Table of Contents 2.1 Panel Layout 2.1.1. Front Panel Figure 2-1 FBR-1411TX Front Panels. LED: Function Color Status Description System status Status is flashed once per second to indicate Status Orange Blinking indicators system is alive.
  • Page 9: Procedure For Hardware Installation

    2.3 Procedure for Hardware Installation 1. Setup LAN connection: Connect an Ethernet cable from your computer’s Ethernet port to one of the LAN ports of this product. 2. Setup WAN connection: Prepare an Ethernet cable for connecting this product to your cable/xDSL modem or Ethernet backbone.
  • Page 10: Chapter 3 Network Settings

    Chapter 3 Network Settings Table of Contents To use LevelOne FBR-1411TX correctly, you have to properly configure the network settings of your computers. 3.1 Make Correct Network Settings of Your Computer The default IP address of this product is 192.168.123.254, and the default subnet mask is 255.255.255.0.
  • Page 11: Chapter 4 Configuring Nat Router

    Chapter 4 Configuring NAT Router Table of Contents LevelOne FBR-1411TX provides Web based configuration scheme. That is, to configure the router device by your Web browser, such as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms.
  • Page 12: Status

    4.2 Status Chapter Home This option provides the function for observing this product’s working status: A. WAN Port Status. If the WAN port is not assigned a static IP, there may appear a “Renew” or “Release” button on the Side note column. You can click this button to renew or release IP manually. B.
  • Page 13: Wizard

    4.3 Wizard Chapter Home 4.3.1 Setup Wizard – Select WAN Type Setup Wizard will guide you through a basic configuration procedure step by step. Press ”Next >”. Setup Wizard - Select WAN Type: For detail settings, please refer to Section 4.4 primary setup. 4.3.2 Setup Wizard –...
  • Page 14: Basic Setting

    Setup Wizard – VPN Setting: For detail settings, please refer to Section 4.15 VPN-IPSEC. 4.4 Basic Setting Chapter Home 4.4.1 Primary Setup – LAN’s IP, WAN’s MAC Address, WAN Type, Virtual Computers This configuration enables this product to work properly. The setting items and the web appearance depend on the WAN type.
  • Page 15 4.4.1.1 LAN’s IP Address Set the local IP address of this device if necessary, the default IP address of this product is 192.168.123.254. 4.4.1.2 WAN’s MAC Address Set the MAC address of WAN interface of this device if necessary, the factory one is default and unique. Certainly, user can set it by himself.
  • Page 16 type is 1500. 3. Auto-reconnect: Keep alive of the connection to ISP. 4. Primary and Secondary DNS: Enter the proper setting provided by your ISP. 4.4.1.3.3 Dynamic IP Address with Road Runner Session Management.(e.g. Telstra BigPond) 1. LAN IP Address is the IP address of this product. It must be the default gateway of your computers.
  • Page 17 4.4.1.3.4 PPP over Ethernet PPPoE Account and Password: the account and password your ISP assigned to you. For security, this field appears blank. If you don't want to change the password, leave it empty. PPPoE Service Name: optional. Input the service name if your ISP requires it. Otherwise, leave it blank.
  • Page 18 4.4.1.3.5 PPTP There are two kinds of types in this connection. One is that gets ip from isp ( DHCP server),the other is that setup the ip manually. My tunnel name: (optional).ex: router Server IP Address: the IP address of the PPTP server. My IP Address: the private IP address and subnet mask your ISP assigned to you.
  • Page 19: Dhcp Server

    4.4.1.4 Virtual Computers Virtual Computer enables you to use the original NAT feature, and allows you to setup the one-to-one mapping of multiple global IP address and local IP address. The function can be activated only when the WAN type is static and dynamic. •...
  • Page 20: Hardware Dmz - Demilitarized Zone

    server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool. Domain Name: Optional, this information will be passed to the client. Primary DNS/Secondary DNS: This feature allows you to assign DNS Servers for configuring all the computers and devices in your network.
  • Page 21: Change Administrator's Password

    4.4.4 Change Administrator’s Password You can change Password here. We strongly recommend you to change the system password for security reason. 4.5 Forwarding Rules Chapter Home 4.5.1 Virtual Server This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world.
  • Page 22: Special Ap

    4.5.2 Special AP Some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router. The Special Applications feature allows some of these applications to work with this product. If the...
  • Page 23: Miscellaneous Items

    mechanism of Special Applications fails to make an application work, try setting your computer as the DMZ host instead. Trigger: the outbound port number issued by the application. Incoming Ports: when the trigger packet is detected, the inbound packets sent to the specified port numbers are allowed to pass through the firewall.
  • Page 24: Security Settings

    4.6 Security Settings Chapter Home 4.6.1 Packet Filter Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets. However, Inbound filter applies on packets that destined to Virtual Servers or DMZ host only.
  • Page 25: Inbound Filter

    following: • Source IP address • Source port address • Destination IP address • Destination port address • Protocol: TCP or UDP or both. For source or destination IP address, you can define a single IP address (4.3.2.1) or a range of IP addresses (4.3.2.1/24).
  • Page 26 significant bits in the last byte of IP address are unmask bits. Hosts within the subnet can do everything (block nothing). And others are all blocked. Example 2: (1.2.3.100/28): It stands for a subnet of IP address ranging from 1.2.3.96 to 1.2.3.111 and they can do everything except read net news (port 119) and transfer files via FTP (port 21).
  • Page 27: Outbound Filter

    Outbound Filter: To enable Outbound Packet Filter click the check box next to Enable in the Outbound Packet Filter field. Example 1: (192.168.123.100/28): It stands for a subnet of IP address ranging from 192.168.123.96 to 192.168.123.111 and they are allowed to send mail (port 25), receive mail (port 110), and browse Internet (port 80);...
  • Page 28: Domain Filter

    Example 2: (192.168.123.100/28): It stands for a subnet of IP address ranging from 192.168.123.96 to 192.168.123.111 and they can do everything except read net news (port 119) and transfer files via FTP (port 21). Others are allowed. After Outbound Packet Filter setting is configured, click on the Save button. 4.6.2 Domain Filter...
  • Page 29 Domain Filter let you prevent users under this device from accessing specific domains. Domain Filter Enable: Checke if you want to enable Domain Filter. Log DNS Query: Checke if you want to log the action when someone accesses the specific domains. Privilege IP Addresses Range: Setting a group of hosts and privilege these hosts to access network without restriction of domain filter.
  • Page 30: Url Blocking Blocking

    unmask bits. These LAN hosts of subnet can access network without restriction. 4.6.3 URL Blocking Blocking URL Blocking will block LAN computers to connect to pre-defined Websites. The major difference between “Domain filter” and “URL Blocking” is Domain filter require user to input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only.
  • Page 31 In this example: 1.URL include “sex” will be blocked, and the action will be record in log-file. 2.URL include “erotica” will be blocked, but the action will be record in log-file 3.URL include “girl” will not be blocked, but the action will be record in log-file. 4.
  • Page 32: Mac Address Control

    4.6.4 MAC Address Control MAC Address Control allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address. MAC Address Control Check “Enable” to enable the “MAC Address Control”. All of the settings in this page will take effect only when “Enable”...
  • Page 33: Vpn-Ipsec

    4.6.5 VPN-IPSEC IPSEC Settings are settings that are used to create virtual private tunnels to remote VPN gateways or hosts. The tunnel technology supports data confidentiality, data origin authentication and data integrity of network information by utilizing encapsulation protocols, encryption algorithms, and hashing algorithms.
  • Page 34 Tunnel pass through this device. Netbios over IPSEC Enable Netbios protocol (My Network Places) between IPSEC Tunnels. Max. number of tunnels item Since VPN greatly degrades network throughput, the allowable maximum number of concurrent tunnels is limited. Be careful to set the value for allowing the number of tunnels can be created simultaneously.
  • Page 35 When using VPN Dynamic IP Setting, this VPN router can accept tunnel creation requests from more IPSec initiators whose IP address are dynamic except those with static IP address. By this way, the VPN router will not check VPN initiator’s IP information, so user can build VPN tunnel at the VPN router from any remote VPN router or host regardless of its IP information.
  • Page 36 value ranges from 300 seconds to 172,800 seconds. Encapsulation Protocol There are three protocols can be selected: ESP, AH and ESP+AH. pfs: Perfect Forward Secrecy (PFS), allow IKE to re-exchange a key for IPSec instead of direct use ISAKMP key as the IPSec key during phase 2 of IKE negotiation. The ISAKMP key is derived at the end of phase 1 of IKE negotiation.
  • Page 37 4.6.5.3 Manual Key setup Press “More” Manual key setup includes more items than IKE setup, like Local SPI, Remote SPI, Encryption Algorithm, Encryption Key, Authentication Algorithm, and Authentication Key. Tunnel name Indicate which tunnel that is focused now. The tunnel name is derived from previous page of VPN setting Local subnet It is the subnet of LAN site of local VPN gateway.
  • Page 38: Miscellaneous Items

    value ranges from 300 seconds to 172,800 seconds. Encapsulation protocol There are two protocols can be selected: ESP and AH. Local SPI SPI is an important parameter during hashing. Local SPI will be included in the outbound packet transmitted from WAN interface of local gateway. The value of local SPI should be set in hex formatted.
  • Page 39: Advanced Setting

    NOTE: When Remote Administration is enabled, the web server port will be shifted to 88 for remote administrator but no change for local administrator. You can change web server port to other port, too. Administrator Time-out It is the time of no activity on management web server to logout the administrator by router system automatically.
  • Page 40: System Log

    4.7.1 System Log This page supports two methods to export system logs to specific destination by means of syslog (UDP) and SMTP (TCP). The items you have to setup including: IP Address for Syslog Host IP of destination where syslog will be sent. Check Enable to enable this function. E-mail Alert Enable Check if you want to enable Email alert (send urgent information to administrator via email).
  • Page 41: Dynamic Dns

    4.7.2 Dynamic DNS To host your server on a changing IP address, you have to use dynamic domain name service (DDNS). So that anyone wishing to reach your host only needs to know the name of it. Dynamic DNS will map the name of your host to your current IP address, which changes each time you connect your Internet service provider.
  • Page 42: Snmp Setting

    4.7.3 SNMP Setting In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a user the capability to remotely manage a computer network by polling and setting terminal values and monitoring network events. Enable SNMP You must check either Local or Remote or both to enable SNMP function. If Local is checked, this device will response request from LAN.
  • Page 43: Routing Table

    4.7.4 Routing Table Routing Tables allow you to determine which physical interface address to use for outgoing IP data grams. If you have more than one routers and subnets, you will need to enable routing table to allow packets to find proper routing path and allow different subnets to communicate with each other. Routing Table settings are settings used to setup the functions of static and dynamic routing.
  • Page 44: System Time

    So if, for example, the host wanted to send an IP data gram to 192.168.3.88, it would use the above table to determine that it had to go via 192.168.1.33 (a gateway), and if it sends packets to 192.168.5.77 will go via 192.168.1.55. Each rule can be enabled or disabled individually.
  • Page 45: Schedule Rule

    Time Server Select a NTP time server to consult UTC time Time Zone Select a time zone where this device locates. Set Date and Time manually Selected if you want to Set Date and Time manually. Function of Buttons Sync Now: Synchronize system time with network time server 4.7.6 Schedule Rule You can set the schedule time to decide which service will be turned on or off.
  • Page 46 After configure Rule 1 Schedule Enable Selected if you want to Enable the Scheduler. Edit...
  • Page 47 To edit the schedule rule. Delete To delete the schedule rule, and the rule# of the rules behind the deleted one will decrease one automatically. Schedule Rule can be apply to Virtual server and Packet Filter, for example: Exanple1: Virtual Server – Apply Rule#1 (ftp time: everyday 14:10 to 16:20)
  • Page 48: Toolbox

    Exanple2: Packet Filter – Apply Rule#1 (ftp time: everyday 14:10 to 16:20). 4.8 Toolbox Chapter Home...
  • Page 49: View Log

    4.8.1 View log You can View system log by clicking on the View Log button. 4.8.2 Firmware Upgrade You can upgrade firmware by clicking Firmware Upgrade button.
  • Page 50: Backup Setting

    4.8.3 Backup Setting You can backup your settings by clicking the Backup Setting button and save it as a bin file. Once you want to restore these settings, please click Firmware Upgrade button and use the bin file you saved. 4.8.4 Reset to default You can also reset this product to factory default by clicking the Reset to default button.
  • Page 51: Miscellaneous Items

    4.8.6 Miscellaneous Items MAC Address for Wake-on-LAN Wake-on-LAN is a technology that enables you to power up a networked device remotely. In order to enjoy this feature, the target device must be Wake-on-LAN enabled and you have to know the MAC address of this device, say 00-11-22-33-44-55.
  • Page 52: Install Tcp/Ip Protocol Into Your Pc

    Appendix A: TCP/IP Configuration for Windows 95/98 back Table of Contents This section introduces you how to install TCP/IP protocol into your personal computer. And suppose you have been successfully installed one network card on your personal computer. If not, please refer to your network card manual.
  • Page 53 3. Click Properties button to set the TCP/IP protocol for this NAT Router. 4. Now, you have two setting methods: A. Get IP via DHCP server Select Obtain an IP address automatically in the IP Address tab. b. Don’t input any value in the Gateway tab.
  • Page 54 Choose Disable DNS in the DNS Configuration tab. B. Configure IP manually Select Specify an IP address in the IP Address tab. The default IP address of this product is 192.168.123.254. So please use 192.168.123.xxx (xxx is between 1 and 253) for IP Address field and 255.255.255.0 for Subnet Mask field.
  • Page 55 b. In the Gateway tab, add the IP address of this product (default IP is 192.168.123.254) in the New gateway field and click Add button. In the DNS Configuration tab, add the DNS values which are provided by the ISP into DNS Server Search Order field and click Add button.
