Audio Authority 1173BK Installation And Operation Manual

Multi-zone audio router with volume control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

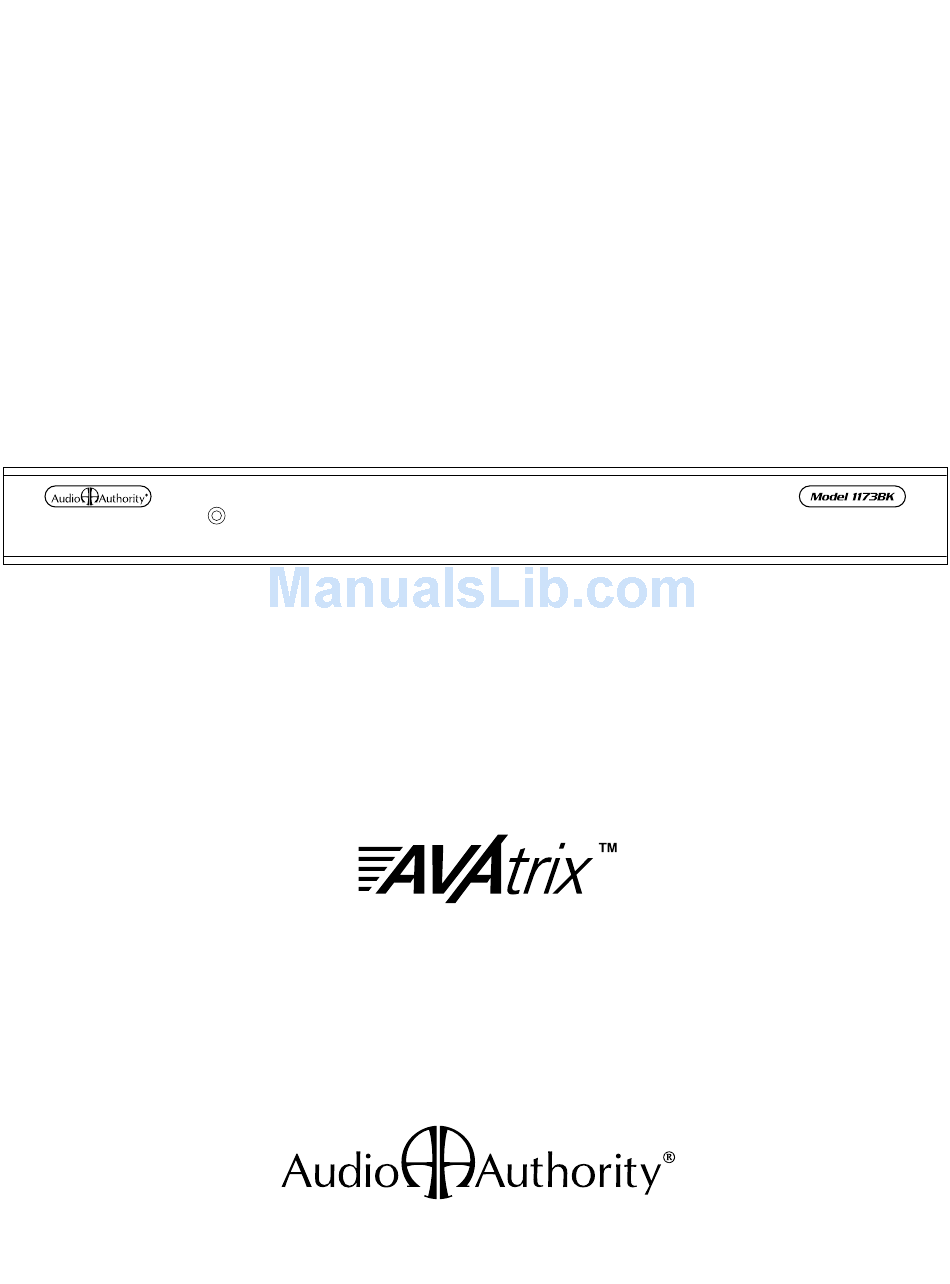

Installation and Operation

701-12442B
Model 1173BK Multi-Zone Audio Router
Manufactured in the USA by Audio Authority Corporation, Lexington Kentucky • 800-322-8346 or 859-233-4599 • www.audioauthority.com
Model 1173BK
Multi-Zone Audio Router with Volume Control
for the
HD Cat 5 Matrix Routing System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1173BK and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Authority 1173BK

Summary of Contents for Audio Authority 1173BK

  • Page 1: Installation And Operation

    Installation and Operation 701-12442B Model 1173BK Multi-Zone Audio Router Manufactured in the USA by Audio Authority Corporation, Lexington Kentucky • 800-322-8346 or 859-233-4599 • www.audioauthority.com Model 1173BK Multi-Zone Audio Router with Volume Control for the HD Cat 5 Matrix Routing System...
  • Page 2 Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority Corp. AVAtrix and ExpressRamp are trademarks of Audio Authority. Copyright December, 2008, all rights reserved. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

  • Page 3: Getting Started

    • Update AVAtrix firmware to v1.4 or greater. General Information The Model 1173BK Multi-Zone Audio Router with Volume Control is a companion product to the AVAtrix™ HD Cat 5 Routing System. It provides six analog or digital audio source outputs to a distributed audio system to enable coordination of a room’s audio program with the video program being received on a Cat 5 zone receiver.
  • Page 4 2. Connect the #1 Cat 5 output of the AVAtrix to the Cat 5 receiver in Zone 1. 3. Connect the #1 analog output of the Model 1173BK to the Zone 1 audio inputs of the amplifier or audio system (see diagrams on pages 5 and 6).
  • Page 5 A/V receivers (see page 10) or a multi-zone amp, as shown below. The 1173BK audio output #1 tracks with the AVAtrix Cat 5 output #1 so that the audio always matches the video at the zone. Address each 1173BK to match the AVAtrix outputs (see page 4).
  • Page 6 3 IR signals are routed to each AVR to control volume. The 1173BK audio output #1 tracks with the AVAtrix Cat 5 output #1 so that the audio always matches the video at the zone. Address each 1173BK to match the AVAtrix outputs (see page 4).
  • Page 7 Digital output may be either 5.1 surround sound (e.g. zone 1 below), or two channel PCM (e.g. zone 3). IR signals from each zone are routed to that zone’s AVR to control volume. The 1173BK audio output #1 tracks with the AVAtrix Cat 5 output #1 so that the audio always matches the video at the zone.
  • Page 8 Using RF Control Systems If desired, use the RS-232 connection for source switching and volume control, utilizing the 1173BK ExpressRamp volume control (see page 10). The RF base station should generally be located near the AVAtrix. It may be to advantage to use Model 1111 to inject IR commands from the RF base station zone outputs into the Cat 5 pathways to simplify program- ming.
  • Page 9 Source mode is used with a whole-house audio system that includes its own switching and volume control. The 1173BK audio output #1 always provides the audio from Source 1. 1173BK volume control is not generally used with this type of system.
  • Page 10 Allow, A/V Router x, Zone n’s source to all zones. [V,Rx,On,vvv] (Rx,On,V,vvv) Set volume level of zone n of 1173BK in tracking mode to volume vvv (ExpressRamp*) [V,Im,vvv] (Im,V,vvv) Set volume level of source m (valid when 1173BK is in source mode)
  • Page 11 Query volume level of all zones of 1173BK tracking A/V router x (Rx,O3,V,vvv) (Rx,O4,V,vvv) (Rx,O5,V,vvv) (Rx,O6,V,vvv) [?,V,Im] (Im,V,vvv) Query volume level of source m (valid when 1173BK is in source mode) [?,V,I] (I1,V,vvv) (I2,V,vvv) (I3,V,vvv) Query volume level of all sources (valid when 1173BK is in source mode) (I4,V,vvv) (I5,V,vvv) (I6,V,vvv)

  • Page 12: Limited Warranty

    Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). A copy of the invoice from an Authorized Reseller showing the item number and date of pur- chase (proof-of-purchase) must be submitted with the defective unit to constitute a valid in-warranty claim.
