Installation and Operation

Model AVX-562
High Definition Cat 5 Matrix

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVX-562 and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Authority AVX-562

Summary of Contents for Audio Authority AVX-562

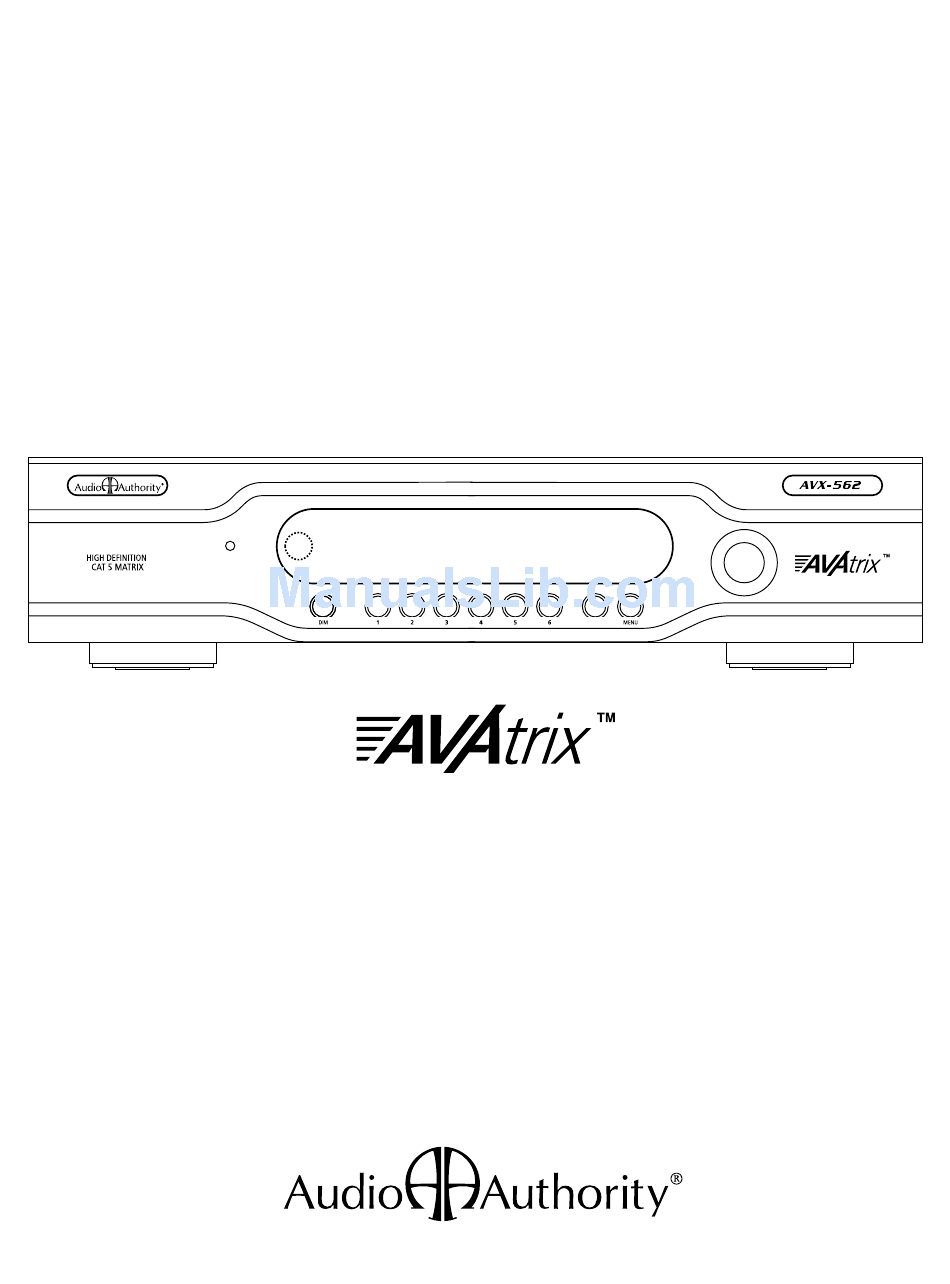

  • Page 1: Installation And Operation

    Installation and Operation Model AVX-562 High Definition Cat 5 Matrix...
  • Page 2 High Definition Cat 5 Matrix This document is consistent with features in firmware version 1.0 Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority Corp. AVAtrix is a trademark of Audio Authority. Copyright August, 2008, all rights reserved.

  • Page 3: Limited Warranty

    Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). A copy of the invoice from an Authorized Reseller showing the item number and date of pur- chase (proof-of-purchase) must be submitted with the defective unit to constitute a valid in-warranty claim.

  • Page 4: Specifications

    0.03% Gain Crosstalk 75dB Gain Accuracy Power 3dB Bandwidth 100MHz DC Input Connector 5.5 X 2.1mm Input Coupling DC Input/Polarity 18V/Center positive S/N Ratio 61dB Power Supply 571-023 Max Gain/Equalization AVX-562 Heat Output 62 BTU/hr Audio Authority AVAtrix User Manual...

  • Page 5: Table Of Contents

    Appendix C: Using Diagnostic Modes ......Appendix D: RS-232 Control Guidelines ......Audio Authority AVAtrix User Manual...

  • Page 6: Getting Started

    HD Cat 5 Matrix The AVX-562 is a six input, seven output high definition matrix router. It has one local output and six Cat 5 remote outputs, all offering component video with digital and analog audio. The Model AVX-562 performs selection of up to six audio/video input sources by infrared control, RS-232 signals, or by manual selection.

  • Page 7: Other Materials You May Need

    Cat 5 receiver styles may be used in one system. • Model 802-568 7-port bus cable: for up to 5 ex- panders or routers. (AVX-562 has Model 802-567 Cat 5 Receiver 4-port bus cable installed at the factory—for up to 2 expanders or routers.)

  • Page 8: Panel Descriptions

    Panel Descriptions Shown on the page opposite are the front and back views of the AVX-562. Below is a view of the 1105BK In- frared Remote Control. Each AVX-562 includes one 1105BK; additional 1105BK Remotes may be purchased separately, or you may download the IR codes from www.audioauthority.com.
  • Page 9 Audio Authority AVAtrix User Manual...

  • Page 10: Hardware Assembly

    Be certain the back of the connector does not contact the metal case. To disconnect a bus plug, squeeze the side latches. i. Install the bus port cover and feet you removed from Model AVX-562 onto the bottom unit and turn the stack right side up.
  • Page 11 This diagram shows the parts and locations for stacking components. The procedure must be performed with the units upside down. opening screen on the Model AVX-562 display indi- cates that the unit is powered and shows the number of expanders that have been recognized. If this num-...

  • Page 12: Cat 5 Zone Wiring

    Remove the cover screws adjacent to the front panel of each product and use them to mount Model 1192 (for Model AVX-562) or Model 1191 (for Model 1172/76) rack adapters. Be sure to place a spacer under the adapters at every screw location – see illustration.
  • Page 13 AVX-562 Address = A Two runs of Cat 5e/6 per 18V Power Wallplate Supply System capacity shown: IR Receiver 6 Cat 5 wallplate/receivers (each has selectable input) 1105 Universal Remote Remote Control Control Audio Authority AVAtrix User Manual...

  • Page 14: Remote Control Options

    The screen should match this illustration if a Model AVX-562 is installed with three 1176 expanders for a total output of 24 Cat 5 outputs. c. Apply power to all sources and video displays with associated equipment. Use the 1105BK remote control to verify video and audio signal integrity of sources at each zone location.

  • Page 15: Installing Infrared Equipment

    AVAtrix front panel optical IR receiver. You can also patch the IR signal directly to the IR input port on the rear panel using a properly fabricated 3.5mm cable (see page 7). Call Audio Authority for more information. 2. Setting Up IR at the Remote Zones.
  • Page 16 AVAtrix. Do not use powered IR systems that are designed to use a sepa- rate power source, or equipment damage could result. The AVAtrix powers IR receivers with 12 volts; do not use IR receivers designed for any other voltage. Use only three-wire receivers or damage could result. Audio Authority AVAtrix User Manual...

  • Page 17: Entering Source Names And Custom Groups

    The wallplate/receiver zone outputs are numbered 1- 6 on each output level, the first level being the AVX-562 outputs. The AVX-562 outputs are always addressed “A” and the next level, Model 1176 should be “B” and so on. An individual zone output is referred to as A2, or B5, etc.

  • Page 18: Setup Menu Chart

    Enter contact information. Up to four lines, 42 characters per line. Diagnostics Expander Address Shows letter address of all detected expanders, including the six native AVX-562 Cat 5 matrix outputs. Local IR Shows on/off times of IR signals received through the front panel.

  • Page 19: Pc Setup Via Flash Card

    HELP inside the Utility. 1. Remove the flash card from the slot in the rear panel of the AVX-562 and insert it in an MMC/SD compat- ible card reader. The Utility should launch automatically in any Windows™ operating system.

  • Page 20: Operation

    Number key for the desired source. Example: Group 1, Source 2, etc. Changing the source for all Press ALL; press the Number key for the desired source. (Press ENTER to UNDO.) zones Audio Authority AVAtrix User Manual...
  • Page 21 IR-LOCK key used for source control restriction UNLOCK key used to cancel all temporary restrictions VIEW-LOCK key used for private viewing restriction LOCK key used in conjunction with VIEW- MENU key used to access AVX-562 setup menu DISPLAY MENU LOCK LOCK, IR-LOCK, and UNLOCK keys...

  • Page 22: Appendix A: Troubleshooting

    • Some IR remotes cannot be processed by the AVAtrix commands from a • IR output not properly connected to external IR system – call Audio Authority Technical Support certain IR remote Appendix B: Upgrading the AVAtrix Operating System Firmware The latest version is available to download to your PC from www.audioauthority.com/page/software.

  • Page 23: Appendix C: Using Diagnostic Modes

    Enter this diagnostic mode and then turn the address dial on the rear of each expander until the “X” on the screen is under the correct address. The AVX-562 has an 1176 inside the chassis that is addressed “A”. If A does not ap- pear on the diagnostic screen, the internal bus cable may be loose.

  • Page 24: Appendix D: Rs-232 Control Guidelines

    About Address Terminology A “row” or row letter refers to a six-output array, either the internal Cat 5 outputs on the AVX-562 or an 1176 expander. The AVX-562 row is always addressed “A” and other 1176 expanders should be addressed in order as shown above.
  • Page 25 ?P or ?R Screen Mode P if display is in professional screen w = Row A-L (AVX-562 Cat 5 array or 1176) R if display is in residential screen x = Column 1-6 (output number) S if display is in any other screen (e.g. Setup) Panel Controls –...
  • Page 26 Lock out internal I/R receiver [U,I] (I,U) Unlock internal I/R receiver [+,B] (B,+) Turn on display blanking after 45 seconds of inactivity [-,B] (B,-) Turn off display blanking [+,P] (P,+) Select Professional Screen [-,P] (P,-) Select Residential Screen Audio Authority AVAtrix User Manual...
  • Page 27 232 port. If any valid normal command is received (beginning and ending with brackets [ and ] ), the AVAtrix ceases echoing characters to prevent these echoed characters from corrupting responses. The echo function remains off until the AVAtrix is reset, either by interrupting power or by double-pressing the front panel button. Audio Authority AVAtrix User Manual...
  • Page 28 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 Website: www.audioauthority.com v 1.0 752-564 10/08...
