Audio Authority 1176 Installation And Operation Manual

High definition cat 5 matrix router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

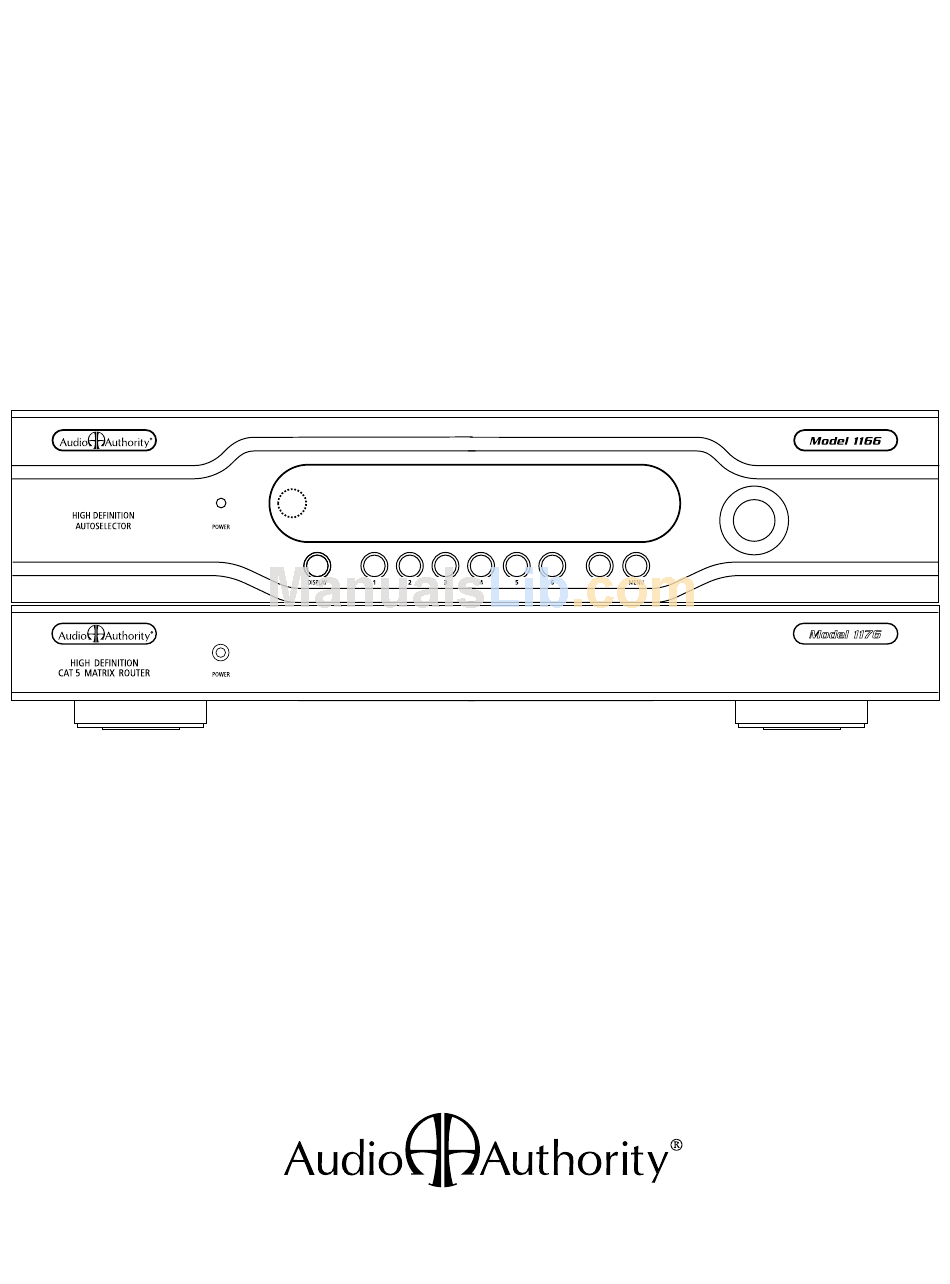

Installation and Operation

Model 1176
701-12442B
ADDRESS
HD Cat 5
Matrix Router
High Definition Cat 5 Matrix Router
18V DC
A
OUTPUT 6
B
A
OUTPUT 6
B
A
OUTPUT 6
B
A
OUTPUT 6
B
A
OUTPUT 6
B
A
OUTPUT 6
B
POWER
Manufactured in the USA by Audio Authority Corporation, Lexington Kentucky • 800-322-8346 or 859-233-4599 • www.audioauthority.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1176 and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Authority 1176

Summary of Contents for Audio Authority 1176

  • Page 1: Installation And Operation

    HD Cat 5 Matrix Router High Definition Cat 5 Matrix Router 18V DC OUTPUT 6 OUTPUT 6 OUTPUT 6 OUTPUT 6 OUTPUT 6 OUTPUT 6 POWER Manufactured in the USA by Audio Authority Corporation, Lexington Kentucky • 800-322-8346 or 859-233-4599 • www.audioauthority.com...
  • Page 2 Model 1176 High Definition Cat 5 Matrix Router Expander Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority Corp. AutoSwitch is a trademark of Audio Authority. Copyright April, 2006, all rights reserved. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

  • Page 3: Table Of Contents

    • Do not expose this unit to excessive heat. • Install only in dry, indoor locations. • Do not obstruct the ventilation slots. • Clean the unit only with a dry or slightly dampened soft cloth. Audio Authority Model 1176 User Manual...

  • Page 4: Getting Started

    • Perform desired setup operations General Information The Model 1176 High Definition Cat 5 Matrix Router is a companion product to the Model 1166* High Defi- nition Component Video AutoSelector is able to display any one of the six inputs of the Model 1166 at any time. Up to six Model 1176s may be stacked with its host 1166, providing outputs for 6, 12, 18 or more Wallplates.

  • Page 5: Panel Descriptions

    Audio Authority Model 1176 User Manual...
  • Page 6 AutoSelector location, or, with an IR receiver installed, select source signals to individual 1176 Wallplate outputs at the Wallplate location. Each Model 1166 or 1156 includes one 1105 remote; additional remotes may be purchased separately.

  • Page 7: Installation

    Installation These instructions address the Model 1176, which is always used with either a Model 1156 or 1166 High Definition Component Video AutoSelector as the head end and one or more Model 9878 Cat 5 HDTV Con- ™ nection Plates (Wallplates) downstream. Refer to the Model 1166 instruction manual for complete directions for installing this product.

  • Page 8: Hookup Diagrams

    Multiple Wallplates may be connected to a Model 1166 with Model 1176 Matrix Routers. A single 1176 has a capacity of six Wallplates. IR signals sent over Cat 5 through the 1176 are then sent through the 1166 and retransmitted on the IR output jack. IR signals from the 1105 (or other enabled remotes) are interpreted by the 1176 and affect only the output of the Wallplate originating the IR.
  • Page 9 A combination of 1176s and 1170s may be used with an 1166 to provide multiple Wallplate outputs. The 1166 responds to the 1105 IR signals sent over the Cat 5 run back to the 1176, whereas IR signals sent over Cat 5 and through to the 1170 are then sent through the 1166 and retransmitted on the IR output jack.

  • Page 10: Limited Warranty

    Should any consumer use product manufactured by Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only).

  • Page 11: Specifications

    Coaxial 75 ohms Input Impedance 100 ohms/50K ohms Min Load Impedance 75 ohms/10K ohms Multi-channel Digital Frequency Response 10-50KHz S/N Ratio 75dB THD+Noise .025% Crosstalk 75dB DC Input Connector DC Input/Polarity 18V/center positive Power Supply 571-015 Audio Authority Model 1176 User Manual...
  • Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859/233-4599 • Fax: 859/233-4510 Customer Toll-Free USA & Canada: 800/322-8346 Website: http://www.audioauthority.com Custom Installer Telephone Number Registration Password (This password is only for registration, not for password operations in your 1166 or 1156.) 752-491 v.
