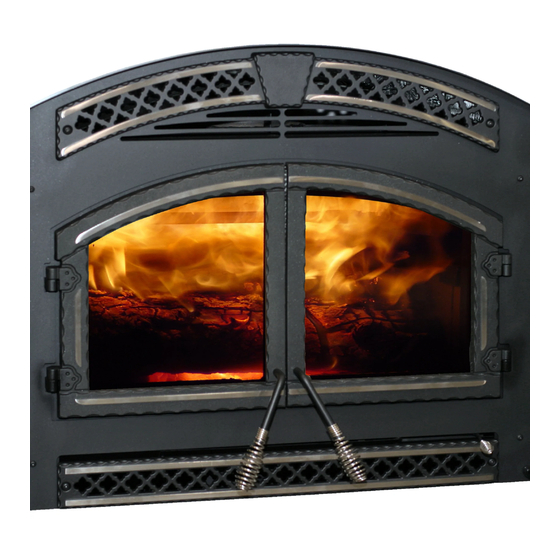

Heat & Glo • NORTHSTAR • 480-2360 Installation Manual • Rev H • 8/20/14
Installation Manual
Installation and Fireplace Setup
O-T L
Portland
Oregon USA
US
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• DO NOT overfi re. Overfi ring will void your
warranty.
• Comply with all minimum clearances to com-
bustibles as specifi ed. Failure to comply may
cause house fi re.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfi re and generate
poisonous gases (i.e. carbon monoxide).
Pour demander un exemplaire
en français de ce Manuel
du propriétaire, visitez www.
heatnglo.com/translations.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORTHSTAR-BK and is the answer not in the manual?

Questions and answers

Related Manuals for Heat & Glo NORTHSTAR-BK

Summary of Contents for Heat & Glo NORTHSTAR-BK

  • Page 1 Installation Manual Pour demander un exemplaire en français de ce Manuel du propriétaire, visitez www. Installation and Fireplace Setup heatnglo.com/translations. INSTALLER: Leave this manual with party responsible for use and operation. OWNER: Retain this manual for future reference. NOTICE: DO NOT discard this manual! WARNING: If the information in these instructions is not followed exactly, a fi re or explosion may result causing property damage, personal injury, or death.
