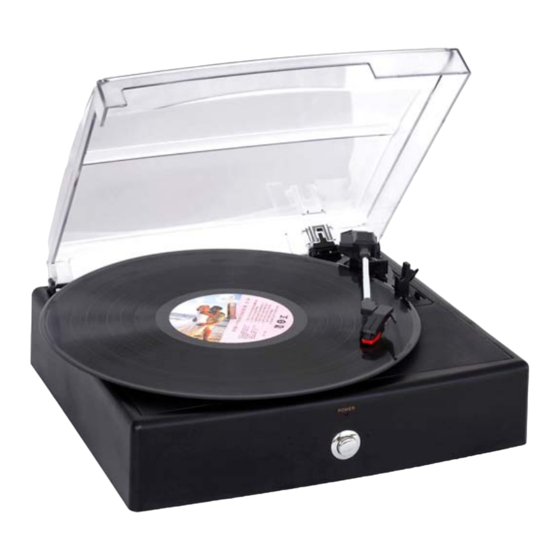

- Page 1 PLASTIC TURNTALBLE PLASTIC TURNTALBLE PLAYER WITH PC RECORDER PLAYER WITH PC RECORDER MODEL: VPL-100 INSTRUCTION MANUAL PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
-
Page 2: Important Safety Instructions
SAFETY INSTRUCTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. IMPORTANT SAFETY INSTRUCTIONS 1. Read instructions - All the safety and operating instructions should be read before the appliance is operated 2. Retain instructions - The safety and operating instructions should be retained for future reference. - Page 3 on a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. 9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
- Page 4 17. Nonuse Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time. 18. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
-
Page 5: Functions And Controls
●Front mounted Power switch. ●45 rpm single adaptor. I mportant S afety Information ●When using electrical appliances, basic safety precautions should always be followed. ●Check that the voltage indicated on the data plate corresponds with that of the local network before connecting to the mains supply. ●This appliance is not intended for use by persons (including children) who are not mentally able, physically capable, experienced or do not understand the product. -
Page 6: Rear Panel
REAR PANEL 1. 45 Single adaptor 2. Tone arm 3. Cue lever 4. Speed control switch 5. Tone arm rest and security latch 6. Cartridge/Stylus 7. Power switch 8. Turntable 9. USB OUTPUT 10. AUX OUT 11. AUX IN 12. USB CABLE S etting up the USB Turntable ●Remove all packaging from the unit. - Page 7 ●Select ‘I accept’ option then click ‘Next’: ●Click ‘Next’:...
- Page 8 ●Here either select another location or click ‘Next’ to continue (recommended): ●Click ‘Next’ to continue:...
- Page 9 ●Click ‘Install’ to continue: ●The software will start to install:...
- Page 10 ●Click on ‘Finish’ to complete the installation: ●Audacity should automatically start up, if not follow the next sequence: ●The Audacity icon will now be seen on the desktop, double click on it to start Audacity running, if an icon does not appear, go to the ‘C’ drive under ‘My Computer’, click on ‘Program files’...
- Page 11 ●Plug the USB cable into the back of the unit and the other end into a spare USB port on your computer. ●Insert the mains plug into the nearest mains socket and switch on if applicable. ●Run the Audacity software by double clicking the Audacity icon. ●Before recording, click on Edit at the top of the main page;...
- Page 12 Preferences window Playing a record ●This PlASTIC TURNTABLE PLAYER operates from AC 230V/50Hz power. Insert the plug of the AC power cord into a wall outlet with AC power supply ●Switch on the unit by pressing the power switch on the front, the LED above it will light...
- Page 13 ●Select the correct playing speed for the record (33, 45 or 78 rpm) using the ●Speed control switch on the top right hand side of the unit. ●Push the cue lever back to raise the tone arm. ●Moving the arm from its rest will start the turntable rotating. ●At the desired point on the record, pull the cue lever forward to lower the arm.
- Page 14 ●Use the file, Edit, View, Project, Generate, Effect and Analyse menus to Save, Export and Manipulate your music. ● If the recording level requires adjustment, click on ‘START’, ‘SETTINGS’ and select control panel. Under Control Panel select ‘SOUNDS and AUDIO DEVICES’, click on the ‘VOLUME’...
-
Page 15: How To Replace The Stylus
Exporting your music files (.Mp3) ● Once you have recorded and edited your music, you will need to save your files to the computer. To do this click on file and move down to Export as Mp3 tab. ● Click on this and you will promptly be asked for the file name of the music recorded which will be saved in the location shown. - Page 16 All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. ALL RIGHTS RESERVED DENVER ELECTRONICS A/S WWW.DENVER-ELECTRONICS.COM...
