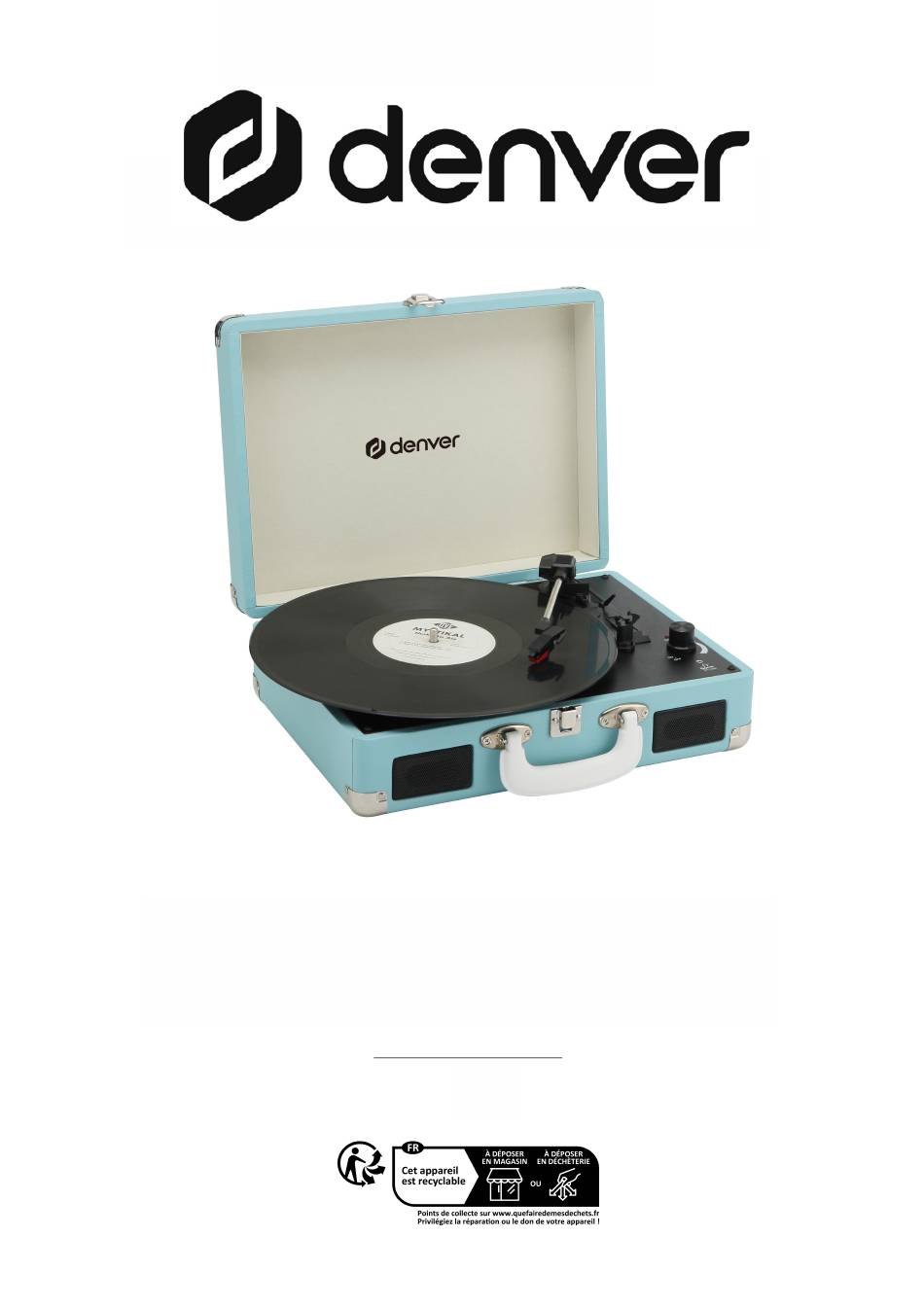

- Page 1 Instruction Manual PL-120 www.denver.eu 11/2023...
-
Page 2: Safety Information
SAFETY INFORMATION Please read the safety instructions carefully before using the product for the first time and keep the instructions for future reference. 1. This product is not a toy. Keep it out of reach of children. 2. Keep product out of the reach of children and pets to avoid chewing and swallowing. 3. - Page 3 DESCRIPTION 1. Lock 2. Dust cover 3. Adapter-Use this when playing 45rpm records with cut out centres. 4. Tone arm lift 5. Auto stop control 6. Speed selection-Three speed for choice:33 1/3,45,78rpm. 7. LED power indicator 8. Power switch/Volume control 9.
-
Page 4: Initial Setup
14. Power in/PC out Port 15. Aux in 16. Line out R channel 17. Line out L channel Red plug into R/H channel input. White plug into L/H chann el input. INITIAL SET-UP MAINS CONNECTION Ensure that the mains voltage of your home corresponds to the operating voltage of the unit. Your unit is ready to be connected to a mains voltage of 5V DC adaptor. -
Page 5: Installing The Software
INSTALLING THE SOFTWARE Visit www.audacityteam.org to download Audacity software, follow the instructions and the software will automatically install as follows: Click‘ Next’ ● ● Select‘ I accept’option then click‘ Next’: ● Here either select another location or ● Click‘ Next’: click‘... - Page 6 ● ● Click‘ Install’to continue: Click ‘ N ext’to continue: ● The software will start to install: Click on‘ Finish’to complete the installation: ● ● Audacity should automatically start up,if not follow the next sequenc e: ● The Audacity icon will now be seen on the desktop,double click on it to sta rt Audacity running, if an icon does not appear, go to the ‘...
- Page 7 Using Audacity ● Plug the USB cable into the back of the unit and the other end into a USB port on your computer. ● Run the Audacity software by double clicking the Audacity icon. ● Before recording,click on Edit at the top of the main page;select Preferences at the bottom of the menu which will open Preferences.
- Page 8 Pause Play Stop Go to Start Go to End Record Waveform ● Use the file, Edit, View, Project, Generate, Effect and Analyse menus to Save, Export and Manipulate your music. If the recording level requires adjustment, click on START, SETTINGS and select control panel. Under ●...
-
Page 9: Maintenance
Exporting your music files (.WAV) ● Once you have recorded and edited your music, you will need to save your files to the computer. To do this, click on file and move down to Export as WAV tab. ● Click on this and you will promptly be asked for the file name of the music recorded which will be saved in the location shown. - Page 10 INSTALLING A NEW STYLUS CARTRIDGE - Refer to the figures 5 & 6 NOTES We advise you to clean your records with an anti-static cloth to gain maximum enjoyment from them and to make them last. We would also point out that for the same reason your stylus should be replaced periodically (approximately every 250 hours) Dust the stylus from time to time using a very soft brush dipped in alcohol (brushing from back to front of the cartridge)
- Page 11 ALL RIGHTS RESERVED,COPYRIGHT DENVER A/S Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly. Electric and electronic equipment is marked with the crossed out trash can symbol, seen above. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.
- Page 12 Contact Nordics Germany Headquarter Denver Germany GmbH Service DenverA/S Max-Emanuel-Str. 4 Omega5A,Soeften 94036 Passau DK-8382Hinnerup Denmark Phone: +49 851 379 369 40 Phone: +45 86 22 61 00 E-Mail support.de@denver.eu (Push “1” for support) E-Mail Fairfixx GmbH For technical questions, please write to: Repair and service support.hq@denver.eu...
