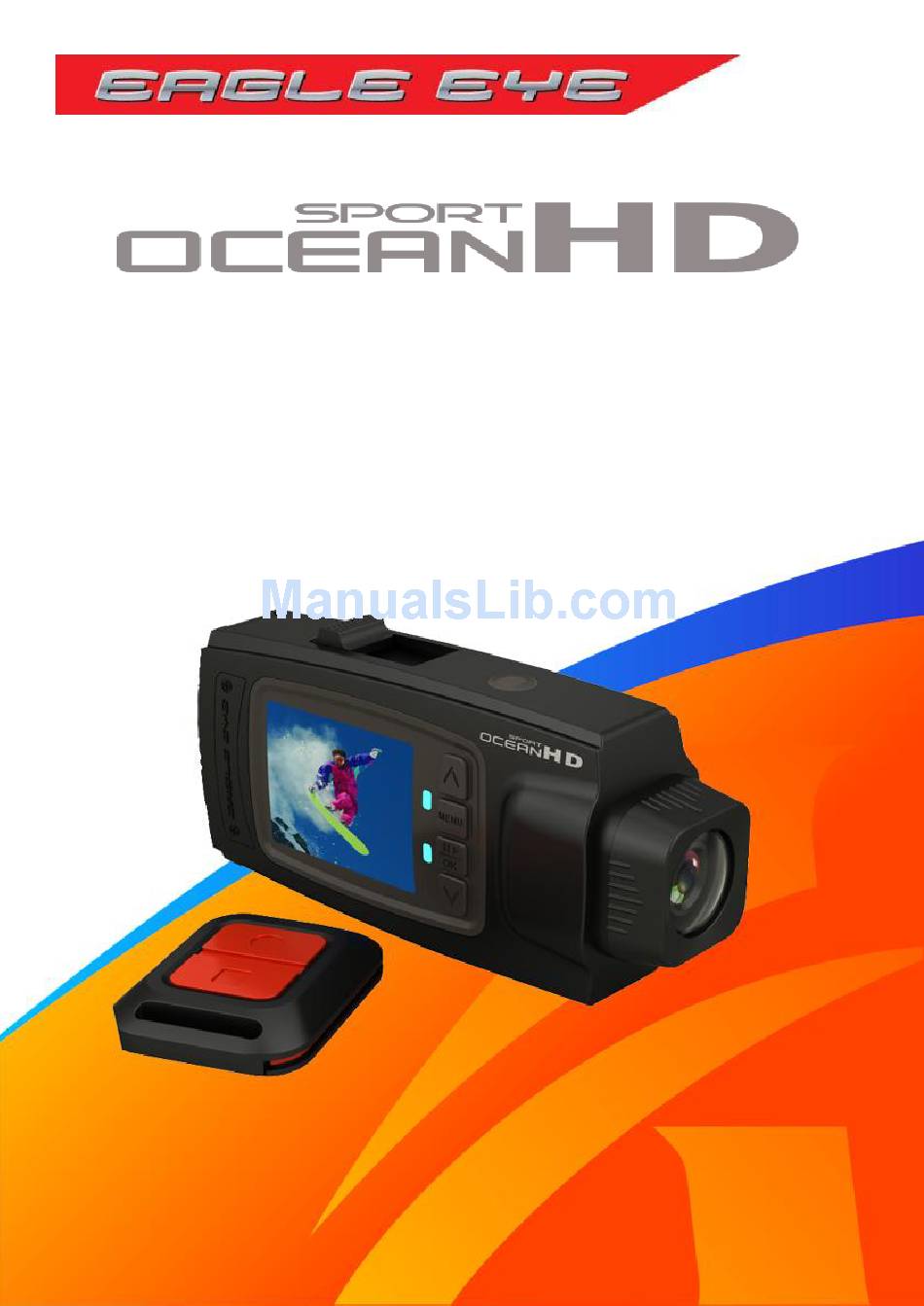

Page 1: User Manual
FULL HD 1080P SPORT VIDEO CAMERA USER MANUAL Please read this user manual carefully and thoroughly before any attempt Install and operate this product and retain it for your future reference - 0 - FHD Oceans English USER MANUAL... -
Page 2: Table Of Contents
————————— ——————————— CATALOG WARNING ......................- 4 - INSTALLATION AND USE ................- 6 - ....................- 6 - 1. M 2. R .................... - 7 - EMOTE CONTROL ..................- 8 - 3. I NSTALL BATTERY ................- 9 - 4. - Page 3 ————————— ——————————— CATALOG 8. P ................- 30 - HOTO IZE SETTING SYSTEM SETTING ..................- 31 - ................- 31 - 1. L ANGUAGE SETTING 2. D ..................- 32 - ATE SETTING ..................- 33 - 3. T IME SETTING ................
- Page 4 ————————— —————————— PREFACE Thank you for choosing the DV 1080p Full HD Helmet DV to pursue your digital video adventures. Whether you are racing at the track, pedaling through the woods or gliding through fresh powder, to get the utmost satisfaction from your digital video, please take a moment to read this manual carefully so to operate the DV properly.
-
Page 5: Warning
————————— —————————— WARNING Do not store the DV in any place with following conditions: - High temperature (45℃or higher) - Exposure to the direct sunlight or a heating device - Inside the car with closed windows (especially, in the summer) - Humid place such as the bathroom ... - Page 6 ————————— —————————— Main Feature 2.0 inch TFT LCD(960 x 240 dots) 5.0 MP High definition CMOS image sensor Angle of View: 170º ultra wide angle in WVGA, 720p, Angle of View: 127º wide angle in 1080p mod ...
-
Page 7: Installation And Use
—————————— ———————— Installation and use 1. Main Unit - 6 - FHD Oceans English USER MANUAL... -
Page 8: Remote Control
———————— ————————— Installation and use 2. Remote control Start recording Stop recording 1. When DV is power off， push <Record > button to REC location, and then Press on remote control, DV will be power on and start to record video. 2. -
Page 9: Install Battery
————————— ————————— Installation and use 3. Install battery Please install battery according to below diagram thoroughly. Incorrect installation: the tag face is above. Correct installation: the tag face is below. Push locking tab as shown. Close and latch battery door fully before use. - 8 - FHD Oceans English USER MANUAL... -
Page 10: Install Sd/Sdhc Card
————————— ————————— Installation and use 4. Install SD/SDHC Card 1). Installation of SD/SDHC card Please install SD/SDHC card according to below diagram thoroughly. Incorrect installation: the tag face is above Correct installation：the tag face is below - 9 - FHD Oceans English USER MANUAL... -
Page 11: Internal Memory
————————— ————————— Installation and use 2). Card Type and Capacity A, The DV built in 32MB ROM memory is for system files only. B, The DV built in Micro SD card reader supports Micro SD and SDHC cards up to 32GB. Note: Some SD or SDHC cards may not work properly. -
Page 12: Install Bracket
————————— ————————— Installation and use 5. Install bracket Fixing the common gear wheel to the DV house Mounting the gear wheel with Handlebar grip、Helmet grip or Goggle Mount Some illustration for using - 11 - FHD Oceans English USER MANUAL... -
Page 13: Adjust Lens Azimuth
————————— ————————— Installation and use 6. Adjust lens azimuth Rotate the lens -90 ~ +90 degree by different mounting desired. Rotate the lens 90 degree anticlockwise NOTICE: The rotated range is from -90 to +90 , rotate fiercely or overly may cause structure damage. -
Page 14: Record And Capture
————————— ————————— Installation and use 7. Record and Capture A. Power on DV，push <Record> button to record location to recording，and push <Record> button back to stop and save the video clip. B. Push <Record> button to record location to prepare for recording, press <REC>... -
Page 15: Playback Video Clips
————————— ————————— Installation and use 8. Playback Video clips Long press button to enter main menu, select video playback icon and then press button to enter, and the photo thumbnails will display on the screen as 2x3 matrix. Press to select, and then press button twice to play the clip selected. -
Page 16: Playback Photos
————————— ————————— Installation and use 9. Playback photos Long press button to enter main menu, select photo playback icon And then press button to enter, and the photo thumbnails will display on the screen as 2x3 matrix. Press button to select, and then press button to playback the photo selected. -
Page 17: Hdmi Tv Playback
————————— ————————— Installation and use 10. HDMI TV Playback. Connect the DV with TV by HDMI cable, power on the DV, switch the TV to HDMI input mode. Press <Power> button to power on the DV, long press to enter main menu, press to select Video playback or Photo playback, and press... -
Page 18: Connect With Pc Via Usb
————————— ————————— Installation and use 11. Connect with PC via USB Connect DV with PC via the provided USB cable for downloading or uploading files and updating firmware ① Connect the DV with Computer by the USB cable ② Power on the DV ③... -
Page 19: Power Charger
—————————— —————————— Power Charger 1. Install of Battery To install the battery, open the battery door by sliding the latch up (Latch is tight. You may need to use a coin). Insert battery and rotate locking tab as shown. Close and latch battery door fully before use. 2. -
Page 20: Battery Charging Time & Operating Time
—————————— —————————— Power Charger B. Charging With AC/DC Adaptor C. Charging With Cigar-lighter NOTE: The battery is charging so long as connect with computer, please power off the DV to save the charging time. The maker strongly recommends using a supplied AC/DC adaptor, but if it is necessary that another AC/DC adaptor is purchased separately at a shop, please check its electric specification is in accordance with DV's specification. -
Page 21: Battery Remaining Status
————————— —————————— Power Charger 4. Battery Remaining Status Some Power Full Consumed Power almost No Power drained To make sure the battery and power charger work as long as possible. Do not leave unit plugged in for extended periods. Excessive power charging will reduce the battery working life and possibly damage the unit;... -
Page 22: Main Menu Icon Introduce
———————— ———————— Main menu icon introduce LOGO 2. Instruction - 21 - FHD Oceans English USER MANUAL... - Page 23 ————————— ———————— Main menu icon introduce 3. Main Menu: Video playback ICON Photo playback ICON When move the cursor to the video folder icon, If here has video clips in the folder, On the top left corner of the icon will display the quantity of these files. As show: Record Setting ICON System Setting ICON...
-
Page 24: Video Setting
—————————— —————————— Video Setting Long press to enter main menu, select <video setting> and press to enter. 1. Video Mode Press to select sub-menu, and press to confirm and return. Normal REC: Manual mode, press <Record> to capture a clip video and again to stop and save. -
Page 25: Motion Detect
——————————— ————————— Video Setting 2. Motion Detect In main menu setting, press to select< Motion Detect>, then press to enter, and then press to return. After 10 seconds, the DV will start detecting motion, and will take a clip if the living video of preview is changing. - Page 26 ——————————— ————————— Video Setting Press to toggle selection the digits, press to change the digits for each of the data or time options you desire to update, and then press to add a new case. 2011:Year, 03:Month, 28:Date, 18:Hour, 08:Minutes, 25:Reconding time 2011, red color means this digit is current modification status.
-
Page 27: Auto Rec Setting
——————————— ————————— Video Setting Auto REC setting After setting Auto REC mode, press to select <Auto REC Time> and press to enter. Press to select sub-menu，and then press to confirm. Off：Disable 10 Seconds：to start capturing after auto startup 10 seconds. 20 Seconds：to start capturing after auto startup 20 seconds. -
Page 28: Loop Setting
——————————— ————————— Video Setting Loop Setting The DV automatically erase the clips from the first to empty space for new clips, So that user can always take the continuous video uninterrupted. After enter main menu setting, press to select <Loop Setting>... -
Page 29: Video Size Setting
——————————— ————————— Video Setting Video Size setting Press to select <Video Size>, and Press to enter. Press to select and then press to confirm your selection Frame Per Length- Sub-menu Solution Second breadth ratio 1920x1080 Full HD 1080p 30fps 16：9 1440x1080 Full HD1080p 30fps... -
Page 30: Rec Content Setting
——————————— ————————— Video Setting REC Content setting Press to select <REC Content>, and Press to enter. Press to select and then press to confirm your selection. AV: The content of videos will be taken include Audio &Video Video: The content of videos will be taken include Video only 8.Time Stamp setting Press to select <Time Stamp>, and press... -
Page 31: Photo Size Setting
——————————— ————————— Video Setting Photo Size setting Press to select <Photo Size>, and press to enter. Press to select and then press to confirm your selection. - 30 - FHD Oceans English USER MANUAL... -
Page 32: System Setting
——————————— ————————— System Setting Lone press to enter main menu and press to select <System Setting>, and then press to enter. 1. Language setting Press to select sub-menu <Language> and press to enter. Press to select and press to confirm your selection. - 31 - FHD Oceans English USER MANUAL... -
Page 33: Date Setting
——————————— ————————— System Setting 2. Date setting Press to select sub-menu <Date> and press to enter. Press to toggle selection the digits, press to change the digits for each of the year、month or data options you desire to update, and then press to confirm and return. -
Page 34: Time Setting
——————————— ————————— System Setting 3. Time setting Press to select sub-menu <Time> and press to enter. Press to toggle selection the digits, press to change the digits for each of the year、month or data options you desire to update, and then press to confirm and return. -
Page 35: Image Flip Setting
——————————— ————————— System Setting 4. Image Flip setting Press to select sub-menu <Image Flip> and press to enter. Press to select and press to confirm your selection. Regular: Normal status Flip: For special azimuth fixing. - 34 - FHD Oceans English USER MANUAL... -
Page 36: Light Frequency Setting
——————————— ————————— System Setting 5. Light Frequency setting Press to select sub-menu <Light Frequency> and press enter. Press to select and press to confirm your selection. 50Hz: For rating 50Hz area 60Hz: For rating 60Hz area The anti-flicker frequency can be changed when taking photos or videos in fluorescent light to correspond with the frequency of the mains supply. -
Page 37: Auto Power Off Setting
—————————— ————————— System Setting 6. Auto Power Off setting Press to select sub-menu <Auto Power Off > and press to enter. Press to select and press to confirm your selection. Off：Disable 5Minutes：Power off automatically after 5 minutes if without any operation;... -
Page 38: Auto Screen Off Setting
—————————— ————————— System Setting 7. Auto Screen Off setting Press to select sub-menu <Auto Screen Off > and press to enter. Press to select and press to confirm your selection. Off：Disable 1Minutes：LCD off automatically after 1 minute if without operation; 5Minutes：LCD off automatically after 5 minutes if without operation;... -
Page 39: Volume Setting
——————————— ————————— System Setting 8. Volume setting Press to select sub-menu < Volume setting> and press to enter. Press to select and press to confirm your selection. 0：Disable 1~6：Volume level from lower to highest; - 38 - FHD Oceans English USER MANUAL... -
Page 40: Formatting Setting
——————————— ————————— System Setting 9. Formatting setting Press to select sub-menu < Formatting setting > and press to enter. Press to select and press to confirm your selection. No：No operation and return Yes：Format the memory card The data won’t restore once you format the memory, you need to backup the data before doing the format operation. -
Page 41: Check Sd Information
——————————— ————————— System Setting Check SD Information Press to select sub-menu < SD Info > and press to enter. Free: The free size of the memory card Used: The used size of the memory card - 40 - FHD Oceans English USER MANUAL... -
Page 42: Reset
——————————— ————————— System Setting Reset Press to select sub-menu < Reset > and press to enter. Press to select and press to confirm your selection. No：No operation and return Yes：Reset the setting after updating - 41 - FHD Oceans English USER MANUAL... -
Page 43: Update
——————————— ————————— System Setting 12. Update From official or agent website Download and release the firmware first if the received file is compression, as picture below. Released: Copy the released firmware under the root director of a memory card, Then insert the card into the slot of the DV as below: - 42 - FHD Oceans English USER MANUAL... - Page 44 ——————————— ————————— System Setting Press to select sub-menu<Update> and press to enter, Press to select <Start > and then press to start updating， The LCD screen will display “Firmware Update...”and LCD screen off when finish updating. Cancel: No operation and return - 43 - FHD Oceans English USER MANUAL...
- Page 45 ——————————— ————————— System Setting 13. Check Version Press to select sub-menu<Version> and press to enter, The screen will display the version number. DV: DV mode V2011022502: Firmware version - 44 - FHD Oceans English USER MANUAL...
-
Page 46: General Specification
————————— ———————— General Specification SPEC Detail & Support Remark Internal Storage Device 32MB Micro SD Card 1-32GB Support SDHC 32GB Size 1.5inch Resolution 480x240,TFT LTPS Optical Format 1/2.5inch(4:3) 12bits CMOS Sensor Active Pixels 2592H x 1944V Video Output Ch Mini-HDMI TV/LCD Selectable Built-in Audio... - Page 47 ————————— ———————— General Specification Remark SPEC Detail & Support Auto Power Off 5min,10min,20min FHD:1920x1080 30fps Recording FHD:1440x1080 30fps Video Resolution Recording HD: 1280x720 30fps 848x480 60fps 4000x3000 Photo Resolution 3200 x 2400 Capturing 2592 x 1944 Audio Video & Audio Rec.
-
Page 48: Charger Specification
————————— ———————— Charger specification 1. Charger 2. Option of plug： SAA: USA: - 47 - FHD Oceans English USER MANUAL... -
Page 49: Accessories Introduce
———————— ———————— Accessories introduce Fittings Manual Manual CD Universal Clip Handlebar Grip Helmet Grip Goggle Mount Battery USB Cable HDMI Head Strap Power Charger Velcro Set - 48 - FHD Oceans English USER MANUAL... - Page 50 We will not inform you if there is any modification for user maual in future - 49 - FHD Oceans English USER MANUAL...
