Summary of Contents for Eagle Eye Cubicam

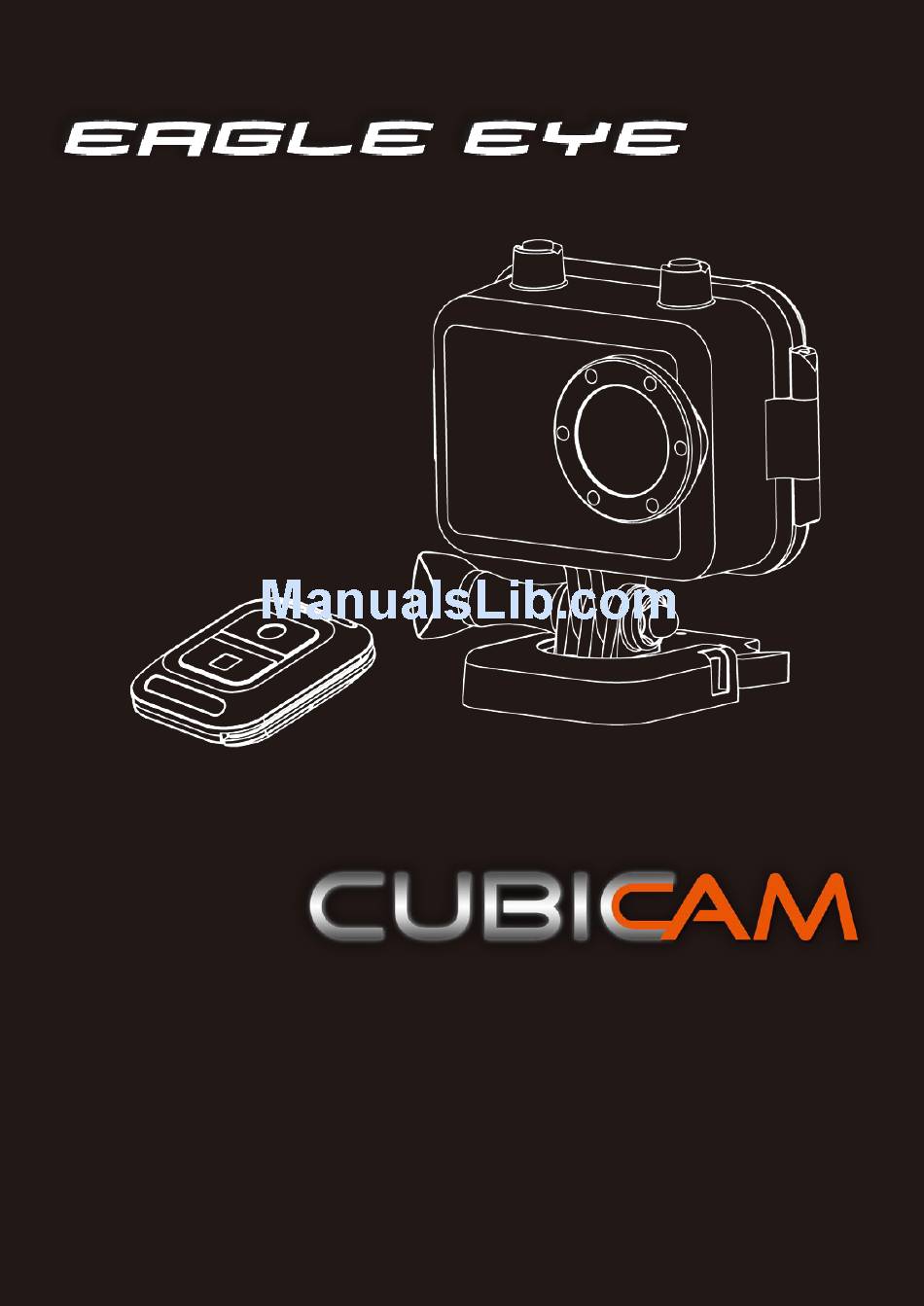

  • Page 1 User Manual ~ 1 ~...
  • Page 2: Table Of Contents

    —————————— —————————— Table of Conten Main Feature ............................ 4 Install and Use ..........................5 Camera body buttons ........................5 Remote controller ........................6 Install Battery ..........................7 Close back cover......................... 7 Install Memory Card ........................8 Install waterproof housing ......................9 Install the Mounts ........................
  • Page 3 Video Resolution ........................29 Record Content ........................30 Time Stamp ..........................31 Photo Size ..........................32 Continuous Shot ........................33 Self-Timer ..........................33 System Setting ..........................34 Language Setting ........................34 Date & Time Setting........................35 Image Flip ..........................37 Light Frequency ........................
  • Page 4: Main Feature

    Main Feature 480 x 240,1.5” TFT LCD Screen  5.0MP FULL HD CMOS sensor  170° Super wide angle FOV( field of view) under 720P, 127 ° under 1080P 720P  H.264 Compression into MP4 video format  20 Meters ( 60 Feet) Waterproof ...
  • Page 5: Install And Use

    Install and Use Camera body buttons 1.Video Record Indicator (red) 8.UP & Zoom+ 2.Power Indicator (red) & Power charge Indicator 9.Menu button (green) 10.Down & Zoom- / Remote Pair 3.MIC 11.Power ON & Picture Capture 4.Tripod screw hole 12.USB Port 5.Audio output 13.HDMI Port 6.TF card slot...
  • Page 6: Remote Controller

    Remote controller Start video record Remote to start video record only under Camera Powered ON, not valid if camera is OFF. Stop video record Remote to power OFF directly or stop video record and then power OFF. Remote Pair with Camera Hold the “<”...
  • Page 7: Install Battery

    Install Battery Please install the battery according to the graphic: Open the battery cover Install the battery ( Note: label side face up) Close back cover ~ 7 ~...
  • Page 8: Install Memory Card

    Install Memory Card 1.Install the TF card according to graphic 2.Camera without built-in memory, support 1GB~32GB TF card external memory expand 3. After installed the SD card, rest available memory could be checked on the screen Screen won't display the SD card icon if without valid SD card installed correctly Screen will display the SD card...
  • Page 9: Install Waterproof Housing

    Install waterproof housing As arrowhead showed in graphic below, pull "A" locker, "B" locker will slack off at same time automatically Put the camera into the waterproof housing as graphic below: Close the cover Close the locker "B" first, and then press the "A" locker to locked-in. ~ 9 ~...
  • Page 10: Install The Mounts

    Install the Mounts Please choose the suitable mount to finish the installation according to different use. Waterproof Housing buttons instruction: Note: Waterproof housing max depth is 20 Meters ( 60 Feet) A pot of fog or water globule would glue to the inside cover, it is allowed and won't effect the camera working.
  • Page 11: Video Record And Capture

    Video record and Capture 1.Press POWER button turn on the camera, press REC button to start the video record, a red icon will flash on the screen during this time. Press " <" and " >" button to zoom, press REC again to stop the video record and video will be saved at the same time.
  • Page 12: Video Playback

    Video Playback Press MENU button to enter the main menu of camera, use " < " and ">" to choose the video folder, the quantity of video clips will display on the corner. Press REC button to enter the folder, video clip thumbnail will showed like below: Press "<"...
  • Page 13: Browse Pictures

    Browse Pictures Press MENU button to enter the main menu, use "<" and ">" to choose the picture folder, picture quantity will display on the corner. Press REC button to enter the picture folder, picture thumbnail will show like below: Press "<"...
  • Page 14: Delete Files

    Delete files Long press MENU button under playing back or browsing state, delete option menu will display on the screen Use "<" and ">" to make setting: No:cancel current operation and quit Yes:confirm current operation and quite ALL:confirm delete all files in the folder Press REC button to confirm operation Attention:...
  • Page 15: Connect To Television

    Connect to Television 1.USB-RCA cable connect with TV ( output) Find out the USB-RCA cable in standard accessories, USB side insert to camera, RCA side insert to TV ( Yellow for Video, White for Audio) 2. HDMI cable connect with TV (output) Please insert the A type connector to the TV , insert C type connector to camera Note:...
  • Page 16 3. 2.5mm - RCA cable connect with TV (output) 2.5MM - RCA cable is not included in standard accessories. Start playing back video clip or browse pictures a. Turn the TV to AV or HDMI input channel, power on the camera b.
  • Page 17: Connect With Computer

    Connect with Computer Connect the camera with computer via USB cable, available for data transfer, power charge and firmware update. Power on the camera after connect it with the computer by USB cable, and the screen will display “ USB connected”...
  • Page 18: Battery Power Charge

    Battery Power Charge Install the battery ( Note: label side face up) Charge by computer Note: Power charge by computer, please make sure the camera is POWER OFF state. The green charging indicator will turn on, indicator will turn off after full charged. ~ 18 ~...
  • Page 19: Charge By Wall Charger

    Charge by Wall charger Charge by Cigar lighter charger Attention: Only original power charger that offered in standard accessories available. ~ 19 ~...
  • Page 20 电池充电 —————————— —————————— d,Charge power via the charger, ~ 20 ~...
  • Page 21: Full Charge Time And Using Time

    Full charge time and Using time Full charge time Standby time Video Record Time 3.5 Hours in Power ON state Approximately:110 Minutes Approximately: 3.5 Hours (1080P) 2 Hours in Power OFF state Battery Icon instruction >75% >35% electric quantity electric quantity >10% <10% electric quantity...
  • Page 22: System Menu

    System Menu Booting picture & screen instuction Icon on Screen 1920x1080 Video resolution Video record 28000M Available rest memory Picture capture Rest time of video record Continuous capture 15:33:24 in memory 2010/09/21 Year/Month/Date Memory card System time Battery 04:27:48 ~ 22 ~...
  • Page 23: Main Menu

    Main Menu Video folder Picture folder If here has video clip or picture in the folder, on the corner of icon will display the quantity number like graphic below: Video setting System setting ~ 23 ~...
  • Page 24: Record Setting

    Record Setting Record Mode Press MENU button enter the main menu, and select the Record setting menu as below, press REC button to enter. Video record setting menu will display as below: a. Normal REC : Means the camera will start the video record after press the REC button normally under real-time preview state, press REC button again to stop video record and save the video clip.
  • Page 25 b. Motion detect: Means the camera will start the video record only when the lens detected movement, camera will not stop video record until here without movement in the picture. Note: The movement detect will start after 10 second only when first time setting did. First time default video record time is 1 minute, if here also have movement after recorded 30 seconds, system will continue record another 30 seconds, camera will not stop video record if movement always happen in the picture except battery empty or memory full.
  • Page 26 c. Time REC: Set a time (local time) to start the video record automatically Red color means current option has been selected, use “<” and “>” to add / subtract the number, press REC button to next option. After first line setting finished, press “>” move down to set next time. 2011: Year, 03: Month, 28:Date, 18:Hour, 08:Minute, 25: How long time of this record The whole line will be green if setting finished, will be white if the setting time is the past, mean the setting is not valid.
  • Page 27 d. Auto REC: Camera will start video record automatically after power ON. After the “ Auto REC” option selected, then still need to set a time under “ Auto REC time” as below: OFF:Not activated 10 Seconds:Camera will start video record in 10 Seconds after power ON ( start the vehicle). 20 Seconds:Camera will start video record in 20 Seconds after power ON ( start the vehicle).
  • Page 28: Loop Record

    Loop Record The camera will delete the earliest video clip for newest video clip if memory is not enough. Select the “ Loop Setting” and press “ REC” button to enter the time setting. OFF:Loop record is not activated 1 Minute: 1 minute per video clip. 5 Minutes: 5 minutes per video clip.
  • Page 29: Video Resolution

    Video Resolution Choose suitable resolution for different purpose, lower resolution will save power and memory for longer time record. Resolution Frame Rate Ratio 1920x1080 Full HD 1080P 30FPS 16:9 1440x1080 Full HD1080P 30FPS 4:3 1280x720 HD 720P 60FPS 16:9 1280x720 HD 720P 30FPS 16:9...
  • Page 30: Record Content

    Record Content A setting option for “ Audio and Video” (video clip with sound) or “ Video “ (video clip without sound) only. Press REC button to confirm setting and quit. ~ 30 ~...
  • Page 31: Time Stamp

    Time Stamp Date and Time will display on the video clip if “ Enable” this feature. ~ 31 ~...
  • Page 32: Photo Size

    Photo Size A setting option of the picture resolution when take a picture. ~ 32 ~...
  • Page 33: Continuous Shot

    Continuous Shot Press MENU to enter the main menu, use < > button to select “ Continuous shot” menu, press REC to confirm and choose the quantity of one shot. Self-Timer Press POWER button to active this feature, camera will take pictures in every 10 seconds if no other operation during this.
  • Page 34: System Setting

    System Setting Press MENU to enter the main menu, System setting icon showed as below, select and press REC button to enter. Language Setting Select the language and press REC button to confirm. ~ 34 ~...
  • Page 35: Date & Time Setting

    Date & Time Setting 1.Date Setting: Enter date setting, press REC to select the option, and press REC again to next option 2011:Year option, Red color means changeable 10:Month option, press REC to select and use “<” or “>” to change 15:Date option, press REC to select and use “<”...
  • Page 36 2. Time Setting 03: Hour 15: Minute Same operation as date setting. ~ 36 ~...
  • Page 37: Image Flip

    Image Flip Active this function when you need to install the camera at upside down position, to make right video recorded. The recorded image will flip 180° . ~ 37 ~...
  • Page 38: Light Frequency

    Light Frequency Please choose the correct frequency according to your country or area, picture would flash if incorrect frequency set. CHINA: 50Hz USA: 50Hz 60Hz ~ 38 ~...
  • Page 39: Auto Power Off

    Auto Power OFF If you want the camera power off automatically after some time, then active this function and set a time. Press REC button to enter and confirm setting. OFF:Not actived 5 Mins:Camera will power OFF after 5 minutes whatever state 10 Mins:Camera will power OFF after 10 minutes whatever state 20 Mins:Camera will power OFF after 20 minutes whatever state ~ 39 ~...
  • Page 40: Auto Screen Off

    Auto Screen OFF For power saving or other purpose, we would need to turn off the screen. Press REC button to enter and confirm the setting. OFF:Not actived 1Minute:Camera will turn off the screen automatically whatever state 5Minutes:Camera will turn off the screen automatically whatever state Recommend to turn on this function for longer time working.
  • Page 41: Volume

    Volume Volume option for Button press and speaker. ~ 41 ~...
  • Page 42: Format

    Format Note: Date can not recover after formatted, please make copy before this operation. ~ 42 ~...
  • Page 43 Memory Info To show the used memory and rest available memory of SD card. ~ 43 ~...
  • Page 44: Reset

    Reset The system will reset to the factory-set if do this operation. Note: If the user updated the firmware, would need to reset the system once to make the software work normally. ~ 44 ~...
  • Page 45: Firmware Update

    Firmware Update Download the firmware package from official website or local distributers website, the package as below: After released: Copy the firmware “EGOHD1080P-V1.00.bin” to the root directory of SD card (Do not modify the file name) Install the SD card ~ 45 ~...
  • Page 46 Firmware Update Select “ Start” and press REC button to confirm the update operation, camera will reboot automatically after finished, if here without correct firmware in the SD card, system will notice on screen. ~ 46 ~...
  • Page 47: Version

    Version To check the version of current running software. ( Model No. – Version ) ~ 47 ~...
  • Page 48: Specifications

    Specifications Item Spec Remark Built in memory 32MB TF Card 1-32GB Support SDHC size 1.5 inch resolution 480x240 size 1/2.5 inch CMOS sensor Image pixel 2592H x 1944V Basic Spec video Output interface HDMI/USB/RCA Built in audio Output interface HDMI/USB/RCA speaker Built in PC interface...
  • Page 49 Remark Item Spec Image flip 180° upright Video quality option Support record under screen off File protection while low power 5、10、20 minutes Auto power OFF option FULL HD1920x1080 30FPS FULL HD 1440x1080 30FPS Video record FULL HD1280x720 60FPS Optional Record FULL HD1280x720 30FPS spec QVGA 848x480 60FPS...
  • Page 50: Wall Charger

    Wall Charger 1,Battery charger ( Standard accessory) 2,Direct Charger ( Optional accessory): ~ 50 ~...
  • Page 51 3,Optional Adaptor: SAA: USA: ~ 51 ~...
  • Page 52 —————————— ————————— Accessories Disc Manual Li-ion Batteryx2 Remote controller USB cable Battery charger hex wrench Mount Protector Lens Protector Tripod attachment Curved Adhesive Mount Bar Mount Flat Adhesive Mounts Short right angle attachment Short straight attachment Long right angle attachment Standard mount Offset mount Tripod Mount Attachment...
  • Page 53 Chese strap Waterproof housing Grease ~ 53 ~...
  • Page 54 Please Recycle. 、、、、、、、、、、、、、、、、、、、、、 ~ 54 ~...
