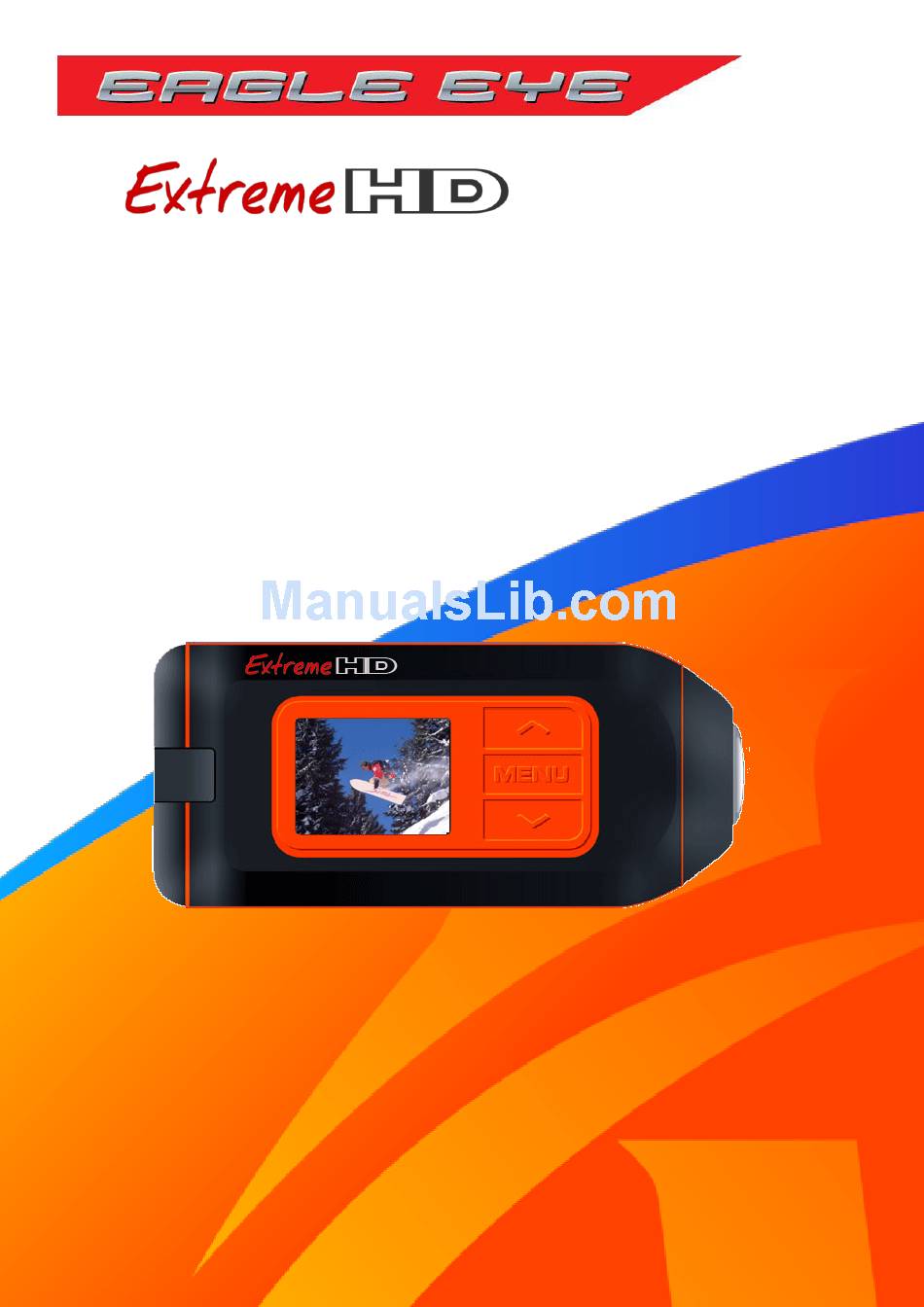

Pocket Mini HD Digital Video Recorder
USER MANUAL
Please read this user manual carefully and thoroughly before any attemptto Install and
operate this product and retain it for your future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eagle Eye Extreme HD119
Summary of Contents for Eagle Eye Extreme HD119
- Page 1 _______________________________________________________________________________________________________________________________________ Pocket Mini HD Digital Video Recorder USER MANUAL Please read this user manual carefully and thoroughly before any attemptto Install and operate this product and retain it for your future reference.
-
Page 2: Table Of Contents
CATALOG PREFACE----------------------------------------------------------------------------------1 APPROVAL INFORMATION--------------------------------------------------------1 ABOUT THE MANUAL----------------------------------------------------------------1 WARNING---------------------------------------------------------------------------------2 Main Features-----------------------------------------------------------------------------3 The Name of Each Part------------------------------------------------------------------4 Display Instructions----------------------------------------------------------------------5 Package Contents-------------------------------------------------------------------------6 Power Charger--------------------------------------------------------------------------7-9 Storage Card-----------------------------------------------------------------------------10 Manual Structure--------------------------------------------------------------------11-12 Basic Operation----------------------------------------------------------------------13-19 General Specification-------------------------------------------------------------------20... -
Page 3: Preface
PREFACE Thank you for purchasing HD119 which has the unique, ultra-small and delicate design. It can be used in many recording situations. HD119 rings more convenience, safety and funs to your daily life. APPROVAL INFORMATION All our products meet the requirements of approval FCC or CE, and are granted the FCC or CE certification. -
Page 4: Warning
WARNING Do not store the device in any place with following conditions: - High temperature (45 or higher) - Exposure to the direct sun rays or a heating device - Inside the car with closed windows (especially, in the summer) - Humid place such as the bathroom ... -
Page 5: Main Features
Main Features 1.5inch TFT LCD(480 x 240) 5.0 MP High definition CMOS image sensor The most popular MOV video recording format Waterproof function ( Rain water level) Easy operation for recording and taking a picture ... -
Page 6: The Name Of Each Part
The Name of Each Part 1.Main Unit & Buttons 1，MIC 2，Power on/Power charge indicators 3，MEUN button 4，Down/Fast Forward 5， Up/Rewind 6，Recording indicator 7，1.5inch LCD 8，Power ON/OFF, / Picture Capture / Quit / Confirm 9，Record/Play/Choose... -
Page 7: Display Instructions
Display Instructions 2.Display & Icon... -
Page 8: Package Contents
Package Contents 3.Package Contents... -
Page 9: Power Charger
Power Charger 1. Checking The Battery Status Please Close the battery door after installed the battery correctly. 1) Charging the battery User can charge HD119 by connecting the USB cable to a computer or by using the AC Adaptor. A. Charging by connecting to PC Connect with PC under “Power OFF”... - Page 10 Power Charger B.Charing With AC/DC Adaptor C.Charging With Cigar-lighter 2) Battery Charging Time & Operating Time Charging Time Continuous play time Recording time Approx. 5hrs in Power On Approx ：2 hours and 30 ：4 hours Approx minutes（1080P） Approx. 3hrs 30mins in Power Off When plugging or unplugging the AC/DC adaptor, turning off the unit is strongly recommended.
-
Page 11: Power Charger
Power Charger 3) Battery Remaining Status Full Charge Some Power Consumed Power almost drained No Power Make sure the battery and power charge working as long as possible. The electronic release can not surpass a week, excessive power charge will ... -
Page 12: Storage Card
Storage Card 1, Card Type and Capacity. A, The camera built in 32MB ROM memory for system files only. B, The camera built in standard SD card reader, support 32GB memory expand in max. SD including SDHC is compatible, but it might not work properly according to a brand of maker. -
Page 13: Manual Structure
Manual Structure Main Menu Record Setting System Setting Record Setting Size 1920 x 1080 1280 x 720 848 x 480 640 x 480 Size +0/+0.3/+0.7/+1/+1.3/+1.7/+2.0 +0/-0.3/-0.7/-1/-1.3/-1.7/-2.0 White B Auto/Fluorescent/Tungsten/Cloudy/Sunny Contrast Standard Soft Hard Sharpness Standard Soft Hard Effect Off/Vivid/Monochrome/Negative/Sepia/Art Recycle 15Mins 35Mins 45Mins... -
Page 14: Manual Structure
Manual Structure System Setting Volume 1/2/3/4/5/6/7/8 简体中文 Language 繁体中文 English Russian Spanish Italiano 日本 Date YYYY-MM-DD Clock HH:MM Format Sys.Reset No/ Yes Auto Off 5Mins 3Mins 1Min Light Fred 50Hz 60Hz Stamp Lcd Off 5Mins 3Mins 1Mins Version V2010924... -
Page 15: Basic Operation
Basic Operation 1，Record Setting Long press to power on, then press to enter the setting menu . to select menu，press to change setting and press to save and quit. 2，System Setting to enter the “system Press to enter the record setting menu, then press setting”... - Page 16 Basic Operation 3， Take picture and Record video Short press under monitor condition will take a picture, the red recording indicator will flash one time at the same. Short press under monitor condition will start the video recording, the red recording indicator will keep flash, the upper left corner of the screen will display a red REC icon .
- Page 17 Basic Operation 4,Video playback A, Playback in the camera Long press to enter the playback condition, under the monitor condition, use to select video files. Video file display: Picture file display: Lantern slide browse: User could browse the files by slide playback mode, press under playback to select “SLIDE SHOW”...
- Page 18 Basic Operation B，TV playback（HDMI） Connect the camera with TV by HDMI cable, power on the camera, switch the TV to the HDMI video channel. Long press to enter the playback condition under playback condition, use to select the files, short press to play the files.
- Page 19 Basic Operation C，Delete files 在 to switch out the delete menu and do the Under the playback condition, press delete operation. ( Figure below) Press to select YES. to confirm “ delete” operation. Press...
- Page 20 Basic Operation D, Connect with Computer Connect HD119 to PC thru the provided USB cable for downloading or uploading files and upgrading firmware ① Connect the Camera with Computer by the USB cable ② Power on the camera ③ The screen of the camera will display“USB connected” . Attention：User can not do any operation on the Camera after connected with the computer, only operation in computer available.
- Page 21 Basic Operation ④ Open “my computer” to check if there has the removable hard disk, called “NO_NAME” . Picture details： ⑤ Open the video files in the folders. ⑥ Check the video files in the folders, and play it by the default media player in your computer.
-
Page 22: General Specification
General Specification SPEC Detail & Support Remark Internal Storage Device 32MB Support SDHC SD Card 1-32GB 32GB Size 1.5inch Resolution 480x240,TFT Optical Format 1/2.5inch(4:3) Sensor Active Pixels 2592H x 1944V Video Output Ch TV/LCD Selectable Built-in MIC Audio Output Ch Speaker Mono USB 2.0 (High... - Page 23 Video Format NTSC/PAL Video+Audio, Video Video 1920x1080 30fps 1280x720 30fps Recording Resolution Recording 848x480 60fps 640x320 60fps Audio Video & Audio Rec. Resolution 1920x1080 1280x720 848x480 640x480 Frame Rate Max. 30 fps Max. 60 fps Video File Format HD=H.264 Playback Playback speed 1/8, 1/4, 1/2, 1, 2, 4, 8 Stored in the folder of...
- Page 24 We will not inform you if there is any modification for user maual in future...
