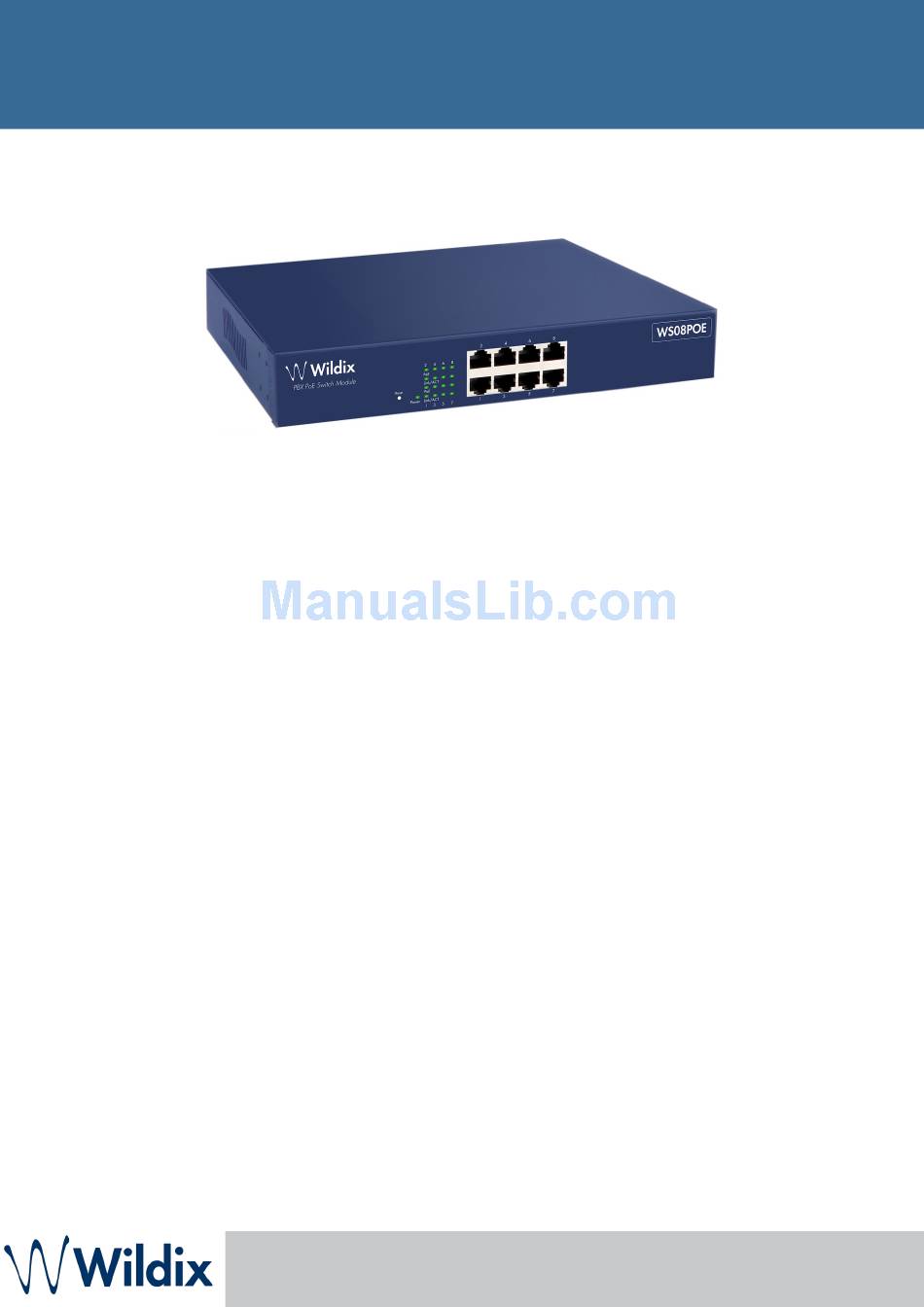

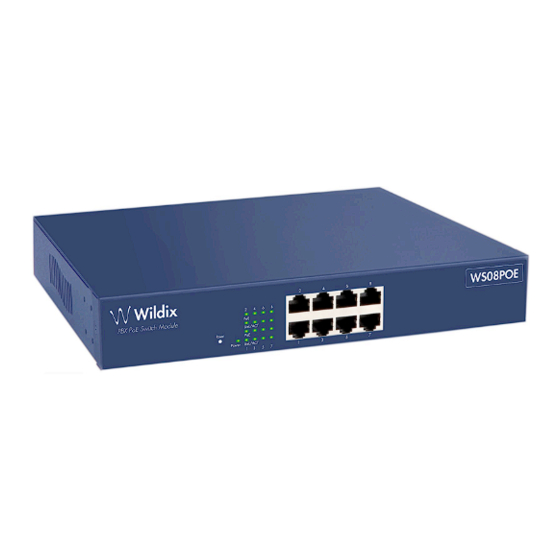

WS08POE Switch

User Manual

Version: 01/01/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS08POE and is the answer not in the manual?

Questions and answers

Related Manuals for Wildix WS08POE

Summary of Contents for Wildix WS08POE

  • Page 1: User Manual

    WS08POE Switch User Manual Version: 01/01/2011...

  • Page 2: Table Of Contents

    QoS Setting: Class of Service Security: MAC Address Configuration Security: TCP_UDP Filter Configuration Spanning Tree: STP Bridge Settings Spanning Tree: STP Port Settings Trunking: Link Aggregation Settings Backup/Recovery Miscellaneous: Miscellaneous Setting Logout: You can click “Logout” to logout. Wildix WS08POE User Manual...

  • Page 3: Web Smart Switch Configure

    Step 3: Open the web browser (like IE…), and go to 192.168.2.1 Then you will see the login screen. ID and the password: admin Step 4: After the authentication procedure, the home page shows up. Select one of the configurations by clicking the icon. Wildix WS08POE User Manual...
  • Page 4 - Administrator - Port Management - VLAN Setting - Per Port Counter - QoS Setting - Security - Spanning Tree - Trunking - Backup/Recovery - Miscellaneous - Logout Wildix WS08POE User Manual...

  • Page 5: Administrator: Authentication Configuration

    Administrator: Authentication Configuration 1. Change the user name and the password. 2. Click on “Update” to confirm the new change. You can use the new user name and the password. Wildix WS08POE User Manual...

  • Page 6: Administrator: System Ip Configuration

    1. Change the IP address: type the new IP address or select DHCP IP configuration. 2. Click on “Update” to confirm the change. “Update Successfully!!” is shown on the screen. 3. Click on "Reboot" to use new setting The setting of “System IP Configuration” is finished. Wildix WS08POE User Manual...

  • Page 7: Administrator: System Status

    1. You can enter a new comment for this switch. 2. Click on “Update” to confirm the change. “Update Successfully!!” is shown on the screen. 3. Click on "Reboot" to use the new setting The setting of “System Status” is finished. Wildix WS08POE User Manual...

  • Page 8: Administrator: Load Default Setting

    Administrator: Load Default Setting 1. Click on “Load” to go back to the factory default setting. **Note: Recover switch default setting excludes the IP address, User name and Password. Default setting is loaded. Wildix WS08POE User Manual...

  • Page 9: Administrator: Firmware Update

    Administrator: Firmware Update Follow the instruction on the screen to update the firmware. Please contact your sales agents to get the latest firmware information Wildix WS08POE User Manual...

  • Page 10: Administrator: Reboot Device

    Administrator: Reboot Device 1. Click on “Confirm” to reboot the device. Wildix WS08POE User Manual...

  • Page 11: Port Management: Port Configuration

    4. “Pause” - enable/disable for the selected port. 5. “Backpressure” - enable/disable for the selected port. 6. “Tx Capability (Cap) ” - enable/disable for the selected port. 7. “Addr. Learning” - enable/disable for the selected port. The setting of “Port Configuration” is finished. Wildix WS08POE User Manual...

  • Page 12: Port Management: Port Mirroring

    1. Select the Destination port: you can select port 1 to port 8 2. Select the Source port: by clicking the checking box of the port. 3. Click “Update” to save the setting. The setting of “Port Mirroring” is finished. Wildix WS08POE User Manual...

  • Page 13: Port Management: Bandwidth Control

    3. “RX Rate Value”: set the receiving rate of the selected port. (0: Full speed; 1~255: Specified bandwidth.) 4. “Resolution”: Low: 32 kbps / High: 512 kbps 5. Click on “Update” to confirm the setting or “LoadDefault”. The setting of “Bandwidth Control” is finished. Wildix WS08POE User Manual...

  • Page 14: Port Management: Broadcast Storm Control

    1. “Threshold” - Set the threshold from 1~63. 2. “Enable Port” - per port to define the status of broadcast packets. 3. Click on “Update” to confirm the setting. The setting of “Broadcast Storm Control” is finished. Wildix WS08POE User Manual...

  • Page 15: Port Management: Poe Configuration

    2. PSE Current & Minimum Output Power: The status of the port Current and Minimum output power. 3. POE class: each POE port detects the class of the attached PD (Powered Device) 4. Click on “Update” to confirm and finish the setting. The setting of “PoE Configuration” is finished. Wildix WS08POE User Manual...

  • Page 16: Vlan Setting: Vlan Mode

    There are two VLAN modes : Port Based VLAN and Tagged VLAN. Click on “Change VLAN mode” to select the mode. **If the Port Based VLAN function is enabled, Multi to 2 setting and tag Based VLAN are disabled automatically. The setting of “VLAN Mode” is finished. Wildix WS08POE User Manual...

  • Page 17: Vlan Setting: Vlan Member Setting (Port Based)

    1. Click on the port numbers that you want to put into the selected VLAN group. 2. Click on “Update” to confirm and finish the setting. 3. Click on “LoadDefualt” to go back to the original factory setting. The setting of “VLAN Mode” is finished. Wildix WS08POE User Manual...

  • Page 18: Vlan Setting: Multi To 2 Setting

    2. Select “Disable Port” 3. “Disable Port” – select the port that you don’t want to use 4. Click on “Update” to confirm and finish the setting. After this setting, all ports can connect only to destination ports. Wildix WS08POE User Manual...

  • Page 19: Per Port Counter: Counter Category

    Per Port Counter: Counter Category You can read the transmitting and receiving packet of the connecting port. Click on“Refresh” or “Clear” the data. Wildix WS08POE User Manual...

  • Page 20: Qos Setting: Priority Mode

    2. “All-High-before-Low” – All packets are assigned to either high priority queue or low priority queue. 3. “4 Queue WRR (Weight-Round-Robin)” - set the ratio of the transmitting packet. 4. Click on “Update” to confirm and finish the setting. Wildix WS08POE User Manual...

  • Page 21: Qos Setting: Class Of Service

    QoS Setting: Class of Service Wildix WS08POE User Manual...
  • Page 22 3. “802.1p” – Priority mapping table as the screen shows. 4. “Physical port” - you can select the port that you want to configure as Q1~Q4 priority. 5. Click on “Update” to confirm and finish the setting. The setting of “Class of Service” is finished. Wildix WS08POE User Manual...

  • Page 23: Security: Mac Address Configuration

    1. “Select Port” – port 1~8 2. “Binding” – “Enable”: allow the packet with the specified source MAC address to enter this port. 3. Click on “Update” to confirm and finish the setting. The setting of “MAC Address Filter” is finished. Wildix WS08POE User Manual...

  • Page 24: Security: Tcp_Udp Filter Configuration

    The secure WAN port should be set at the physical port which is connected to the server. b. Once this function is enabled, the switch checks the destination TCP/UDP port number at the outgoing direction of the secure WAN port. If the condition matches, this packet is dropped or forwarded. Wildix WS08POE User Manual...
  • Page 25 **Note 2: The description of Secure WAN port is shown in the bottom of this screen. 3. “Protocol” – select protocols. 4. Click on “Update” to confirm and finish the setting. The setting of “TCP/UDP Filter Configuration” is finished. Wildix WS08POE User Manual...

  • Page 26: Spanning Tree: Stp Bridge Settings

    (If a bridge transition is very fast, some network links might not be ready to change their states and loops might occur.) 6. Click on “Update” to confirm and finish the setting. The setting of “STP Bridge Settings” is finished. Wildix WS08POE User Manual...

  • Page 27: Spanning Tree: Stp Port Settings

    1. Select “Port No.”: Port 1 ~ Port 8 2. Select “Priority”: 0~ 240 3. “RPC” = Root Path Cost: 0 = AUTO. When the loop is found, the STP/RSTP calculates the cost of its path. Wildix WS08POE User Manual...

  • Page 28: Trunking: Link Aggregation Settings

    Click on “Submit” to confirm and finish the setting. “State” – Enable / Disable “Type” – LACP/ Static “Activity” – Active/Passive: Both switches use “LACP” to configure the Trunk, at least one of them should be “Active” Wildix WS08POE User Manual...

  • Page 29: Backup/Recovery

    Follow the instruction on the screen to update the original setting. “Backup” - Click on “Download” to confirm the setting. “Recovery” – select a file and enter the password -> Click “Update” to confirm the setting. Wildix WS08POE User Manual...

  • Page 30: Miscellaneous: Miscellaneous Setting

    1. “Output Queue Aging Time” - You can set queue aging time into different milliseconds or disable this function. 2. “VLAN Striding” – You can enable/disable this function. 3. “IGMP Snooping V1 & V2” – You can enable/disable this function. 4. Click on “Update” to confirm and finish the setting. Wildix WS08POE User Manual...

  • Page 31: Logout: You Can Click "Logout" To Logout

    Logout: You can click “Logout” to logout. Wildix WS08POE User Manual...
  • Page 32 Contacts Italy: France: +39 0461.1715112 +33 176 747 980 support@wildix.com support@wildix.fr Wildix WS08POE User Manual...
