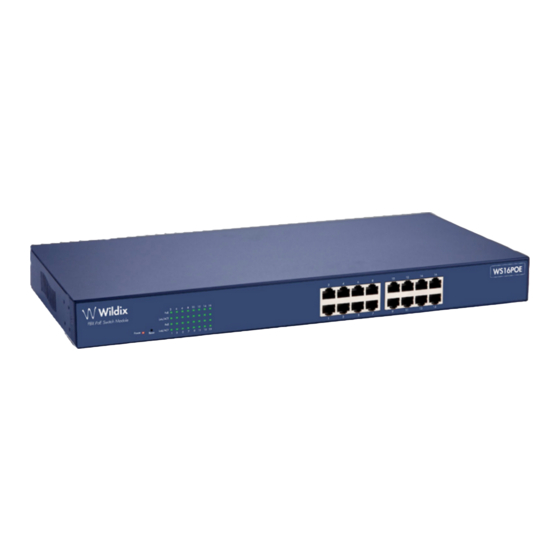

Wildix WS16POE User Manual
  1. Manuals
  2. Brands
  3. Wildix Manuals
  4. Switch
  5. WS16POE
  6. User manual

Wildix WS16POE User Manual

Switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

WS16POE Switch

User Manual

Version: 01/01/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS16POE and is the answer not in the manual?

Questions and answers

Related Manuals for Wildix WS16POE

Summary of Contents for Wildix WS16POE

  • Page 1: User Manual

    WS16POE Switch User Manual Version: 01/01/2011...

  • Page 2: Table Of Contents

    QoS Setting: Class of Service Security: MAC Address Configuration Security: TCP_UDP Filter Configuration Spanning Tree: STP Bridge Settings Spanning Tree: STP Port Settings Trunking: Link Aggregation Settings Backup/Recovery Miscellaneous: Miscellaneous Setting Logout: You can click “Logout” to logout. Wildix WS16POE User Manual...

  • Page 3: Web Smart Switch Configure

    Step 3: Open the web browser (like IE…), and go to 192.168.2.1 Then you see the login screen. ID and the password: admin Step 4: After the authentication procedure, the home page shows up. Select one of the configurations by clicking the icon. - Administrator Wildix WS16POE User Manual...
  • Page 4 - Port Management - VLAN Setting - Per Port Counter - QoS Setting - Security - Spanning Tree - Trunking - Backup/Recovery - Miscellaneous - Logout Wildix WS16POE User Manual...

  • Page 5: Administrator: Authentication Configuration

    Administrator: Authentication Configuration 1. Change the user name and the password. 2. Click on “Update” to confirm the change. You can use the new user name and password. Wildix WS16POE User Manual...

  • Page 6: Administrator: System Ip Configuration

    1. Change the IP address: type the new IP address or select DHCP IP configuration. 2. Click on “Update” to confirm the change. “Setting Process OK!!” is shown on the screen. 3. Click on "Reboot" to use new setting The setting of “System IP Configuration” is finished. Wildix WS16POE User Manual...

  • Page 7: Administrator: System Status

    Administrator: System Status MAC address and system version are shown on the screen. 1. You can enter a new comment for this switch. 2. Click on “Update” to confirm the change. The setting of “System Status” is finished. Wildix WS16POE User Manual...

  • Page 8: Administrator: Load Default Setting

    Administrator: Load Default Setting 1. Click on “Load” to go back to the factory default setting. **Note: Recover switch default setting excludes the IP address, User name and Password. Wildix WS16POE User Manual...

  • Page 9: Administrator: Firmware Update

    Administrator: Firmware Update Follow the instruction on the screen to update the firmware. Please contact your sales agents to get the latest firmware information Wildix WS16POE User Manual...

  • Page 10: Administrator: Reboot Device

    Administrator: Reboot Device 1. Click on “Confirm” to reboot the device. Wildix WS16POE User Manual...

  • Page 11: Port Management: Port Configuration

    4. “Pause” - enable/disable for the selected port. 5. “Backpressure” - enable/disable for the selected port. 6. “Tx Capability (Capability) ” - enable/disable for the selected port. 7. “Addr. Learning” - enable/disable for the selected port. The setting of “Port Configuration” is finished. Wildix WS16POE User Manual...

  • Page 12: Port Management: Port Mirroring

    1. Select the Destination port: you can select port 1 to port 16 2. Select the Source port: click on the check box of the port. 3. Click on “Update” to save the setting. The setting of “Port Mirroring” is finished. Wildix WS16POE User Manual...

  • Page 13: Port Management: Bandwidth Control

    3. “RX Rate Value”: set the receiving rate of the selected port. (0: Full speed; 1~255: Specified bandwidth.) 4. “Resolution”: Low: 32 kbps / High: 512 kbps 5. Click on “Update” to confirm the setting or “LoadDefault”. The setting of “Bandwidth Control” is finished. Wildix WS16POE User Manual...

  • Page 14: Port Management: Broadcast Storm Control

    1. “Threshold” - Set the threshold from 1~63. 2. “Enable Port” - per port to define the status of broadcast packets. 3. Click on “Update” to confirm the setting. The setting of “Broadcast Storm Control” is finished. Wildix WS16POE User Manual...

  • Page 15: Port Management: Poe Configuration

    2. PSE Current & Minimum Output Power: The status of the port current and minimum output power. 3. POE class: each POE port will detect the class of the attached PD (Powered Device) 4. Click on “Update” to confirm and finish the setting. The setting of “PoE Configuration” is finished. Wildix WS16POE User Manual...

  • Page 16: Vlan Setting: Vlan Mode

    There are two VLAN modes : Port Based VLAN and Tagged VLAN. Click on “Change VLAN mode” to select the mode. **If the Port Based VLAN function is enabled, Multi to 2 setting and tag Based VLAN are disabled automatically. The setting of “VLAN Mode” is finished. Wildix WS16POE User Manual...

  • Page 17: Vlan Setting: Vlan Member Setting (Port Based)

    1. Click on the port numbers that you want to put into the selected VLAN group. 2. Click on “Update” to confirm and finish the setting. 3. Click on “LoadDefualt” to go back to the original factory setting. The setting of “VLAN Mode” is finished. Wildix WS16POE User Manual...

  • Page 18: Vlan Setting: Multi To 2 Setting

    2. Select “Disable Port” 3. “Disable Port” – select the port that you don’t want to use 4. Click on “Update” to confirm and finish the setting. After this setting all ports can connect only to destination ports. Wildix WS16POE User Manual...

  • Page 19: Per Port Counter: Counter Category

    Per Port Counter: Counter Category You can read the transmitting and receiving packet of the connecting port. Click on “Refresh” or “Clear” the data. Wildix WS16POE User Manual...

  • Page 20: Qos Setting: Priority Mode

    2. “All-High-before-Low” – All packets are assigned to either high priority queue or low priority queue. 3. “4 Queue WRR (Weight-Round-Robin)” - set the ratio of the transmitting packet. 4. Click on “Update” to confirm and finish the setting. Wildix WS16POE User Manual...

  • Page 21: Qos Setting: Class Of Service

    QoS Setting: Class of Service Wildix WS16POE User Manual...
  • Page 22 3. “802.1p” – Priority mapping table as the screen shows. 4. “Physical port” - you can select the port you want to configure as Q1~Q4 priority. 5. Click on “Update” to confirm and finish the setting. The setting of “Class of Service” is finished. Wildix WS16POE User Manual...

  • Page 23: Security: Mac Address Configuration

    1. “Select Port” – port 1~16 2. “Binding” – “Enable”: allow the packet with the specified source MAC address to enter this port. 3. Click on “Update” to confirm and finish the setting. The setting of “MAC Address Filter” is finished. Wildix WS16POE User Manual...

  • Page 24: Security: Tcp_Udp Filter Configuration

    The secure WAN port should be set at the physical port which is connected to the server. b. Once this function is enabled, the switch checks the destination TCP/UDP port number at the outgoing direction of the secure WAN port. If the condition matches, this packet is dropped or forwarded. Wildix WS16POE User Manual...
  • Page 25 **Note 2: The description of Secure WAN port is shown in the bottom of this screen. 3. “Protocol” – select protocols. 4. Click on “Update” to confirm and finish the setting. The setting of “TCP/UDP Filter Configuration” is finished. Wildix WS16POE User Manual...

  • Page 26: Spanning Tree: Stp Bridge Settings

    (If a bridge transition is very fast, some network links might not be ready to change their states and loops might occur.) 6. Click on “Update” to confirm and finish the setting. The setting of “STP Bridge Settings” is finished. Wildix WS16POE User Manual...

  • Page 27: Spanning Tree: Stp Port Settings

    1. Select “Port No.” : Port 1 ~ Port 16 2. Select “Priority”: 0~ 240 3. “RPC” = Root Path Cost: 0 = AUTO. When the loop is found, the STP/RSTP calculates the cost of its path. Wildix WS16POE User Manual...

  • Page 28: Trunking: Link Aggregation Settings

    Click on “Submit” to confirm and finish the setting. “State” – Enable / Disable “Type” – LACP/ Static “Activity” – Active/Passive: Both switches use “LACP” to configure the Trunk, at least one of them should be “Active” Wildix WS16POE User Manual...

  • Page 29: Backup/Recovery

    Follow the instruction on the screen to update the original setting. “Backup” - Click on “Download” to confirm the setting. “Recovery” – select a file and enter the password -> Click “Update” to confirm the setting. Wildix WS16POE User Manual...

  • Page 30: Miscellaneous: Miscellaneous Setting

    2. “VLAN Striding” – Enable/disable this function. 3. “IGMP Snooping V1 & V2” – Enable/disable this function. 4. “VLAN Uplink Setting” - Set “uplink1 or uplink2” or “Clear uplink1” or “Clear uplink2” 5. Click on “Update” to confirm and finish the setting. Wildix WS16POE User Manual...

  • Page 31: Logout: You Can Click "Logout" To Logout

    Logout: You can click “Logout” to logout. Wildix WS16POE User Manual...
  • Page 32 Contacts Italy: France: +39 0461.1715112 +33 176 747 980 support@wildix.com support@wildix.fr Wildix WS16POE User Manual...
