WSG08POE Switch

User Manual

Version: 01/01/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSG08POE and is the answer not in the manual?

Questions and answers

Summary of Contents for Wildix WSG08POE

  • Page 1: User Manual

    WSG08POE Switch User Manual Version: 01/01/2011...
  • Page 2: Table Of Contents

    Physical Dimensions/ Weight! Front Panel! LED Indicators! Rear Panel! Hardware Installation! Software Description! Login! Configuration! Administrator! Port Configuration! VLAN Setting! Trunking! Link Aggregation! Raid Spanning Tree! IGMP Snooping! Port Mirroring! QoS Setting! PoE (Power over Ethernet) Configuration! Wildix WSG08POE User Manual...
  • Page 3 Storm Control! Monitorning! Statistic Overview! Detailed Statics! LACP Status! RSTP Status! IGMP Status! VeriPHY! Ping! Maintenance! Reboot Device (Warm Restart)! Load Default Setting (Factory Default)! Firmware Updating (Software upload)! Backup/Recovery (Configuration File Transfer)! Logout! Wildix WSG08POE User Manual...
  • Page 4: Introduction

    QoS Setting PoE Configuration Storm Control Monitoring Statistics Overview Detailed Statistics LACP Status RSTP Status IGMP Status VeriPHY Ping Maintenance Reboot Device (Warm Restart) Load Default Setting (Factory Default) Firmware Updating (Software Upload) Backup/Recovery (Configuration File Transfer) Wildix WSG08POE User Manual...
  • Page 5: Specifications

    ➤ Power Input: 100~240V/AC, 50~60HZ ➤ Product Dimensions/ Weight 44 × 220 × 440 mm (H × D x W) / 3.2kg Performance MAC Address: 8K Buffer Memory: 176 KB Jumbo Frames: 9K Transmission Method: Store and Forward Wildix WSG08POE User Manual...
  • Page 6: Package Contents

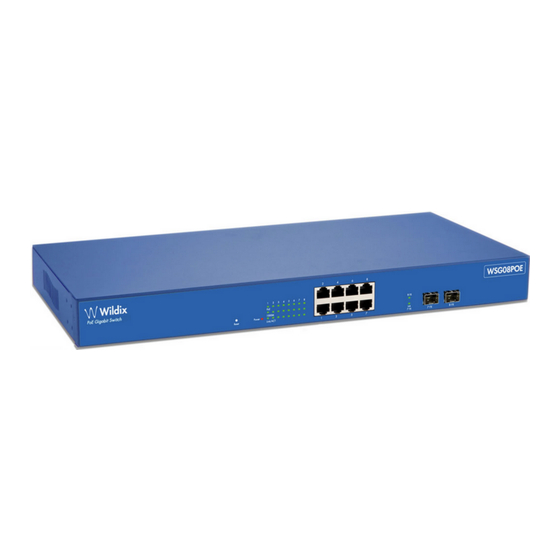

    44 × 220 × 440 mm (H × W × D) / 3.2KG Front Panel The front Panel of the managed switch consists of 8 gigabit RJ-45 ports with 2 Combo gigabit SFP open slot. The LED Indicators are also located on the front panel. Wildix WSG08POE User Manual...
  • Page 7: Led Indicators

    LED Indicators The LED Indicators present real-time information of systematic operation status. This table provides description of LED status and the meaning. Table 1-1 LED Indicators Wildix WSG08POE User Manual...
  • Page 8: Rear Panel

    Open the web browser, and type in the URL: 192.168.2.1. You see the login screen. The factory default did not set up a password, so you can just click the Apply button. The login process is completed and “Password successfully entered” appears on the screen. Login Wildix WSG08POE User Manual...
  • Page 9: Configuration

    After the user login, the right side of website shows all functions (Fig. 1-2). Figure 1-2 Configuration Administrator System Configuration This page shows system configuration information. Wildix WSG08POE User Manual...
  • Page 10 ➤ Management VLAN: ID of the configured VLAN (1-4094) to manage the switch. By default, all ports on the switch are members of VLAN 1. However, if the management VLAN is changed, the management station should be attached to a port belonging to this VLAN. Wildix WSG08POE User Manual...
  • Page 11: Port Configuration

    Only sufficient power is used to maintain connection requirements. ➤ Mode: allow user to manually set the port speed as Auto, 10 half, 10 Full, 100 Half, 100 Full, 1000 Full or Disabled. Press Apply button to complete the configuration procedure. Wildix WSG08POE User Manual...
  • Page 12: Vlan Setting

    ➤ VLAN ID: ID of configured VLAN (1-4094, no leading zeroes). ➤ VLAN Configuration List: Lists all the current VLAN groups created for this system. Up to 16 VLAN groups can be defined. VLAN 1 is the default untagged VLAN. Wildix WSG08POE User Manual...
  • Page 13 You can configure VLAN behavior for specific interfaces, including the accepted frame types and default VLAN identifier (PVID). Each row of the table corresponds to one port or trunk; trunked ports cannot be configured individually; configure the trunk instead. Wildix WSG08POE User Manual...
  • Page 14: Trunking

    Port trunk allows multiple links to be bundled together and act as a single physical link for increased throughput. It provides load balancing, and redundancy of links in a switched inter- network. Actually, the link does not have an inherent total bandwidth equal to the sum of its Wildix WSG08POE User Manual...
  • Page 15: Link Aggregation

    (LAG). If this administrative key is not set when an LAG is formed (i.e., it has the null value of 0), this key is automatically set to the same value as the one used by the LAG. Wildix WSG08POE User Manual...
  • Page 16: Raid Spanning Tree

    ➤ Forward Delay: The maximum time (in seconds) the root device waits before changing states (i.e., discarding to learning to forwarding). Number between 4 – 30 (default is 15). ➤ Force Version: Set and show the RSTP protocol to use. Normal - use RSTP, Compatible - compatible with STP Wildix WSG08POE User Manual...
  • Page 17 Therefore, lower values should be assigned to ports attached to faster media, and higher values assigned to ports with slower media. Set the RSTP pathcost on the port. Number between 0 - 200000000. 0 means auto generated pathcost. Wildix WSG08POE User Manual...
  • Page 18: Igmp Snooping

    ➤ Router Ports: Set if ports are connecting to the IGMP administrative routers. ➤ Unregistered IPMC Flooding enabled: Set the forwarding mode for unregistered (not-joined) IP multicast traffic. The traffic floods when enabled, and forward to router-ports when disabled. Wildix WSG08POE User Manual...
  • Page 19: Port Mirroring

    Packets are dropped when the available egress bandwidth is less than ingress bandwidth. ➤ Ports to Mirror: Select the ports that you want to mirror from this section of the page. A port is mirrored when the “Mirroring Enabled” check-box is checked. Wildix WSG08POE User Manual...
  • Page 20: Qos Setting

    1, 2, 4, 8 for queues 0 through 7, respectively. (This is the default selection.) *Note: WRR can only be selected if Jumbo Frame mode is disabled on the Port Configuration page Wildix WSG08POE User Manual...
  • Page 21 802.1p values to a local priority queue (low, normal, medium or high). The default settings are shown below. When the QoS Mode is set to 802.1p, the 802.1p Configuration table is displayed as shown below. Figure 1-11-3 Wildix WSG08POE User Manual...
  • Page 22 You can use the Prioritize Traffic drop-down list to quickly set the values in the DSCP Configuration table to a common priority queue. Use Custom if you want to set each value individually. When the QoS Mode is set to DSCP, the DSCP Configuration table is displayed as shown below. Figure 1-11-5 Wildix WSG08POE User Manual...
  • Page 23 Remote access and monitor the attached PD (Powered Device) status (Enable/Disable) PoE Enabled: PoE of the port is able to supply power to the attached PD Delivering Power (W): Output power Current (mA): Current status of port Wildix WSG08POE User Manual...
  • Page 24: Storm Control

    When the threshold is exceeded, packets are dropped, irrespective of the flow-control settings. ➤ Web: Click PORTS, Storm Control. This page enables you to set the broadcast storm control parameters for every port on the switch. Figure 1-13-2 Wildix WSG08POE User Manual...
  • Page 25: Monitorning

    Monitorning Statistic Overview You can mirror traffic from any source port to a target port for real-time analysis the following figures shows clearly the statistics overview. Detailed Statics LACP Status Wildix WSG08POE User Manual...
  • Page 26: Rstp Status

    ➤ Partner Port Number: A list of the ports attached to the remote end of this LAG link member. ➤ Operational Port Key: Current operational value of the key used by this LAG. LACP Port Status RSTP Status Wildix WSG08POE User Manual...
  • Page 27 ➤ Protocol: Shows the spanning tree protocol functioning on this port, either RSTP or STP (STP- compatible mode). RSTP VLAN Bridge Overview ➤ Hello Time: Interval (in seconds) with which the root device transmits a configuration message. Wildix WSG08POE User Manual...
  • Page 28: Igmp Status

    ➤ v2 Reports: Show the number of received v2 Report packets. ➤ v3 Reports: Show the number of received v2 Report packets. ➤ v3 Leave: Show the number of v3 leave packets received. Figure 2-5 VeriPHY VeriPHY Cable Diagnostics Wildix WSG08POE User Manual...
  • Page 29 ➤ Cable Diagnostics: Cable diagnostics is performed on a per-port basis. Select the port number from the drop-down list. ➤ Cable Status: Shows the cable length, operating conditions and isolates a variety of common faults that can occur on Category 5 twisted pair cabling. Figure 2-6-1 Wildix WSG08POE User Manual...
  • Page 30: Ping

    Normal response: The normal response occurs in one to ten seconds, depending on network traffic. ➤ Destination does not respond: If the host does not respond, a “timeout” appears in ten seconds. ➤ Destination unreachable: The gateway for this destination indicates that the destination is unreachable. Wildix WSG08POE User Manual...
  • Page 31 ➤ Network or host unreachable: The gateway found no corresponding entry in the route table. Press <Esc> to stop pinging. Figure 2-7-1 Figure 2-7-2 Wildix WSG08POE User Manual...
  • Page 32: Maintenance

    Forces the switch to restore the original factory settings. To reset the switch, select “Reset to Factory Defaults” from the drop-down list and click Apply. The LAN IP Address, Subnet Mask and Gateway IP Address are reset to their factory defaults Wildix WSG08POE User Manual...
  • Page 33: Firmware Updating (Software Upload)

    Figure 3-4 Logout The administrator has write access for all parameters governing the onboard agent. User should therefore assign a new administrator password as soon as possible, and store it in a safe place. Figure 3-5 Wildix WSG08POE User Manual...
  • Page 34 Contacts Italy: France: +39 0461.1715112 +33 176 747 980 support@wildix.com support@wildix.fr Wildix WSG08POE User Manual...
