Summary of Contents for ACME FlyCamOne HD 1080p

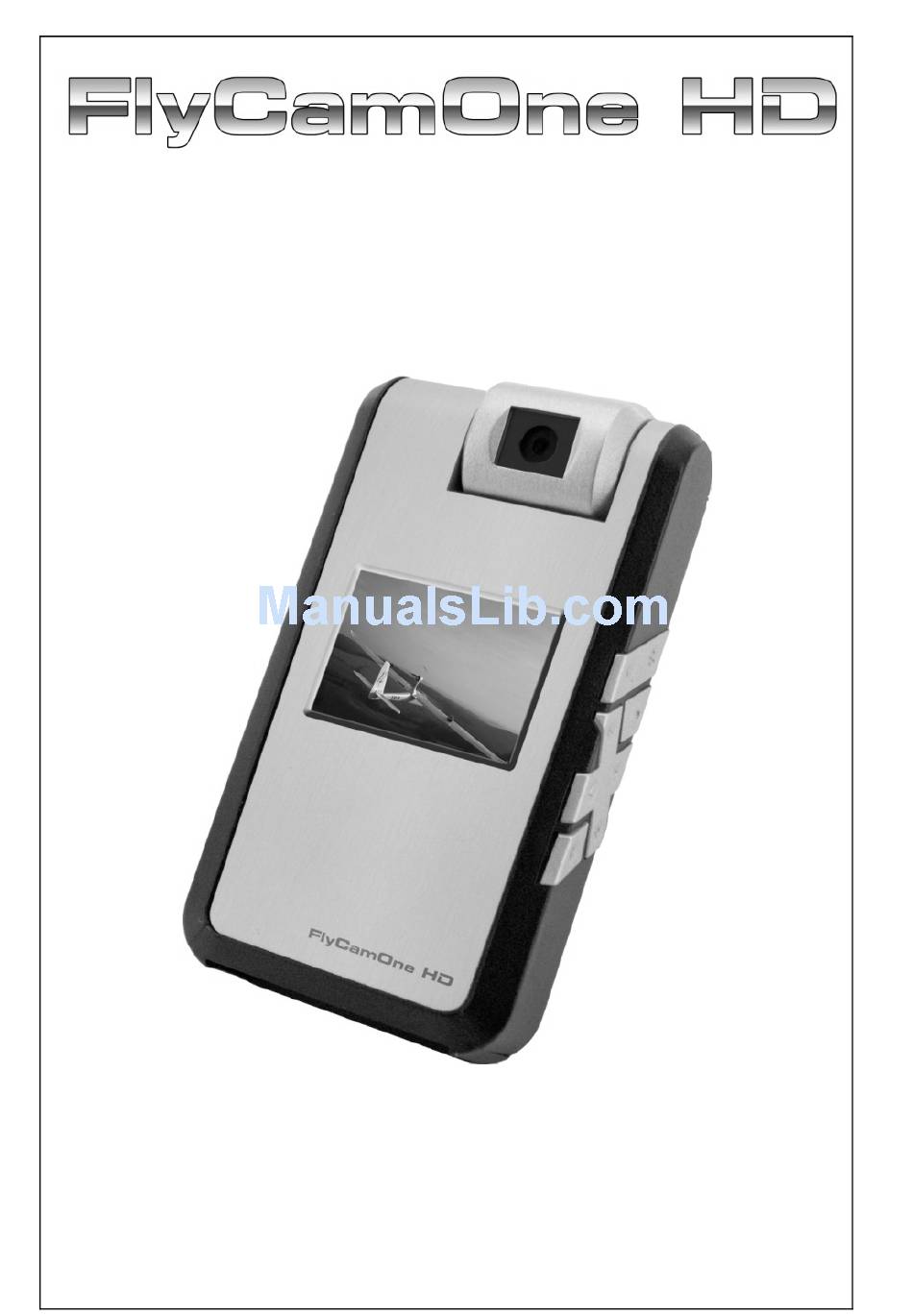

  • Page 1 1080p Manual Vers.: 1.0 "FlyCamOne", “CarCamOne” und das “FlyCamOne” Logo sind registrierte Marken von ACME the game company, Deutschland © copyright 2011 von ACME the game company GmbH...
  • Page 2: Safety Advice

    Safety advice WARNING: SERVICE & SUPPORT Follow these instruction to prevent damage of ACME the game company GmbH the unit:  DO NOT USE UNPROTECTED IF RAIN OR Industriestr. 10a WATER. PREVENT CONTACT WITH ANY KIND OF LIQUIDS 33397 Rietberg ...
  • Page 3: Content Of The Box

    Content of the Box Please make sure set is complete before starting FlyCamOne HD 1080p LinX Controller 433MHz LinX Antenna Cable USB-Cable 10Pin –AV-Cable Manual...
  • Page 4: Battery Charging

    ACME will not be responsible in any case for any consequential or direct problems that will lead to a loss of recorded or edited data. Furthermore ACME will not guarantee the content in case the recording or saving is not working properly. The above limitations are as well valid in case the unit has been repaired.
  • Page 5: Functional Diagram

    Functional diagram 170° tilt head 1,5”/ 38,1mm Display Head steering Record/OK button Directional pad Menu- Button (M-Button) Antenna socket Port- cover On/Off- Button Functional/Charge LEDs Tab lug Mini HDMI-Port Mini USB 2.0 10-Pin Bus Port Micro-SDHC-Card Slot Sender- fixation Fixation- socket Battery cover Microphone 170°...
  • Page 6: Control Panel

    Control panel Please note: The buttons of the FlyCamOne HD 1080p Do have second function (B) Pressing them for 3 seconds. A. Head forwards* A. Head backwards B. Bind B. Bind A. Up / Mode A. Start / Stop / OK B.
  • Page 7: Compatible Memory Cards

    Compatible Memory Cards Only use Micro-SDHC-Cards rank „Class4“ or higher. The camera can be used with cards up to 32GB. The recommended cards are "FCO Rapid Rush" cards at a minimum size of 8GB. Using a 32GB card allows a recording time of 4,5 hours at highest resolution.
  • Page 8: Mode Selection

    Mode selection The camera starts in external mode that can be used directly for recording. Use the cross pad’s „up“ and „down“ buttons to change the mode. Select the mode with the cross pads, confirming by pressing Video “Start”. For details in the selected mode go further on pressing Photo the “M“...
  • Page 9 SETUP Press the „M“-button for 3 seconds to enter the setup. First the installed firmware version appears on the screen. Go through the menu using the control buttons and activate the functions with the Record/OK- button. Setup Quick Guide System Switch between “CarCamOne”...
  • Page 10: Video Recording

    Permanent recording inside a car In case you want to use the FlycamOne HD as a CarCamOne HD please use the CarCamOne cable (optional available, Art.: CCHD02) and the sucking pad (FCHD28) Starting the engine will activate the adaptor to start as well the camera. When stopping the engine, also the camera will close the file and shut down.
  • Page 11: Using The Zoom

    Video time- lapse Use the „Up/Mode“- button to enter the video mode. Press the „M- button“ for setup. Choose „FPS“. Confirm the record time with the „Start/Stop“- button. Now you will be automatically guided to the setup menu. Press the “M”- button to return to the recording menu. Recording will be stopped and saved with the „Start/Stop”- button.
  • Page 12: Using The Camera As A Webcam

    Playback on Windows Connect the camera using the USB-cable to your PC. Select the appearing "MSC" Mass storage Container to use the camera as a drive. Press [START] with the left mouse button and select the “Explorer” to display all drives. Select the exchangeable drive and find the video data in the contained folders.
  • Page 13 Different types of mount The line-Up of the FlyCamOne contains different type of fixing systems The tripod adaptor fixes the camera to every standard tripod. (Art-No.: FCHD25) The pendulum mount can be screwed or glued to a RC model - it enables the pan movement by a servo. The pendulum function can be locked - but is mandatory when fixed to a sport kite (Kite Surfing).
  • Page 14 Exchange the Lens To exchange to another lens, turn the head to get access to the 4 screws at the backside. Untighten the screws with a suitable Phillips. The can be replaced by the wide angle lens. (170° Fisheye - Art.-No.: FCHD10) Replace the lens by the new one and tighten the screws carefully! Please Note! The opened camera head and connectors...
  • Page 15 Individualizise your Cam! Different colors of frame sets will make your FlyCamOne a unique camera. Loose the safty string first. Then unscrew the bottom part’s four screws and remove the bottom. At take off the side panels. Assamble the new frame in reverse order, but bind the safty string at the left side before fixing the left frame part.
  • Page 16: Technical Data

    To offer a maximum of convenience we are continuously working on the cameras firmware to enter new functions or to solve some bugs. Visit our webpage www.FlyCamOne.com and download the latest firmware available. You only need to save the firmware file to your micro SD card. Slide the card into the camera and select “Update”...
  • Page 17 Error Cause Solution Camera switches off Battery is not charged Charge the camera for at immediately. correctly. least 4 hours. Unable to switch ON the Battery is not plugged Check connection between camera correctly. camera and battery. Battery is defective. Replace the battery.
  • Page 18 4260033 049599 FlyCamOne HD 1080p Lens 133° 1080 FCHD10 4260033 049605 FlyCamOne HD 1080p Lens 170° 720 & 1080 FCHD11 4260033 049612 FlyCamOne HD 1080p myopia Lens Set 720 & 1080 FCHD12 4260033 049629 FlyCamOne HD V-Eyes Base 720 & 1080 FCHD13...
