- Page 1 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 Disclaimer Power/LED Connections This manual is intended only as a guide for Antec's Computer Enclosures. For more comprehensive The power supply is an ATX12V form factor power supply. It has a single 20 pin instructions on installing your motherboard and peripherals, please refer to the user's manuals...
- Page 3 Drive Installation the data cables between the devices and the motherboard. The data cables are Minuet incorporates a rapid-release Flip Up Drive Cage for not included with the case; we include this information only as an aid. easy drive installation. The Cage includes three drive bays: one external 5.25", one external 3.5", and one...
- Page 4 Fan Installation Minuet has a mounting location for an optional 40mm fan in the rear of the case, above the I/O panel. For maximum ventilation, the rear fan should be installed so that the air is exhausting from the case. Align the mounting holes in the fan with the two mounting prongs provided, and attach the fan with screws through the two mounting screw holes provided.

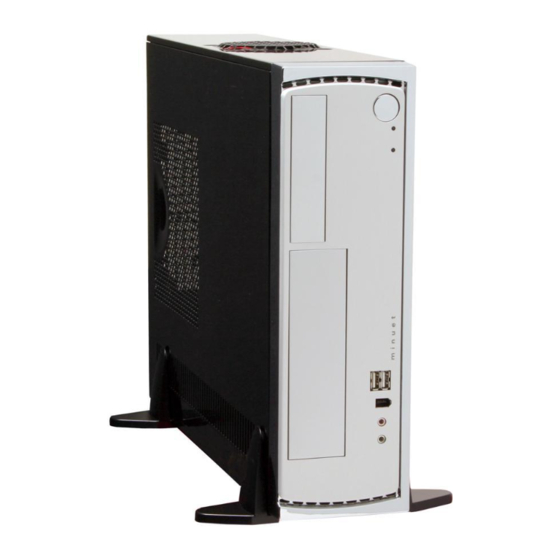

- Page 5 MINUET Piano Black Slimline PC Case Drawing Description Number Thumbscrews Top Panel Power Supply Flip Up Drive Cage Power Switch/Cable Power LED/Cable HD LED/Cable 3.5” Drive Bay Cover Front Bezel 5.25” Drive Bay Cover Front Port Assembly Case Expansion Slot Covers...
