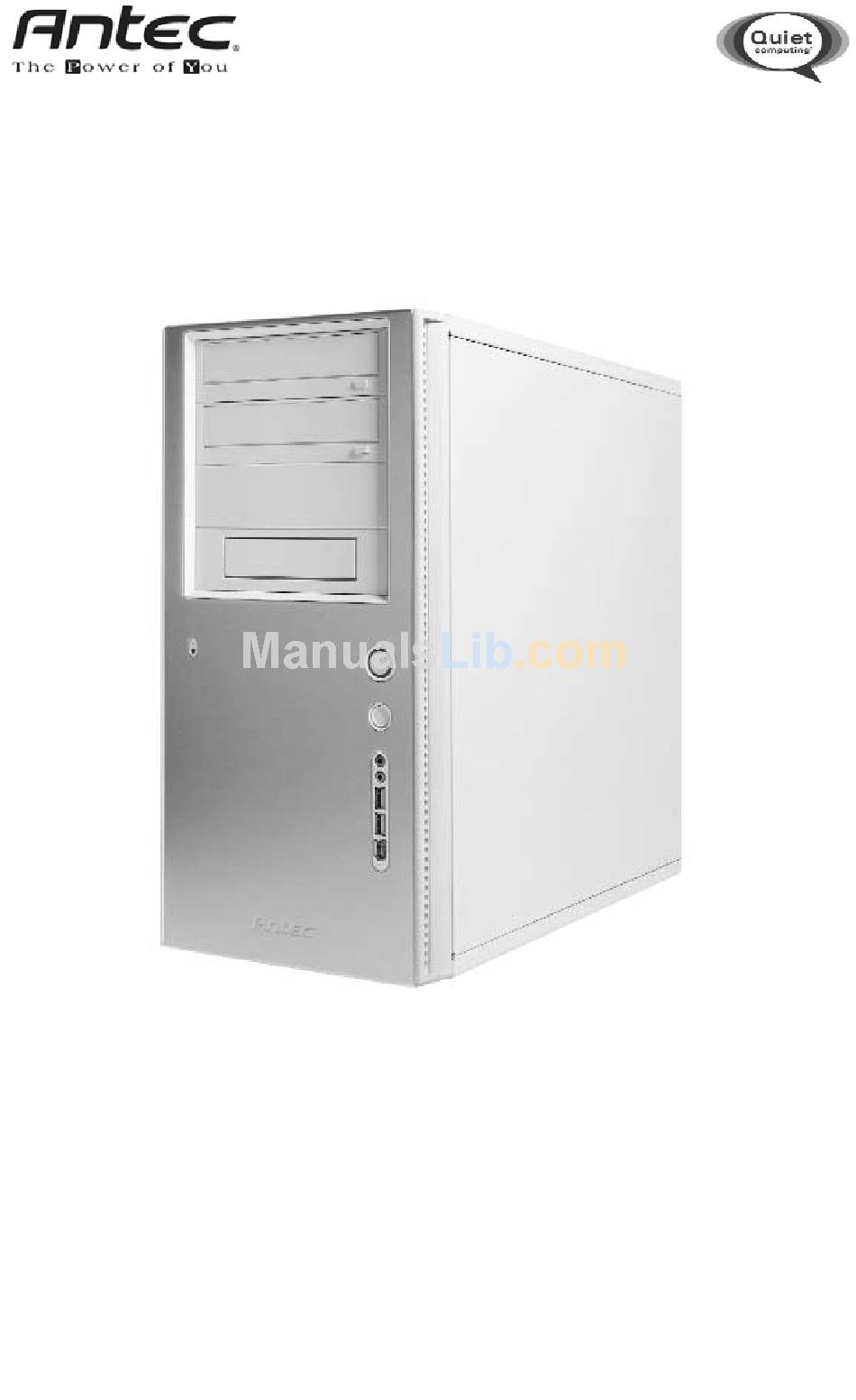

- Page 1 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario P150 Super Quiet Mini Tower Case...
- Page 2 At Antec, we continually refine and improve our products to ensure the highest quality. So it's possible that your new case may differ slightly from the descriptions in this manual. This isn't a problem; it's simply an improvement. As of the date of publication, all features, descriptions, and illustrations in this manual are correct.
- Page 3 Advanced Cable Management System - Neo HE power supplies feature Antec's Advanced Cable Management System. It allows you to use only the power cables that you need, thereby reducing clutter and improving airflow inside your case.
- Page 4 Advanced Cable Management Wire Set. One Y-adapter with one standard 4-pin Molex peripheral connector at one end and two female Floppy power connectors at the other end. 5. One set of wires with a 6-pin PCI Express graphic card connector at one end and a 6-pin PSU connector at the other end.
- Page 5 Note: Please check your motherboard manual for your USB header pin layout and make sure it matches the attached table. If it does not match this Intel standard, please call Antec customer service at (800) 22ANTEC (North America) or +31 (0) 10 462-2060 (Europe) to buy a USB adapter.
- Page 6 If you intend to connect the front FireWire port to an IEEE 1394 add-on card that comes with an external-type IEEE1394 connector, please call Antec customer service at (800) 22ANTEC (North America) or +31 (0) 10 462-2060 (Europe) to buy an adapter.
- Page 7 Hard Disk Installation This case offers two hard disk mounting options. We recommend against using both mounting methods at the same time. Tray Mount There is a hard disk cage right under the external 5.25" drive. You can mount four hard drives using the trays inside it.
- Page 8 You can install two 92 mm fans to the fan cage in front of the internal 3.5" drives. These fans must be installed so that the air is blowing into the case. We recommend using Antec 92 mm TriCool fans to balance quiet performance with maximum cooling. See our web site for product information.
- Page 9 The Washable Air Filter There is a washable air filter attached to the front of the 92 mm fan cage. From time to time it will be necessary to wash the installed air filter. Not washing the air filter will result in higher system temperatures and possible stability problems.
-
Page 10: Technical Support
© Copyright 2005 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Antec, Inc. 47900 Fremont Blvd. Fremont, CA 94538 Tel: 510-770-1200 Fax: 510-770-1288 Antec Europe B.V.
