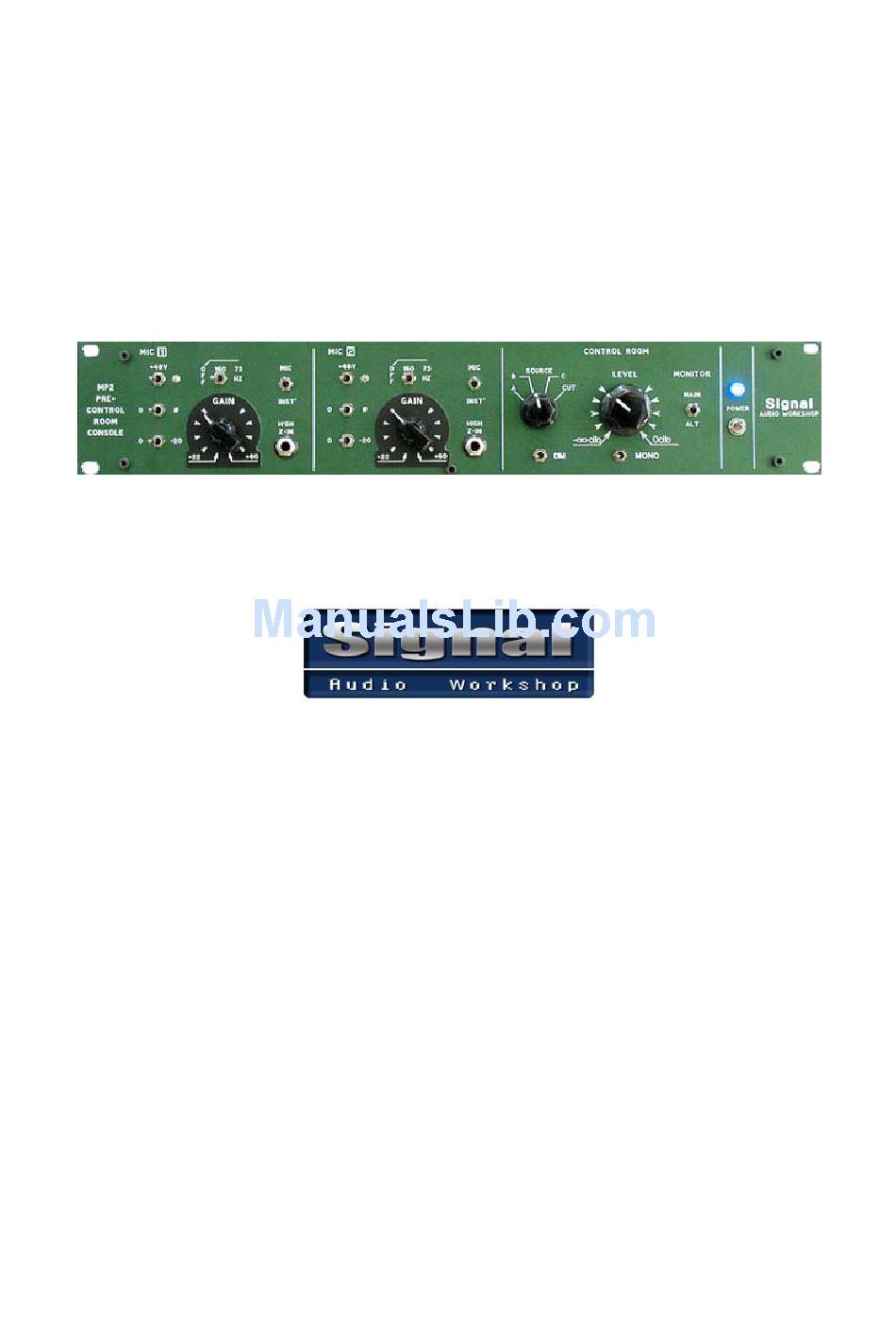

- Page 1 MP-2 2-channel Solid-state Transformerless Mic Pre-amp W/D.I and MCRC OWNER’S MANUAL Signal Audio Workshop Abarbanel ST. Tel Aviv 66089 Israel P.O.B 5169 TLV 61051 Office: 972-3-6820892 Fax: 972-3-6824716 www.signal-audio.com...
-
Page 2: Table Of Contents
MP-2 Owner’s Manual Content: Preface______________________________ Front panel controls________________ Tips & Tricks__________________________ Installation____________________________ Maintenance __________________________ Specifications _________________________ Warranty___________________________ www.signal-audio.com... -
Page 3: Preface
D/A’s output playing its self-noise through the monitor system. These features make this revolutionary tool outstand any other in today’s market! I hope you will enjoy working with the MP-2 as much as we enjoyed making it for you! With Honor. Oded Levy... -
Page 4: Front Panel Controls
Front panel controls: Mic amp section: 48v phantom switch. Phase reverse switch. -20db pad (reduction of high level input signals). Input select switch – selects input source microphone/DI. Direct input specially designed for high impedance sources (input impedance 10M). Gain knob from +22db to 60db. H.P.F. -
Page 5: Tips & Tricks
Tips & Tricks: 1. stereo recording: one of the most common methods of recording stereo signals is done by locating two identical microphones in an x/y mode and the calibration of the gain should be done by the following steps: A. -
Page 6: Installation
Installing the unit: Always install this unit in a properly grounded environment! Do not expose the unit to humidity or dusty environment! Do not expose the unit to heat sources and unventilated places! Always make sure that the unit operates on the correct mains voltage. -
Page 7: Specifications
Specially designed for monitoring & maximum signal transparency. All internal routing functions are passive & terminated . Dimensions MP-2: H=3 units, W=19”,D=13.4” Shipping weight: All spec’s at RL=600Ohm. Info subject to change without prior notice! All legal rights reserved to Signal Audio Workshop! -
Page 8: Limited Warranty
Limited Warranty LIMITED WARRANTY: This product is warranted to the original consumer purchaser to be free from defects in materials and workmanship under normal installation, use and service for a period of one (1) year from the date of purchase as shown on the purchaser’s receipt. -
Page 9: Warranty Registration Form
Warranty registration form Please take the time to fill out this registration Form and send it to the address mentioned below. Or send this page threw e-mail to: info@signal-audio.com Signal Audio Workshop Abarbanel ST. Tel Aviv 66089 Israel P.O.B 5169 TLV 61051...
