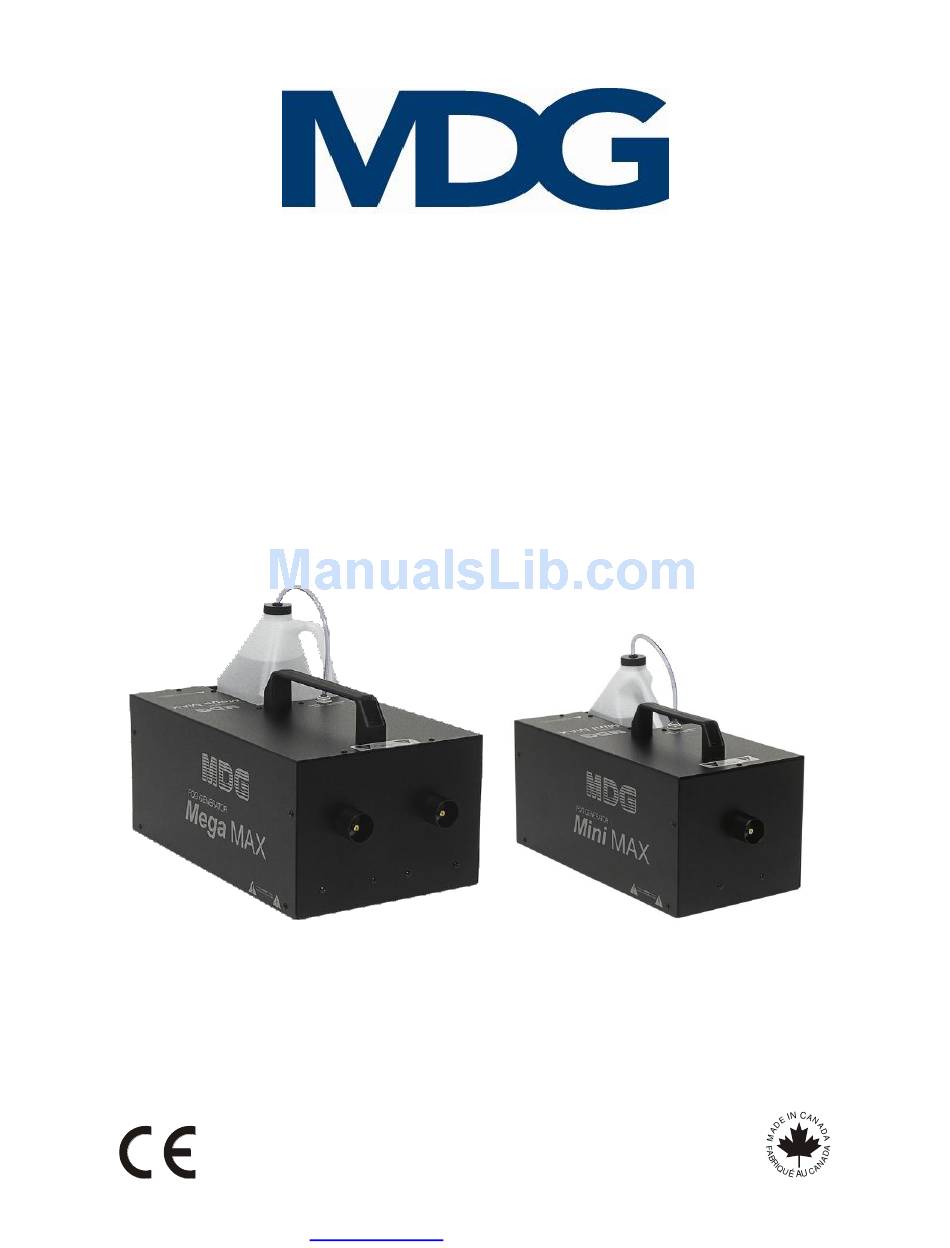

TM
TM
Mega Max
/ Mini Max
FOGGER
User Manual
0201-MDG rev. A/c
©, 2002, MDG FOG GENERATORS LTD
Les Générateurs de Brouillard MDG Ltée / MDG Fog Generators Ltd
10301 avenue Pelletier, Montréal, Québec, Canada H1H 3R2
Tel. 514-272-6040 / 800-663-3020 - Fax 514-722-3229
www.mdgfog.com
e-mail : info@mdgfog.com
Advertisement
Related Manuals for MDG Mega Max
Summary of Contents for MDG Mega Max
- Page 1 FOGGER User Manual 0201-MDG rev. A/c ©, 2002, MDG FOG GENERATORS LTD Les Générateurs de Brouillard MDG Ltée / MDG Fog Generators Ltd 10301 avenue Pelletier, Montréal, Québec, Canada H1H 3R2 Tel. 514-272-6040 / 800-663-3020 - Fax 514-722-3229 www.mdgfog.com e-mail : info@mdgfog.com...
-
Page 2: Basic Description
At the heart of the MDG Fogger is an electronic assembly that keeps the heat exchanger(s) at a very stable temperature, which integrates three types of fail- safe systems. -
Page 3: Main Power
Mega Max / Mini Max Layout 5-Litre bottle (2.5-Litre for Mini Max of MDG DENSE Fluid Fluid Hose Handle Fog output nozzle (Only one output nozzle for the Mini Max LED Status Red = FAIL Yellow = HEAT Green = POWER... -
Page 4: Technical Specifications
1Ø, 50/60Hz, 2815 W. Mini Max: Model MM15 version-115V, 50/60Hz, 1415 W. version-230V, 1Ø, 50/60Hz, 1415 W. The AC power cable for the Mega Max / Mini Max Fogger is connected as follow: BROWN or BLACK wire is the... - Page 5 Fog Fluids: the MDG DENSE , the MDG MEDIUM or the MDG LOW FOG Make sure that no other liquids or particles are mixed or added to the MDG Fog Fluid. The MDG Glycol-based Fog Fluids produce a pure, white, non-toxic fog. Use of this Fogger with any other fog liquid will automatically void the warranty.
-
Page 6: Shut Down Procedures
The Mega Max / Mini Max Fogger is ready to produce fog. The amount of the fog emission can be controlled by adjusting the fog output adjustment knob on the remote control (see page 2). The temperature is maintained within a narrow margin (the HEAT yellow LED turn on and off from time to time to indicate the control of temperature) otherwise, an error condition will result and the Fog Generator will shut down. - Page 7 Standard Remote control Model: MM-s FOG output adjustment knob READY green LED indicator FOG output ON/OFF switch With green LED indicator HEAT yellow LED indicator has 2 functions 1) The LED turns on and off from time to time to indicate the control of temperature.
- Page 8 MDG Glycol -based Fog Fluids has been used. MDG Fog Generators Ltd is not responsible for any damages resulting from a faulty installation or from abusive use of the product.
- Page 9 Declaration of Conformity 9 / 9...
