Overview
The 34HW-35HW IDH Max Mortise Lock provides the
following features in an integrated lock, eliminating the
need to install separate sensors in and around the door
frame:
electrified locking mechanism
electronic token reader
integrated trim
door status detection
latchbolt status detection
ability to exit without triggering an alarm
compatibility with varied access control panels/
reader interfaces.
Note: For a list of compatible access control panels/
reader interfaces, contact your local BEST representative.
A panel interface module is provided with the lock. The
panel interface module receives token data and lock
sensor data from the lock through an RS-485 connection.
It translates this data into parallel signals, which it sends
to the access control panel/reader interface. The panel
interface module also translates control signals received
from the access control panel/reader interface and sends

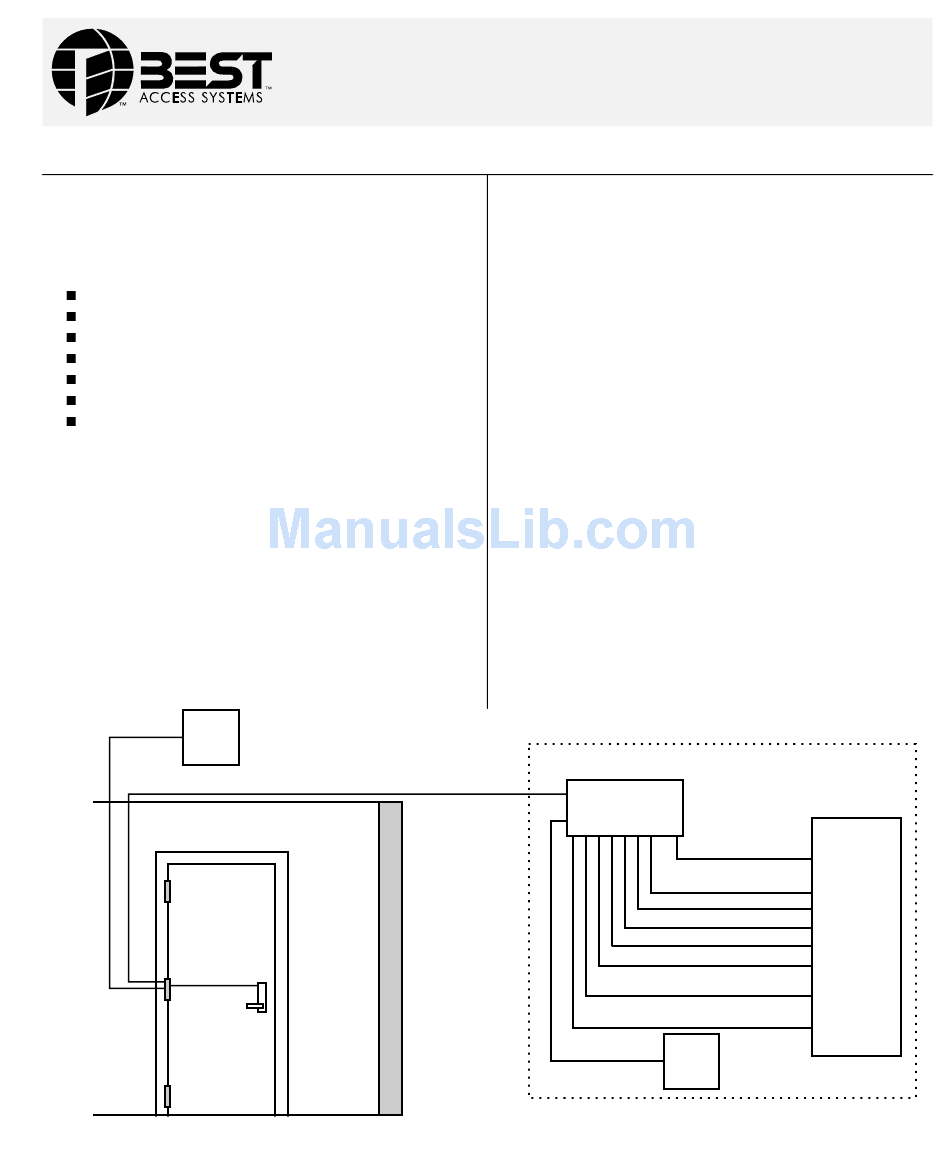

them to the lock. The figure below shows the relationship
between the components in the IDH Max system.
Power
Power (2)
supply
RS-485 Communication (2)
Field wire
harness
Wire
transfer
hinge
Installation Instructions for
34HW-35HW IDH Max Mortise Locks
Lock
BEST ACCESS SYSTEMS
Contents
These installation instructions describe how to install,
wire, and configure the components provided with your
34HW-35HW IDH Max Mortise Lock. The following topics
are covered.
Site survey................................................................ 2
Components checklist............................................. 2
Special tools checklist ............................................. 3
Preparing the door and door jamb........................ 4
Installing the lock.................................................... 9
Completing the installation at the door.............. 12
Installing the panel interface module ................. 17
Testing the installation ......................................... 23
Troubleshooting the installation ......................... 24
Panel interface
module
RQE status (2)
Door & latchbolt status or
Door status (2)
Communication tamper or
Latchbolt status (2)
Power (2)
Indianapolis, Indiana
Card present (1)
Sounder (2)
Reader LED (2)
Token data (2)
Strike (2)
Power
supply
Access
control
panel/
reader
interface
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BEST ACCESS SYSTEMS 34HW
Summary of Contents for BEST ACCESS SYSTEMS 34HW
-
Page 1: Table Of Contents
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Overview Contents The 34HW–35HW IDH Max Mortise Lock provides the These installation instructions describe how to install, following features in an integrated lock, eliminating the wire, and configure the components provided with your need to install separate sensors in and around the door 34HW–35HW IDH Max Mortise Lock. -
Page 2: Site Survey
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Site survey Components checklist Use the following survey to record information about the Use the following checklist to make sure that you have the installation site. You need this information to determine... -
Page 3: Special Tools Checklist
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Components checklist Special tools checklist Field wiring for power connections between the lock Use the following checklist to make sure that you have the... -
Page 4: Preparing The Door And Door Jamb
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Preparing the door and door jamb Vert. centerline Mark centerlines of lock Note: If the door is a fabricated hollow metal door, determine whether it is properly reinforced to support the lock. If door reinforcement is not adequate, consult the door manufacturer for information on proper reinforcement. - Page 5 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Preparing the door and door jamb Mortise for lock case and faceplate Lock faceplate mortise 1 Mortise the edge of the door for the lock case.
- Page 6 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Preparing the door and door jamb Drill holes Upper trim hole Caution: Check for the correct lock function, hand, and bevel before drilling. Field harness & reader wire hole Drill the holes listed below:...
- Page 7 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Preparing the door and door jamb Drill hole for field wire harness Caution 1: Check with your local fire marshal Hinge mortise before drilling a fire-rated door. Drilling through a fire-rated door may void the fire label.
- Page 8 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Preparing the door and door jamb Mortise for strike box and strike plate 1 On the door jamb, locate the horizontal centerline of the strike (3/8″ above the centerline of the lock), as well as the vertical centerline of the strike.
-
Page 9: Installing The Lock
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the lock Hinge mortise Pull field wire harness through door Field harness & 1 Feed the field wire harness (connected to the inside reader wire hole trim) into the field harness &... - Page 10 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the lock Install mounting plates 1 Insert the outside mounting plate through the door Inside and mortise case. mounting 2 Position the inside mounting plate opposite the plate outside mounting plate and screw them securely in place.
- Page 11 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the lock Caution 1: When routing the reader wire harness, Connect reader wire harness make sure the reader wire harness is not routed 1 Insert the three bushings into the wire holes.
-
Page 12: Completing The Installation At The Door
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Completing the installation at the door Secure through-bolt trim and complete connections 1 Position the inside and outside trim onto the door. Inside trim 2 Making sure that the trim does not pinch the wires, secure the trim to the door—but do not... - Page 13 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Completing the installation at the door Install inside and outside knobs/levers For both knobs and levers Unscrew the inside spindle one (1) full turn to allow the spindles to turn freely.
- Page 14 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Completing the installation at the door Install core (EEL and EEU only) 1 Insert the control key into the core and rotate the key 15 degrees to the right. 2 With the control key in the core, insert the core into the cylinder.
- Page 15 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Completing the installation at the door Install the wire transfer hinge 1 Trim the four wires of the field wire harness, which you pulled through the hinge edge of the door in Task 8.
- Page 16 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Completing the installation at the door Install strike box and strike plate 1 Insert the strike box into the mortise in the door jamb. Place the strike plate over the strike box and secure the strike with the screws provided.
-
Page 17: Installing The Panel Interface Module
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the panel interface module Install lock power supply (optional) If you are providing a separate power supply for the lock, instead of providing power via the panel interface module, connect the two power field wires (run from the wire transfer hinge) to the power supply. - Page 18 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the panel interface module IDH Panel Interface Connect field wiring from wire transfer hinge to panel interface module 1 Connect the two communication field wires (run from the wire transfer hinge) to the COM+ and COM–...
- Page 19 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the panel interface module Connect panel interface module to access control panel/reader interface With power removed from the panel interface circuit board and the access control panel/reader interface, connect the wiring between the panel interface circuit board and the access control panel.
- Page 20 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the panel interface module Description Terminals Related DIP switches D0, D1, & CP (on J2) D0 is the Data 0 (Wiegand) or Strobe (ABA) token data output to the access None control panel/reader interface.
- Page 21 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the panel interface module Set panel interface module DIP switches Set the DIP switches on the panel interface circuit board. Refer to the table below. Default settings are shown in boldface.
- Page 22 Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installing the panel interface module Feature Option DIP Switch Setting Sounder input configuration Normal input Switch 7–ON Provides the ability to invert the interpretation of the sounder input signal. Inverted input Switch 7–OFF The normal input configuration interprets a closed contact as sounder ON.
-
Page 23: Testing The Installation
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Installation Instructions for 34HW–35HW IDH Max Mortise Locks Testing the installation Perform the following steps to test the installation. Also, 6 With the door armed, hold the door open. Hold a perform any standard testing recommended by the magnet against the edge of the door, over the door manufacturer of the access control panel. -
Page 24: Troubleshooting The Installation
Installation Instructions for 34HW–35HW IDH Max Mortise Locks Troubleshooting the installation To troubleshoot installation problems, refer to the table below. For more information, refer to the W Series Service Manual (T60775) and to the documentation provided by the manufacturer of the access control panel/reader interface.
