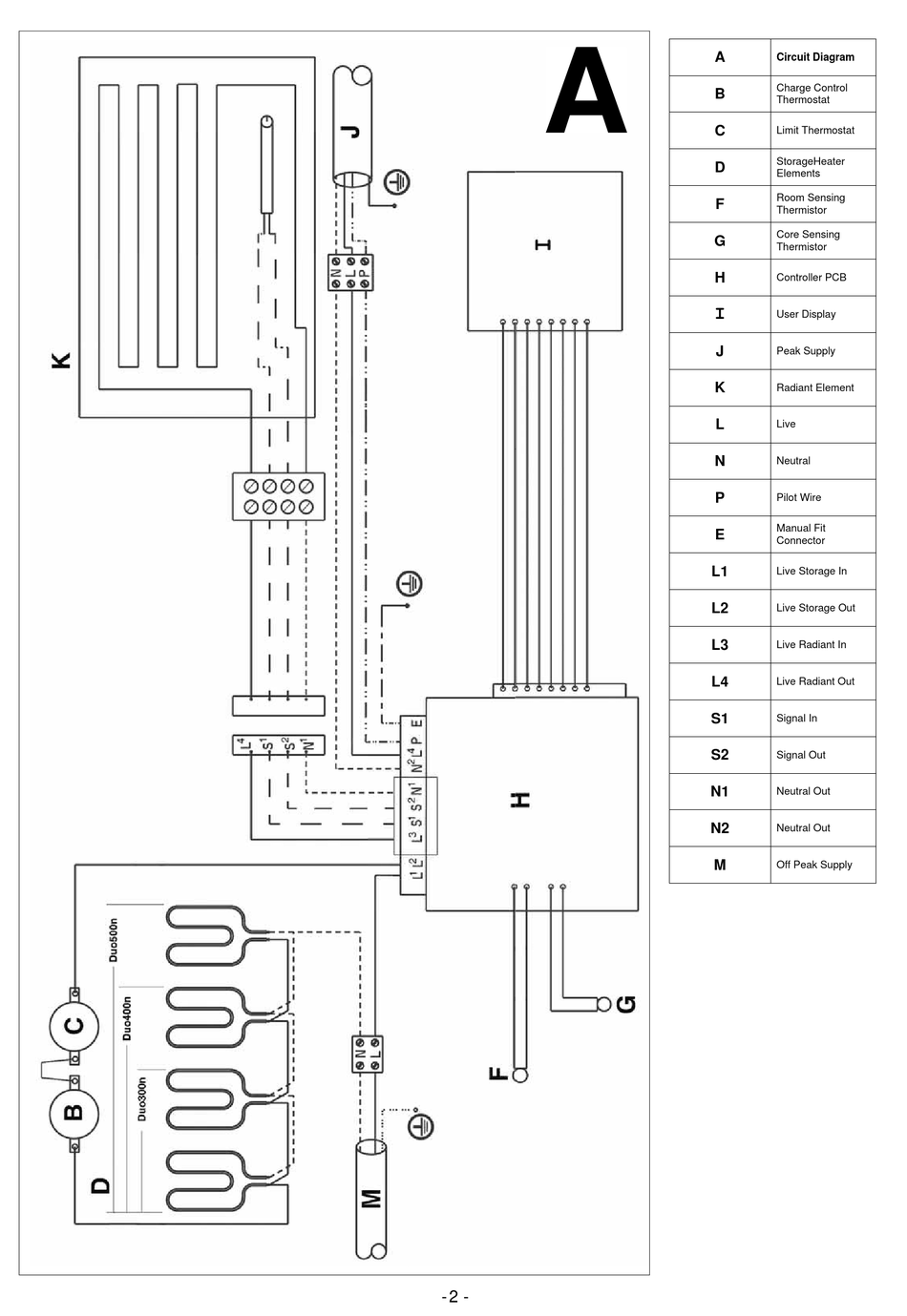

Circuit Diagram
Charge Control
B
Thermostat
C
Limit Thermostat
StorageHeater
D
Elements
Room Sensing
F
Thermistor
Core Sensing
G
Thermistor
H
Controller PCB
I
User Display
J
Peak Supply
K
Radiant Element
L
Live
N
Neutral
P
Pilot Wire
Manual Fit
E
Connector
L1
Live Storage In
L2
Live Storage Out
L3
Live Radiant In
L4
Live Radiant Out
S1
Signal In
S2
Signal Out
N1
Neutral Out
N2
Neutral Out
M
Off Peak Supply
