7. Wiring
Colour
Function
Pink
BELL_A
Pale blue
BELL_B
Green
D0
White
D1
Grey
ALARM
Yellow
OPEN
Brown
D_IN
Red
12V+
Black
GND
Blue
NO
Purple
COM
Orange
NC

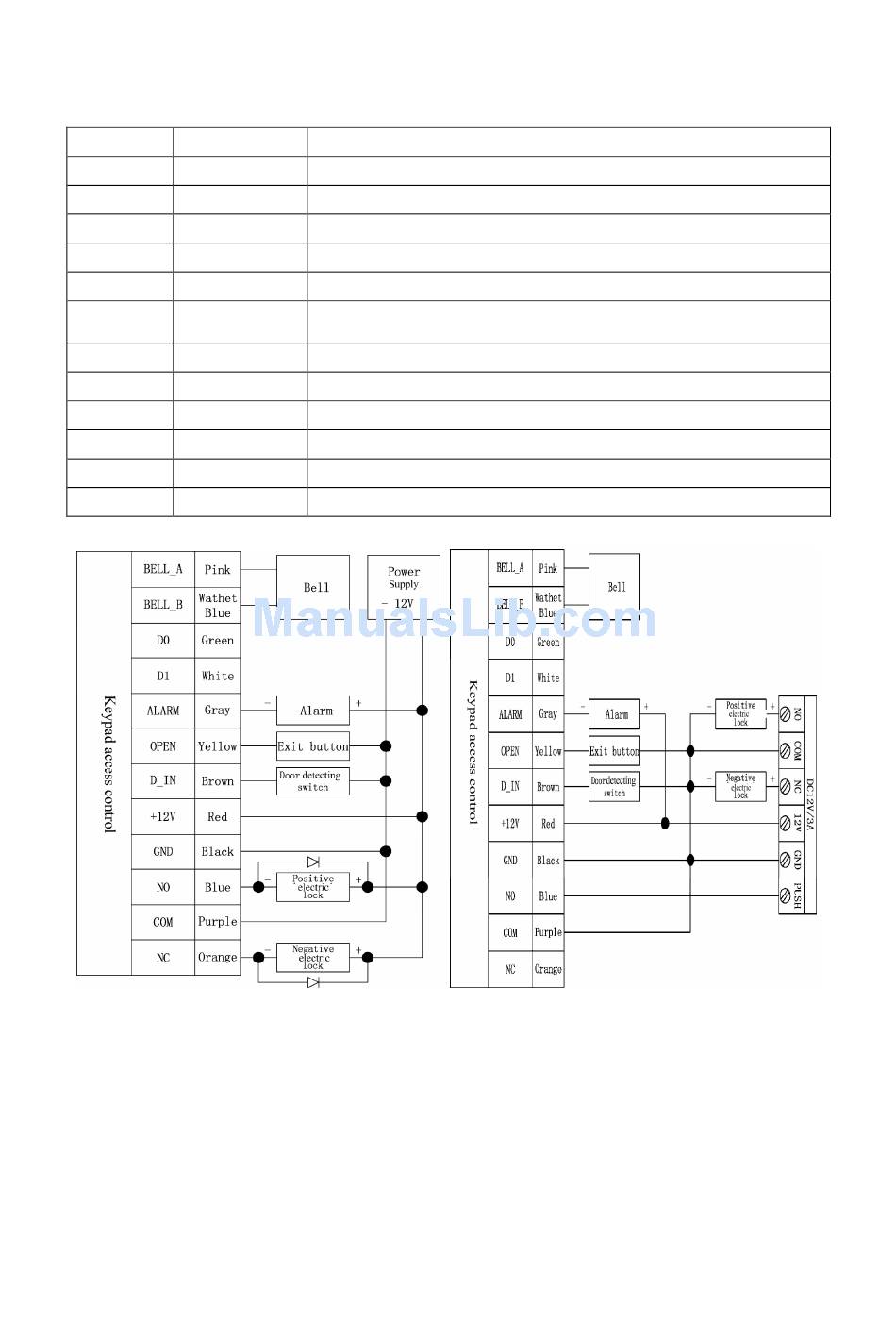

common power supply diagram
8. To Reset to Factory Default
a. Disconnect power from the unit
b. Press and hold # key whilst powering the unit back up
c. On hearing two "Di" release # key, system is now back factory settings
Please note only installer data is restored, user data will not be affected
Description
Doorbell button one end
Doorbell button to the other end
WG output D0
WG output D1
Alarm negative(alarm positive connected 12 V+)
Exit button one end(the other end connected GND)
Magnetic switch one end(the other end connected GND)
12V + DC Regulated Power Input
12V - DC Regulated Power Input
Relay normally-on end(Connect positive electric lock "-")
Relay Public end, connect GND
Relay Closed end(connect negative electric lock "-")
5
special power supply diagram
