Metal Motorsports mini metal 30111 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

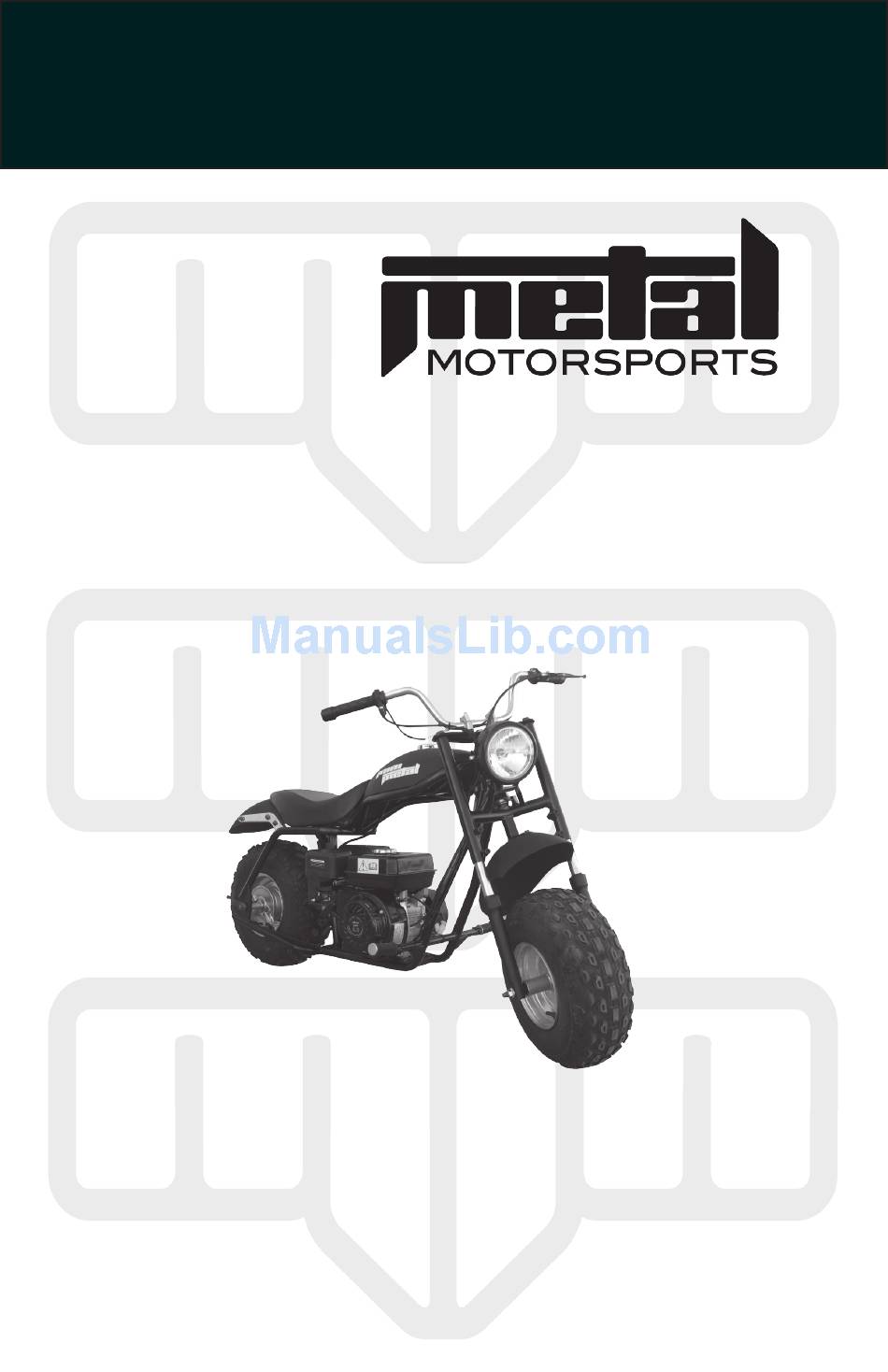

OWNER'S/OPERATOR'S
MANUAL
Always wear a helmet it could save your life!
Never allow any child under the age of 13 to operate this Mini Bike.
Persons age 13 to 16 should operate this mini bike only under continual
adult supervision.
Provincial / Municipal governments have different regulations
pertaining to owning and operating an off-road vehicle, learn the
regulations in your area.
READ THIS MANUAL CAREFULLY!
MINI METAL
30111

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mini metal 30111 and is the answer not in the manual?

Questions and answers

Related Manuals for Metal Motorsports mini metal 30111

Summary of Contents for Metal Motorsports mini metal 30111

  • Page 1 OWNER’S/OPERATOR’S MANUAL Always wear a helmet it could save your life! Never allow any child under the age of 13 to operate this Mini Bike. Persons age 13 to 16 should operate this mini bike only under continual adult supervision. MINI METAL Provincial / Municipal governments have different regulations pertaining to owning and operating an off-road vehicle, learn the...
  • Page 2 To the Owner Congratulations on your purchase of a Metal Motorsports Off-Road Mini Bike. This Owner’s/Operator’s manual will provide you information regarding safe operation, operational instructions, maintenance and care. Fully understanding this manual and following all of the instructions herein will provide the knowledge needed to have safe and enjoyable operation.
  • Page 3 The third part will describe HOW TO AVOID THE HAZARD. Metal Motorsports is concerned about the environment and believes in conserving and protecting all natural resources. For this reason , owners should recycle, trade in, or dispose as appropriate, oil and tires.
  • Page 4 WARNING The engine exhaust from this mini bike contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. California proposition 65 NOTICE: The maximum engine speed (RPM’s) of your mini bike has been limited at the factory with a tamper resistant method.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS METAL MOTORSPORTS WARRANTY..2 IMPORTANT SAFETY LABELS....4 CHAIN AND SPROCKET......23 LOCATION........4 INSPECTION......23 LABELS.......... 5 TENSION AND ADJUSTMENT..23 SAFETY ..........6 CLEANING AND LUBRICATION...23 DESCRIPTION AND PART LOCATIONS... 7 CLEANING AND INSPECTING DESCRIPTION AND PART FUNCTIONS.. 8 CENTRIFUGAL CLUTCH......

  • Page 6: Metal Motorsports Warranty

    90 days from the date of purchase shown on the sales receipt. During this period of time Metal Motorsports will, at its option, either repair or replace any original Metal Motorsports part which is covered by this warranty and is proven to be defective in workmanship or material.
  • Page 7 5. Any product which has been altered or modified in a manner not consistent with the original design of the product or in a manner not approved by Metal Motorsports. 6. Tires 7.

  • Page 8: Important Safety Labels

    IMPORTANT LABELS LOCATION...

  • Page 9: Labels

    Warning Labels DO NOT RETURN TO STORE! FOR SERVICE AND REPAIR, PLEASE CALL METAL MOTORSPORTS TOLL FREE 888-748-5884 WARNING This Mini Bike can cause serious injury or death if the warnings and instructions in the owner’s manual and on warning labels are not followed.

  • Page 10: Safety

    SAFETY Never allow anyone under the age Never take drugs or alcohol before of 13 to operate this mini bike. or during operating this mini bike. Persons age 13 to 16 should operate this mini bike only under Never traverse, climb or go down continual adult supervision.

  • Page 11: Description And Part Locations

    DESCRIPTIONS AND PART LOCATIONS 1. Rear Fender 2. Seat 3. Decorative Fuel Tank 4. Head Light 5. Front Fender 6. Front Wheel 7. Foot Pegs 8. Starter Recoil 9. Fuel Valve 10. Choke Lever 11. Carburetor 12. Rear brake adjustment 13.

  • Page 12: Description And Part Functions

    DESCRIPTION AND PART FUNCTIONS Right Throttle Grip : The engine speed is regulated by the position of the right throttle grip. Throttle is increased by turning the throttle grip toward the operator. Engine speed is decreased by turning the throttle grip away from the operator.

  • Page 13: Choke Operation

    DESCRIPTION AND PART FUNCTIONS Choke operation Choke Lever (1): If the engine is cold, the Choke Lever (1): If the engine is cold, the choke can help start the engine by placing choke can help start the engine by placing the choke lever to the “ON”...

  • Page 14: Fuel And Oil

    FUEL AND OIL FUEL WARNING Never use leaded gasoline in this product. It could affect the engine’s emissions and Fuel and fuel vapor are highly damage the engine. flammable and toxic. You can be Mini Bike requires clean unleaded regular burned or poisoned while refueling.

  • Page 15: Pre Ride Inspection

    PRE-RIDE INSPECTION WHAT TO CHECK FOR Inspecting and checking the condition of CHECK the Mini Bike before each ride is Steering • Smoothness important. Following the pre-ride check • No restriction of list will help insure the you do not have movement mechanical problems which could result in injury or becoming stranded.

  • Page 16: Riding Mini Bike

    RIDING THE MINI BIKE HELMET, EYE PROTECTION, PROTECTIVE CLOTHING Always wear a DOT or SNELL certified motorcycle helmet (1). A helmet helps protect against serious head injuries in the event of an accident. A helmet is the most important safety gear item you can wear. Consult with a motorcycle dealer for the correct size and type of motorcycle helmet that is right for you.

  • Page 17: Starting The Engine

    RIDING THE MINI BIKE STARTING ENGINE To start the engine 1. Place the fuel valve (1) in the “ON” (right) position 2. Place the choke lever (2) in the “ON” (left) position (see below for proper choke operation. 3. Place the ON/OFF switch (3), located on the handlebars, in the (on)position.

  • Page 18: Starting Off

    RIDING THE MINI BIKE STARTING OFF 1. Start and warm up the engine according to the instructions in this manual. 2. Place the side kick stand in the up position. WARNING 3. Apply the throttle gradually to start Removing hands from the handlebars riding.

  • Page 19: Load Guidelines

    If you have a question about a modification or accessory, contact your Modifications to the Mini Bike, including dealer or call Metal Motorsports. adding accessories, could adversely affect the handling of the Mini Bike causing an accident which could result in severe injury of death.

  • Page 20: Maintenance

    MAINTENANCE For maintenance, your mini bike may be maintained by an authorized Metal Motorsports service dealer or a repair shop of your choosing. Following the proper maintenance pro- CAUTION cedures and time table for maintenance Failing to perform recommended listed in this manual is important for maintenance on this Mini Bike could dam- the safety of the rider and the life span age the Mini Bike engine and components...

  • Page 21: Maintenance Chart

    MINI BIKE MAINTENANCE CHART Every 3 1st Month Every 6 Mo/ Every Year/ Each Use Months/ /20 hrs 100 Hrs 300 hrs. 50 hrs. Engine oil - check *Engine oil - change Air filter - check *Air filter - clean *Air filter - change *Carburetor...

  • Page 22: Air Filter

    MAINTENANCE Air Filter CAUTION The air cleaner element needs to be Clean air filter frequently if Mini cleaned or replaced periodically (see Bike is driven in wet, muddy or chart for cleaning/replacement dusty conditions. intervals). The air filter element will need to be cleaned more often if Mini Bike is Driving in the above conditions ridden in muddy, wet, or dusty conditions.

  • Page 23: Spark Plug

    MAINTENANCE Spark Plug This Mini Bike comes equipped with a Torch - F7RTC spark plug. To inspect the spark plug, remove the air filter cover and element to gain access. Remove spark plug cap (1) then remove the spark plug from the engine with the spark plug tool provided.

  • Page 24: Engine Oil

    MAINTENANCE WARNING Engine Oil The proper amount and grade of engine oil New and used oil can be hazardous will have a great impact on the life of the Children and pets can be harmed engine. Checking the oil daily and changing the oil as listed in the by swallowing new or used oil.

  • Page 25: Idle Speed Adjustment

    MAINTENANCE Idle speed adjustment The idle speed should be set at 1440 ± 150 RPMs To adjust the idle speed: 1. locate the idle adjustment screw (1) located on the carburetor. 2. Allow the engine to warm up approximately 10 minutes 3.

  • Page 26: Brakes

    MAINTENANCE Brakes Brake Lever Adjustment 2.0 - 4.0mm (0.08 - 0.16 in) The front left brake lever (1) should have 2.0 - 4.0mm (0.08 - 0.16) of free play. To adjust brake lever free play: 1. Loosen the Jam nut (2) on the brake cable.

  • Page 27: Chain And Sprocket

    MAINTENANCE Chain Chain lubrication Chain and Sprocket Lubricating the chain before each ride will help to ensure maximum life of the chain Inspection and sprockets. Inspect the drive chain for wear, rust, bound links, proper lubrication and proper Instructions for cleaning and tension.

  • Page 28: Centrifugal Clutch

    MAINTENANCE Centrifugal Clutch Cleaning and lubrication To help ensure the maximum life out of the Centrifugal clutch. It is important to clean and lubricate the clutch after every 24 hours of operation. To Clean and lubricate, follow the instructions below 1.

  • Page 29: Tires

    MAINTENANCE Tires Inspect tires before each ride, this should include the following: 1. Inspect for cracks or leaks 2. Inspect tread depth. If tread depth is below 4mm (.16 in.) replace the tire. Minimum tread 3. Check tire pressure. Incorrect tire 4mm (.16 in.) pressure can affect the handling, rider comfort, steering, tire life and traction.

  • Page 30: Headlight

    Headlight bulb: The front light on this mini bike is continuously lit while the engine is running. If light is burned out, replace the bulb. 1. Remove the front light housing by removing screws (1). 2. Pull back rubber protector cap (2) from front light assembly exposing the plastic receptical (3) .

  • Page 31: Storage

    Storage If the Mini Bike is left unused for an extended period of time proper storage maintenance is required. 1. Wash Mini Bike thoroughly, then wax painted parts with a non abrasive auto wax. Coat vinyl seat and rubber parts with a vinyl/ rubber protectant.

  • Page 32: Washing The Mini Bike

    Washing the Mini Bike 1. Wash mud and dirt off Mini Bike with low pressure water from a hose. Do not use high pressure nozzles, this could allow water to enter the engine causing damage. 2. Wash Mini Bike using a mild detergent or car soap using a sponge, soft rag or brush.

  • Page 33: Troubleshooting

    TROUBLESHOOTING Trouble Possible cause Solution Engine will • Low fuel • Fill with fresh fuel not start • Stale or contaminated fuel. • Have a service center flush and fill with fresh fuel. • Fuel valve is in the “OFF” •...

  • Page 34: Torque Specifications

    TORQUE SPECIFICATIONS Make sure all nuts and bolts are tight. Specific nuts and bolts listed below need to be torqued to a specified spec to ensure safety. This proce- dure will need to be performed with a torque wrench which can be pur- chased at most hardware stores, motorcycle dealers or auto part stores.

  • Page 35: Specifications

    SPECIFICATIONS Engine Braking Displacement 196cc Rear Brakes (Type) Drum Starting Recoil Cord Spark Plug Type Torch - F7RTC Cooling Air cooled Tires Ignition Type T.C.I Front Tire Size AT19x7-8 Cylinder head config. Rear Tire Size AT19x7-8 Number of Cylinder Single Combustion Cycle 4-stroke Bore and Stroke...

  • Page 36: Vehicle Identification Number

    FRAME AND ENGINE NUMBER LOCATION The Vehicle identification number and the engine number are needed when calling for VIN # parts, service center help or when registering your Mini Bike. Locate the numbers and list the numbers below for reference. The 17 digit Vehicle Identification Number (VIN) is located on the vertical tube on the neck of the mini bike...

  • Page 37: Emission Control System

    (when equipped), the PCV valve and hose, and the fuel tank and cap. Also included may be hoses, belts, connectors and other emission related assemblies. Where a warrantable condition exists, METAL MOTORSPORTS will repair your vehicle at no cost to you, including diagnosis, parts and labor.
  • Page 38 The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. As the vehicle owner, you should be aware that METAL MOTORSPORTS may deny your warranty coverage if your vehicle or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
  • Page 39 b. Inspections, replacement of parts and other services and adjustments required for required maintenance. c. Any vehicle equipped with an odometer or hour meter on which the odometer mile age or hour meter reading has been changed so that actual mileage cannot be readily determined.
  • Page 40 PO BOX 336 TEMPE AZ. 85280 PHONE: Toll Free 888-748-5884 FAX: 888-678-6795 www.metalmotor.com...
