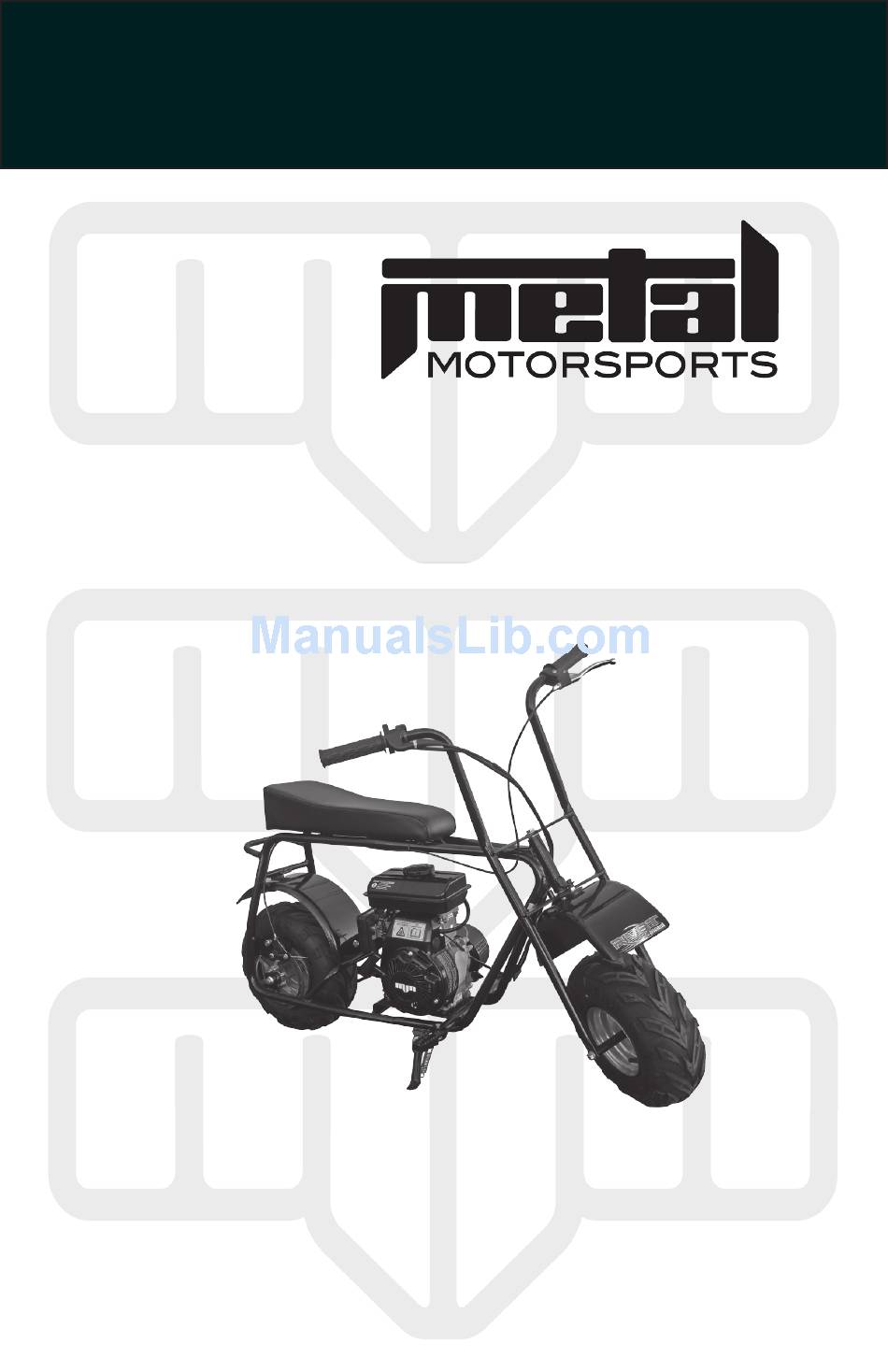

OWNER'S/OPERATOR'S
MANUAL
Always wear a helmet it could save your life!
Never allow any child under the age of 16 to operate this Mini
Bike without continual adult supervision.
Provincial / Municipal governments have different regulations
pertaining to owning and operating an off-road vehicle, learn the
regulations in your area.
READ THIS MANUAL CAREFULLY!
RIVET
31610
Advertisement
Table of Contents
Related Manuals for Metal Motorsports RIVET
Summary of Contents for Metal Motorsports RIVET
- Page 1 Always wear a helmet it could save your life! Never allow any child under the age of 16 to operate this Mini Bike without continual adult supervision. RIVET Provincial / Municipal governments have different regulations pertaining to owning and operating an off-road vehicle, learn the regulations in your area.
- Page 2 To the Owner Congratulations on your purchase of a Metal Motorsports Off-Road Mini Bike. This Owner’s/Operator’s manual will provide you information regarding safe operation, operational instructions, maintenance and care. Fully understanding this manual and following all of the instructions herein will provide the knowledge needed to have safe and enjoyable operation.
- Page 3 The third part will describe HOW TO AVOID THE HAZARD. Metal Motorsports is concerned about the environment and believes in conserving and protecting all natural resources. For this reason , owners should recycle, trade in, or dispose as appropriate, oil and tires.
- Page 4 WARNING The engine exhaust from this mini bike contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. California proposition 65...
-
Page 5: Table Of Contents
TABLE OF CONTENTS METAL MOTORSPORTS WARRANTY..2 IMPORTANT SAFETY LABELS....4 CHAIN AND SPROCKET......23 LOCATION........4 INSPECTION......23 LABELS.......... 5 TENSION AND ADJUSTMENT..23 SAFETY ..........6 CLEANING AND LUBRICATION...23 DESCRIPTION AND PART LOCATIONS... 7 CLEANING AND INSPECTING DESCRIPTION AND PART FUNCTIONS.. 8 CENTRIFUGAL CLUTCH...... -
Page 6: Metal Motorsports Warranty
90 days from the date of purchase shown on the sales receipt. During this period of time Metal Motorsports will, at its option, either repair or replace any original Metal Motorsports part which is covered by this warranty and is proven to be defective in workmanship or material. - Page 7 5. Any product which has been altered or modified in a manner not consistent with the original design of the product or in a manner not approved by Metal Motorsports. 6. Tires 7. Damage or failures due to abuse, neglect, or misuse of the product.
-
Page 8: Important Safety Labels
IMPORTANT LABELS LOCATION WARNING WARNING Keep hands and fingers away Check the tires before operating from chains and sprockets. to insure the proper tire pressure. Improperly inflated tires can lead Make sure guards are securely to loss of control which could in place before operation. -
Page 9: Labels
"snaps back" prior to starting the mini bike. • be seated before attempting to start the mini bike. DO NOT RETURN TO STORE! FOR SERVICE AND REPAIR, PLEASE CALL METAL MOTORSPORTS TOLL FREE 877-428-8723 WARNING HOT SURFACES Allow to cool... -
Page 10: Safety
SAFETY Never allow anyone under the age Never take drugs or alcohol before of 16 to operate this mini bike or during operating this mini bike. without continual adult supervision. Some children may Never traverse, climb or go down not have the coordination or ability a hill that is too steep. -
Page 11: Description And Part Locations
DESCRIPTIONS AND PART LOCATIONS 1. Rear Fender 2. Seat 3. Front Fender 4. Front Wheel 5. Foot Pegs 6. Kick Stand 7. Starter Recoil 8. Fuel Valve 9 . Choke Lever 10. Carburetor 11. Rear brake adjustment 12. Rear Wheel 13. -
Page 12: Description And Part Functions
DESCRIPTION AND PART FUNCTIONS Right Throttle Grip : The engine speed is regulated by the position of the right throttle grip. Throttle is increased by turning the throttle grip toward the operator. Engine speed is decreased by turning the throttle grip away from the operator. -
Page 13: Choke Operation
DESCRIPTION AND PART FUNCTIONS Choke operation Choke Lever (1): If the engine is cold, the choke can help start the engine by placing the choke lever to the “ON” (right) position. Once engine has warmed up , place choke lever toward the “OFF” (left) position. NOTE: ENGINE USUALLY RUNS BEST WITH CHOKE LEVER BETWEEN THE ON AND OFF POSITION. -
Page 14: Fuel And Oil
FUEL AND OIL FUEL WARNING Never use leaded gasoline in this product. It could affect the engine’s emissions and Fuel and fuel vapor are highly damage the engine. flammable and toxic. You can be Mini Bike requires clean unleaded regular burned or poisoned while refueling. -
Page 15: Pre Ride Inspection
PRE-RIDE INSPECTION WHAT TO CHECK FOR Inspecting and checking the condition of CHECK the Mini Bike before each ride is Steering • Smoothness important. Following the pre-ride check • No restriction of list will help insure the you do not have movement mechanical problems which could result in injury or becoming stranded. -
Page 16: Riding Mini Bike
RIDING THE MINI BIKE HELMET, EYE PROTECTION, PROTECTIVE CLOTHING Always wear a DOT or SNELL certified motorcycle helmet (1). A helmet helps protect against serious head injuries in the event of an accident. A helmet is the most important safety gear item you can wear. Consult with a motorcycle dealer for the correct size and type of motorcycle helmet that is right for you. -
Page 17: Starting The Engine
RIDING THE MINI BIKE STARTING ENGINE To start the engine 1. Place the fuel valve (1) in the “ON” (right) position 2.. If engine is cold, place the choke lever (2) in the “ON” (right) position. 3. Place the ON/OFF switch (3), located on the handlebars, in the (on)position. -
Page 18: Starting Off
RIDING THE MINI BIKE STARTING OFF 1. Start and warm up the engine according to the instructions in this manual. 2. Place the side kick stand in the up position. WARNING 2. Apply the throttle gradually to start Removing hands from the handlebars riding. -
Page 19: Load Guidelines
If you have a question about a modification or accessory, contact Modifications to the Mini Bike, including your dealer or call Metal Motorsports. adding accessories, could adversely affect the handling of the Mini Bike causing an accident which could result in severe injury of death. -
Page 20: Maintenance
MAINTENANCE For maintenance, your mini bike may be maintained by an authorized Metal Motorsports service dealer or a repair shop of your choosing. Following the proper maintenance pro- CAUTION cedures and time table for maintenance Failing to perform recommended listed in this manual is important for maintenance on this Mini Bike could dam- the safety of the rider and the life span age the Mini Bike engine and components... -
Page 21: Maintenance Chart
MAINTENANCE CHART Every 3 1st Month Every 6 Mo/ Every Year/ Each Use Months/ /20 hrs 100 Hrs 300 hrs. 50 hrs. Engine oil - check *Engine oil - change Air filter - check *Air filter - clean *Air filter - change *Carburetor Sediment cup... -
Page 22: Air Filter
MAINTENANCE Air Filter CAUTION The air cleaner element needs to be Clean air filter frequently if Mini cleaned or replaced periodically (see Bike is driven in wet, muddy or chart for cleaning/replacement dusty conditions. intervals). The air filter element will need to be cleaned more often if Mini Bike is Driving in the above conditions ridden in muddy, wet, or dusty conditions. -
Page 23: Spark Plug
MAINTENANCE Spark Plug This Mini Bike comes equipped with a NGK-BPMR6A or a Torch-E5TC spark plug. To inspect the spark plug, remove spark plug cap (1) then remove the spark plug from the engine with the spark plug tool provided. Inspect the plug for carbon deposits and clean if necessary. -
Page 24: Engine Oil
MAINTENANCE WARNING Engine Oil The proper amount and grade of engine oil New and used oil can be hazardous will have a great impact on the life of the Children and pets can be harmed engine. Checking the oil daily and changing the oil as listed in the by swallowing new or used oil. -
Page 25: Idle Speed Adjustment
MAINTENANCE Idle speed adjustment The idle speed should be set at 1500 ± 150 RPMs To adjust the idle speed: 1. locate the idle adjustment screw (1) located on the carburetor. 2. Allow the engine to warm up approximately 10 minutes 3. -
Page 26: Brakes
MAINTENANCE Brakes Brake Lever Adjustment 2.0 - 4.0mm (0.08 - 0.16 in) The front left brake lever (1) should have 2.0 - 4.0mm (0.08 - 0.16) of free play. To adjust brake lever free play: 1. Loosen the Jam nut (2) on the brake cable. -
Page 27: Chain And Sprocket
MAINTENANCE Chain Chain lubrication Chain and Sprocket Lubricating the chain before each ride will help to ensure maximum life of the chain Inspection and sprockets. Inspect the drive chain for wear, rust, bound links, proper lubrication and proper Instructions for cleaning and tension. -
Page 28: Centrifugal Clutch
MAINTENANCE Centrifugal Clutch Cleaning and lubrication To help ensure the maximum life out of the Centrifugal clutch. It is important to clean and lubricate the clutch after every 5 hours of operation. To Clean and lubricate, follow the instructions below 1. -
Page 29: Tires
MAINTENANCE Tires Inspect tires before each ride, this should include the following: 1. Inspect for cracks or leaks 2. Inspect tread depth. If tread depth is below 4mm (.16 in.) replace the tire. Minimum tread 3. Check tire pressure. Incorrect tire 4mm (.16 in.) pressure can affect the handling, rider comfort, steering, tire life and traction. -
Page 30: Storage
Storage If the Mini Bike is left unused for an extended period of time proper storage maintenance is required. 1. Wash Mini Bike thoroughly, then wax painted parts with a non abrasive auto wax. Coat vinyl seat and rubber parts with a vinyl/ rubber protectant. -
Page 31: Washing The Mini Bike
Washing the Mini Bike 1. Wash mud and dirt off Mini Bike with low pressure water from a hose. Do not use high pressure nozzles, this could allow water to enter the engine causing damage. 2. Wash Mini Bike using a mild detergent or car soap using a sponge, soft rag or brush. -
Page 32: Troubleshooting
TROUBLESHOOTING Trouble Possible cause Solution Engine will • Low fuel • Fill with fresh fuel not start • Stale or contaminated fuel. • Have a service center flush and fill with fresh fuel. • Fuel valve is in the “OFF” •... -
Page 33: Specifications
SPECIFICATIONS Engine Braking Displacement 98cc Rear Brakes (Type) disc Starting Recoil Cord Spark Plug Type Torch/E5TC or NGK/BPMR6A Tires Cooling Air cooled Front Tire Size 145/70-6 Ignition Type T.C.I Rear Tire Size 145/70-6 Cylinder head config. Number of Cylinder Single Dimensions and Weights Combustion Cycle 4-stroke... -
Page 34: Vehicle Identification Number
FRAME AND ENGINE NUMBER LOCATION The Vehicle identification number and the engine number are needed when calling for VIN # parts, service center help or when registering your Mini Bike. Locate the numbers and list the numbers below for reference. The 17 digit Vehicle Identification Number (VIN) is located on the vertical tube on the neck of the mini bike... -
Page 35: Emission Control System Warranty
EMISSION CONTROL SYSTEM WARRANTY PRIDE ENTERPRISE LLC, . – EMISSION CONTROL SYSTEM WARRANTY YOUR WARRANTY RIGHTS AND OBLIGATIONS The emission control system warranty period for this vehicle begins on the date the vehicle is delivered to the first purchaser other than an authorized dealer, or the date it is first used as a demonstrator, lease, or company vehicle, whichever comes first and continues for 30 months after that date, or 5,000km, whichever comes first, provided there has been no abuse, neglect or improper... - Page 36 Your emission control system warranty covers components whose failure would increase an engine’s emission of any regulated pollutant, including electronic controls, fuel injection system, catalytic converter, carburetor assembly, ignition coils, spark plug, fuel tank, fuel tank caps, air cleaner, air cleaner housing, air cleaner housing cover or any other system utilized in this vehicle to control emission if it is originally equipped.
- Page 37 LIMITED LIABILITY The liability of the Distributor under this Emission Control System Warranty is limited solely to the remedying of defects in material workmanship by an authorized dealer at its place of business during customary business hours. This warranty does not cover inconvenience or loss of use of the vehicle or transportation of the vehicle to/from the authorized dealer.
- Page 38 PO BOX 336 TEMPE AZ. 85280 PHONE: Toll Free 888-748-5884 FAX: 888-678-6795 www.metalmotor.com...
Need help?
Do you have a question about the RIVET and is the answer not in the manual?
Questions and answers
My Metal Rivet mini bike can't start...I checked the gas, the Start button ,the Spark Plug and the oil.
Possible reasons your Metal Motorsports Rivet mini bike won't start include:
1. Fuel issues:
- Low or no fuel.
- Using gasoline with more than 10% ethanol or methanol, which can damage the engine.
- Contaminated or old fuel.
2. Engine not properly set:
- Fuel valve not in the "ON" position.
- Choke lever not in the correct position for a cold start.
- ON/OFF switch not in the "ON" position.
3. Air filter problems:
- Dirty or clogged air filter can reduce airflow and prevent starting.
- Damaged air filter not functioning properly.
4. Spark plug issues:
- Spark plug dirty or has excessive carbon buildup.
- Spark plug not connected properly or damaged.
5. Improper starting procedure:
- Starter recoil cord not pulled correctly.
- Engine not given time to warm up with choke adjustment.
Check each of these areas to diagnose the issue.
This answer is automatically generated
