Installation Instructions
CONGRATULATIONS! You have just purchased a General
Ecology, Inc. SEAGULL
employing the most advanced, effective and reliable
technology available. The features of this equipment are
indicated in product literature accompanying each Unit. It
is recommended that you briefly study this literature before
beginning your installation. Please note that the
SEAGULL
®
IV X-6 Unit features Top Mounted, Sweat-type
Copper Inlet and Outlet Adapter/Connectors that are
available in either ¾ or 1 inch sizes. Be sure you have the
proper size for your installation (normally ¾ inch for
residential applications).
Multiple Units can be installed in parallel to increase flow
rate (for industrial, commercial and special applications),
or in series for special requirements such as pre-filtration
followed by submicron microfiltration. Figure 1
Installation is straightforward and is easily accomplished
by persons experienced in plumbing installation and the
sweating of copper pipe. Normally, only a tubing cutter,
soldering torch, ½" wrench and possibly a pair of channel
lock pliers are required. A ½" "deep" socket, in lieu of the
wrench, will facilitate V-clamp Nut removal and replacement
and is recommended.

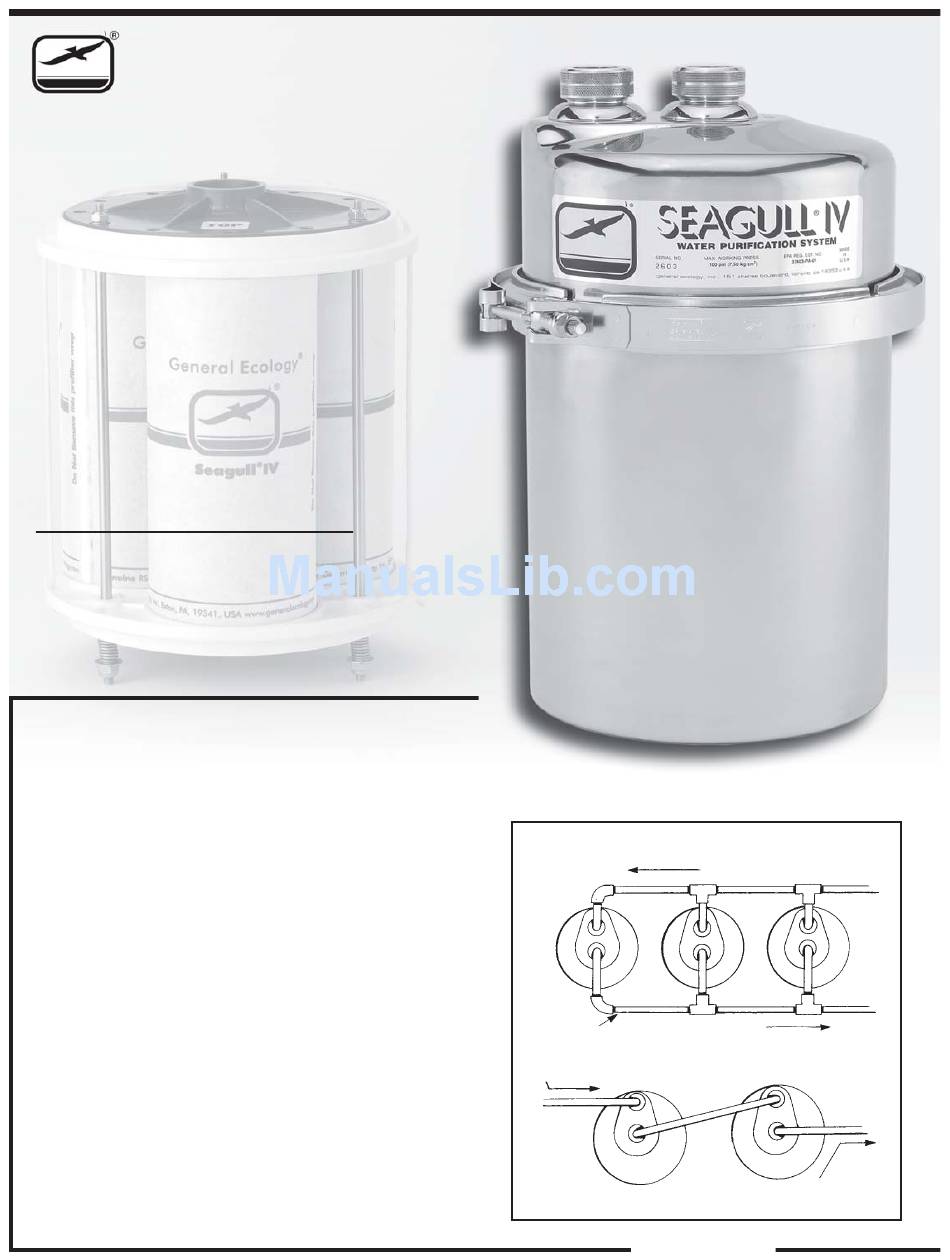

IV X-6
®
®
IV X-6 Water Purification System
Figure 1
Parallel Installation
SERVICE (OUT)
1 ½" LINE
Series Installation
SUPPLY (IN)
Use same pipe
sizes throughout.
Made in the USA
SUPPLY (IN)
SERVICE (OUT)
