Wisper 906 Alpino Owner's Manual

Hide thumbs Also See for 906 Alpino:

Advertisement

Owner's Manual

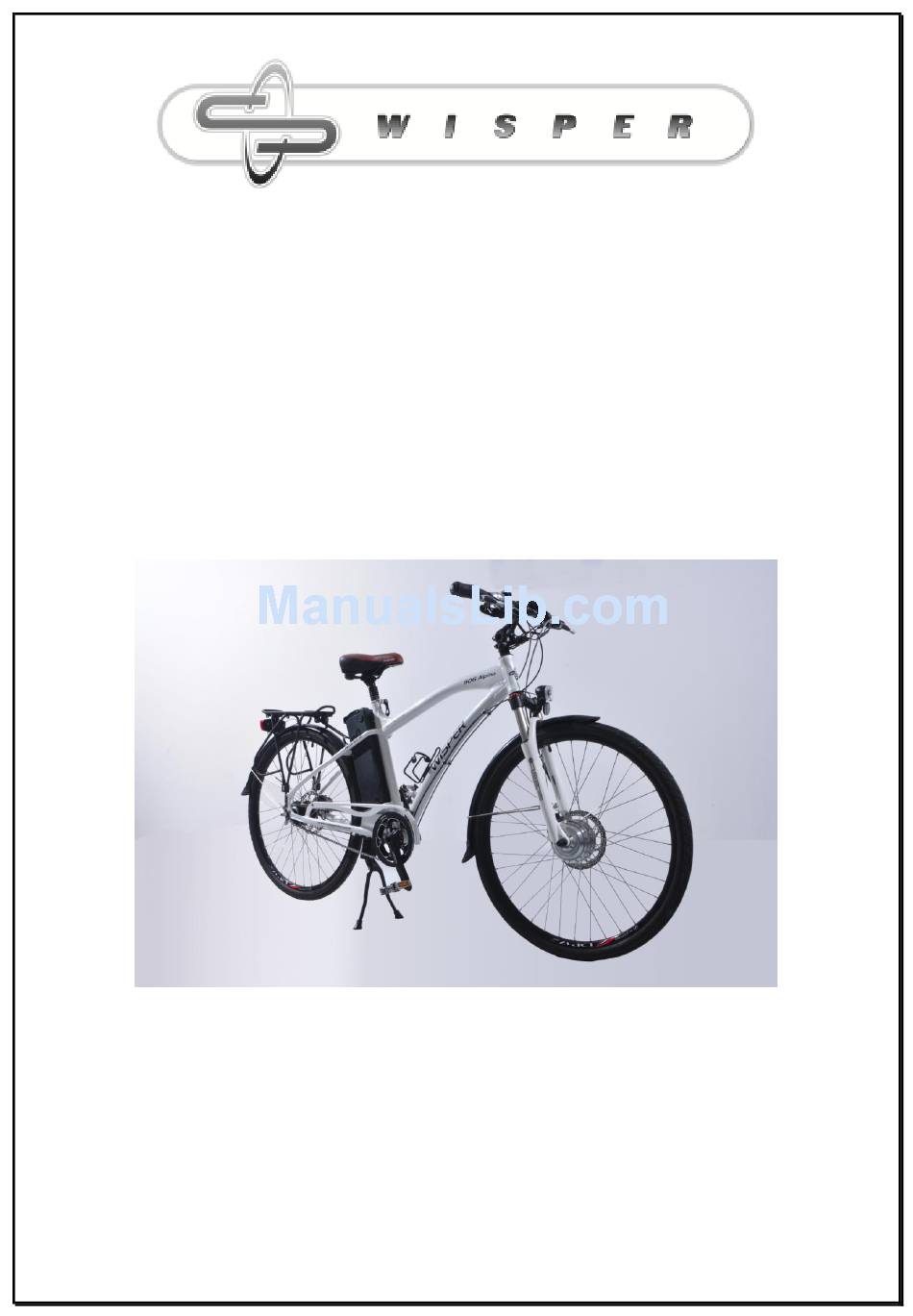

Operation and Maintenance Instructions
Wisper 906 Alpino
st
June 2011 1
edition
We strongly recommend that you read this entire manual before
using your Wisper bike
Wisper Limited
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 906 Alpino and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wisper 906 Alpino

  • Page 1 Owner’s Manual Operation and Maintenance Instructions Wisper 906 Alpino June 2011 1 edition We strongly recommend that you read this entire manual before using your Wisper bike Wisper Limited - 1 -...
  • Page 2: Table Of Contents

    User Guide Introduction Page 3 Part 1 Caring for your Wisper bike and pre use checks Before you set off for the first time Page 4 Before each use Page 5 Battery care Page 5 Recharging your battery Page 6...
  • Page 3: Introduction

    We strongly advise you to always wear a cycle helmet when using your bicycle and if you are unfamiliar with cycling to attend a cycle proficiency course prior to using it. Your Wisper Works 906 Alpino is not a toy and should be considered a serious mode of transport.
  • Page 4: Before You Set Off For The First Time

    Part 1 Caring for your Wisper bike and checks Although your Wisper bike has been thoroughly tested prior to delivery, it is very important that you check the bike thoroughly before its first use. Equally important are frequent and regular spot checks they will protect you and your Wisper bike.
  • Page 5: Before Each Use

    1.10 Remember to validate your warranty by visiting www.wisperbikes.com/mywarranty and filling in your details. Before each use It is important you perform a quick check of your bike every time you use it, checks should include the following, if you find any damage or problems do not use the bike until the problem has been solved or you have had the faulty item checked by a bike mechanic or your retailer.
  • Page 6: Recharging Your Battery

    Recharging your battery The charger supplied with your 2011 model bike has two settings. The standard setting charges the battery to 42 volts for normal battery use and should be used if charging the battery ready for use on the bike. The 39 volt position allows you to condition your battery accurately before putting into storage.
  • Page 7: Maintenance And Adjustments

    9, 10, 15 mm open-end wrenches 15 mm box end wrench Socket wrench, 14, 15, and 19 mm socket T25 Torx wrench No. 1 Phillips head screwdriver Bicycle tube patch kit, tire pump Technical specifications & performance Type Wisper 906Alpino Performance (with 75kg 165lb rider) - 7 -...
  • Page 8: Simple Trouble Shooting

    Assisted range Between 50km and 85km depending on battery size Battery only Between 38km and 50km depending on battery size Maximum speed 25kph (15.5mph) Weight with battery 26Kg to 27Kg depending on battery size Maximum load 130kg (240) Battery specifications Cell Type Advanced Environmental Lithium Polymer with PCM Capacity...
  • Page 9 4. Hill climbing, frequent stops, 4. Use power assist and try and strong head winds, over avoid throttle only loading LCD diagnostics 02 flashes Motor current is too high. 03 flashes Motor cable connection may be loose or excessive use of throttle from rest.
  • Page 10: Part 2 Controls And Equipment

    Battery on off and battery lock Your Wisper bike has 1 set of keys. The key turns the battery on/off and locks the battery in the bike. Please keep a careful note of the key numbers as we cannot replace them without these numbers should they become mislaid.
  • Page 11: The Lcd Functions

    view from above of view from below frame bracket brace of adjusting screws LCD function description 10.1 The LCD display has the following functions (Note: 2011 model bikes use an updated display which has blue buttons as shown in section 1 rather than white and incorporates the set and on/off function into one large button.
  • Page 12 If a problem is suspected with the bike press the set button and down arrow simultaneously to display any error code. Refer to section 8 for the error code descriptions. Contact your wisper dealer for advice should this occur. - 12 -...
  • Page 13: The Lights

    The LIGHTS 11.1 The front light is powered by the main battery and is switched on following the procedure above. Always ensure you observe the correct polarity of the connecting wires if they are removed for any reason. 11.2 The rear light is also powered as above. Due to the low power consumption use of the lights will not reduce the range of the bike.
  • Page 14 power (100%) or power up to 4 mph (6kph) (walkalong mode) independently of the pedelec. 13.2 The independent use of the throttle, when available, will enable you to use the throttle without pedaling. However to achieve optimum performance and life from the motor it is recommended that large throttle openings from rest be avoided and that where possible pedal assistance should be used when starting the bike from rest.
  • Page 15: Brakes

    Front: Disc Rear: Disc 14.2 The brakes on your Wisper bike are fitted with cut outs which are required by law. This means that when you pull on either the back or front brake lever the motor immediately stops working.
  • Page 16 As the left and right pads are the same they may be inserted on either the left or right of the caliper. Warning: If you are unsure about any part of the installation process you should seek advice from Wisper service center or qualified mechanic. - 16 -...
  • Page 17: Handle Bar Stem

    Handle bar stem 15.1 Your bike has been fitted with an X-tas-Y adjustable handlebar and stem clamp that allows you to change the angle and height of the bars to find the most comfortable riding position. 15.2 The stem and handle bars can be adjusted before you use the bike by slackening the 4 clamp bolts (one is shown by the arrow in the picture below) using a 4mm Allen key.
  • Page 18: The Front Connection Box (Manifold)

    Quick release saddle height adjustment 18.1 Your Wisper bike has been fitted with a quick release saddle post collar to facilitate the movement of the saddle to remove the battery or to change the riding position. Always ensure the collar is fully engaged on the seat tube.
  • Page 19: Rims And Spokes

    The chain and drive wheel are made from rust proof materials. 21.2 Lightly oil with bicycle chain oil at least once a month. Gear hub 22.1 Your Wisper bike with the premium quality 8 speed SHIMANO Alfine gear box. Under normal conditions no maintenance is required. - 19 -...
  • Page 20: Warranty, User Responsibility And Battery Maintenance

    Warranty Repair or replacement of components IMPORTANT To validate this Warranty the retail customer must register the bike at www.wisperbikes/mywarranty within 14 days of purchase. Only use this product in accordance with this user manual. We offer a limited warranty of on the following items.
  • Page 21: Battery Maintenance And User Responsibilities

    Battery maintenance and user responsibilities Your Wisper bike is equipped with a powerful, high quality lithium ion (polymer) battery. Lithium ion (polymer) is recognised as being the very best type of battery for electric bicycle use. All lithium ion batteries must be well cared for to optimise useful life and range. It is the responsibility of the bike owner/operator to ensure the battery is looked after properly.
  • Page 22: Service Contacts

    We reserve the right to check batteries claimed under warranty to ensure they have been maintained as per our instructions. Service through Your retailer Wisper Ltd 10 Oakenbrow Sway Hants SO41 6DY Tele:01590 681553 Mobile:07977 185830 douglas.lawson@wisperbikes.com www.wisperbikes.com Copyright January 2010 Wisper Ltd - 22 -...
