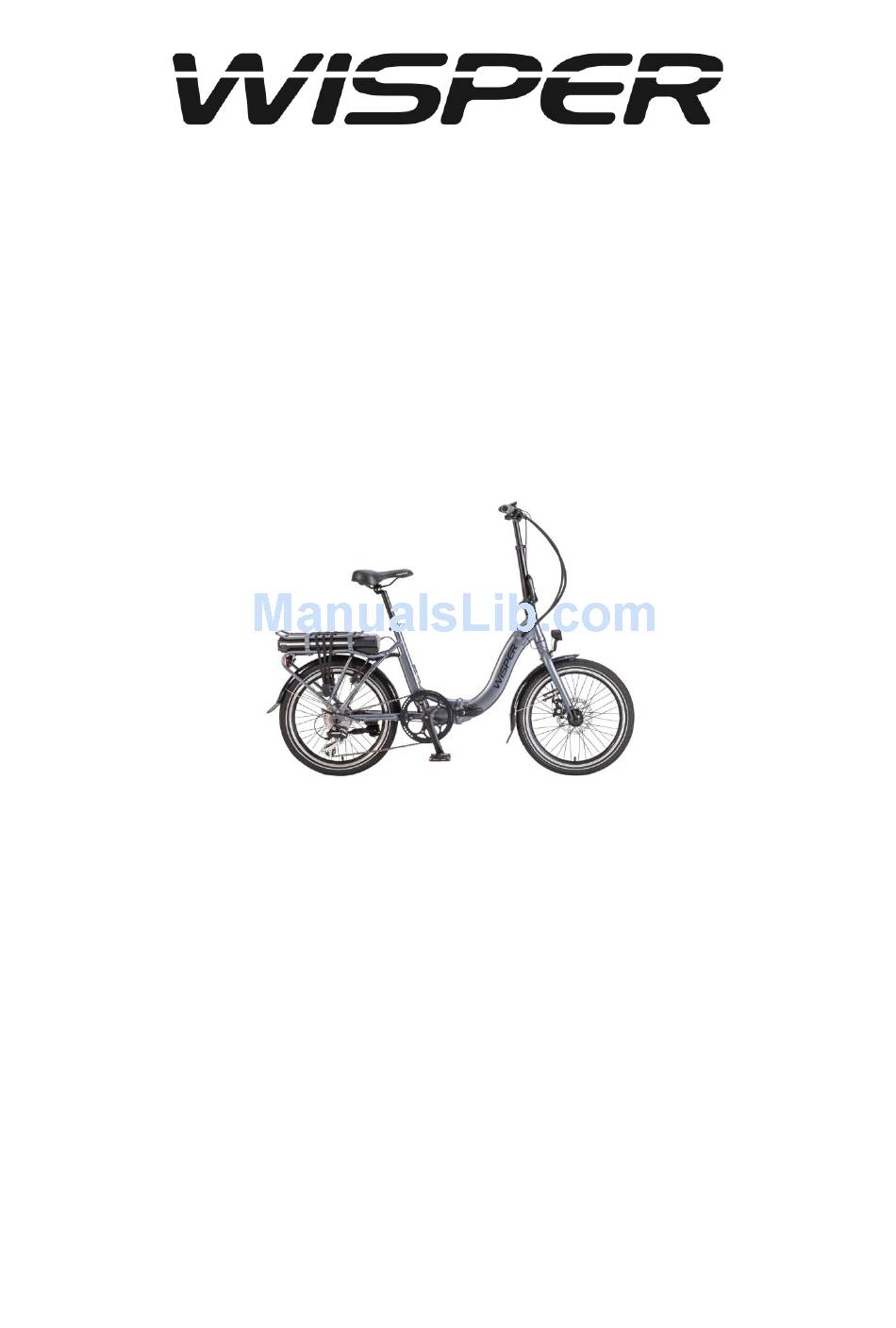

- Page 1 Owner’s Manual Wisper 806Torque 2017 Model December 20161st edition We strongly recommend that you read this entire manual before using your Wisper bike...
-
Page 2: Table Of Contents
Contents Introduction ........................... 3 Caring for your Wisper bike and pre-use checks ..............4 Before you set off for the first time Before each use Battery care Recharging your battery Water Maintenance and adjustments Technical specifications & performance Simple Trouble shooting Controls and equipment ....................... -
Page 3: Introduction
1 Introduction Thank you for choosing a Wisper electric bicycle. Before you use your Wisper electric bike it is important that you read this manual carefully. If there is anything you do not understand completely, please contact us. Please observe traffic regulations, and do not lend your bicycle to anyone who is unfamiliar with it. -
Page 4: Caring For Your Wisper Bike And Pre-Use Checks
2 Caring for your Wisper bike and pre-use checks Your Wisper bike has been thoroughly tested at the factory prior to delivery, and undergone a pre- delivery inspection by your Wisper Stockist. It is very important that you check the bike thoroughly before its first use. Equally important are frequent and regular spot-checks, as they will protect you and your Wisper bike. -
Page 5: Before Each Use
The bike will be ready to ride and the LCD will activate showing battery state, assist level, time, trip and speed. Exerting pressure on the pedals or twisting the throttle will now activate the motor. IMPORTANT: Always start off in level 1 or 2 assistance to avoid the possibility of loss of control. -
Page 6: Battery Care
2.3 Battery care 2.3.1 Your Wisper bike comes with a high quality lithium ion battery. All lithium batteries need to be looked after to ensure years of full use. The latest Wisper 575Wh batteries come with new technology installed to assist you in looking after your battery and will be dealt with separately. -
Page 7: Recharging Your Battery
The battery manufacturer will make recommendations to resolve any issues. In some cases, fixes can be made remotely. All Wisper Stockists will be able to check the condition of both battery and charger. Information such as the charging history, battery capacity, etc. -
Page 8: Water
Your bike has a cassette 8 speed gear clusterand a derailleur, the chain tension will be adjusted automatically. However, if the chain becomes loose or frequently comes off the front chain-wheel, please seek advice from your Wisper dealer. 2.6.4 Brake levers should lock the wheels when compressed half way between their open position and touching the handle bars. -
Page 9: Technical Specifications & Performance
6.7.1. Lubricate all pivot points on the derailleurand chainwith light oil or chain lube on a regular basis. 6.7.2 Once a year, have your Wisper dealer re-grease the headset bearings,front wheel bearings and pedal bearings. 2.6.8Recommended tools for proper maintenance:... -
Page 10: Simple Trouble Shooting
Hand welded,6061 Alloy T4 and T6 tempered Frame size 20” 50cm Finish Graphite Silk painted and lacquered, three stage oven hardened Forks Wisper light weight forks Seat post 400mm black anodised aluminium Saddle Selle Royal Italy E-Bike Saddle with handle Handlebars... -
Page 11: Controls And Equipment
Problem Possible reason Solution Top speed too 1. Low battery voltage 1. Recharge battery fully slow 2. Handlebar control 2. Call service problem 3. Damage to motor 3. Call service driveline Power on, but 1. Battery not connected 1. Re install battery motor not 2. -
Page 12: Battery On/Off Switch And Lock
3.1 Battery on/off switch and lock 3.1.1 Your Wisper bike is supplied with two identical keys. The keylocks the battery to the bike. 3.1.2 The battery is connected to the electrical system of the bike automatically when you slide the battery into the rack. To turn on the bike’s electrical system, press 1 on the switch located on the right hand side at the rear of the battery. -
Page 13: The On/Off Button And Light Button
3.2 The ON/OFF button and Light button 3.2.1 To turn the power on so the pedelec systemis operational, simply press the on/off button (marked with a c-) on the handle bar controlfor 3 seconds - the LCD symbols will become visible showing the power is on. -
Page 14: Torque Sensor
3.4 Torque sensor 3.4.1 When you first ride your Wisper bike, you will notice that the motor will start working as soon as you put pressure on the pedals. This is the standard or torque mode. The more pressure you put onto the pedals the more powered assistance you will receive. -
Page 15: Brakes
3.5.5 The battery capacity indicator is provided to give an approximation of battery capacity remaining. Each bar on the LCD approximates to a ¼ of the capacity. However, this indicator relies on sensing battery voltage that will rise and fall depending on the amount of power being demanded at any given time, ambient temperatures etc, hence the meter should only be used for indication purposes. -
Page 16: Stem And Handle Bar Clamps
Warning: If you are unsure about any part of the brake installation process you should seek advice from a Wisper service center or qualified mechanic. Caution: The pads and rotor must be kept clean and free from oil or grease based contamination. -
Page 17: Folding Mechanisms
3.8 Folding Mechanism 3.8.1 Your Wisper folding bike has been fitted with ultra strong clamps to enable you to fold the frame and handle bar stem. It is vitally important that these clamps are tight, secure and locked before using the bike. - Page 18 3.8.4 Folding the pedals is very straight forward. Simply push the pedal in towards the bike with your hand or foot and fold down. To unfold lift the pedal back to its normal position. Make sure it has located properly.
-
Page 19: The Connectors
3.10 Quick release saddle height adjustment 3.10.1 Your Wisper bike has been fitted with a quick release saddle post fitting to facilitate the movement of the saddle height. -
Page 20: Rims And Spokes
3.10.2 It is important that the knurled nut on the fitting is tightened so the post will not move in the bike tube. Make this adjustment with the quick release lever in the open position. 3.10.3 Adjust the seat to the correct height and close the lever firmly. When you sit on the saddle there should be no vertical movement at all in the saddle post beyond the seat post suspension movement. -
Page 21: Warranty, Battery Maintenance And User Responsibilities
Repair or replacement of components IMPORTANT!To validate this warranty,the retail customer must register the bike at www.amps.bike within 14 days of purchase. Only use this product in accordance with this user manual. Wisper offer a limited warranty on the following items. Main frame... -
Page 22: Battery Maintenance And User Responsibilities
Exceptions to Limited Warranties Your Wisper bike may not be covered by our warranty for any of the following reasons: Damage resulting from misuse, not maintaining the vehicle or not following the guidelines within our user guide or using the vehicle for any kind of competitive sport. -
Page 23: Service
We reserve the right to check batteries claimed under warranty to ensure they have been maintained as per our instructions. 5 Service After sales service is available through your retailer. If you are unable to contact your retailer, please contact our Wisper Support team support@amps.bike Amps Electric Bicycles Ltd Unit A2 Watery Lane... -
Page 24: Pre Delivery Inspection Check List
The PDI is a critical part of the overall Quality Assurance process and must be completed by the supplying dealer followed by a test ride and sign off before passing the bike to the customer. The following items below are a generic list for all current Wisper models and must be covered during the PDI. - Page 25 derailleur or hub gear and ensure all gears can be selected Ensure side stand supports bike correctly and does not interfere with other moving cycle parts Ensure motor wheel turns smoothly and quietly when Some additional resistance will rotated by hand in forward and reverse direction be felt when rotated in reverse Ensure correct chain tension Ensure chain guard is not rubbing on models...
- Page 26 customer Copyright May 2016 Amps Electric Bikes Ltd...
