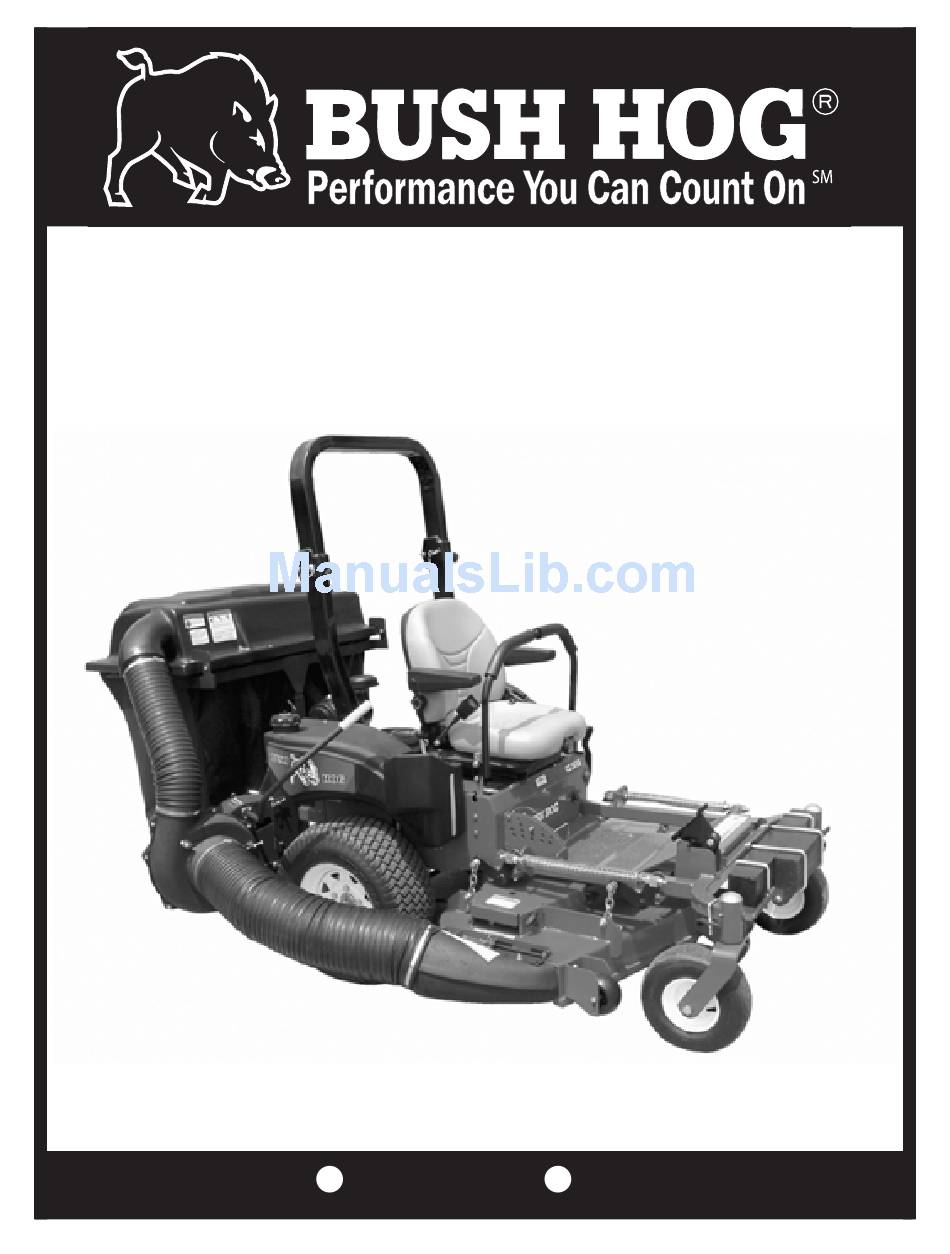

- Page 1 PZ & CZ ZERO TURN MOWER MAX VAC GRASS COLLECTION SYSTEM Models GC-350 & GC-350CZ Operator’s Manual ASSEMBLY OPERATION MAINTENANCE 1006 $4.00 50054971...
- Page 2 If your manual should become lost or destroyed, Bush Hog will be glad to provide you with a new copy. Order from Bush Hog, P. O. Box 1039, Selma, Alabama 36702-1039. Most of our manuals can also be downloaded from our website at www.bushhog.com.
-
Page 3: Table Of Contents
It is the Retail Customer’s responsibility to deliver the product to the authorized Bush Hog Dealer, from whom he purchased it, for service or replacement of defective parts which are covered by warranty. -
Page 4: Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judge- ment of Bush Hog such use affects its performance, stability or reliability. -
Page 5: Federal Laws And Regulations
IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING EMPLOYERS, EMPLOYEES AND OPERATIONS. *(This section is intended to explain in broad terms the concept and effect of the following federal laws and regulations. It is not intended as a legal interpretation of the laws and should not be considered as such). U.S. -
Page 6: Safety Alert Symbols
Safety Alert Symbol This Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” This symbol is used to call attention to safety precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. -
Page 7: Introduction And Description

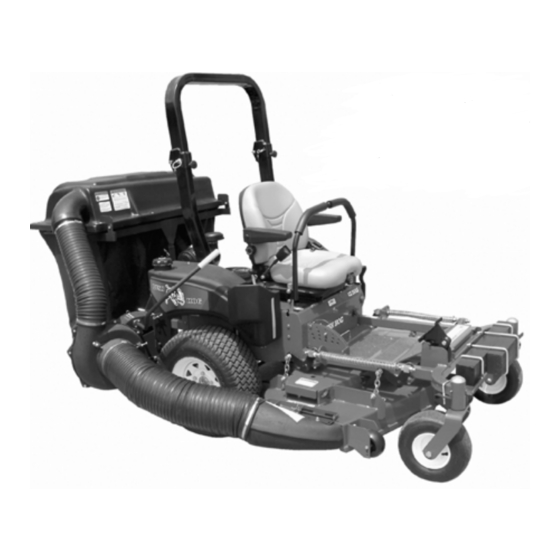

Figure 2 Complete Machine In Shipping Crate 1-1 Introduction We are pleased to have you as a return Bush Hog customer. Your GC-350 or GC-350CZ has been SECTION II designed to give you a low maintenance, simple, and effective way to collect the grass clippings or... -
Page 8: Attaching Frame Mount Brackets
2-2 Attaching Frame Mount Brackets 2-3 Belt Installation Mount the lower frame weldment, which supports Loosen the two bolts that secure the gear box the bagger unit, to the rear bumper as shown in assembly to the PTO mount plate. (Figure 6) Loosen Figure 4 below using 3/8”... -
Page 9: Cam Assembly Adjustment
2-6 Attachment Of Top Assembly To The 2-4 Cam Assembly Adjustment Upper Frame Assembly The cam assembly, which controls the blower belt tension, comes from the factory pre-adjusted. If the Align the pivot brackets of the top assembly to the belt is too tight, or becomes too loose, remove the pivot points on either side of the upper frame hair pin clip from the belt tension rod and pull the “L”... -
Page 10: Adjustment Of The Lengths Of Hoses
2-8 Adjustment Of The Lengths Of Hoses 2-12 Front Weight Assembly The hoses in steps 2-9 and 2-10 must be cut to fit NOTE: Before installing front weights on PZ mod- your machine. Follow the steps and do not cut the els, install the locking pins in the front axle for hoses until you have tried them on your particular either the pivoting or fixed position. - Page 11 the bag onto the bag ring openings and slide the bag Figure 15 One Bag Removed around the ring until the slot bracket in the bag ring is protruding through the opening in the bag. Do this for each of the three bags. (Figure 14) Install the completed assemblies onto the support frame and close the hood.
-
Page 12: Operating Instructions
If there are any por- hilly, etc. tions of the hoses or bags that have been torn or worn through, replace with genuine BUSH HOG parts. 3-3 Disengagement Of The Blower After Each Use: A. To disengage the blower, rotate the engage- ment handle towards the mower. -
Page 13: Lubrication
EP90 weight oil. 6 oz. will fill Parts And Service Information the gear box from empty. Bush Hog collection system owners should record Removal Of The Collection System For the name and telephone number of their dealer. -
Page 14: Safety Decals
To promote safe operation, Bush Hog supplies safety decals on all products manufactured. Because damage can occur to safety decals either through shipment, use or reconditioning, Bush Hog will, upon request, provide safety decals for any of our products in the field at no charge. Contact your authorized Bush Hog dealer for more information. -
Page 15: Torque Specifications
TORQUE SPECIFICATIONS Proper toque for American fasteners used on Bush Hog equipment. Recommended Torque in Foot Pounds (Newton Meters).* AMERICAN Bolt Head Markings BOLT DIAMETER WRENCH (IN.) “B” AND SIZE (IN.) “A” THREAD SIZE GRADE 2 GRADE 5 GRADE 8... - Page 16 P.O. Box 1039 Selma, AL 36702-1039 Telephone (334) 874-2700 www.bushhog.com...
