- Page 1 Redsail Cutting Plotter User Manual V4.0 Redsail Cutting Plotter User Manual V4.0...
- Page 2 When you have trouble in using cutting plotter, please turn off the machine's power, then look for the resolution in this manual; or connect to the machine dealer who will help you to resolve problems;...
- Page 3 Redsail Cutting Plotter User Manual V4.0 CONTENTS (1) Notice when using your cutting plotter (2) Cutting plotter accessories (3) Main parts descriptions (4) How to install plotter (5) Keyboard panel operating detail (6) Cutting blade and plotting pen (7) Load media/Load paper...
- Page 4 (4) Please put down the power wire if you don't use plotter for a long time. (5) Don't put down any wire when cutting plotter or computer is power on. (6) Cutting plotter's shell must connect ground with an electronic wire.
- Page 5 Redsail Cutting Plotter User Manual V4.0 Cutting plotter Accessories When you open the pack, check the goods to make sure nothing is missing, ev- ery pack must include: Name Quantity Cutting plotter 1body User's manual and Driver Sign software Fix machine record card...

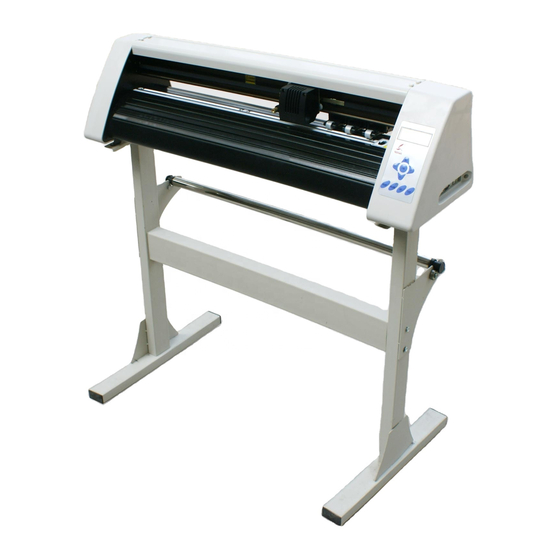

- Page 6 Redsail Cutting Plotter User Manual V4.0 Main parts descriptions Main parts descriptions: Front side /slide side: 1.protection of track 2.carriage 3.roller 4.LCD monitor 5.keyboard panel 6.LED lamp 7.right shell 8.machine's foot 9.knife holder 10.seat of knife holder 11.left shell 12.handel to control the roller 13.AC power port...
- Page 7 Later, the carriage must move to right side itself, and return a little. This is the initialization of cutting plotter. The message of speed and pressure will be showed on the LCD monitor. Followed are the...
- Page 8 Redsail Cutting Plotter User Manual V4.0 Keyboard panel operating detail When you turn on the plotter's power, after for a moment, the carriage will move to right side itself. And the green LED on keyboard will light. The LCD monitor will show the data of speed and pressure. This process is an initialization of the plotter.
- Page 9 Redsail Cutting Plotter User Manual V4.0 Cutting Blade and Plotting Pen Cutting Blade Holder: Locknut holder's shell close screw blade On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw"...
- Page 10 Redsail Cutting Plotter User Manual V4.0 Plotting pen: You can use usual ball pen as plotting pen; keep the ball pen peep out of the holder between 4mm and 5mm. the other using method is similar as blade's process; please try it yourself according to the blade's changing method.
