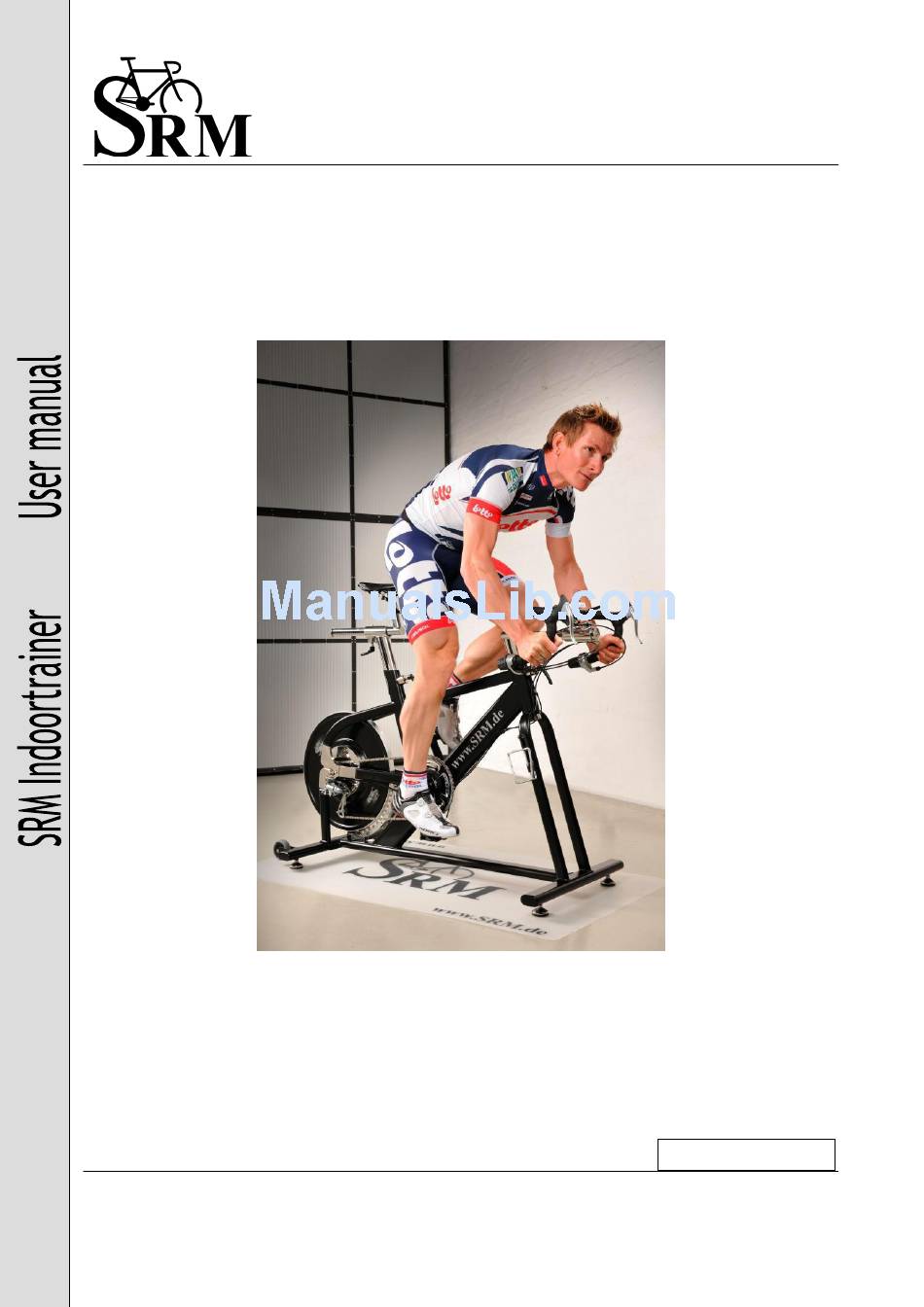

- Page 1 Indoortrainer User Manual User Manual Indoortrainer Revised 18.01.2012 Page 1 of 10 Schoberer Rad Messtechnik GmbH Rudolf Schulten Str. 6 D-52428 Jülich Tel.: +49-2461-69123-0 Fax:+49-2461-69123-17 www.SRM.de...
-
Page 2: Table Of Contents
Adjusting the braking power ..............................7 Adjusting the magnetic brake .............................. 8 Special Features ..................................8 Caring for your Indoortrainer ..........................9 Resetting the magnetic brake cable ..........................9 Adjustment range of Indoortrainer ......................10 Technical Data and Specifications ........................ 10... -
Page 3: Important Notes Before You Start
The four feet are height adjustable to compensate for uneven floor levels. The Indoortrainer has two wheels for easy movement without lifting. Page 3 of 10 Schoberer Rad Messtechnik GmbH Rudolf Schulten Str. -
Page 4: Clamping The Sliding Sections
Indoortrainer User Manual Clamping the sliding sections By opening the quick-release levers, you can quickly adjust all of the di- mensions to meet your needs. Open the lever, adjust the height or distance as needed, and then close the lever again. The lever should be tight when closed, but don’t over... -
Page 5: Rear Hub
User Manual Rear Hub The Indoortrainer is equipped with a continuously variable NuVinci hub N360. The hub has a gear ratio of 360 %. Adjustment of the hub is not necessary; however, the two cables lengths may initially stretch, creating play in the shifter and causing poor shifting performance. -
Page 6: Magnetic Brake
To maintain even tension on these pulleys, a spring is fixed on a rubber cap be- tween the magnet arm and the Indoortrainer frame. When the shifter is in position 1, the distance from the magnet-arm and flywheel is at the maximum distance and braking power is minimal. -
Page 7: Braking Performance
Indoortrainer User Manual Braking Performance The data below is for the magnetic brake set at the factory setting with a 53 tooth chainring. As the linkage of the magnetic brake elongates slightly from use, the actual values may differ from the data in this table. -
Page 8: Adjusting The Magnetic Brake
If you do not see power or cadence displayed, first check if the magnet is present and positioned properly. Speed is sent from a speed sensor on the rear frame of the Indoortrainer and a magnet on the flywheel. If you do not see speed displayed, first check if the magnet is present and positioned properly. -
Page 9: Caring For Your Indoortrainer
Caring for your Indoortrainer To get the most life from your Indoortrainer, we recommend that you wipe off the sweat after every workout. Wipe the entire frame, handlebar, seat, and seat-tube with a clean soft cloth. We also recommend that the surfaces of the Indoortrainer be treated with a silicone polish to further protect the surfaces. -
Page 10: Adjustment Range Of Indoortrainer
Indoortrainer User Manual Adjustment range of Indoortrainer Measurement Distance Saddle height, maximum from BB 90 cm Saddle height, minimum from BB 65 cm 6 – 14 cm Saddle setback, maximum behind BB 7 – 15 cm Saddle setback, maximum in front of BB...
