Summary of Contents for SRM SmartIT

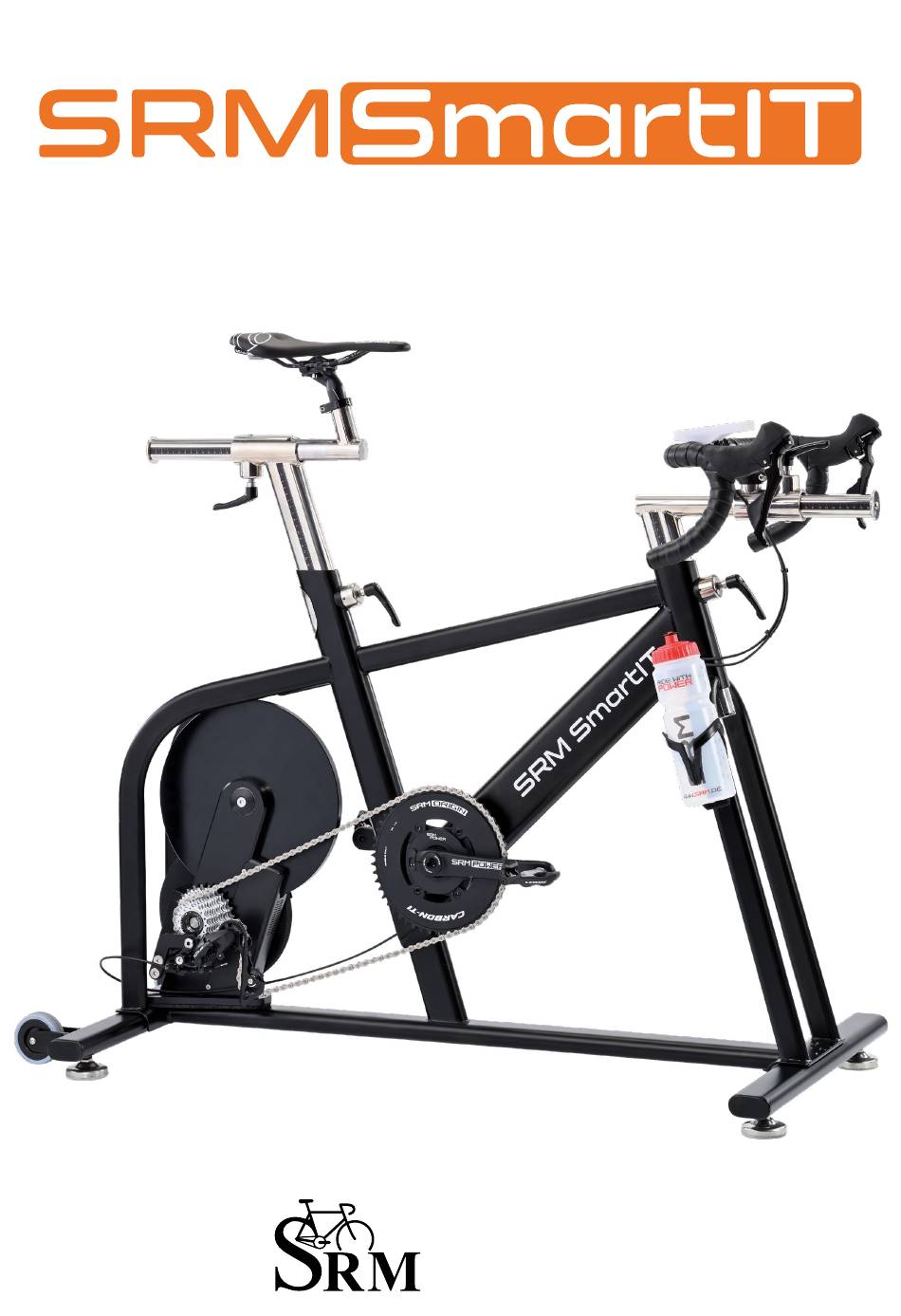

- Page 1 USER MANUAL Schoberer Rad Messtechnik GmbH Rudolf Schulten Str. 6 D-52428 Jülich Tel.: +49-2461-69123-0 www.SRM.de...
-
Page 2: Table Of Contents
4.8 Remote 5. Getting Started 5.1 Remote Button Definitions 5.2 SmartIT Ride Modes 5.3 Connecting to external apps (e.g.. Zwift) 5.4 Connecting the SRM SmartIT Apps 6. Settings Menu 6.1 Pairing the PowerMeter 6.2 Pairing Heartrate 6.3 Pairing sensors to PC8 6.4 Personalising the Brake gain and speed... -
Page 3: Introduction
1. Introduction Welcome to the next generation of SRM Indoor Training. The SRM Smart IT, developed by cyclists for cyclists, is the ultimate, no-compromise indoor training experience. The third generation SRM SmartIT enables many modes of operation including: • Standalone operation by power or gear •... -
Page 4: Important Safety Instructions
The brake electronics are located in the black box which is attached at the back of the brake. The black box is not waterproof, so when cleaning the SmartIT, do not let water get inside the brake box. Disconnect the power and clean the box only with a damp cloth. Before cleaning make sure to disconnect the trainer from 12V DC power. -
Page 5: Setting Up Your Smartit
4.1 Placing the SmartIT Ensure that the SmartIT is installed on firm flooring, and is level and balanced before use. The four extendable feet can be adjusted in and out to accommodate small variances in the level of the floor. -
Page 6: Adjusting The Handlebar
4.5 Gears and Drive-train The drive-train of the SmartIT includes an 11- speed gear shift. This allows a realistic riding experience, since the gear can be changed as the SmartIT Brake changes the pedaling resistance, just like if you were going up or down hills. Set up and adjust derailleur as for a normal bike. -
Page 7: Remote
5. Getting Started Before using the SmartIT for the first time, some basic steps need to be completed. For more details on all available options, please refer to the respective chapters in this guide. 5.1 Remote Button Definitions •... -
Page 8: Smartit Ride Modes
5.2 SmartIT Ride Modes The SmartIT provides two different ride modes: Ride by Gear: Ride by gear means that you can set the resistance of the Smart brake. The resistance ranges from 0-100% (low to high) and can be adjusted in increments of 1%. -
Page 9: Connecting To External Apps (E.g
5.4 Connecting the SRM SmartIT Apps The Smart IT app is available in the app store for Ipad devices. Search for “SRM” and scroll to find “SRM Smart IT”. The Smart IT app enables a number of key capabilities, including: •... -
Page 10: Settings Menu
6. Settings Menu To access the SmartIT settings, press MODE and SET at the same time. You can navigate with the arrow key between the individual menu entries. 6.1 Pairing the PowerMeter Press SET to enter the PowerMeter menu. Press SET again in the serial tab to search for the Powermeter. -
Page 11: Personalising The Brake Gain And Speed
Motor Speed: 10 6.5 Speed Sensor SmartIT provides a speed calculation based on the Kinetic energy in the flywheel, and the rider/ bike weight. The PC8 or other devices can be paired to Smart IT to to display or record Speed and Cadence. -
Page 12: Interval Start Preferences
6.8 Enabling and Disabling External Control The SmartIT brake can be controlled by external software via Bluetooth LE and ANT+. In the default settings all three possible connections are enabled. In the case you do not need all connection types and you have connection problems caused by other devices, you can disable connections you do not want. -
Page 13: Ride Simulation Settings - Bike And Rider Weight
BLE and ANT+. The speed can also be displayed in the PC 8 if paired with SmartIT. The Offset Step Size allows the user to apply increased or decreased resistance when in external... -
Page 14: Maintenance And Care
7.1 Daily Care After every workout, please clean your SmartIT with a damp cloth to remove all sweat or dust from hard training. Sweat is extremely corrosive so it is important to clean after every ride. -
Page 15: Technical Data And Specifications
8. Technical Data and Specifications Material Stainless steel, powder-coated steel, chrome steel, aluminium Total weight 38,7 kg / 85,32 lb Fly-mass weight 2,6 kg / 5,7 lb Dimensions (L x W x H) 1,25 m x 0,55 m x 0,89 m Bottom bracket BSA 68 mm Seat-post diameter... - Page 16 IT SIMPLY WORKS. Warranty Extent of Limited Warranty: SRM warrants to the end-user customer that the SRM products are free from defects in materials and workmanship for a 3-year duration after the date of purchase by the customer(batteries excluded). The complete SRM warranty can be found online at www.SRM.de.
