Installation & operating instructions
▲
!
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Read the installation, operation and maintenance
instructions thoroughly before installing or using this
equipment.
▲
!
DANGER
Not following these instructions could result in fi re or
explosion, that could cause property damage, personal
injury or death.
▲
!
DANGER
DO NOT use this barbecue for indoor cooking or
heating. TOXIC fumes can accumulate and cause
asphyxiation. DO NOT use it in or on boats or
recreational vehicles.
▲
!
PROP 65 WARNING
Chemicals, known to the state of California, to cause
cancer, birth defects or other reproductive harm are
created by the combustion of propane.
grill
grill
The perfect barbecue!

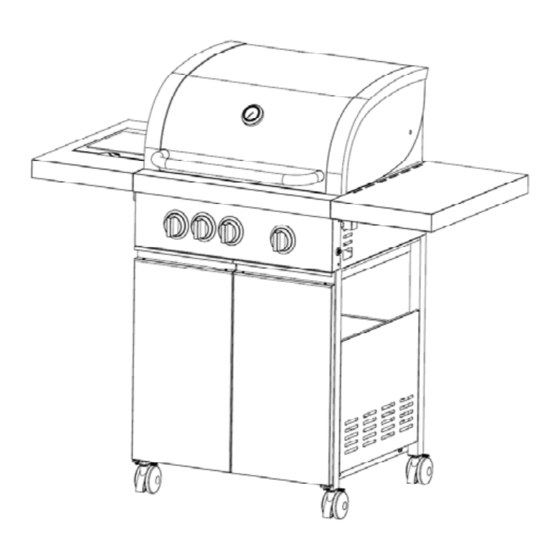

Model: K 1024A-KC3
Art.: 2415238 BBQ Brevio
▲
!
WARNING FOR YOUR SAFETY:
for outdoor use only (outside any enclosure)
KEEP THESE INSTRUCTIONS NEAR AT HAND FOR FUTURE
REFERENCE. IF YOU HAVE BOUGHT THIS UNIT FOR SOMEONE
ELSE, MAKE SURE THAT YOU ALSO GIVE HIM OR HER THIS
MANUAL.
Berghoff recommend propane gas as fuel for our BBQ's, as propane
supplies the best heating conditions for BBQ's.
Therefore, this BBQ has a gas regulator of 37 mbar.
Although using butane gas by changing the gas regulator is possible,
we strongly recommend to stick to propane as the complete manual is
based on propane gas.
If you still insist to change to butane gas please contact your local gas
specialist for a suitable butane gas regulator (28-30 mbar) and for the
correct installation of the regulator.
Note: All defects or problems caused or related to this change to
butane gas are not longer part of the product warranty.
Advertisement
Table of Contents
Related Manuals for Berghoff K 1024A-KC3
Summary of Contents for Berghoff K 1024A-KC3
- Page 1 MANUAL. asphyxiation. DO NOT use it in or on boats or recreational vehicles. Berghoff recommend propane gas as fuel for our BBQ’s, as propane supplies the best heating conditions for BBQ’s. ▲ Therefore, this BBQ has a gas regulator of 37 mbar.
-
Page 2: Technical Data
Never light a gas grill with gasoline or comparable fl uids! Suggestion: user should not change the assembly that the manufacturer packaged. FOR DETAILED SAFETY INFO READ P. 16 POINT 9: GENERAL SAFETY INSTRUCTIONS 1. Technical data Model: K1024A- KC3 - BergHOFF art. 2415238 BBQ Brevio... -
Page 3: Exploded View
2. Exploded View... -
Page 4: Single Part List
3. Single part list seq. NO. appellation seq. NO. appellation lid handle thermometer fi rebox right panel shutter right panel warming rack bracket shutter left panel shutter cover board Crossover bracket main burner tube assembly assembly fi rebox left panel inner control panel Door spring hinge grease tray... -
Page 5: Mounting Steps
5. Mounting steps Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving specifi c assembly proce- dures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the grill. ▲... - Page 6 STEP 2: Use 2x B screws to connect the cart right side panel and cart bottom panel. (See fi gure 2 for reference) Figure 2 STEP 3: Use 4x B screws to connect the cart back panel and cart assy. (See fi gure 3 for reference) Figure 3...
- Page 7 STEP 4: Fix 4x wheels on the pipes of the cart assy. (See fi gure 4 for reference) Figure 4 STEP 5: Use 2x B screws to fi x the door beam on the cart assy. (See fi gure 5 for reference) Figure 5...
- Page 8 STEP 6: Utilize the wedges to put the front hood assy on the cart assy. (See fi gure 6 for reference) Figure 6 STEP 7: Put the grease tray into the brace. (See fi gure 7 for reference) Figure 7...
- Page 9 STEP 8: Assemble 2 doors on the cart assy. Pls note the spring hinges under the control panel , fi rst hold down the spring hinge, then push it into the hole of door. (See fi gure 8 for reference) Figure 8 STEP 9: Put 2 pipes into the right side table .
- Page 10 STEP 10: Utilize the wedges to assemble the right side table assy on the fi rebox assy. (See fi gure 10 for reference) Figure 10 STEP 11: Use 2x C screws to fi x the side table with the fi rebox fi rmly. (See fi gure 11 for reference) Figure 11...
- Page 11 STEP 12: Put 2 pipes into the left side burner. (See fi gure 12 for reference) Figure 12 STEP 13: Utilize the wedges to assemble the left side burner assy on the fi rebox assy. (See fi gure 13 for reference) Figure 13...
- Page 12 STEP 14: Use 2x C screws to fi x the side burner with the fi rebox fi rmly. (See fi gure 14 for reference) Figure 14 STEP 15: Use 2x A screws to fi x the nozzle of side burner on the side burner insert tray bracket. Remember the nozzle should aim at the gas inner hole.
-
Page 13: Energy Saving Tips
6. Preparation BergHOFF recommends propane gas as fuel for our BBQ’s, as propane supplies the best heating condition for BBQ’s. Therefore, this BBQ is equiped with a propane regulator 37 mbar. Not included is the LP gas tank. This can be obtained from your nearest gas retailer. -
Page 14: Installation
7. Installation After purchasing your gas bottle you will be ready to set up your gas grill. a) Changing the gas bottle shall be carried out away from any source of ignition. Position the gas bottle at the side of your gas grill, not underneath, keeping in mind that the bottle must be kept away from heat and in a safe position. -
Page 15: Connecting The Gas Cylinder
Ensure that the hose is not subjected to twisting which will affect the gas fl ow when using your gas grill. Also the hose must not have undue tension and must not touch any part of the gas grill which may be hot. Please choose for a fl... -
Page 16: General Safety Instructions
9. General safety instructions ▲ ▲ DANGER WARNING FOR YOUR SAFETY you smell gas - 1. Shut off gas to appliance. 1. Do not store or use gasoline or other fl ammable 2. Extinguish any open fl ame. liquids or vapors in the 3. -
Page 17: Safety Precautions
▲ We would recommend that this gas grill be serviced by your local gas retail outlet at least once a year by a competent engineer. Do not attempt to service this appliance yourself. ▲ Any modifi cation of the appliance may be dangerous. Do not attempt any unauthorized interference of the main controls on this gas grill, i.e. -
Page 18: Lighting Instructions
11. Lighting instructions ▲ CAUTION: The lid must be open when lighting the burner! Do not stand with your face directly over the gas grill when lighting it.Your gas grill will have the following method of ignition: Pilot Gas Control Ignition: Put all gas controls (knobs) on the Gas grill in the “OFF”... -
Page 19: Cleaning Instructions
12. Storage Your Gas Bottle must be stored outdoors in a well ventilated area and must be disconnected from your gas grill when not being used. Ensure that you are outdoors and away from any sources of ignition before attempting to disconnect your gas bottle from your gas grill. -
Page 20: Limited Warrenty
15 Limited Warrenty BergHOFF Worldwide (“Vendor”) warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of ten (10) years for the burners;...
