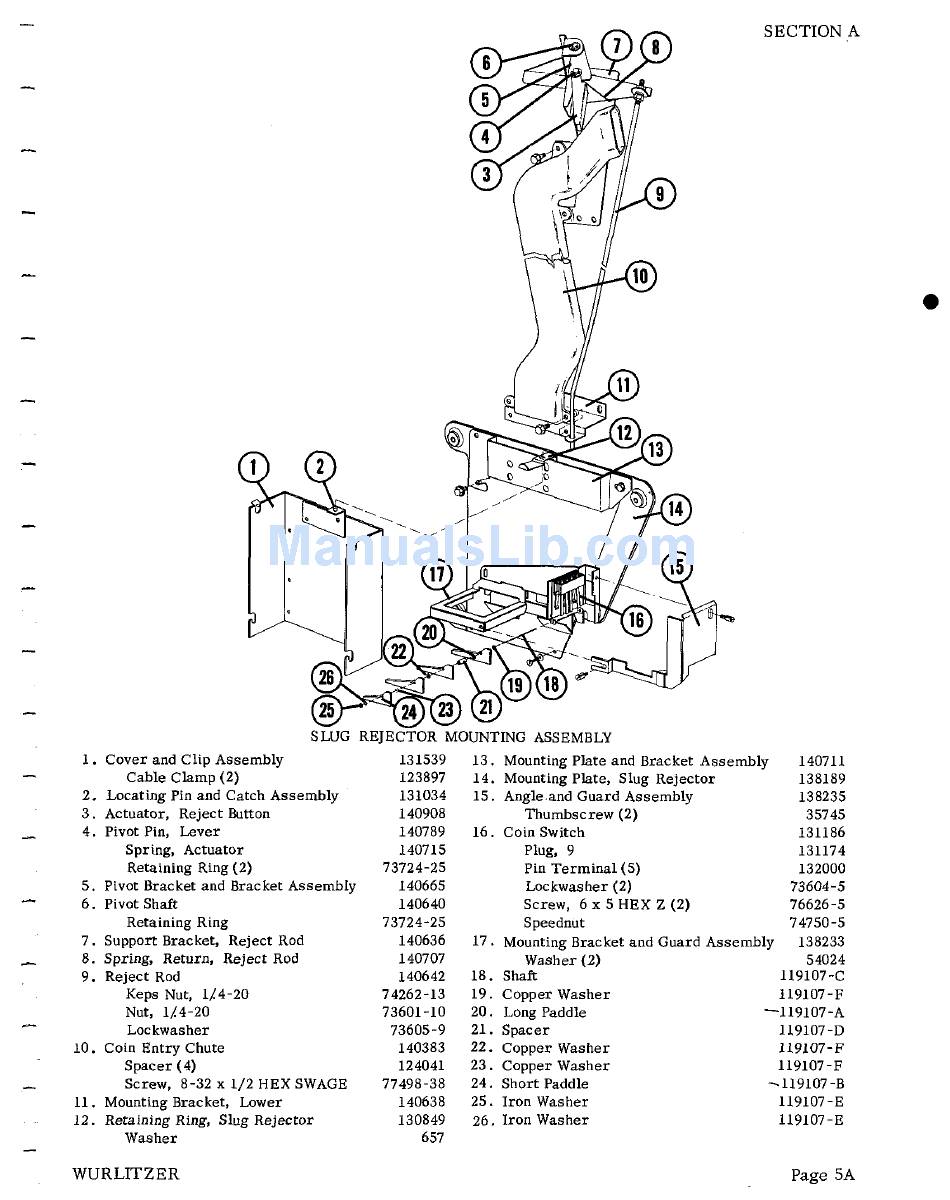

1. Cover and Clip Assembly -
Cable Clamp (2)
2. Locating Pin and Catch Assembly
3 . Actuator, Reject Button
-
4 . Pivot Pin, L e v e r
Spring, Actuator
Retaining Ring (2)
5 . Pivot Bracket and Bracket Assembly
.-..
6 . Pivot Shaft
Retaining Ring
7 . Support Bracket, Reject Rod
-
8 . Spring, Return, Reject Rod
9 . Reject Rod
Keps Nut, 1/4-20
Nut, 1/4-20
-
Lockwasher
1 0 . Coin Entry Chute
S p a c e r (4)
Screw, 8-32 x 1/2 HEX SWAGE
11. Mounting Bracket, Lower
1 2 . Retaining Ring, Slug Rejector
Washer
-
SECTION A
1 3 . Mounting Plate and Bracket Assembly 140711
1 4 . Mounting Plate, Slug Rejector 138189
1 5 . Angle and Guard Assembly 138235
Thumbscrew (2) 35745
1 6 . Coin Switch 131186
Plug, 9 131174
Pin T e r m i n a l (5) 132000
Lockwasher (2) 73604-5
Screw, 6
x 5 HEX
Z (2) 76626-5
Speednut 74750-5
1 7 . Mounting Bracket and Guard Assembly
138233
Washer (2) 54024
18. Shaft 119107-C
1 9 . Copper W a s h e r 119107-F
20. Long Paddle -119107-A
21. S p a c e r 119107-D
22. Copper Washer 119107-F
23. Copper Washer 119107-F
24. Short Paddle -119107-B
25. Iron Washer 119107-E
26. Iron Washer 119107-E
