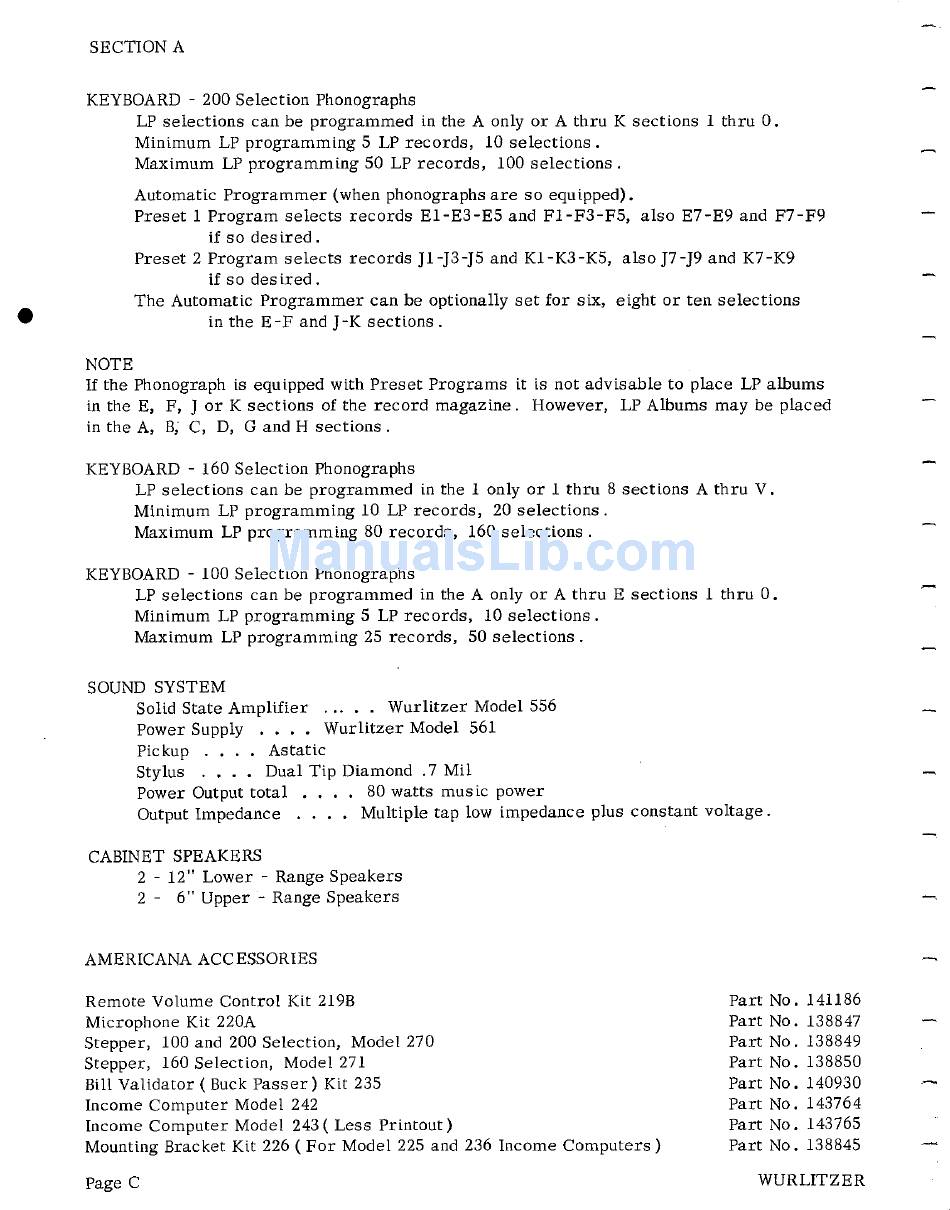

Wurlitzer 3800 Series Service Manual page 3

SECTION A
KEYBOARD
-
200 Selection Phonographs
LP selections can be programmed in the A only o r A thru K sections
1
thru 0 .
Minimum LP programming 5 LP records, 10 selections.
Maximum LP programming 50 LP records, 100 selections
.
Automatic Programmer (when phonographs a r e s o equipped).
Preset 1 Program selects records El-E3-E5 and F1-F3-F5, a l s o E7-E9 and F7-F9
if s o d e s i r e d .
Preset 2 Program selects records J1-J3-J5 and K1-K3-K5, a l s o J7-J9 and K7-K9
if s o d e s i r e d .
The Automatic Programmer can be optionally s e t f o r six, eight o r ten selections
in the E - F and J-K sections.
NOTE
If the Phonograph is equipped with Preset Programs it is not advisable to place LP albums
in the E, F, J o r K sections of the record magazine. However, LP Albums may be placed
in the A, B, C, D, G and H sections.
KEYBOARD
-
160 Selection Phonographs
LP selections can be programmed in the 1 only o r 1 thru 8 sections A thru V .
Minimum LP programming 10 LP records, 20 selections.
Maximum LP programming 80 records, 160 selections.
KEYBOARD
-
100 Selection Phonographs
LP selections can be programmed in the A only o r A thru
E
sections 1 thru 0 .
Minimum LP programming 5 LP records, 10 selections.
Maximum LP programming 25 records, 50 selections.
SOUND SYSTEM
Solid State Amplifier
.
..
.
.
Wurlitzer Model 556
Power Supply
. . .
.
Wurlitzer Model 561
Pickup
.
.
.
.
Astatic
Stylus
.
.
.
.
Dual Tip Diamond .7 Mil
Power Output total
. . . .
80 watts music power
Output Impedance
. . .
.
Multiple tap low impedance plus constant voltage.
CABINET SPEAKERS
2
-
12" Lower
-
Range Speakers
2
-
6" Upper
-
Range Speakers
AMERICANA ACCESSORIES
Remote Volume Control Kit 2198
Microphone Kit 220A
Stepper, 100 and 200 Selection, Model 270
Stepper, 160 Selection, Model 271
Bill Validator (Buck P a s s e r ) Kit 235
Income Computer Model 242
Income Computer Model 243 ( Less Printout)
Mounting Bracket Kit 226
(
F o r Model 225 and 236 Income Computers
)
Part No. 141186
Part No. 138847
-
Part No. 138849
Part No. 138850
Part No. 140930
-
Part No. 143764
Part No. 143765
Part No. 138845
-
Page C WURLITZER
