Berkel 829A Part List Manual
Manual gravity feed slicer
Hide thumbs
Also See for 829A:
- Service manual (24 pages) ,
- Owner's/operator's manual (16 pages) ,
- Specifications (2 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Berkel 829A
Summary of Contents for Berkel 829A

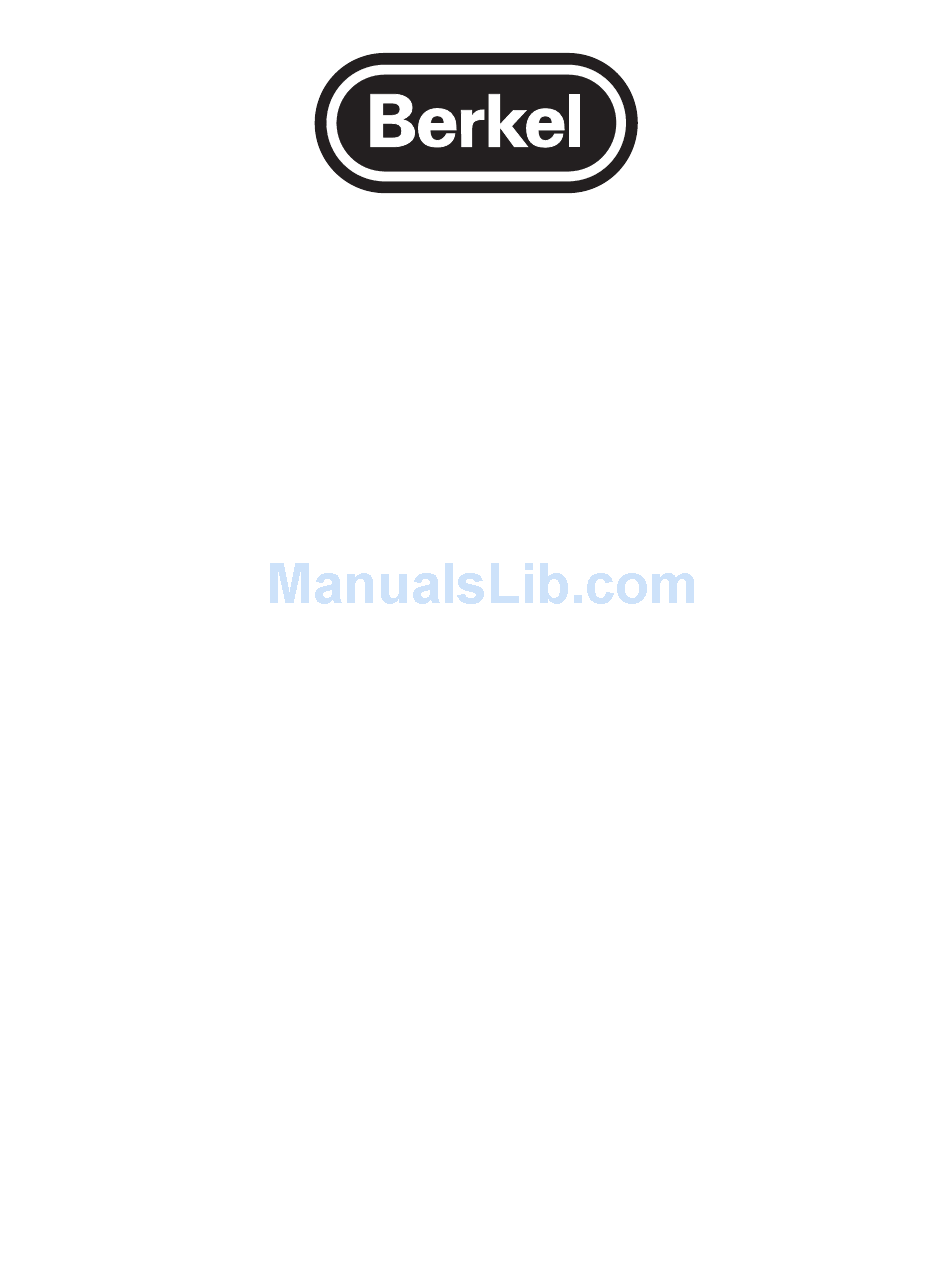

- Page 1 Model 829A Manual Gravity Feed Slicer Exploded Views and Parts List BK46728...
-
Page 3: Carriage Assembly
829A M ABLE AND ARRIAGE SSEMBLY 829A & 839A S • 3 ERVICE ANUAL... - Page 4 AUGE LATE NTERLOCK OMPONENTS Item Description Part Number 827-00033 Bushing 829A-00602 Stand Off 829A-00603 Spring 829A-00604 Bushing 829A-00605 Nylon Screw 829A-00606 Circlip 829A-00600 Knob 829A-00607 Handle 829A-00608 Extension 829A-00609 Bushing 829A-00610 Circlip 829A-00601 Washer 829A-00611 CU-00008...
- Page 5 Spring, Long 829-00020 Carriage Assembly Complete 829-00012 Bolt 829-00017 Bearing 827-00015 Flat Washer 827-00016 Nylon Screw 827-00129 Product Table Support 829-00007 Oil Screw 829-00099 Oil Plate 827-00097 Rivet 827-00096 Nylon Plug 829-00082 4 • 829A & 839A S ERVICE ANUAL...
-
Page 6: Gauge Plate Assembly
829A K NIFE AND AUGE LATE SSEMBLY 829A & 839A S • 5 ERVICE ANUAL... - Page 7 825-00021 829-00025 Spring Washer 825-00095 Washer 829-00401 827-00033 Cam Pin 827-00027 Support 829-00022 Set Screw 827-00031 Screw 827-00028 827-00029 Nylon Pin 825-00030 Knife Bearing Complete 829-00067 Bushing 827-00219 Screw 827-00074 Insert 827-00135 6 • 829A & 839A S ERVICE ANUAL...
- Page 8 829A H OUSING AND LECTRICAL 829A & 839A S • 7 ERVICE ANUAL...
- Page 9 Screw 827-00058 Cord Clamp 827-00127 2101-07041 Plate, Motor 829-00055 Power Cord 4175-00031 Cover 825-00405 Threaded Rod 829-00053 Screw 827-00062 827-00029 Switch, Complete 827A-00039-02 Ribbed Belt 829-00066 Motor 829-00048 Tie Rod, Motor 829-00060 8 • 829A & 839A S ERVICE ANUAL...
- Page 10 829A S 829A 839A S hArpener SSembly HARPENER SSEMBLY 829A & 839A S • 9 ERVICE ANUAL...
- Page 11 Lever, Sharpener 829-00122 Bearing Housing 829-00123 Spring 829-00124 Set Screw 829-00125 Pin, Roll 829-00126 Handle, Sharpener 829-00127 Bushing 829-00129 827-00146 829-00130 Knob 829-00131 Spindle 829-00132 Stone, Deburring 829-00409 Washer 829-00133 Screw 827-00074 10 • 829A & 839A S ERVICE ANUAL...
