Summary of Contents for GSM Power Socket

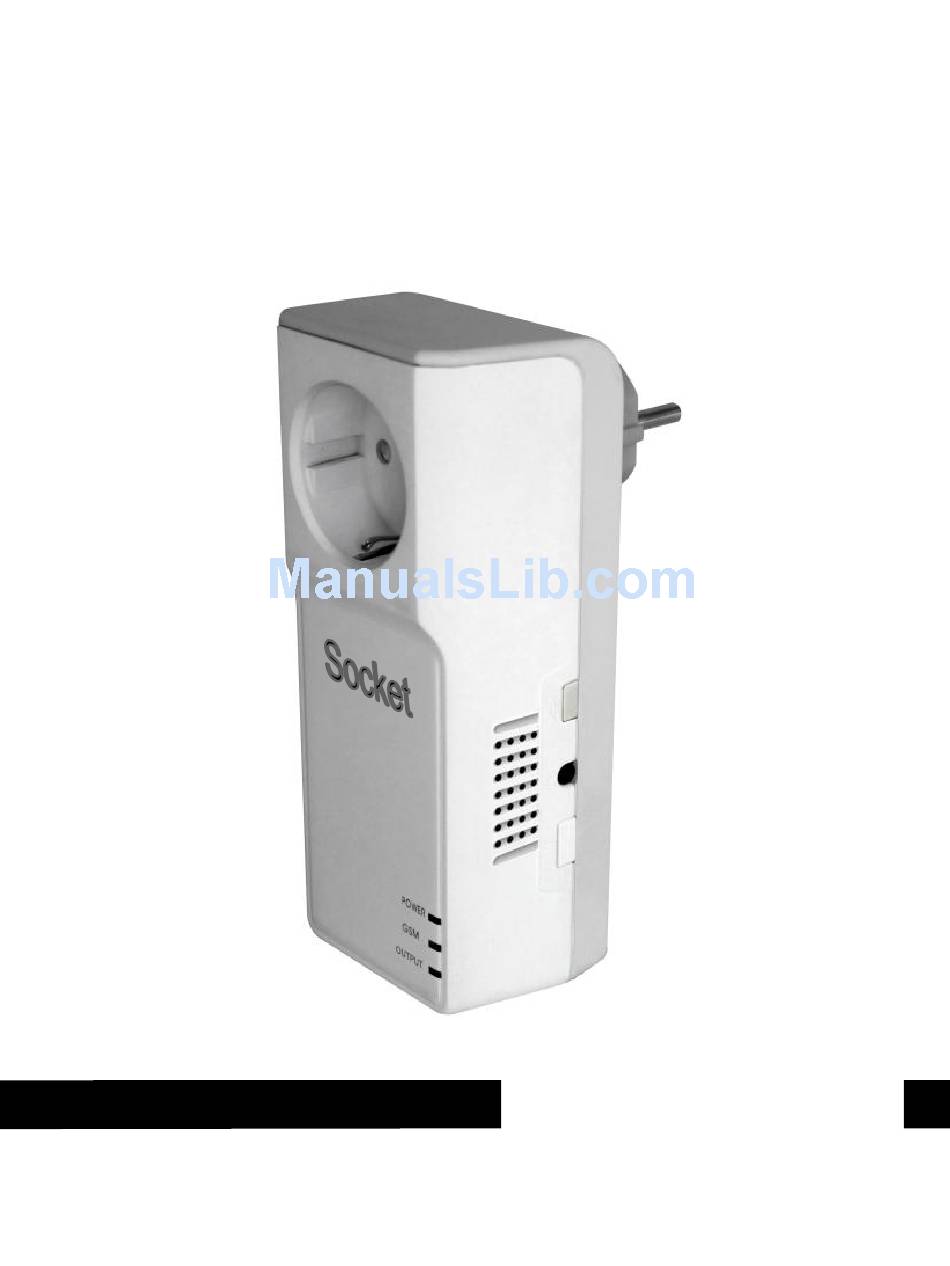

  • Page 1 GSM Power Socket User Manual...
  • Page 2 GSM Power Socket detects the rapid-changing or the reaching of pre-set alert value of surroundings temperature. GSM Power Socket is mainly applied for house and office usage. It is not suited for industry application, especially in humidity or dust condition.

  • Page 3: Table Of Contents

    Chapter 2 Quick start ................12 2.1 Install the SIM card and temperature sensor ......12 2.2 GSM Power on/ off ..............12 2.3 Add a Master number to the socket .......... 13 2.4 The regulation of time .............. 14 2.5 Socket output switching on/off ..........
  • Page 4 GSM POWER SOCKET USER MANUAL 3.6 Auto-control the socket output by temperature ......24 3.7 Temperature alarm ..............27 3.8 SMS notification upon the socket output changing ....28 3.9 SMS notification upon external power supply changing .... 29 3.10 “Beep” warning tone............... 29 3.11 Check status ................

  • Page 5: For Your Safety

    GSM POWER SOCKET USER MANUAL 1. Purchase a GSM SIM card (mobile phone card) from GSM network service provider and install it in the socket. This SIM card number is referred as GSM Power number on this brochure. Socket 2. The user needs to activate the Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM.

  • Page 6: Exception Clause

    GSM POWER SOCKET USER MANUAL Do not open the case unless maintenance needed. Do not keep shaking or fall down this socket, otherwise it can be damaged. This socket is a wireless signal transmission socket. Keep it away from electronic equipment likely to interfere with the wireless signals, in order to avoid signals interference.

  • Page 7: Chapter 1 Features And Accessories

    GSM POWER SOCKET USER MANUAL Chapter 1 Features and accessories 1.1 Main function This socket uses a GSM SIM card. Remotely operate by SMS command: The socket be controlled and set by sending SMS commands. Input: 110V-250V/50Hz. Output: Max.16A for long-duration operation.

  • Page 8: Package Contents

    GSM POWER SOCKET USER MANUAL 1.2 Package contents GSM power socket（1 unit） Temperature sensor（1 unit） User manual（1 unit）...

  • Page 9: Sockets Instructions

    GSM POWER SOCKET USER MANUAL 1.3 Sockets instructions Figure 1: instructions GSM Power Socket...

  • Page 10: Light Indicator And "Beep" Warning Tone

    GSM POWER SOCKET USER MANUAL Figure 2: Temperature sensor Instruction 1.4 Light indicator and “Beep” warning tone Indicator Action Status Turning off No power supply input Power (Green) light Constant Has power supply input light Not installed SIM card, or the power Turning off switch of socket is “OFF”.
  • Page 11 GSM POWER SOCKET USER MANUAL The socket outlet changes power One time supply status. “Beep” Several lost external GSM Power Socket warning tone times power supply. (Default is successfully GSM Power Socket turning off) register GSM network, or it is...

  • Page 12: Chapter 2 Quick Start

    Power on: 1. Turn the power switch to “On” position (See 7 on Figure1). 2. Plug the in an AC power socket (See 6 on GSM Power Socket Figure1). The blue light will be flashing slowly for about 20 seconds, then blue light be on constantly and a long “Beep”...

  • Page 13: Add A Master Number To The Socket

    (Refer to Chapter 3.2) Power off: 1. Turn the power switch to “Off” position. The blue light turns off. 2. The socket outlet can work as a normal power socket. GSM Power can not be controlled by SMS commands. M button is Socket disabled.

  • Page 14: The Regulation Of Time

    GSM POWER SOCKET USER MANUAL 2.4 The regulation of time  Important note is being used for the first time, or it has been GSM Power Socket reset, the Master user must adjust the socket time according to the current time of SMS center. Otherwise,...

  • Page 15: External Power Supply Notification

    GSM POWER SOCKET USER MANUAL 2.6 External power supply notification will notify the user when the external power changes. GSM Power Socket The “Beep, Beep…” tones will be heart (if enabled), also a SMS notification will be sent if the SIM card is available:...

  • Page 16: Chapter 3 Advanced Settings

    GSM POWER SOCKET USER MANUAL Chapter 3 Advanced settings 3.1 Define the users 3.1.1 User authorization level All the settings of can be set or adjusted via a SMS GSM Power Socket command. There are two mobile phone user controlling levels:...
  • Page 17 GSM POWER SOCKET USER MANUAL  will reply to the user after it receives the SMS GSM Power Socket command.  Note  The “#” symbol must not be ignored when typing an SMS command.  No allow any space within the commands.
  • Page 18 GSM POWER SOCKET USER MANUAL  NewMasterNumber should be the new Master user’s mobile phone number. Method 2: should be reset to factory settings to remove GSM Power Socket old Master number before setting the new one. (Refer to Chapter 3.11)

  • Page 19: Change Password

    GSM POWER SOCKET USER MANUAL 3.1.7 Delete family number  Method The Master user sends following SMS message in order to: Delete a family number: #113#FamilyNumber# Delete several family numbers simultaneously: #113#FamilyNumber1#…#FamilyNumber4# Delete all family numbers: #113#  Successful SMS reply #******# Family number has been deleted.
  • Page 20 GSM POWER SOCKET USER MANUAL automatically and a SMS notification message will be sent to the Master, but the setting time range and temperature range parameters will be saved until is reset to factory GSM Power Socket settings. 3.3.1 Switching on/off by SMS ...

  • Page 21: Delayed-Switch On/Off The Socket Output

    GSM POWER SOCKET USER MANUAL be switched on or cut off automatically when the user hears the ring tone in the phone. The calling will be hung up automatically if the user doesn’t hang up the call.  Method The Master user sends following SMS message in order to:...

  • Page 22: Timed Switching On The Socket Output

    GSM POWER SOCKET USER MANUAL immediately and be switch off again when reaching the setting delayed time. After switching off the socket output, the following SMS reply will be sent: Status: OFF Delay control: function OFF  Method The Master user sends following SMS message in order to:...
  • Page 23 GSM POWER SOCKET USER MANUAL  Method The Master user sends following SMS message in order to: Enable timing switch on the output: #128#1# (18)  Successful SMS reply Schedule control: function ON WorkDay, StartTime-EndTime If the value of the “WorkDay, StartTime, EndTime” on the SMS reply are all 0, it means the time duration has not been set.

  • Page 24: Auto-Control The Socket Output By Temperature

    GSM POWER SOCKET USER MANUAL Friday Saturday Everyday Monday to Friday  StartTime and EndTime: Be consists of 4 digits (hh:mm) and works on a 24 hour clock. The StartTime and EndTime should be in the same day, and the EndTime must be later than StartTime.
  • Page 25 GSM POWER SOCKET USER MANUAL switch on/off the socket” functions, the socket will control to switch on or cut off the output according to temperature setting.  If users open the “timed switch on the socket” or “delayed switch on/off the socket” functions, the temperature control function will only be valid when power output is switch on (including timed switch on or delayed switch on time period).
  • Page 26 GSM POWER SOCKET USER MANUAL when command 20 be set.  Method The Master user sends following SMS message in order to: Set temperature range to switch on/off the output: #159#Mode#LowTemp#HighTemp# (22)  Mode is the control selection: For coldness, mode=1. For warmness, mode=0.

  • Page 27: Temperature Alarm

    GSM POWER SOCKET USER MANUAL Disable auto-control the output by temperature: #159#0# (23)  Successful SMS reply Status: ON/OFF Temp control: function OFF Temp: ** Mode: Heating/Cooling Range: LowTemp ~ HighTemp 3.7 Temperature alarm 3.7.1 Over-temperature alarm  Description A range of temperature can be pre-set onto the socket. In this case,...

  • Page 28: Sms Notification Upon The Socket Output Changing

    GSM POWER SOCKET USER MANUAL 3.7.2 Temperature rapid-changing alarm  Description A time period value and temperature changing value can be pre-set onto the socket. In this case, if the surroundings temperature change to the pre-set value within the pre-set time period, a SMS alarm message will be auto-sent to master’s mobile phone.

  • Page 29: Sms Notification Upon External Power Supply Changing

    GSM POWER SOCKET USER MANUAL  Successful SMS reply Set no SMS notification when socket output changed. Set SMS notification once socket output changed. 3.9 SMS notification upon external power supply changing  Description will default notify the user when the state of the GSM Power Socket external power supply is changed with a SMS notification.

  • Page 30: Check Status

    GSM POWER SOCKET USER MANUAL The Master user sends following SMS message in order to: Enable the “Beep” warning tone: #19#1# (34) Disaable the “Beep” warning tone (Default): #19#0# (35)  Successful SMS reply Beep alarm activated/de-activated. 3.11 Check status ...
  • Page 31 GSM POWER SOCKET USER MANUAL SMS message of “Timing switch on the socket” parameters: Schedule control: function ON/OFF WorkDay, StartTime-EndTime. Check “Temperature control” parameters: #159# (40) After receiving the SMS commands, will reply one GSM Power Socket SMS message of temperature parameters checking:...

  • Page 32: Resetting The Socket

    GSM POWER SOCKET USER MANUAL 3.12 Resetting the socket  Description  This function resets all programmed settings to their original values, including cleaning all user number, timing parameter and temperature parameter.  can’t be If the setting status is wrong or the...

  • Page 33: Chapter 4 Maintenance

    GSM POWER SOCKET USER MANUAL Chapter 4 Maintenance  does not in use for long time, it GSM Power Socket should be powered off.  Store and use the remote socket in suitable temperature. Too high or too low temperature will likely to damage the socket.

  • Page 34: Chapter 5 General Troubleshooting

    GSM POWER SOCKET USER MANUAL Chapter 5 General Troubleshooting General Possible Reason Solution Trouble Power Check GSM Power ’s external AC indicator light No power input. Socket turns off power is available. SIM card no install Can’t find or identify properly: Power off the SIM card.
  • Page 35 GSM POWER SOCKET USER MANUAL General Possible Reason Solution Trouble SIM card PIN code Close the PIN code. actives. Contact with local SIM card invalid. operator to check of it. The master Other master is Change Master number already set in the...

  • Page 36: Chapter 6 Main Technical Parameters

    GSM POWER SOCKET USER MANUAL Chapter 6 Main Technical Parameters 110~230V/50HZ, Input power socket CEE 7/7 hybrid Schuko/French plug 110~ 230V/50HZ, 230V/30A(30s), Output power socket 16A long-duration, CEE7/4 German “Schuko” Operating temperature -10℃~+50℃ Store temperature -20℃~+60℃ Relative humidity 10-90%，without condensation...

  • Page 37: Appendix: Sms Commands List

    GSM POWER SOCKET USER MANUAL Appendix: SMS commands list Category Function Command Time Regulate the socket time #152#SIMCardNumber# Add a master number to the (2) #00# socket Change the master user’s (3)#14#NewMaster number Number# Add a family number (4)#06#FamilyNumber# (5)#06#FamilyNumber1 Add several family numbers #...#FamilyNumber4#...
  • Page 38 GSM POWER SOCKET USER MANUAL Category Function Command Delay switching off the output (17) #138#0#Minutes# after a certain minutes Enable timing switch on the (18) #128#1# output Timing Set time period to switch on (19) #129#WorkDay# control the output StartTime#EndTime#...
  • Page 39 GSM POWER SOCKET USER MANUAL Category Function Command SMS notification upon the power supply changing (32) #12#1# (Default) No SMS notification upon the (33) #12#0# power supply changing Enable the “Beep” warning “Beep” (34) #19#1# tone warning Disaable the “Beep” warning...
  • Page 40 GSM POWER SOCKET USER MANUAL GSM Power Socket...
