GSM Trader Meercat MEPBE Installer Manual

MEERKAT
Installer's Manual

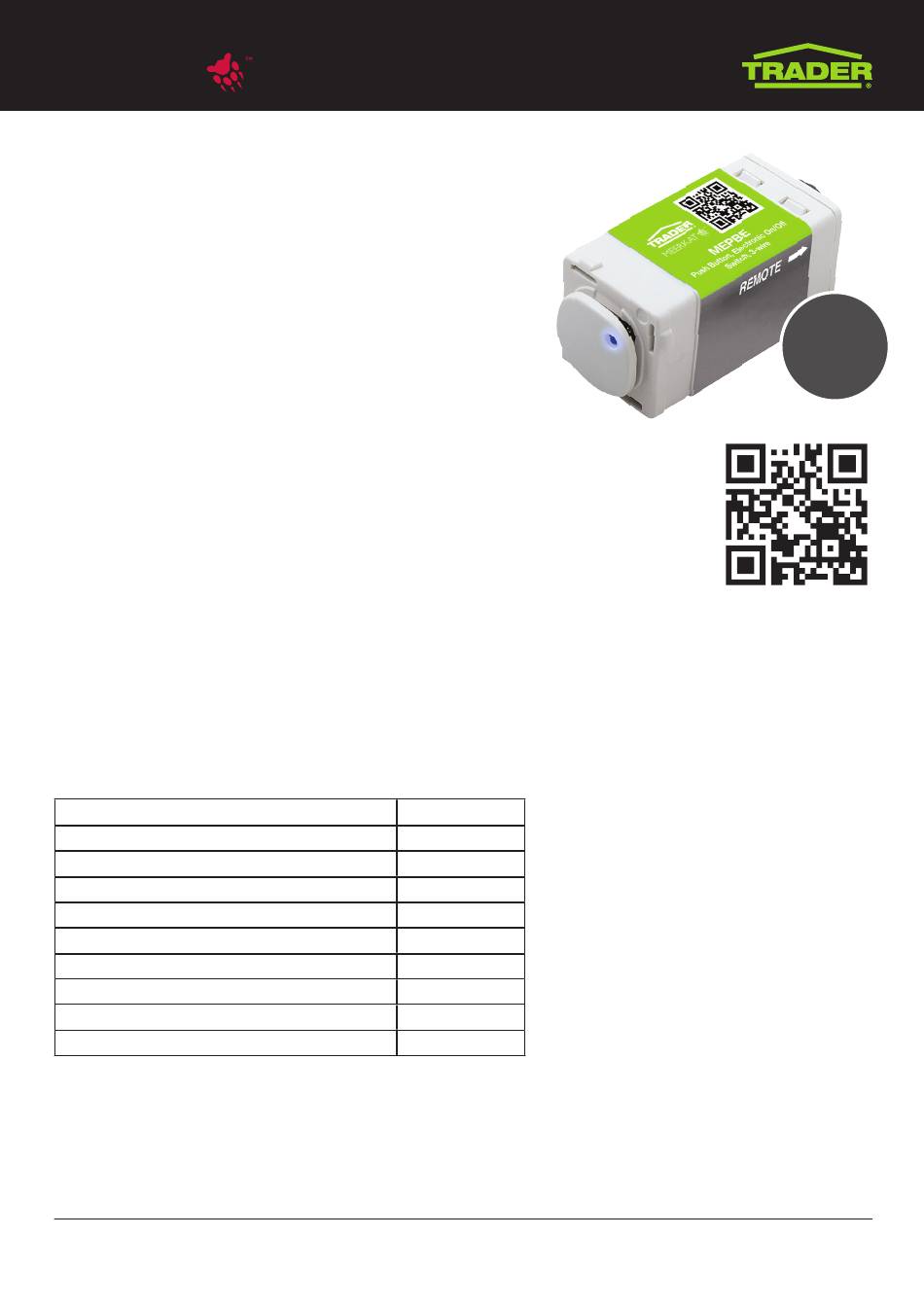

MEPBE Push Button,
Electronic On/Off Switch, 3-wire

1. FEATURES

• Soft touch push button ON/ OFF switch.
• Blue LED indicates device status.
• Returns to OFF after loss of power.
• Compatible with a wide range of load types including
wire wound transformers & fan motors.
• Compatible with Trader and Clipsal* Style wall plates.
• Multi-Way Switching compatible with the MEPBMW Push Button,
Multi-Way Remote and On/Off.

2. OPERATING CONDITIONS

• Operating Voltage:
• Operating Temperature:
• Compliance Standard:
• Maximum Load:
• Maximum Current Capacity: 5A
• Terminals:
Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

3. LOAD COMPATIBILITY

LOAD TYPE
Incandescent / 240V Halogen
Fluorescent Tube with Electronic Ballast
Fluorescent Tube with Iron Core Ballast
Compact Fluorescent
Electronic Transformer
LED
Wirewound Transformer
Fan Motors
Heating Elements

4. WIRING INSTRUCTIONS

WARNING: The MEBPE is to be installed as part of a fixed wire electrical installation. By law such installations must
be made by an electrical contractor or similarly qualified person.
NOTE: A readily available disconnect device, such as a type C 16A circuit breaker shall be incorporated - external to
the product.
*The Clipsal brand and associated products are Trademarks of Schneider Electric (Australia) Pty Ltd. and used for reference only
GSM Electrical (Australia) Pty Ltd // Level 2, 142-144 Fullarton Road, Rose Park SA 5067 // P: 1300 301 838 F: 1300 301 778 E: service@gsme.com.au
3302-200-10890 R3 // MEPBE Push Button, Electronic On/Off Switch, 3-wire - Installer's Manual 200501
230V a.c. 50Hz
0 to +50 °C
CISPR15, AS/NZS 60669.2.1
1200W / 500VA
Screw Terminals suit 0.5mm
(bootlace terminal recommended)
COMPATIBILITY
1200W
500VA
500VA
500VA
500VA
500VA
500VA
500VA
1200W
to 1.5mm stranded cable
2 2
3-WIRE
SUITABLE FOR
FANS, MOTORS
OR IRON CORE
BALLASTS
Scan QR code
with your phone to see
technical information
on our website
